The Bosch Solution 6000 kit with a CP737B Wi-Fi keypad, two wireless PIRs and two keyfobs is a commercial-grade, app-ready alarm for larger Australian homes and businesses. It pairs the powerful Solution 6000 panel with a 3.5-inch Wi-Fi touchscreen keypad, two wireless PIR detectors, the RFRC-STR2 wireless receiver and two premium keyfobs, so the household can arm and disarm from a remote and from the iFob app.

What's in the box
- Bosch Solution 6000 control panel (up to 144 zones across up to 8 areas)
- Bosch CP737B Wi-Fi smart-prox keypad (3.5-inch colour)
- 2x Blue Line Gen2 wireless PIR motion detectors (battery powered)
- Bosch RFRC-STR2 wireless receiver and 2x premium 4-button keyfobs
- 18V transformer, 12V 7Ah battery, internal 120dB piezo siren and external siren with strobe
- Metal enclosure with tamper, 8x 3k3 + 8x 6k8 resistors and a manual

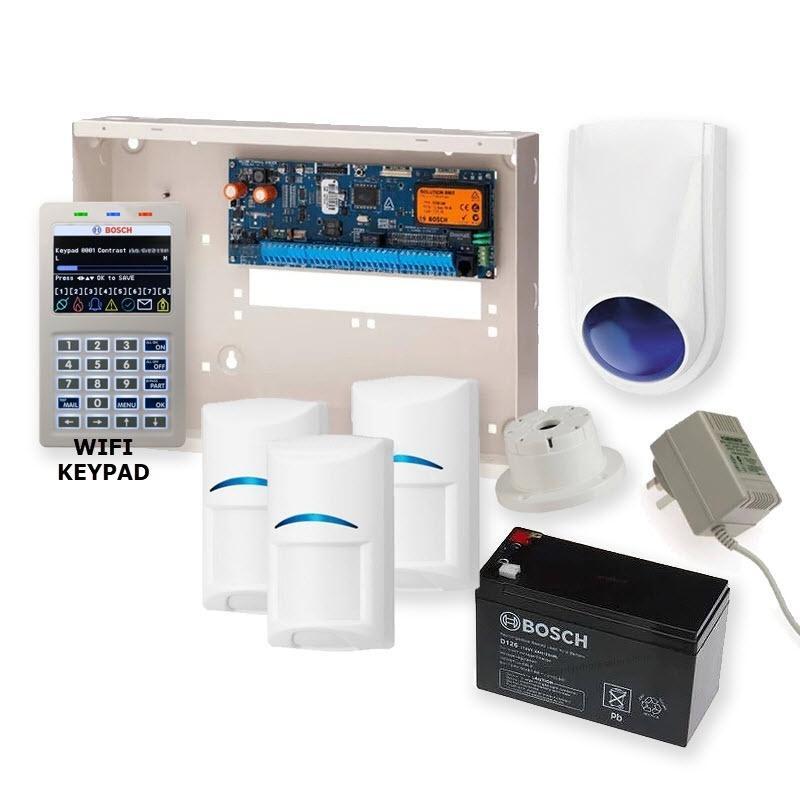

The Bosch Solution 6000 kit with a CP737B Wi-Fi keypad and three PIRs is a commercial-grade, app-ready wired alarm for larger Australian homes and businesses. It pairs the powerful Solution 6000 panel with a 3.5-inch Wi-Fi smart-prox keypad and three Blue Line Gen2 PIR detectors, so it covers the main areas and connects to the iFob app over Wi-Fi straight after install.

What's in the box
- Bosch Solution 6000 control panel (up to 144 zones across up to 8 areas)
- Bosch CP737B Wi-Fi smart-prox keypad (3.5-inch colour)
- 3x Blue Line Gen2 PIR motion detectors (BPR2-W12, 12m)
- 18V transformer, 12V 7Ah battery, internal 120dB piezo siren and external siren with strobe
- Metal enclosure with tamper, 8x 3k3 + 8x 6k8 resistors and a manual

The Bosch Solution 6000 PCB kit with the CP736B smart keypad is the bare foundation for a custom professional alarm. It includes the Solution 6000 control panel board, a colour graphic keypad with smart-card reader, an 18V transformer, a 12V 7Ah backup battery and a metal enclosure with tamper, so your installer can build the system from the ground up with the detectors, sirens and modules the site needs.

What's in the box
- Bosch Solution 6000 control panel (16 zones on board, expandable to 144 wired or wireless)
- Bosch CP736B 3.5-inch colour graphic keypad with integrated smart-card reader (not a touchscreen)
- 18V plug-pack transformer and 12V 7Ah backup battery
- Metal enclosure with tamper switch and a manual
- No detectors, no sirens and no IP module included (add to suit the site)

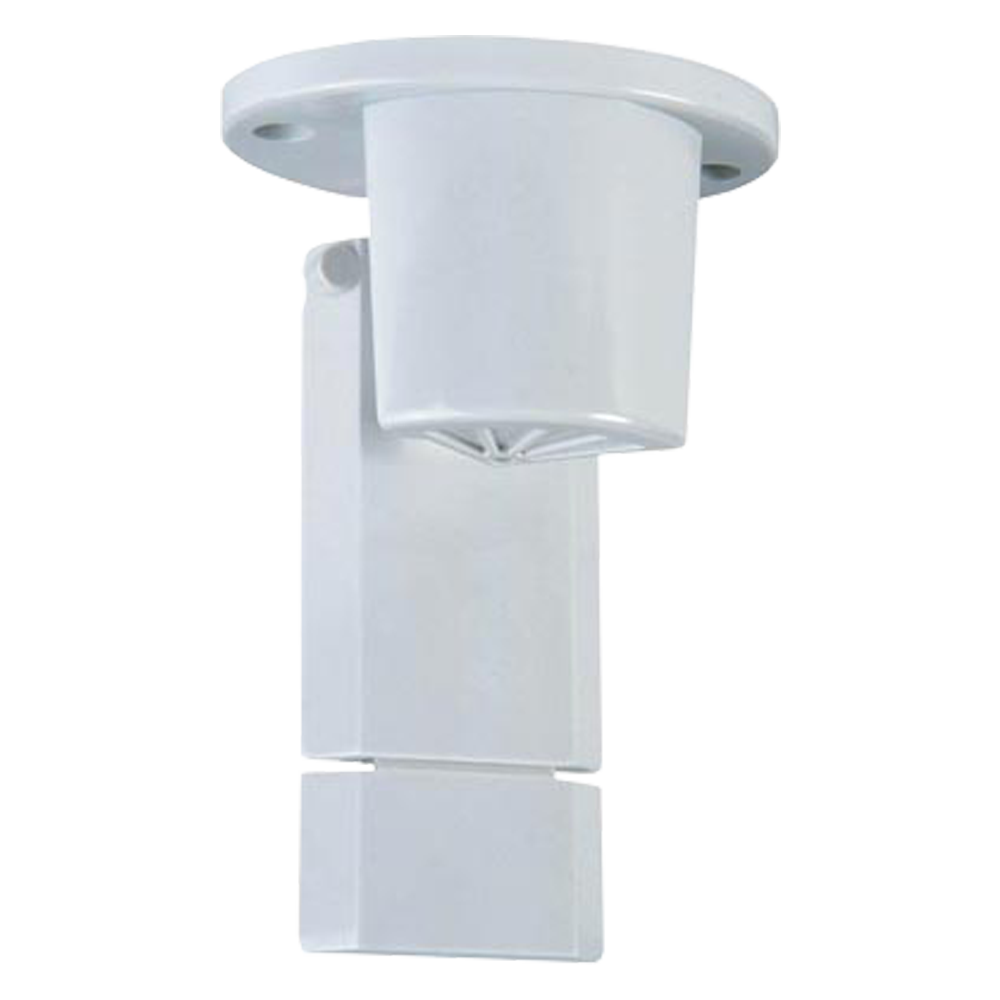

The Bosch B338 is a swiveling universal bracket that lets you ceiling-mount a Bosch motion detector and aim it exactly where you need it. The plastic surface-mount bracket gives a vertical swivel range of +7° to -16° and a horizontal range of ±45°, so you can point a wall-pattern detector down into a room from the ceiling. It suits many Bosch detector types, including the Blue Line range.

Key points
- Universal ceiling-mount bracket for many Bosch detectors
- Vertical swivel +7° to -16°, horizontal swivel ±45° for precise aiming
- Plastic, surface-mount, swiveling design
- Lets a wall-coverage detector be mounted centrally on the ceiling
- Note: pet immunity can no longer be assured once a detector is ceiling-mounted on this bracket

The Bosch B426-M is a Conettix Ethernet communication module that connects a Bosch Solution 2000, Solution 3000 or AMAX alarm panel to your network. It gives the panel a wired internet path so you can control the system from your phone with the free Bosch RSC+ app — arming, disarming, push notifications and device control — and it reports events securely with AES encryption. It plugs into the panel bus and connects to your router with a standard network cable.

Key points
- Adds Ethernet (IP) connectivity to Solution 2000/3000 and AMAX panels
- Enables the Bosch RSC+ app: remote arm/disarm, push notifications, device control
- Self-monitor with no monthly fee, or report to a monitoring centre
- 128 to 256-bit AES encryption, NIST FIPS-197, anti-substitution
- 10/100 Base-T, IPv4 and IPv6; Plug and Play setup
- Connects to your router with a standard Cat5 (or better) network cable
- Note: the B426-M and the older B426 use different, non-interchangeable firmware

The Bosch B810 is the RADION wireless receiver for the Bosch Solution 3000 alarm panel. It lets the panel use Bosch RADION wireless detectors, keyfobs, panic buttons, door and window contacts and repeaters, so you can add protection to rooms where running cable is difficult.

Key points
- Adds RADION wireless devices to a Bosch Solution 3000
- Supervises up to 504 wireless points, 1000 keyfobs and 8 repeaters
- 433.42MHz with dual internal antennas for reliable reception
- Cover and wall tamper, plus RF interference (jamming) detection
- Connects to the SDI2 bus; up to 243m of wiring; 10 to 14VDC, 70mA max
- Indoor use; address switch and external status LEDs for easy install

High-density motion sensor featuring dual Fresnel lenses and 77 detection zones for superior intruder response and reliable area coverage.

The Bosch BPR2-WP12 is a Blue Line Gen2 pet-friendly PIR motion detector that gives 12 m x 12 m wall-to-wall coverage while ignoring pets up to 20 kg. Two Fresnel lenses create a high-density 77-zone pattern with three lookdown zones, and First Step Processing sets the sensitivity automatically, so there are no field adjustments to make. The installer can switch pet immunity on or off to suit the room. It is a wired detector with a normally-closed relay output and tamper.

Key points
- 12 m x 12 m (40 ft) wall-to-wall PIR coverage at 94 degrees
- Pet immunity for one or two pets up to 20 kg, switchable by the installer
- High-density 77-zone, 7-layer pattern plus three lookdown zones
- First Step Processing - automatic sensitivity, no field adjustments
- Dynamic temperature compensation for reliable catch in any season
- Wired NC relay and tamper; 9-15 VDC; mount 2.2-2.75 m
