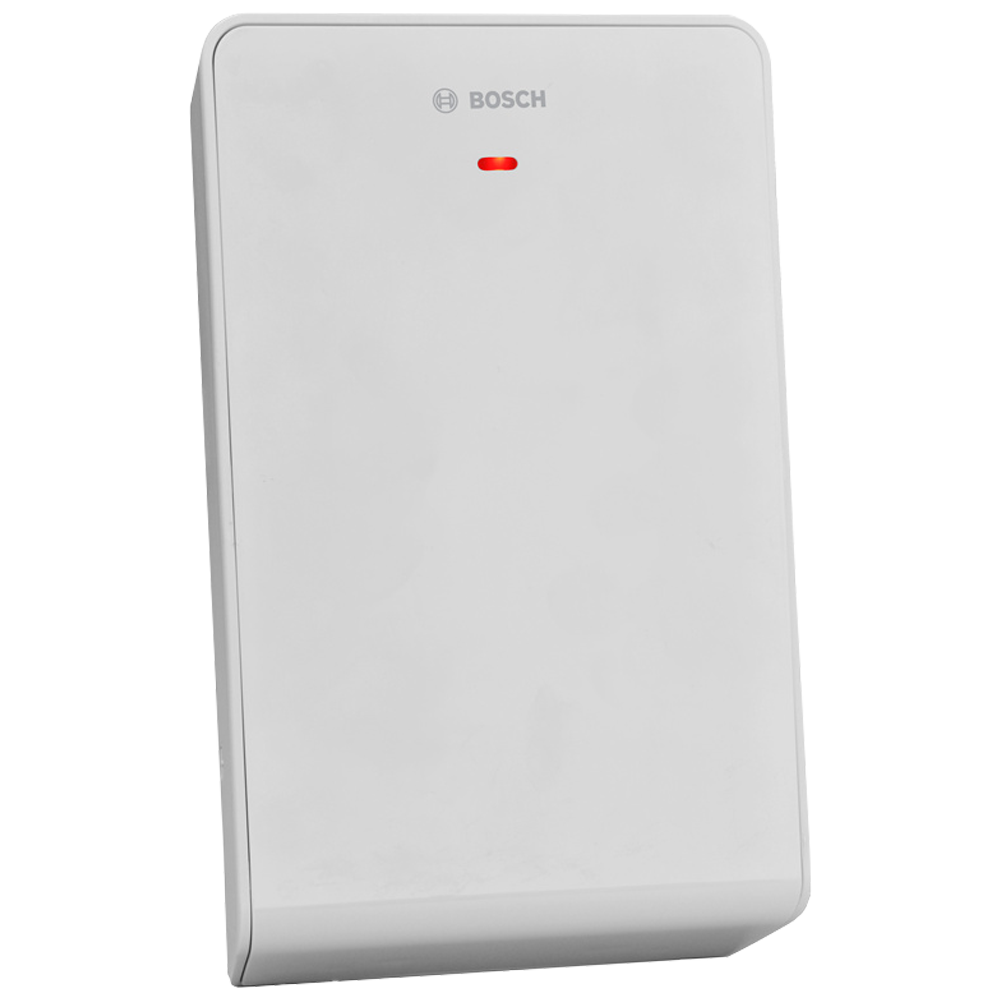

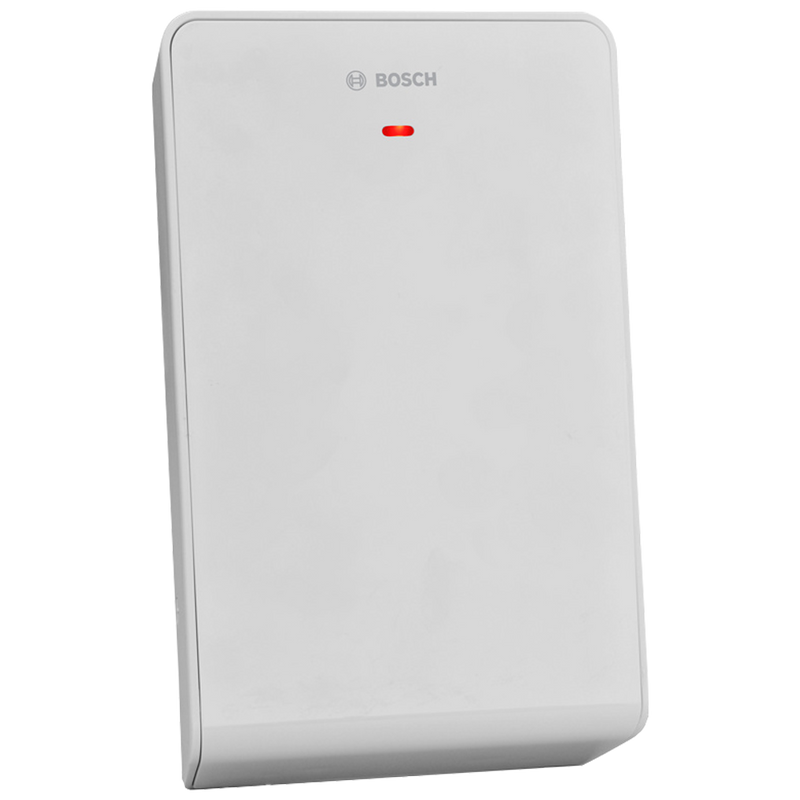

Bosch B810 RADION Wireless Receiver for Solution 3000/4000
The Bosch B810 is a 433.42 MHz RADION wireless receiver that connects compatible detectors, contacts, keyfobs, panic buttons and repeaters to a supported Bosch control panel over the SDI2 bus, with one receiver used per system.
What you get
- B810 wireless receiver, hardware pack and installation guide
You'll also need
- A compatible Solution panel: the ICP-SOL3-P or ICP-SOL4-P. On the Solution 4000, a B810 and a WE800EV2 cannot be fitted together
- RADION devices to receive: the RFDL-11 TriTech and RFPR-12 PIR detectors, RFDW-SM and RFDW-RM door and window contacts, the RFUN universal transmitter, RFKF-FBS keyfob and RFGB glass break
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the B810 is
The Bosch B810 is the wireless SDI2 bus interface that connects compatible RADION motion and specialty detectors, keyfobs, panic buttons, door and window contacts and repeaters to a supported Bosch control panel through PWR, A, B and COM. It supports Solution 3000 and Solution 4000 installations, with one RADION receiver used per system.
The receiver listens on 433.42 MHz through dual internal antennas that provide spatial and polar reception. It detects and reports RF interference when ambient noise remains above the jamming threshold for a continuous 20 seconds, transmits a tamper signal when removed from its base or mounting surface, and provides signal strength and margin reporting for installation diagnostics.
It supports supervision of 504 wireless points, 1000 keyfobs and 8 repeaters, although the usable count depends on the connected panel and its configuration. On Solution 4000, WE800EV2 and B810 receivers are mutually exclusive; within the Solution 2000/3000 family, RADION receiver support applies to Solution 3000 rather than Solution 2000.
The receiver connects to the panel over SDI2 at distances up to 243 m using 0.65 mm (22 AWG) to 2.0 mm (18 AWG) wire, and uses 10-14 VDC, 12 VDC nominal, with a maximum current draw of 70 mA. It is addressed with a rotary switch, is intended for indoor use from 0 °C to +49 °C, and measures 139.70 mm x 209.60 mm x 31.80 mm.
Setup on Solution 3000 requires selecting B810 as the wireless receiver type before enrolment. RADION devices can then be learnt by entering their RF ID or triggering them in auto mode, while a walk test and review of each point's signal strength and margin complete the commissioning checks.
02Engineering
B810 specifications
Radio — 433.42 MHz with dual internal antennas for spatial and polar reception — devices can be received from more positions in the building
Jamming detection — reports RF interference when ambient noise stays above the threshold for a continuous 20 seconds — sustained radio interference is detected and reported
Tamper — transmits a tamper signal when removed from its base or the mounting surface — removal of the receiver itself triggers a tamper signal
Diagnostics — multiple enrolment options plus signal strength and margin reporting — installers can check how well each point is received
Capacity — supervision of 504 wireless points, 1000 keyfobs and 8 repeaters — establishes the receiver-side capacity for system planning
Wiring — SDI2 PWR, A, B and COM, up to 243 m on 0.65 mm to 2.0 mm wire — the receiver can be positioned for better reception away from the panel
Power — 10-14 VDC, 12 VDC nominal, 70 mA maximum — defines the receiver's supply requirement for system planning
Compatible devices — RFDL-11, RFPR-12 and RFPR-C12 detectors, RFDW-SM and RFDW-RM contacts, RFUN, RFKF keyfobs, RFPB panic buttons, RFGB glass break, RFSM smoke and RFRP repeater — covers wireless detection, panic and control roles
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | B810 Wireless SDI2 bus interface |
| Description | The B810 is a wireless receiver that connects RADION wireless peripherals such as the motion and specialty detectors, keyfobs, panic buttons, door window contacts, repeaters, and more, to supported Bosch control panels using the SDI2 Bus connection. |
| Order number | B810 |
| Compatible control panels | B9512G/B8512G; B6512/B5512/B4512/B3512; GV4 Series (D9412GV4, D7412GV4 v2.xx or higher) control panels |
| Compatible RADION devices | RFDL-11-A/RFDL-11 motion detector; RFDW-SM-A/RFDW-SM standard door/window contact; RFDW-RM-A/RRDW-RM recessed door/window contact; RFRP-A/RFRP repeater; RFPR-12-A/RFPR-12 motion detector; RFPR-C12-A/RFPR-C12 motion detector (curtain); RFUN-A/RFUN universal transmitter; RFKF-FB-A /RFKF-FBS-A/RFKF-FB/RFKF-FBS 4-button keyfob; RFKF-TB-A /RFKF-TBS-A/RFKF-TB/RFKF-TBS 2-button keyfob; RFPB-TB-A/RFPB-TB 2-button panic; RFPB-SB-A/RFPB-SB single button panic; RFGB-A/RFGB glass break; RFSM-A/RFSM smoke detector |
| Receives | RF signals from RADION transmitters, repeaters, and glassbreaks |
| Parts included | 1 Wireless receiver, 1 Hardware pack, 1 Installation guide |
| Mounting locations | residential, commercial or industrial locations in which a compatible control panel is already installed |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Wireless points supervised | 504 |
| Keyfobs supervised | 1000 |
| Repeaters supervised | 8 |
Wireless & Radio
| Feature | Detail |
|---|---|
| Frequency | 433.42 MHz |
| Antennas | Dual internal antennas provide spatial and polar RF signal reception for high reliability |
| RF interference (jamming) detection | Detects and reports interference jamming when the ambient noise level is above jamming thresholds for a continuous period of 20 seconds |
| Signal reporting | Signal strength and margin reporting |
| Tamper detection | Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface. |
| Tamper protection | Cover and wall tamper protection |
| Device enrollment | Multiple device enrollment options as well as RF diagnostics; Enroll Device Database management |
| Wireless protocol | RADION wireless protocol |
Communications & Reporting
| Feature | Detail |
|---|---|
| Bus | SDI2 bus communication |
| Panel connections | SDI2 connections (PWR, A, B, COM) |
| Status to panel | Transmits a 4-bit sequence of information back to the control panel for status changes |
| Addressing | Address switch on the back of the receiver housing provides a single-digit setting for the receiver's address |
| Status LEDs | External status LEDs; the LED provides status and troubleshooting information about the receiver and its connection |
Power & Electrical
| Feature | Detail |
|---|---|
| Power/voltage | 10-14 VDC, 12 VDC nominal |
| Maximum current draw | 70 mA |
| Wiring distance | 243 m (800 ft) |
| Wiring gauge | 0.65 mm (22 AWG) to 2.0 mm (18 AWG) |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions | 139.70 mm x 209.60 mm x 31.80 mm (5.50 in x 8.25 in x 1.25 in) |
| Operating Environment | 0 °C to +49 °C (+32 °F to +120 °F) |
| Relative humidity | Up to 93% non-condensing |
| Use | Intended for indoor use. |
| Enclosure | Sliding self-locking enclosure with an integrated bubble level and a custom gap-free, lift gate style terminal block |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Australia | RCM [B810] |
| Europe | CE EMC, LVD, R&TTE, RoHS [B810] |
| USA | UL [B810, RFRP-A]: UL 1023, UL 1076, UL 1610, UL 365, UL 609, UL 636, UL 985 (6th edition); ANSI-SIA CP-01-2010; CSFM California State Fire Marshal; FCC Part 15 Class B |
| Overview & Compatibility — Product | B810 Wireless SDI2 bus interface |
|---|---|
| Overview & Compatibility — Description | The B810 is a wireless receiver that connects RADION wireless peripherals such as the motion and specialty detectors, keyfobs, panic buttons, door window contacts, repeaters, and more, to supported Bosch control panels using the SDI2 Bus connection. |
| Overview & Compatibility — Order number | B810 |
| Overview & Compatibility — Compatible control panels | B9512G/B8512G; B6512/B5512/B4512/B3512; GV4 Series (D9412GV4, D7412GV4 v2.xx or higher) control panels |
| Overview & Compatibility — Compatible RADION devices | RFDL-11-A/RFDL-11 motion detector; RFDW-SM-A/RFDW-SM standard door/window contact; RFDW-RM-A/RRDW-RM recessed door/window contact; RFRP-A/RFRP repeater; RFPR-12-A/RFPR-12 motion detector; RFPR-C12-A/RFPR-C12 motion detector (curtain); RFUN-A/RFUN universal transmitter; RFKF-FB-A /RFKF-FBS-A/RFKF-FB/RFKF-FBS 4-button keyfob; RFKF-TB-A /RFKF-TBS-A/RFKF-TB/RFKF-TBS 2-button keyfob; RFPB-TB-A/RFPB-TB 2-button panic; RFPB-SB-A/RFPB-SB single button panic; RFGB-A/RFGB glass break; RFSM-A/RFSM smoke detector |
| Overview & Compatibility — Receives | RF signals from RADION transmitters, repeaters, and glassbreaks |
| Overview & Compatibility — Parts included | 1 Wireless receiver, 1 Hardware pack, 1 Installation guide |
| Overview & Compatibility — Mounting locations | residential, commercial or industrial locations in which a compatible control panel is already installed |
| Zones, Outputs & Capacity — Wireless points supervised | 504 |
| Zones, Outputs & Capacity — Keyfobs supervised | 1000 |
| Zones, Outputs & Capacity — Repeaters supervised | 8 |
| Wireless & Radio — Frequency | 433.42 MHz |
| Wireless & Radio — Antennas | Dual internal antennas provide spatial and polar RF signal reception for high reliability |
| Wireless & Radio — RF interference (jamming) detection | Detects and reports interference jamming when the ambient noise level is above jamming thresholds for a continuous period of 20 seconds |
| Wireless & Radio — Signal reporting | Signal strength and margin reporting |
| Wireless & Radio — Tamper detection | Transmits a tamper switch signal when the unit is removed from its base, or the mounting surface. |
| Wireless & Radio — Tamper protection | Cover and wall tamper protection |
| Wireless & Radio — Device enrollment | Multiple device enrollment options as well as RF diagnostics; Enroll Device Database management |
| Wireless & Radio — Wireless protocol | RADION wireless protocol |
| Communications & Reporting — Bus | SDI2 bus communication |
| Communications & Reporting — Panel connections | SDI2 connections (PWR, A, B, COM) |
| Communications & Reporting — Status to panel | Transmits a 4-bit sequence of information back to the control panel for status changes |
| Communications & Reporting — Addressing | Address switch on the back of the receiver housing provides a single-digit setting for the receiver's address |
| Communications & Reporting — Status LEDs | External status LEDs; the LED provides status and troubleshooting information about the receiver and its connection |
| Power & Electrical — Power/voltage | 10-14 VDC, 12 VDC nominal |
| Power & Electrical — Maximum current draw | 70 mA |
| Power & Electrical — Wiring distance | 243 m (800 ft) |
| Power & Electrical — Wiring gauge | 0.65 mm (22 AWG) to 2.0 mm (18 AWG) |
| Physical & Environment — Dimensions | 139.70 mm x 209.60 mm x 31.80 mm (5.50 in x 8.25 in x 1.25 in) |
| Physical & Environment — Operating Environment | 0 °C to +49 °C (+32 °F to +120 °F) |
| Physical & Environment — Relative humidity | Up to 93% non-condensing |
| Physical & Environment — Use | Intended for indoor use. |
| Physical & Environment — Enclosure | Sliding self-locking enclosure with an integrated bubble level and a custom gap-free, lift gate style terminal block |
| Compliance & Warranty — Australia | RCM [B810] |
| Compliance & Warranty — Europe | CE EMC, LVD, R&TTE, RoHS [B810] |
| Compliance & Warranty — USA | UL [B810, RFRP-A]: UL 1023, UL 1076, UL 1610, UL 365, UL 609, UL 636, UL 985 (6th edition); ANSI-SIA CP-01-2010; CSFM California State Fire Marshal; FCC Part 15 Class B |
08Questions
Frequently asked about the B810
Q.01
Which Bosch control panels are compatible with the Bosch B810?
Q.02
Can I use the B810 with Solution 2000 or alongside a WE800EV2?
Q.03
Which wireless devices does the B810 receive?
Q.04
How many devices can the B810 supervise?
Q.05
What happens if the receiver detects interference or tampering?
Q.06
How is the B810 wired and powered?
Q.07
How are RADION devices learnt into the system?
Q.08
How far will RADION devices reach the receiver?
Q.09
Can the B810 be installed outdoors?
