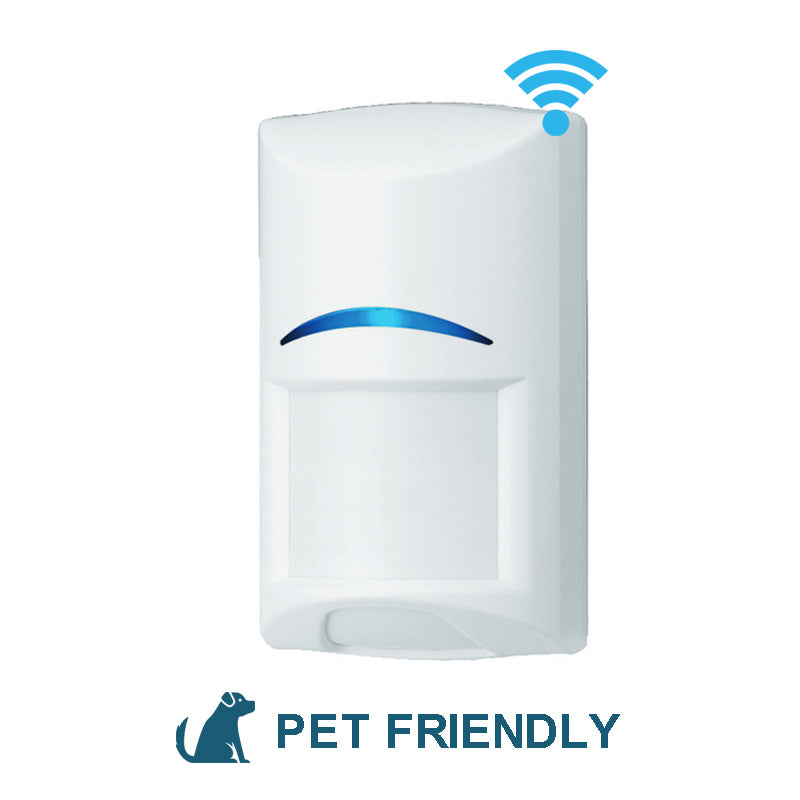

Bosch RFPR-12 RADION Wireless Pet-Friendly PIR Detector, 12 m
SKU: PFPR-12
Description
The Bosch RFPR-12 is the RADION wireless motion detector for a room the dog still uses: a 12 m x 12 m pattern, pet immunity to a 13 kg dog, and a lithium battery that runs for years, so a room gets covered without a cable.
What you get
- 1 × RFPR-12 RADION PIR detector in a white plastic housing, the version for Europe, Africa and Australia
You'll also need
Regular price
$138.60 AUD
Sale price
$138.60 AUD
Regular price
$140.00 AUD
Sale
1.0%
$1.40 AUD
(1.0%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch RFPR-12 RADION Wireless Pet-Friendly PIR Detector, 12 m
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the PFPR-12 is
The Bosch RFPR-12 exists for the rooms that a wired detector never reaches: a brick extension, a rented house, a room finished after the alarm went in. It covers 12 m x 12 m on 433.42 MHz and reports to a RADION receiver on the panel, so nothing has to be chased through a wall.
Pets are the reason most of these are bought. The detector distinguishes a dog of up to 13 kg, two dogs totalling 27 kg, or up to ten cats, so an animal left inside overnight does not set the system off. Behind that is Motion Analyzer II, which weighs the timing, amplitude, duration and polarity of a signal against multiple thresholds, with three sensitivity settings for the room. A sealed optical chamber keeps drafts and insects out of the optics, and temperature compensation holds catch performance when the room temperature approaches body heat, which matters in an Australian summer.
Battery life comes from restraint. The detector runs on one CR123A lithium cell at 3 VDC for up to five years, helped by a three minute lockout that stops it transmitting a second alarm until three minutes have passed since the last one restored. The panel is told when the cell falls to the 2.4 V threshold, so the battery gets changed before the zone goes quiet.
Mounting is at 2.1 m to 2.7 m, flat on a wall, in a corner, or on a bracket: the B328 gimbal, the B335-3 low-profile swivel, or the B338 ceiling mount that swivels 7° up to 16° down and 45° either side. An external LED shows an alarm, and holding the tamper switch puts it into walk test for at least 90 seconds. Cover and wall tampers both report, so the detector cannot be opened or lifted off the wall unnoticed.
It is an indoor detector: 111 mm x 60 mm x 43 mm, 0.15 kg, IP30 and IK04, rated -10 °C to +55 °C and up to 93% non-condensing humidity. This is the version for Europe, Africa and Australia; the RFPR-12-A is the North and South American model. Where the room has curtains, the RFPR-C12 curtain version covers a narrow 12 m x 1.5 m pattern instead. The supplier warranty is 36 Months.
02Engineering
PFPR-12 specifications
Bosch RFPR-12 coverage — 12 m x 12 m pattern on 433.42 MHz — a whole room covered with no cable to the panel
Pet immunity — a dog up to 13 kg, two dogs at 27 kg, or up to ten cats — the animals stay inside while the system is armed
Signal processing — Motion Analyzer II weighs timing, amplitude, duration and polarity, with three sensitivity settings — catch performance without the false alarms
Sealed optics — sealed optical chamber giving immunity to drafts and insects, plus temperature compensation — the optics stay clean and the sensitivity keeps up as the room warms
Battery — one CR123A lithium cell at 3 VDC, up to five years, low-battery reported at 2.4 V — a change every few years, flagged before it matters
Alarm lockout — a further alarm only after three minutes have passed since the last restoral — the battery is not drained by a busy room
Mounting — 2.1 m to 2.7 m, flat wall, corner, or the B328, B335-3 and B338 brackets — it goes where the room needs it
Tamper — cover and wall tamper both transmit, walk test for at least 90 seconds while the tamper is held — supervised, and testable on site
Housing — 111 mm x 60 mm x 43 mm, 0.15 kg, IP30 and IK04, -10 °C to +55 °C indoors, 36 Months supplier warranty — a small indoor detector with a long warranty
Pet immunity — a dog up to 13 kg, two dogs at 27 kg, or up to ten cats — the animals stay inside while the system is armed
Signal processing — Motion Analyzer II weighs timing, amplitude, duration and polarity, with three sensitivity settings — catch performance without the false alarms
Sealed optics — sealed optical chamber giving immunity to drafts and insects, plus temperature compensation — the optics stay clean and the sensitivity keeps up as the room warms
Battery — one CR123A lithium cell at 3 VDC, up to five years, low-battery reported at 2.4 V — a change every few years, flagged before it matters
Alarm lockout — a further alarm only after three minutes have passed since the last restoral — the battery is not drained by a busy room
Mounting — 2.1 m to 2.7 m, flat wall, corner, or the B328, B335-3 and B338 brackets — it goes where the room needs it
Tamper — cover and wall tamper both transmit, walk test for at least 90 seconds while the tamper is held — supervised, and testable on site
Housing — 111 mm x 60 mm x 43 mm, 0.15 kg, IP30 and IK04, -10 °C to +55 °C indoors, 36 Months supplier warranty — a small indoor detector with a long warranty
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | RADION PIR wireless motion detector with pet immunity, RFPR-12 |
| Order number | RFPR-12 Wireless motion detector, 40ft (12m) - For use in Europe, Africa, and Australia |
| Regional variants | RFPR-12-A (North and South America); RFPR-12-CHI (China only) |
| Sibling model | RFPR-C12 curtain detector for living spaces containing curtains (12 m x 1.5 m pattern) |
| Description | RADION PIR and RADION PIR C are high performance, Passive infrared (PIR) based motion sensors that use advanced signal processing to provide superior catch performance and unsurpassed false alarm immunity |
| Supervision | Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions |
| Warranty extension option | EWE-DETCTR-IW 12mths wrty ext detector general - 12 months warranty extension |
| Accessories | B328 Mounting bracket, gimbal; B338 Mounting bracket, ceiling, universal (vertical swivel +7° to -16°, horizontal ±45°); B335-3 Mounting bracket, swivel, low profile (vertical swivel +10° to -20°, horizontal ±25°) |
Detection & Coverage
| Feature | Detail |
|---|---|
| Coverage | 12 m x 12 m (40 ft x 40 ft) |
| Detection technology | Passive infrared (PIR) |
| PIR signal processing | Motion Analyzer II uses multiple thresholds and timing windows to analyze timing, amplitude, duration, and polarity of signals; three sensitivity settings |
| Pet immunity | distinguishes a dog up to 13 kg (30 lb) or two dogs at 27 kg (60 lb) or up to ten cats |
| Draft and insect immunity | The sealed optical chamber provides immunity to drafts and insects |
| Temperature compensation | The sensor adjusts its sensitivity to maintain consistent catch performance at critical temperatures |
| Battery life extension feature | an alarm can be transmitted only after three (3) minutes have passed since the previous alarm restoral (3 minute lockout time) |
| Mounting height | between 2.1 m (7.0 ft) and 2.7 m (9.0 ft) when installing the PIR |
| Mounting options | On a flat wall (surface, semi-flush), with the optional B335 Swivel-mount Bracket, or with the optional B328 Gimbal-mount Bracket; in a corner; on the ceiling with the optional B338 Ceiling-mount Bracket |
| Test features | Externally visible LED indicates alarm |
| Walk test | When the tamper switch is pressed and held, walk test mode is active for a minimum of 90 sec |
Wireless & Radio
| Feature | Detail |
|---|---|
| Frequency | 433.42 MHz |
| Cover and wall tamper switch | Transmits a tamper switch signal when the detector is removed from its base, or pulled away from the wall |
Power & Electrical
| Feature | Detail |
|---|---|
| Power/Voltage | One CR123A Lithium battery, 3 VDC |
| Battery life | Up to 5 years |
| Battery replacement | one user replaceable CR123A battery |
| Voltage threshold | 2.4 V |
| Factory test mode | Upon power-up, factory test mode lasts for approximately 10 sec |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions | 111 mm x 60 mm x 43 mm (4.4 in x 2.4 in x 1.7 in) |
| Weight | 0.15 kg (0.33 lb) |
| Temperature | Functional range: -10 °C to +55 °C (+14 °F to +131 °F); UL only: 0 °C to +49 °C (+32 °F to +120 °F); EN 50130-5 Class II only: -10 °C to 55 °C |
| Ingress / impact rating | IP30/IK04 |
| Environment | Complies with EN50130-5 Class II |
| Relative humidity | Up to 93% non-condensing |
| Use | Intended for indoor use |
| Colour (supplier listing) | White |
| Material (supplier listing) | Plastic |
Compliance & Warranty
| Feature | Detail |
|---|---|
| US | UL 639 – Intrusion Detection Systems; FCC Part 15 |
| Germany | VdS H116003 |
| Europe | CE EMC, LVD, R&TTE, RoHS [RFPR-12 and RFPR-C12] |
| EN50131 | EN-ST-000161 [RFPR-12, RFPR-C12] |
| Belgium | INCERT B-509-0070 [RADION RFPR-12, RFPR-C12] |
| FCC | Part 15 Security/Remote Control Transmitter 433.42 MHZ |
| France | AFNOR 2620200018A0 RFPR-12 |
| Supplier warranty | 36 Months |
| Overview & Compatibility — Product | RADION PIR wireless motion detector with pet immunity, RFPR-12 |
|---|---|
| Overview & Compatibility — Order number | RFPR-12 Wireless motion detector, 40ft (12m) - For use in Europe, Africa, and Australia |
| Overview & Compatibility — Regional variants | RFPR-12-A (North and South America); RFPR-12-CHI (China only) |
| Overview & Compatibility — Sibling model | RFPR-C12 curtain detector for living spaces containing curtains (12 m x 1.5 m pattern) |
| Overview & Compatibility — Description | RADION PIR and RADION PIR C are high performance, Passive infrared (PIR) based motion sensors that use advanced signal processing to provide superior catch performance and unsurpassed false alarm immunity |
| Overview & Compatibility — Supervision | Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions |
| Overview & Compatibility — Warranty extension option | EWE-DETCTR-IW 12mths wrty ext detector general - 12 months warranty extension |
| Overview & Compatibility — Accessories | B328 Mounting bracket, gimbal; B338 Mounting bracket, ceiling, universal (vertical swivel +7° to -16°, horizontal ±45°); B335-3 Mounting bracket, swivel, low profile (vertical swivel +10° to -20°, horizontal ±25°) |
| Detection & Coverage — Coverage | 12 m x 12 m (40 ft x 40 ft) |
| Detection & Coverage — Detection technology | Passive infrared (PIR) |
| Detection & Coverage — PIR signal processing | Motion Analyzer II uses multiple thresholds and timing windows to analyze timing, amplitude, duration, and polarity of signals; three sensitivity settings |
| Detection & Coverage — Pet immunity | distinguishes a dog up to 13 kg (30 lb) or two dogs at 27 kg (60 lb) or up to ten cats |
| Detection & Coverage — Draft and insect immunity | The sealed optical chamber provides immunity to drafts and insects |
| Detection & Coverage — Temperature compensation | The sensor adjusts its sensitivity to maintain consistent catch performance at critical temperatures |
| Detection & Coverage — Battery life extension feature | an alarm can be transmitted only after three (3) minutes have passed since the previous alarm restoral (3 minute lockout time) |
| Detection & Coverage — Mounting height | between 2.1 m (7.0 ft) and 2.7 m (9.0 ft) when installing the PIR |
| Detection & Coverage — Mounting options | On a flat wall (surface, semi-flush), with the optional B335 Swivel-mount Bracket, or with the optional B328 Gimbal-mount Bracket; in a corner; on the ceiling with the optional B338 Ceiling-mount Bracket |
| Detection & Coverage — Test features | Externally visible LED indicates alarm |
| Detection & Coverage — Walk test | When the tamper switch is pressed and held, walk test mode is active for a minimum of 90 sec |
| Wireless & Radio — Frequency | 433.42 MHz |
| Wireless & Radio — Cover and wall tamper switch | Transmits a tamper switch signal when the detector is removed from its base, or pulled away from the wall |
| Power & Electrical — Power/Voltage | One CR123A Lithium battery, 3 VDC |
| Power & Electrical — Battery life | Up to 5 years |
| Power & Electrical — Battery replacement | one user replaceable CR123A battery |
| Power & Electrical — Voltage threshold | 2.4 V |
| Power & Electrical — Factory test mode | Upon power-up, factory test mode lasts for approximately 10 sec |
| Physical & Environment — Dimensions | 111 mm x 60 mm x 43 mm (4.4 in x 2.4 in x 1.7 in) |
| Physical & Environment — Weight | 0.15 kg (0.33 lb) |
| Physical & Environment — Temperature | Functional range: -10 °C to +55 °C (+14 °F to +131 °F); UL only: 0 °C to +49 °C (+32 °F to +120 °F); EN 50130-5 Class II only: -10 °C to 55 °C |
| Physical & Environment — Ingress / impact rating | IP30/IK04 |
| Physical & Environment — Environment | Complies with EN50130-5 Class II |
| Physical & Environment — Relative humidity | Up to 93% non-condensing |
| Physical & Environment — Use | Intended for indoor use |
| Physical & Environment — Colour (supplier listing) | White |
| Physical & Environment — Material (supplier listing) | Plastic |
| Compliance & Warranty — US | UL 639 – Intrusion Detection Systems; FCC Part 15 |
| Compliance & Warranty — Germany | VdS H116003 |
| Compliance & Warranty — Europe | CE EMC, LVD, R&TTE, RoHS [RFPR-12 and RFPR-C12] |
| Compliance & Warranty — EN50131 | EN-ST-000161 [RFPR-12, RFPR-C12] |
| Compliance & Warranty — Belgium | INCERT B-509-0070 [RADION RFPR-12, RFPR-C12] |
| Compliance & Warranty — FCC | Part 15 Security/Remote Control Transmitter 433.42 MHZ |
| Compliance & Warranty — France | AFNOR 2620200018A0 RFPR-12 |
| Compliance & Warranty — Supplier warranty | 36 Months |
04Why choose this
Built for the way you actually use the PFPR-12
A room covered without a cable
A 12 m x 12 m pattern reports to a RADION receiver on 433.42 MHz. A brick extension, a rented house or a room finished after the alarm was installed gets covered without chasing a wall.
False alarms filtered, not just tolerated
Motion Analyzer II weighs the timing, amplitude, duration and polarity of every signal against multiple thresholds, and three sensitivity settings match it to the room. A sealed optical chamber keeps drafts and insects out of the optics.
Built for a hot room
Temperature compensation adjusts sensitivity to hold catch performance at critical temperatures, which is when a detector is most likely to miss a person. That is the Australian summer problem in one line.
Years between battery changes
One CR123A lithium cell runs up to five years, helped by a three minute lockout between alarms. The panel reports a low battery at 2.4 V, so it is replaced on schedule and not after a silent failure.
It tells the panel if it is interfered with
Cover tamper and wall tamper both transmit, and the detector is supervised for low battery and removal from its mounting surface. Taking it off the wall is an event, not a gap.
05Where it fits
Right at home in these scenarios
Australian family home with a dog
The Bosch RFPR-12 goes in the lounge or hallway the dog uses at night, covering the room, with pet immunity set for the animal that shares it. Mount it between 2.1 m and 2.7 m and set the sensitivity to suit the room.
Room added after the alarm went in
A converted garage, a sunroom or a rear extension gets a detector without running cable back to the panel, as long as a RADION receiver is fitted. Test the position first, because objects inside the building, including people, affect the radio.
Rented house or a system that has to come with you
Because it fixes with a screw and reports by radio, the detector goes up with minimal work and comes down the same way. Keep it indoors and dry; it is not a garage-door or verandah detector.
06Setup
Installation & setup
-
01
What arrives
The Bosch RFPR-12 comes as the detector in its white plastic housing, the version for Europe, Africa and Australia. The RADION receiver, the mounting brackets and any replacement CR123A battery are ordered separately.
-
02
Where to mount it
Fit it between 2.1 m and 2.7 m, flat on a wall surface or semi-flush, in a corner, or on a bracket: the B328 gimbal, the B335-3 low-profile swivel, or the B338 ceiling mount. Keep it indoors and dry, on a flat rigid surface.
-
03
Make the wall tamper work
A screw must be fitted in the designated wall-tamper slot, or the wall tamper will not function. Without it the detector can be lifted off the wall without the panel knowing.
-
04
Learning it into the panel
Add it at the codepad either by typing its nine-digit RF ID or by triggering the detector in auto mode. On an alphanumeric or touchscreen codepad the zone source has to be set to RF.
-
05
Testing on site
On power-up the detector runs a factory test mode for about ten seconds. Press and hold the tamper switch to enter walk test for at least 90 seconds, and watch the external LED as you walk the pattern.
-
06
Checking the radio path
Signal strength depends on the building and on what is inside it, including people, so test the detector where it will live rather than assuming the range. From Solution 2000 and 3000 firmware 2.1, the icon codepad can show RF signal strength for a zone.
-
07
When to call an electrician
None of this is mains work: the detector is battery powered and reports by radio. Use a licensed electrician only if the job involves new or altered fixed wiring elsewhere in the installation.
08Questions
Frequently asked about the PFPR-12
Q.01
How much area does the Bosch RFPR-12 cover?
Its pattern is 12 m x 12 m, mounted between 2.1 m and 2.7 m high. For a narrow space with curtains, the RFPR-C12 version covers 12 m x 1.5 m instead.
Q.02
How big a pet can it ignore?
A dog of up to 13 kg, two dogs totalling 27 kg, or up to ten cats. Larger animals are outside what the detector is designed to discount.
Q.03
What does it need to work?
A RADION receiver on the alarm panel, such as the RFRC-STR2. The detector reports on 433.42 MHz and does not connect to the panel by cable.
Q.04
How long does the battery last?
Up to five years from one CR123A lithium cell. The panel reports a low battery when the cell reaches 2.4 V, and clearing that trouble needs a new cell and a transmission from the detector.
Q.05
Why does it not alarm twice in a row?
A three minute lockout stops a second alarm until three minutes have passed since the previous one restored. It is there to protect the battery in a room with constant movement.
Q.06
How do I add it to the panel?
Enter its nine-digit RF ID at the codepad, or use auto mode and trigger the detector. On an alphanumeric or touchscreen codepad the zone source must be set to RF.
Q.07
How do I walk test it?
Press and hold the tamper switch, which puts it into walk test for at least 90 seconds, then watch the external LED while walking the pattern.
Q.08
Can it go in a garage or on a verandah?
No. It is intended for indoor, dry locations on a flat rigid surface, rated -10 °C to +55 °C and up to 93% non-condensing humidity, with an IP30 and IK04 rating.
Q.09
Is this the right model for Australia?
Yes. This is the version for Europe, Africa and Australia; the RFPR-12-A is the North and South American model and the RFPR-12-CHI is for China only.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Add the receiver that hears it
The Bosch RFPR-12 needs a RADION receiver on the panel before it can report anything. The RFRC-STR2 is the RADION receiver sold here for Solution panels; check its own page for the devices it lists.
Add the ceiling bracket for an open room
A flat wall is not always where the pattern needs to start. The B338 ceiling bracket swivels 7° up to 16° down and 45° either side, which aims the detector into a room with no suitable wall.
Cover the doors as well as the rooms
Motion inside tells you someone is already in. The RFDW-SM is the RADION wireless door contact sold here, so a perimeter and an interior can be built from the same wireless family.
Step up where a room defeats a PIR
Where a room defeats a single-technology detector, a dual-technology one is worth considering. The RFDL-11 is the RADION TriTech detector sold here; its own page carries its coverage and pet figures.
