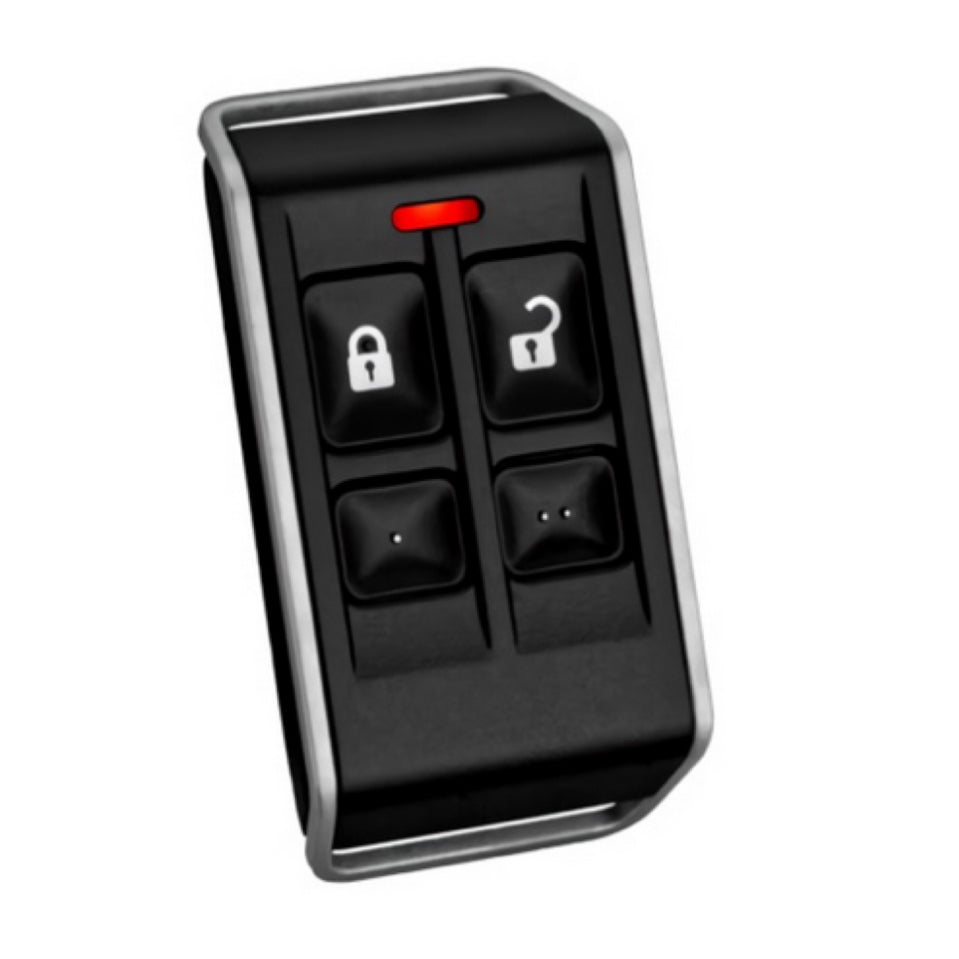

The Bosch RFKF-FBS is an encrypted RADION 4-button wireless keyfob for Bosch Solution 3000 and 6000 alarm systems. Two buttons arm and disarm the alarm, and two programmable buttons can operate a gate, garage door or lighting. It works with a Bosch RADION wireless receiver and is not compatible with the Solution 2000.

Key points
- 4 buttons: arm/disarm plus two programmable outputs
- Encrypted (synchronised encryption) with an LED send confirmation
- Works with B810 (Solution 3000) or RFRC-STR2 (Solution 6000)
- Not for the Solution 2000 and not for WE800 receivers
- CR2032 battery, up to 5 years; sliding cover; water and dust resistant
- 433.42MHz; panic by pressing two buttons together

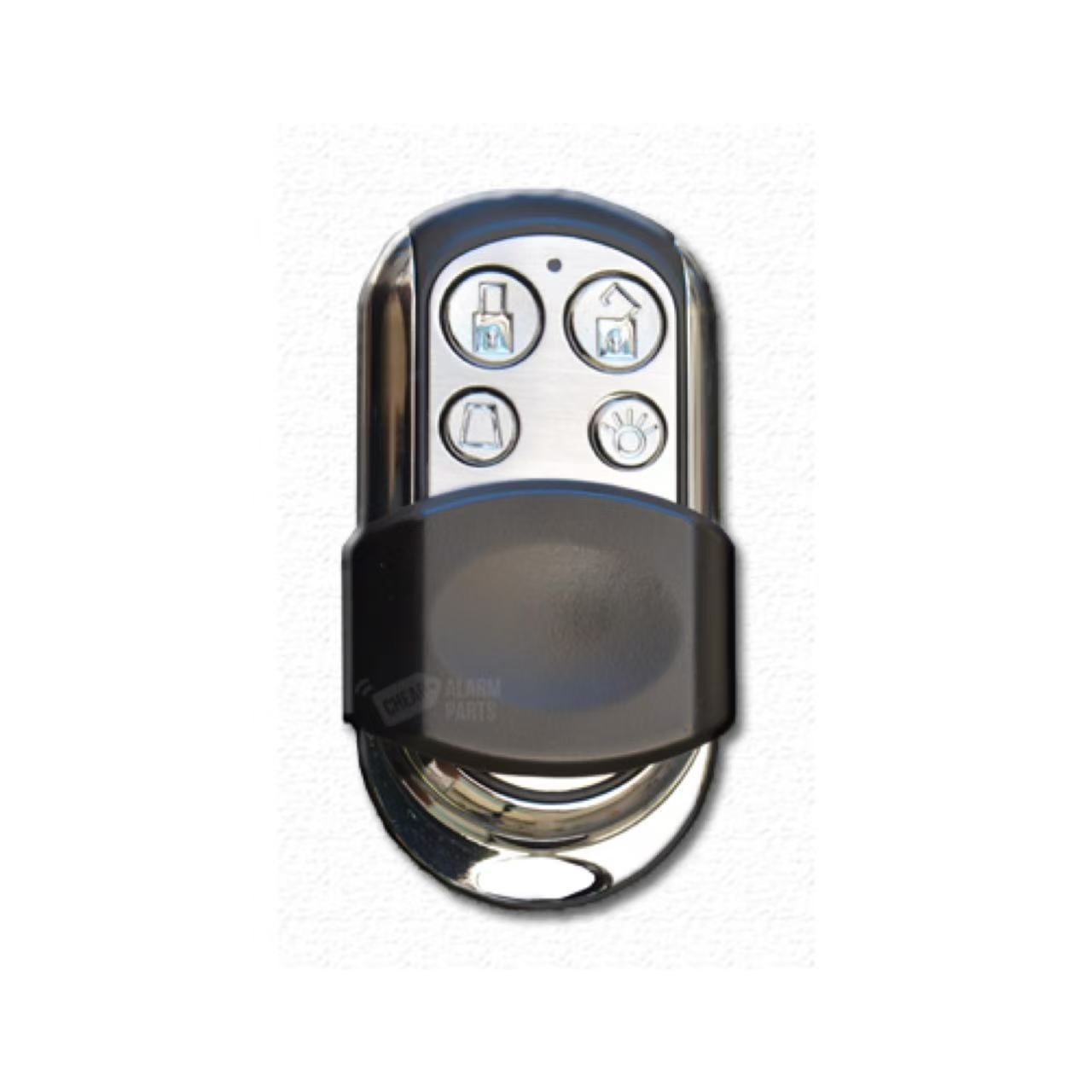

The Bosch HCT-4UL is a premium 4-button wireless keyfob that arms and disarms a Bosch Solution 3000 alarm from the door or driveway. It works only with the Bosch B810 RADION wireless receiver, and its two extra buttons can be programmed for functions such as opening a gate or garage door.

Key points
- 4-button keyfob for arming and disarming a Bosch Solution 3000
- Two buttons for Arm Away / Arm Stay and Disarm (on/off)
- Two programmable buttons for relays (e.g. gate or garage door)
- Works only with the Bosch B810 RADION receiver (433.42MHz)
- Premium stainless-steel finish with a sliding cover to stop false presses
- CR2032 battery, about 2 years; not for WE800V receivers or the Solution 2000

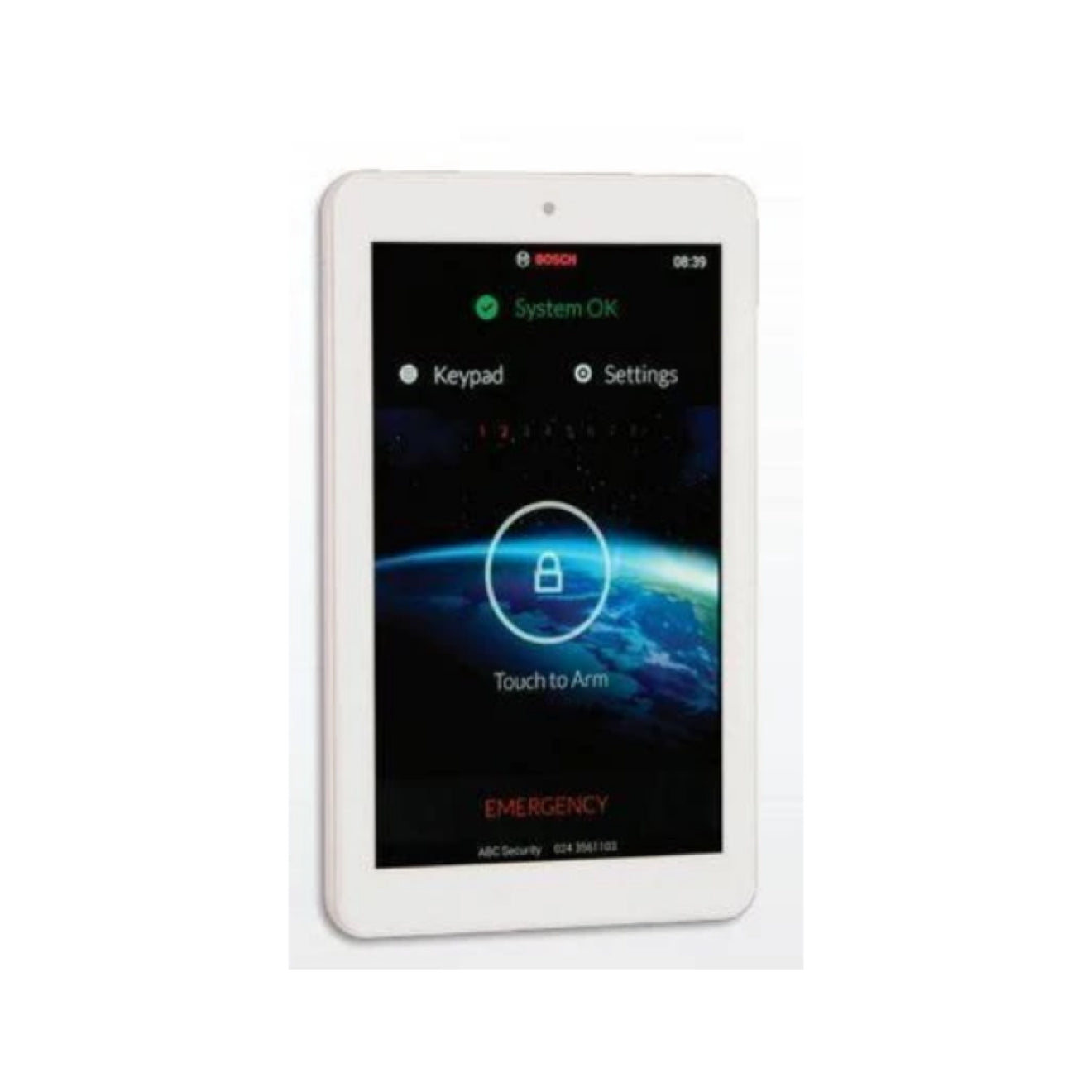

The Bosch IUI-SOL-TS7 TouchOne is a 7-inch high-definition touchscreen codepad for the Bosch Solution 2000 and 3000 alarm panels. Its large colour display, WiFi connectivity and Intercom App make arming, disarming and managing the system simple from one screen.

Highlights
- 7-inch HD 1280x800 IPS capacitive touchscreen (400 nits)
- For Bosch Solution 2000 and 3000 control panels
- Arm, disarm, bypass and rename zones, manage users, PINs and keyfobs
- WiFi for app installs, the Intercom App and automatic updates
- microSD photo slideshow in Standby; portrait or landscape mount

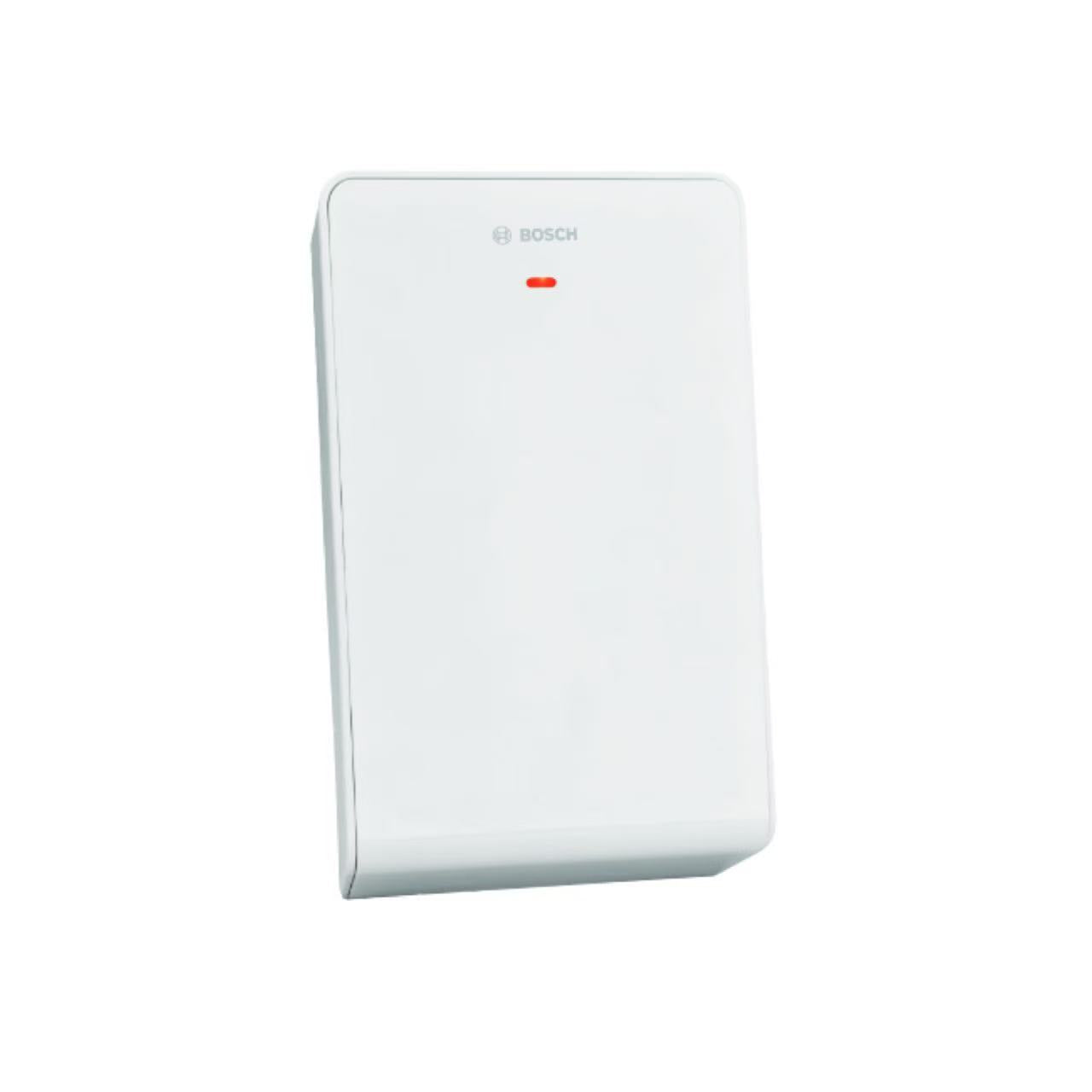

The Bosch RFRC-STR2 is the RADION wireless receiver for the Bosch Solution 6000 alarm panel. It lets the panel use Bosch RADION wireless detectors, keyfobs, panic buttons, reed contacts and repeaters, so you can add protection to rooms where running cable is difficult.

Key points
- Adds RADION wireless devices to a Bosch Solution 6000 / 144
- Supervises up to 504 wireless points, 1000 keyfobs and 8 repeaters
- 433.42MHz with dual internal antennas for reliable reception
- Cover and wall tamper, plus RF jamming detection
- Wired to the panel by terminal block, within 300m; 12VDC, 100mA max
- Indoor use; address switch and bubble level for easy install

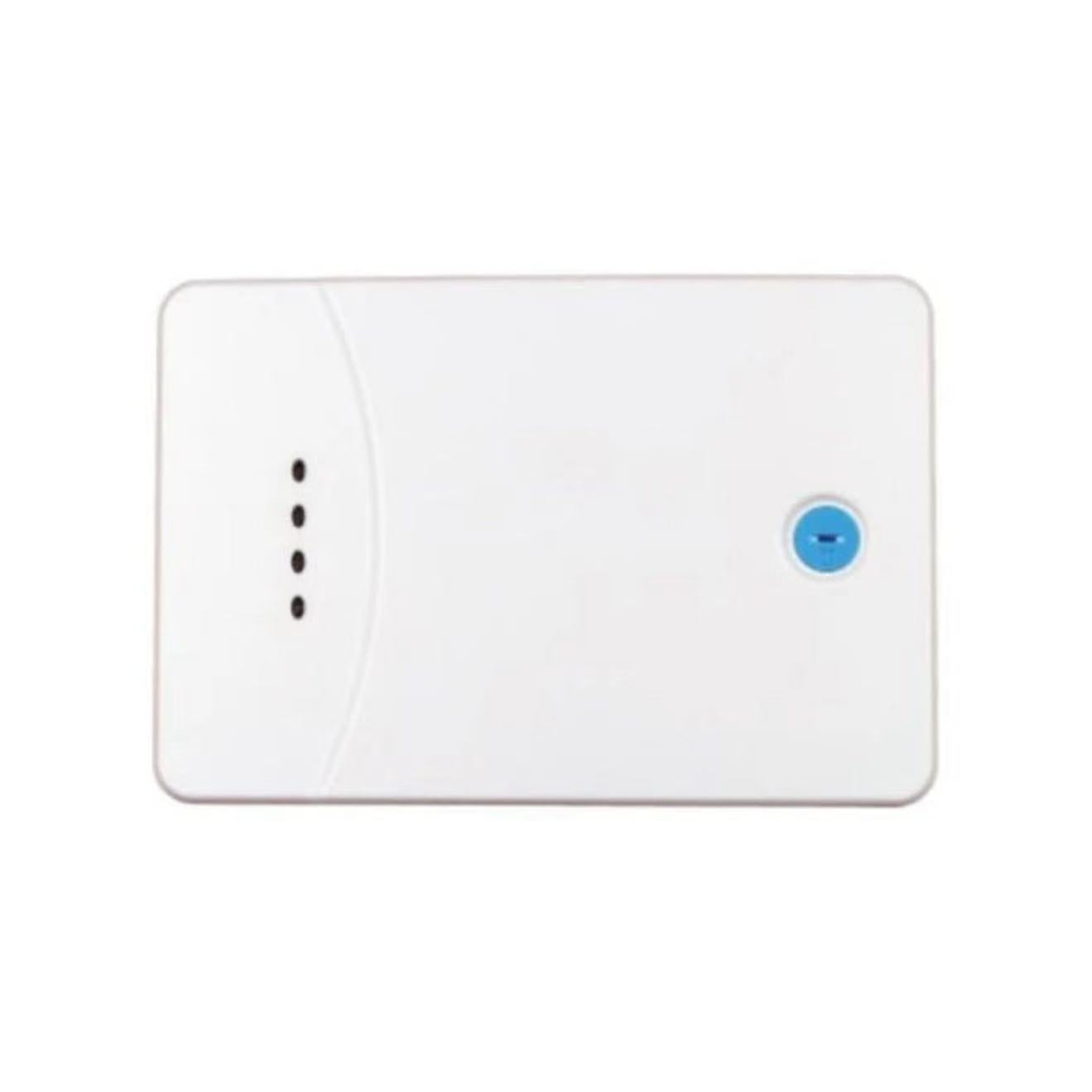

The Bosch RF120 is a Smart 2-way RF base station that adds wireless to a Bosch Solution 6000 panel over an RS485 LAN connection. It is a 433.42MHz transceiver that lets the panel use Bosch RADION wireless sensors and RF110 two-way remote controls.

Key points
- Smart 2-way 433.42MHz RF base station for the Bosch Solution 6000
- Connects to the panel over an RS485 LAN connection
- Supports Bosch RADION wireless sensors and RF110 5-button remotes
- Two transmitters/receivers with dual-diversity internal antennas
- Encrypted 2-way RF with rolling code and anti-substitution
- Front and rear tamper; status LED; 10-14VDC; indoor use

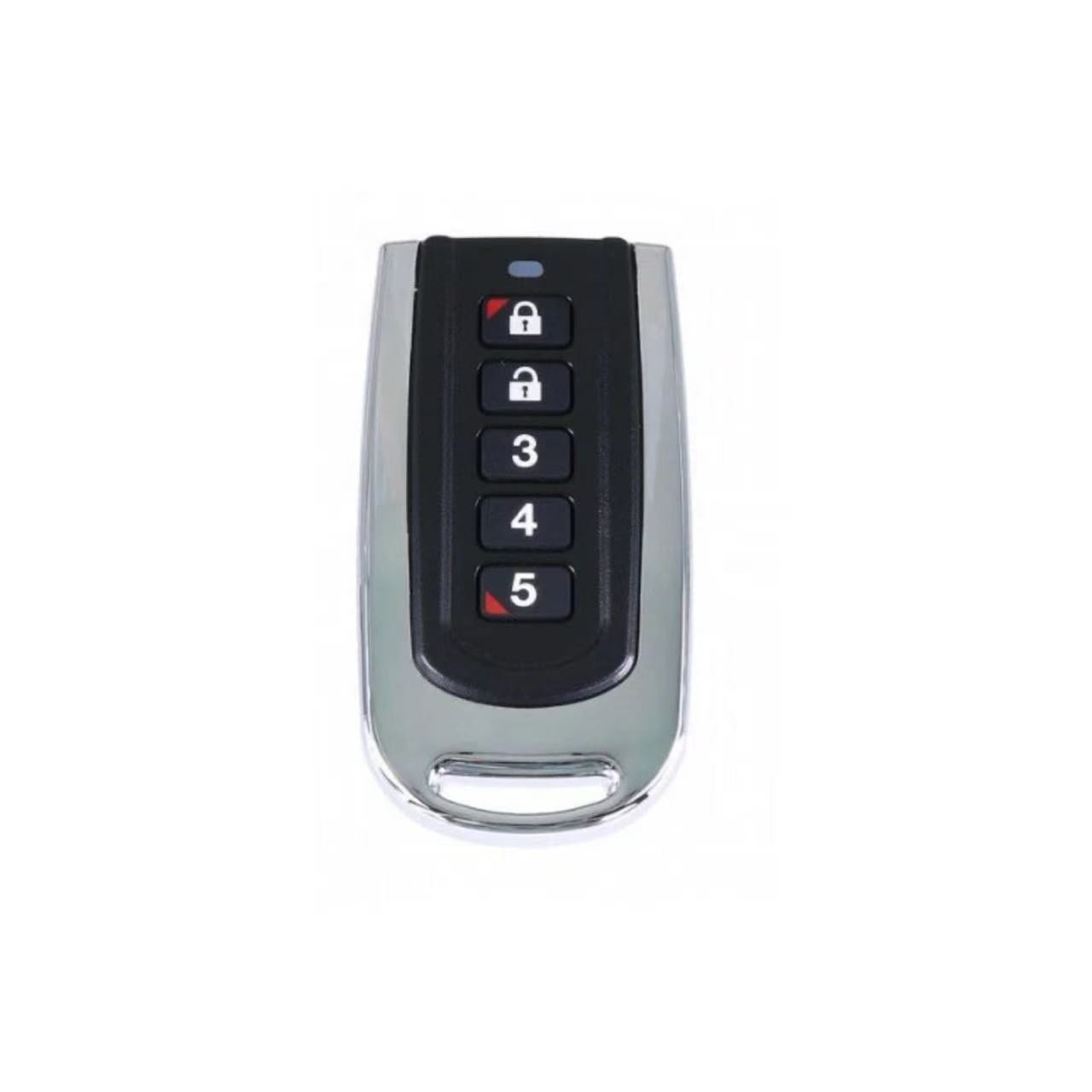

The Bosch RF110 is a 5-button Smart RF keyfob for the Bosch Solution 6000 alarm system. It gives handheld arm and disarm, area control and output triggering, and works with the RF120 Smart RF Base Station receiver, which is sold separately.

Highlights
- 5-button Smart RF keyfob for the Bosch Solution 6000
- Each button supports two functions: a single press and a 2-second hold-down
- Arm and disarm, control areas or part modes, and trigger outputs such as a gate or door
- Requires the Bosch RF120 Smart RF Base Station (sold separately)
- Not compatible with Solution 2000/3000 or with B810/STR receivers

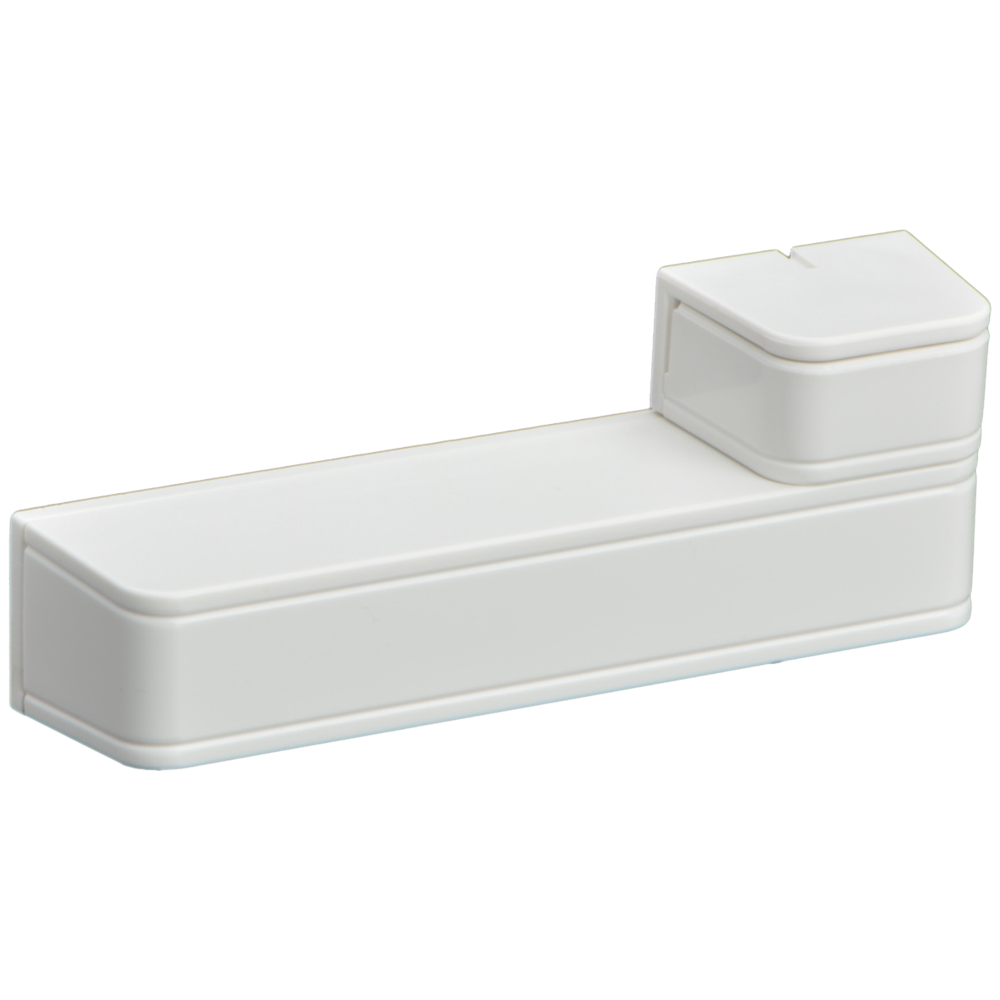

The Bosch RFDW-SM is a wireless surface-mount magnetic reed switch from the RADION range, used to monitor a door or window and trigger your Bosch alarm when it is opened. The transmitter mounts on the frame and the magnet on the moving door or window; when they separate by more than 20 mm it sends an alarm signal to a RADION receiver, which passes it to the control panel. It runs for up to 5 years on a single replaceable AAA lithium battery. A RADION receiver and compatible Bosch panel are required and sold separately.

Key points
- Wireless magnetic reed contact for doors and windows
- Magnet can mount on either side; alarms when the gap exceeds 20 mm
- Cover and wall tamper switches, plus low-battery supervision
- 433.42 MHz RADION wireless; needs a B810 or RFRC-STR2 receiver
- Single AAA lithium battery, up to 5 years of life, user-replaceable
- Indoor use; IP30 / IK04

The Bosch RFGB is a RADION wireless glass break detector for Bosch Solution 3000 and 6000 alarm systems. It listens for the specific sound and pressure waves of breaking glass to protect windows and glass doors, and because it is wireless there is no cable to run to the sensor. It is a wireless device and needs a Bosch RADION wireless receiver.

Key points
- Dual acoustic detection: flex (pressure) wave then audio, to cut false alarms
- 360-degree omni-directional microphone; protects glass within about 6m
- Detects plate, tempered, wired and laminated glass up to 6.4mm
- Requires a RADION receiver: B810 (Solution 3000) or RFRC-STR2 (Solution 6000)
- One CR123A lithium battery, up to 5 years; low-battery and tamper supervision
- Indoor use; sliding self-locking enclosure with bubble level
