Hilook NVR

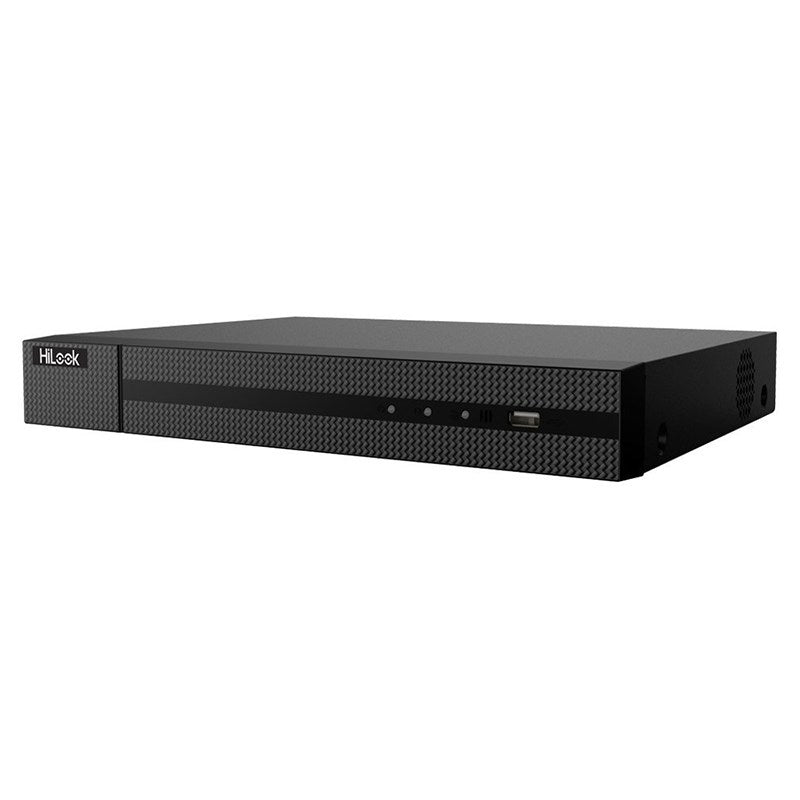

The HiLook NVR-108MH-C-8P is an 8-channel network video recorder with eight built-in PoE ports for plug-and-play camera setup. It records IP cameras up to 8MP, outputs 4K over HDMI, uses efficient H.265+ compression, and takes a single surveillance hard drive. It is supplied without a hard drive.

At a glance
- 8 IP channels with 8 built-in PoE ports (802.3 af/at, up to 75W)
- Records up to 8MP; 80 Mbps in / 80 Mbps out; H.265+
- 4K HDMI plus simultaneous VGA output
- 4-ch human/vehicle Motion Detection 2.0; two-way audio (RCA)
- Single SATA bay; supplied with no HDD

The HiLook NVR-216MH-C-16P is a 16-channel PoE network video recorder with 16 built-in plug-and-play PoE ports, so it powers and connects up to sixteen IP cameras over a single cable each. It records cameras up to 8MP, outputs 4K over HDMI, and uses H.265+ to keep storage and bandwidth down. Hard drives are supplied separately.

Key points
- 16 channels with 16 built-in plug-and-play PoE ports (802.3af/at, ≤ 150 W)
- Records IP cameras up to 8MP; 160 Mbps incoming bandwidth
- 4K HDMI and 1080p VGA simultaneous output
- Motion Detection 2.0 human/vehicle classification (up to 4 channels)
- Two SATA bays (up to 8TB each); HDD not included
- H.265+ compression; remote view via Hik-Connect

The HiLook NVR-108MH-K/8P(B) is an 8-channel Pro-series PoE NVR with eight built-in PoE ports, so up to eight IP cameras connect and power over one cable each. It adds AI facial recognition and human/vehicle Motion Detection 2.0, decodes streams up to 12MP, outputs 4K over HDMI, and takes one SATA drive up to 16TB. It is supplied without a hard drive.

At a glance
- 8 IP channels with 8 built-in PoE ports (up to 75W total); 80 Mbps in / 80 Mbps out
- AI facial recognition (16 libraries, 20,000 faces) plus human/vehicle Motion Detection 2.0
- Records and decodes up to 12MP (2-ch @ 12MP or 4-ch @ 8MP); H.265+
- 4K HDMI plus independent 1080p VGA output; two-way audio over RCA
- 1 SATA bay up to 16TB; HiLookVision remote app; supplied with no HDD

The HiLook NVR-216MH-K/16P is a 16-channel Pro-series PoE NVR with sixteen built-in PoE ports and two SATA bays. It runs AI facial recognition, perimeter protection and human/vehicle Motion Detection 2.0, decodes streams up to 12MP, outputs 4K over HDMI, and holds up to 32TB of storage. It is supplied without hard drives.

At a glance
- 16 IP channels with 16 built-in PoE ports (up to 200W total); 160 Mbps in / 160 Mbps out
- AI facial recognition (16 libraries, 20,000 faces), perimeter protection and human/vehicle detection
- Records and decodes up to 12MP (2-ch @ 12MP or 4-ch @ 8MP); H.265+
- 4K HDMI plus independent VGA output; alarm I/O (4 in / 1 out)
- Dual SATA bays, up to 16TB per drive (32TB total); supplied with no HDD

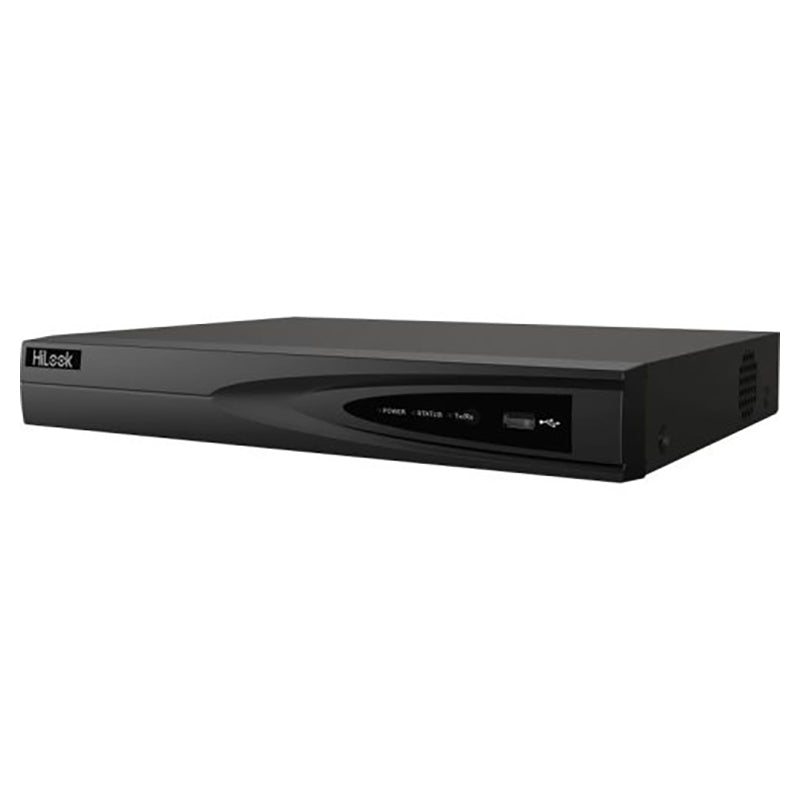

The HiLook NVR-104MH-C-4P is a compact 4-channel network video recorder with four built-in PoE ports for plug-and-play camera setup. It records IP cameras up to 8MP, outputs 4K over HDMI, uses efficient H.265+ compression, and takes a single surveillance hard drive. It is supplied without a hard drive.

At a glance
- 4 IP channels with 4 built-in PoE ports (802.3 af/at, up to 50W)
- Records up to 8MP; 40 Mbps in / 80 Mbps out; H.265+
- 4K HDMI plus simultaneous VGA output
- 1-ch human/vehicle Motion Detection 2.0; two-way audio (RCA)
- Single SATA bay; supplied with no HDD

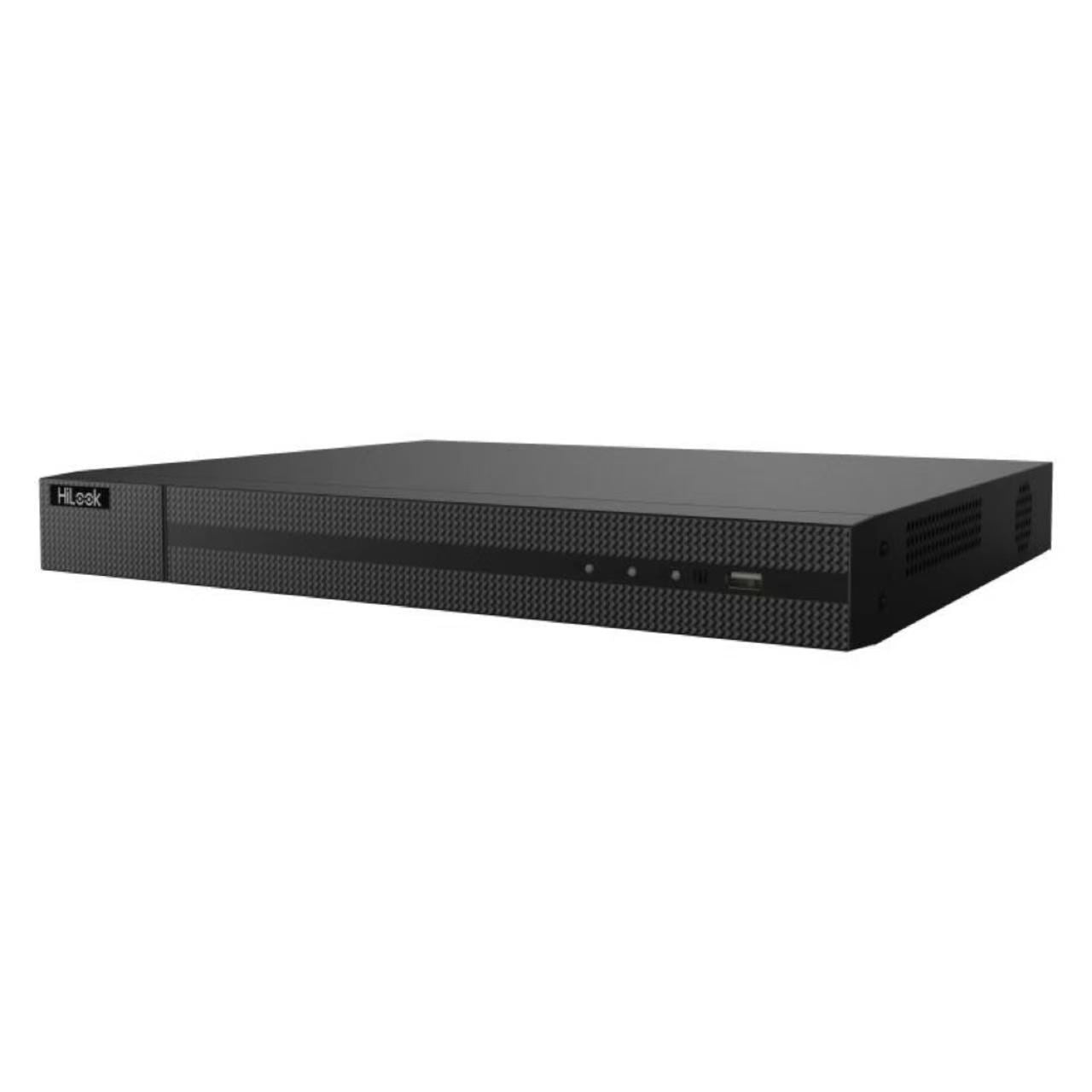

The HiLook NVR-232MH-K-16P is a 32-channel network video recorder with sixteen built-in PoE ports and two SATA bays. It powers and connects up to sixteen IP cameras directly, records cameras up to 12MP with H.265+ compression, and outputs 4K over HDMI. It is supplied without a hard drive.

Key points
- 32 IP channels with 16 built-in PoE ports (IEEE 802.3af/at)
- Records cameras up to 12MP; 256 Mbps incoming bandwidth
- H.265+ compression to cut storage and bandwidth
- Two SATA bays (up to 10TB each); hard drive not included
- 4K HDMI plus VGA output for live monitoring
- Motion, line-crossing and intrusion detection; remote view via Hik-Connect
- Compact 1U chassis; genuine Australian stock, 3-year warranty

The HiLook NVR-104MH-K/4P(B) is a Pro Series 4-channel PoE network video recorder that adds facial recognition to a compact unit. It records IP cameras up to 8MP, runs human and vehicle Motion Detection 2.0, outputs 4K over HDMI, and takes a single hard drive up to 10TB. It is supplied without a hard drive.

At a glance
- 4 IP channels with 4 built-in PoE ports (802.3 af/at, up to 50W)
- Facial recognition: 16 libraries, up to 20,000 faces; 4-ch human/vehicle MD2.0
- Records up to 8MP; 4K HDMI plus VGA; H.265+
- Single SATA bay, up to 10TB; two-way audio (RCA)
- Supplied with no HDD; face recognition and MD2.0 cannot run at the same time
