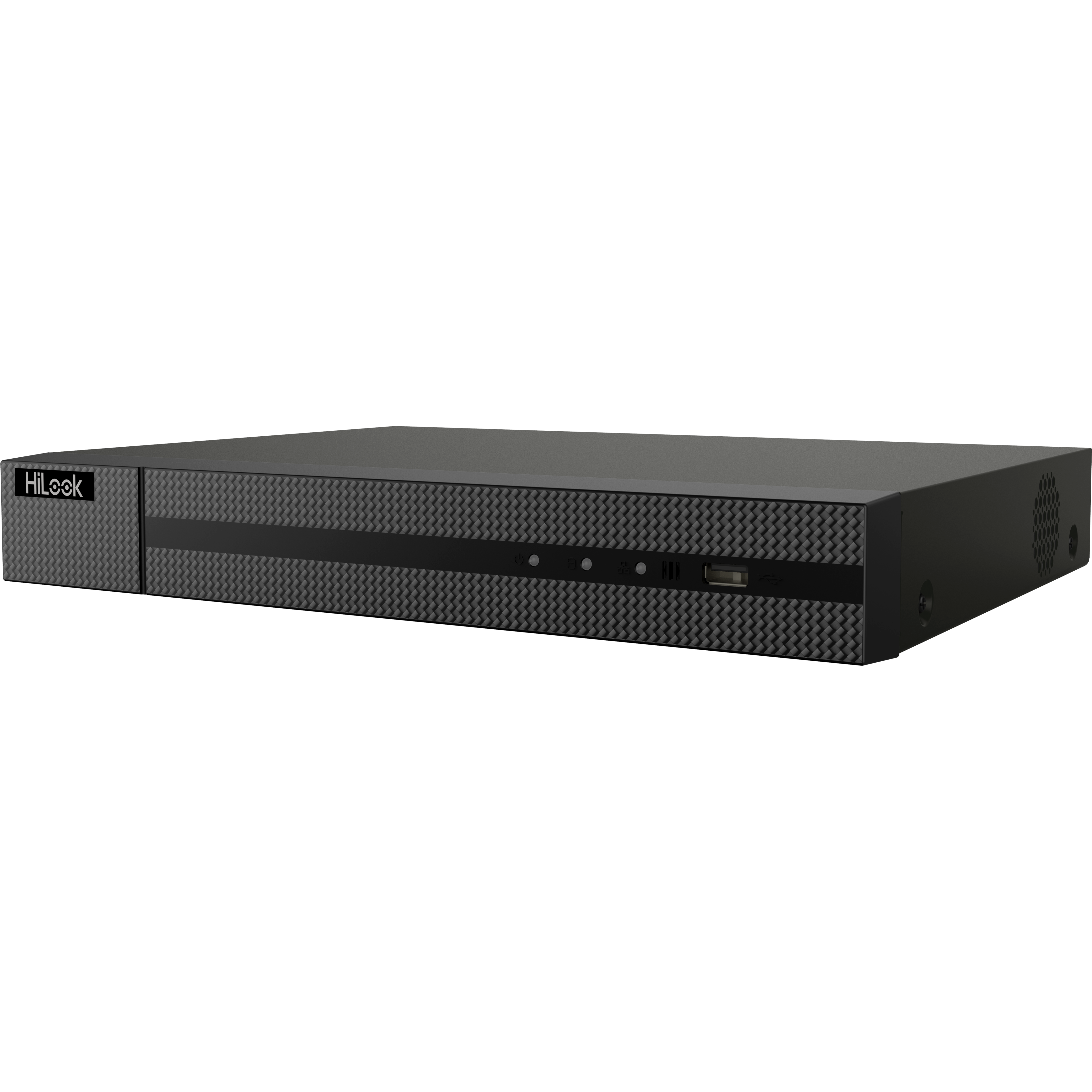

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder
SKU: NVR-108MH-C-8P
Description
The HiLook NVR-108MH-C-8P is an 8-channel network video recorder with eight built-in PoE ports for plug-and-play camera setup. It records IP cameras up to 8MP, outputs 4K over HDMI, uses efficient H.265+ compression, and takes a single surveillance hard drive. It is supplied without a hard drive.
At a glance
- 8 IP channels with 8 built-in PoE ports (802.3 af/at, up to 75W)
- Records up to 8MP; 80 Mbps in / 80 Mbps out; H.265+
- 4K HDMI plus simultaneous VGA output
- 4-ch human/vehicle Motion Detection 2.0; two-way audio (RCA)
- Single SATA bay; supplied with no HDD
Regular price
$188.00 AUD
Sale price
$188.00 AUD
Regular price
$323.40 AUD
Sale
41.87%
$135.40 AUD
(41.87%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$558.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the NVR-108MH-C-8P is
The HiLook NVR-108MH-C-8P is an 8-channel PoE network video recorder for homes and small businesses that need a few more cameras than a 4-channel unit. Eight built-in PoE ports power and connect cameras over a single cable each, so setup stays simple.
It records IP cameras up to 8MP, decodes 1 channel at 8MP or 4 channels at 1080p, and uses H.265+ compression to keep storage and bandwidth down. A 4K HDMI output (with simultaneous VGA) drives a monitor, 4-channel Motion Detection 2.0 adds human and vehicle filtering, and a two-way audio port lets you talk through a compatible camera. It connects to third-party cameras over ONVIF and RTSP, and to Hik-Connect for phone viewing.
A single SATA bay takes one surveillance hard drive for continuous recording; the recorder is supplied without a drive, so you choose the capacity.
§ 02Engineering
NVR-108MH-C-8P specifications
- Eight built-in PoE ports (IEEE 802.3 af/at, up to 75W total) for single-cable plug-and-play camera setup.
- Records up to 8 IP cameras at up to 8MP, with H.265+/H.265/H.264+/H.264 support.
- 4-channel human/vehicle Motion Detection 2.0 to help filter routine false alarms.
- 4K HDMI output with simultaneous VGA for live view and playback.
- Two-way audio (RCA) and 80 Mbps incoming / 80 Mbps outgoing bandwidth.
- Single SATA bay for one surveillance hard drive; ONVIF/RTSP and Hik-Connect support; supplied without a hard drive.
- Records up to 8 IP cameras at up to 8MP, with H.265+/H.265/H.264+/H.264 support.
- 4-channel human/vehicle Motion Detection 2.0 to help filter routine false alarms.
- 4K HDMI output with simultaneous VGA for live view and playback.
- Two-way audio (RCA) and 80 Mbps incoming / 80 Mbps outgoing bandwidth.
- Single SATA bay for one surveillance hard drive; ONVIF/RTSP and Hik-Connect support; supplied without a hard drive.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| IP Video Input | 8-ch |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Decoding Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
Audio
| Feature | Detail |
|---|---|
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human/Vehicle Analysis | 4-ch (Motion Detection 2.0) |
Network & Storage
| Feature | Detail |
|---|---|
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
Interface
| Feature | Detail |
|---|---|
| PoE Interface | 8-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 75 W |
| PoE Standard | IEEE 802.3 af/at |
| USB Interface | 2 × USB 2.0 |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 48 VDC, 1.88 A |
| Consumption | ≤ 10 W (without HDD and PoE off) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension | 265 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| Video — IP Video Input | 8-ch |
|---|---|
| Video — Incoming Bandwidth | 80 Mbps |
| Video — Outgoing Bandwidth | 80 Mbps |
| Video — HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| Video — VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video — Video Output Mode | HDMI/VGA simultaneous output |
| Video — Decoding Format | H.265+/H.265/H.264+/H.264 |
| Video — Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Video — Synchronous playback | 8-ch |
| Video — Decoding Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| Video — Stream Type | Video, Video & Audio |
| Audio — Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio — Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Audio — Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| AI & Deep Learning — Human/Vehicle Analysis | 4-ch (Motion Detection 2.0) |
| Network & Storage — Remote Connection | 32 |
| Network & Storage — Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Network & Storage — Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Network & Storage — SATA | 1 SATA interface |
| Network & Storage — Capacity | Up to 8 TB capacity for each disk |
| Interface — PoE Interface | 8-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Interface — PoE Power | ≤ 75 W |
| Interface — PoE Standard | IEEE 802.3 af/at |
| Interface — USB Interface | 2 × USB 2.0 |
| General & Environment — Power Supply | 48 VDC, 1.88 A |
| General & Environment — Consumption | ≤ 10 W (without HDD and PoE off) |
| General & Environment — Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| General & Environment — Working Humidity | 10% to 90% |
| General & Environment — Dimension | 265 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| General & Environment — Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
| General & Environment — FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| General & Environment — CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
§ 04Why choose this
Built for the way you actually use the NVR-108MH-C-8P
4K output, 8MP recording
Records cameras up to 8MP and drives a 4K monitor over HDMI for a sharp, mid-size system.
Efficient storage
H.265+ compression fits more footage on a single drive, keeping costs down for a home or small business.
Works with what you have
ONVIF and RTSP support connects many third-party IP cameras, not just HiLook.
§ 05Where it fits
Right at home in these scenarios
Larger homes
Cover front, back, sides and driveway of a bigger property with up to eight cameras.
Shops and offices
Watch entries, aisles, tills and storerooms on one plug-and-play recorder.
Cafes and small venues
Cover the floor, counter and rear access across several cameras.
Workshops and yards
Protect a working site with continuous recording and human/vehicle alerts.
§ 06Setup
Installation & setup
In the box
NVR-108MH-C-8P recorder, power adapter, mouse and network cable. A hard drive is not included.
Connecting cameras
Plug up to 8 IP cameras into the built-in PoE ports; the recorder powers them and can add them automatically.
Adding a drive
Fit one surveillance-rated SATA drive, then initialise and format it from the storage menu. The datasheet lists support for up to an 8TB drive.
Remote viewing
Connect the LAN port to your router and scan the Hik-Connect QR code for viewing on a phone.
§ 08Questions
Frequently asked about the NVR-108MH-C-8P
Q.01
How many cameras can the NVR-108MH-C-8P record?
Up to 8 IP cameras at resolutions up to 8MP, connected over its eight built-in PoE ports.
Q.02
Does it come with a hard drive?
No. It is supplied without a hard drive. It has a single SATA bay; the datasheet lists support for up to an 8TB drive.
Q.03
Do I need a separate PoE switch?
No, not for up to eight cameras. The eight built-in PoE ports (up to 75W total) power and connect cameras over one cable each.
Q.04
Does it do facial recognition?
No. This C-series model provides 4-channel human and vehicle Motion Detection 2.0 only, not facial recognition.
Q.05
Will it work with non-HiLook cameras?
Yes. It connects to many third-party IP cameras over ONVIF and RTSP, as well as HiLook and Hikvision cameras.
Q.06
Can it output 4K video?
Yes. It has a 4K HDMI output with simultaneous VGA for live view and playback.
Q.07
How is it different from the NVR-104MH-C-4P?
This is the same C-series recorder with eight PoE ports instead of four, for systems that need more cameras.
Q.08
Can I view it remotely?
Yes. It supports Hik-Connect for live and recorded viewing on a phone, with two-way audio through a compatible camera.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a surveillance drive
Fit one drive such as a 6TB drive, 8TB drive or 10TB drive for continuous recording from eight cameras.
Only need 4 cameras?
The NVR-104MH-C-4P is the same C-series recorder with four PoE ports.
Want face recognition?
The 4-channel NVR-104MH-K/4P adds facial recognition and smart search if you need AI on a smaller system.
More PoE ports?
Add a HiLook 8-port PoE switch if you need to power cameras beyond the eight built-in ports.
