Hanwha Security Cameras

- 5MP Detail With 105° Coverage: Fixed 2.8mm F2.0 lens frames 2592×1944 detail across a 105° horizontal / 77° vertical field of view, suited to wide indoor spaces and covered exterior mounts.
- 20m IR With 120dB WDR: Built-in 850nm IR LEDs illuminate to 20m at 0.015 lux B/W, while 120dB WDR paired with SSNR keeps highlights and shadows readable under mixed lighting.
- Efficient H.265 + WiseStream II: H.265 / H.264 / MJPEG codecs run to 30fps with WiseStream II smart bitrate control, trimming storage and bandwidth on shared or multi-camera sites.
- Vandal-Rated Aluminium Dome: Aluminium vandal dome housing rated IEC 60529 IP66 and IEC 62262 IK10, powered on IEEE 802.3af Class 3 PoE (max 7.50W, typical 5.80W).

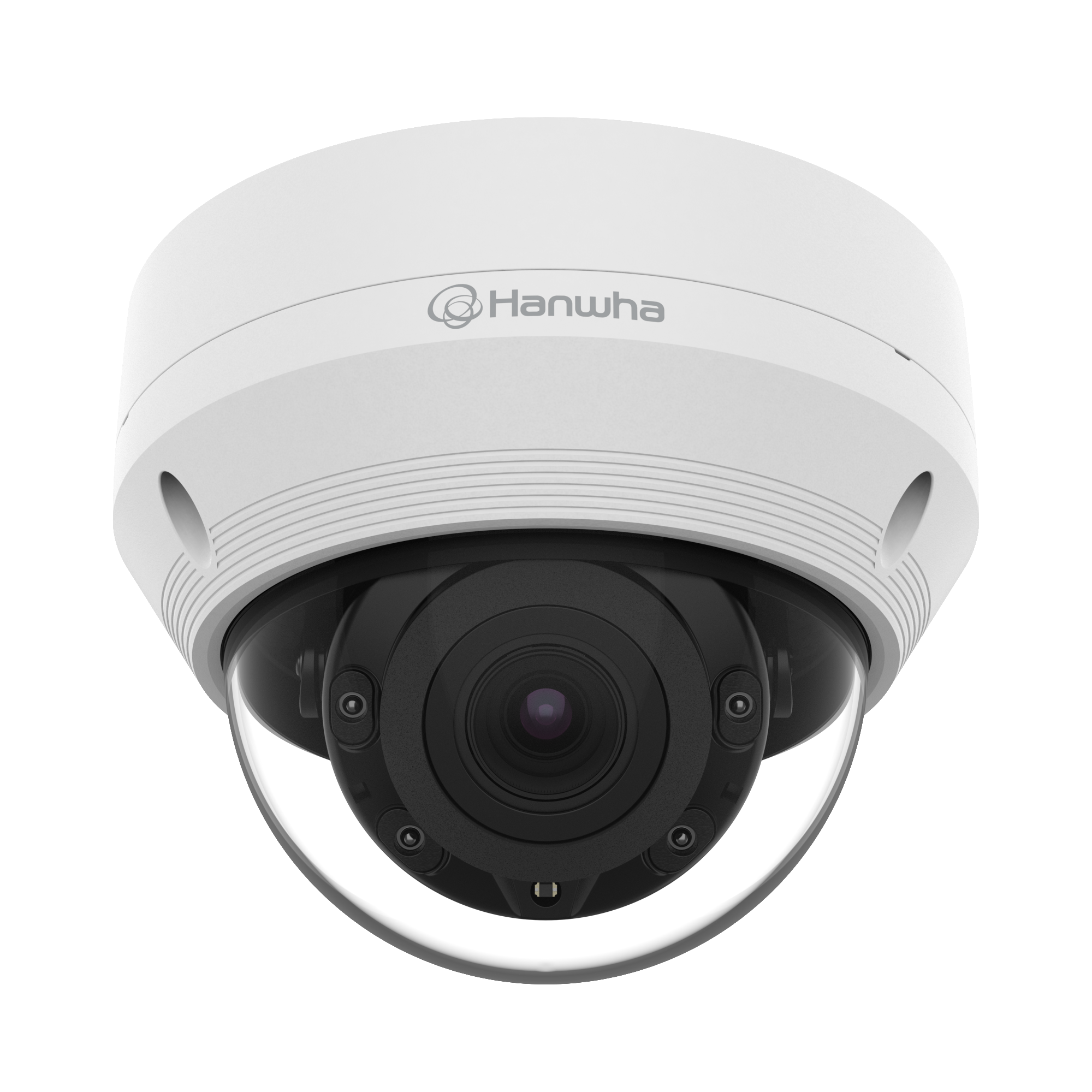

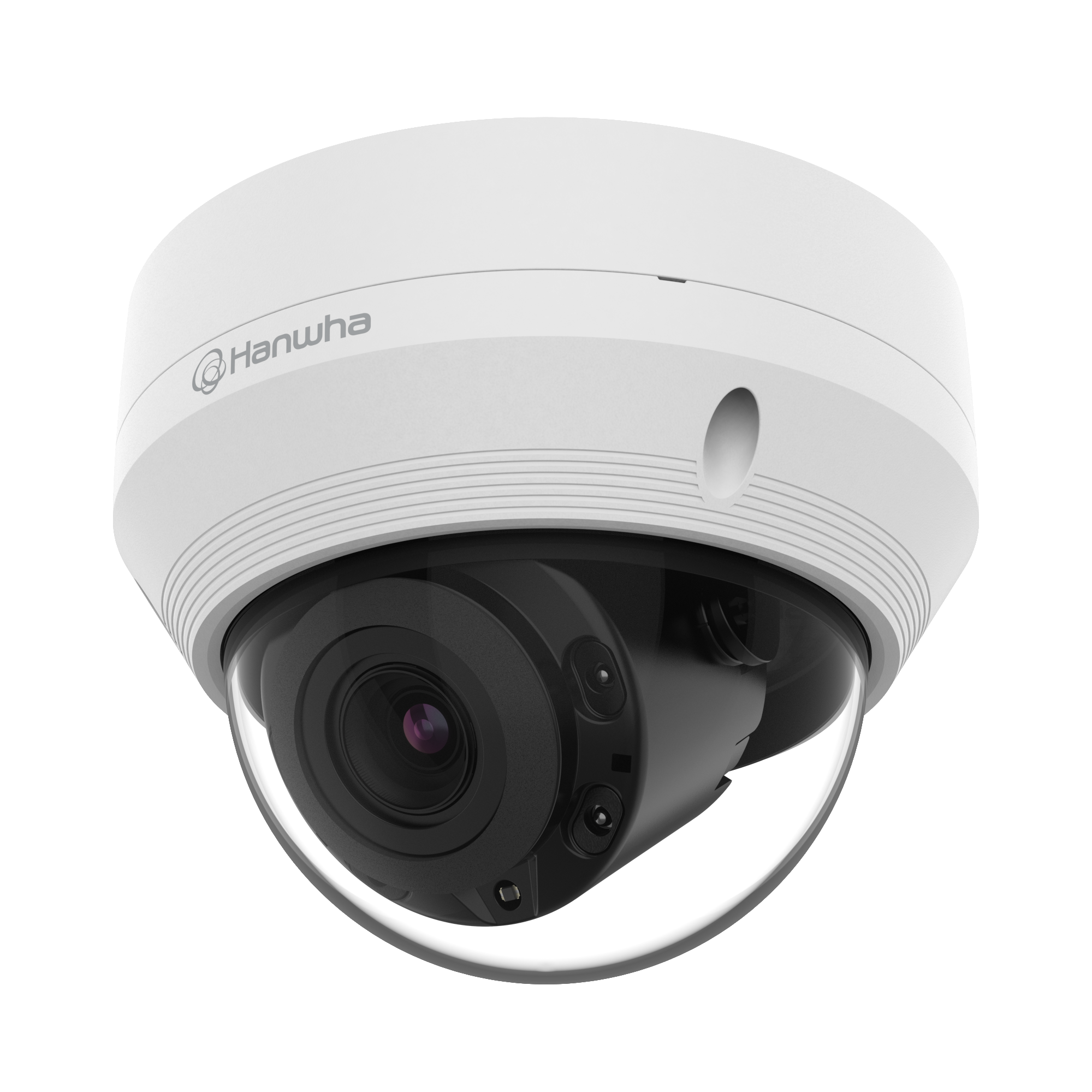

- 4MP Varifocal Coverage: 3.2-10mm F1.6-2.9 motorized varifocal lens (3.1x optical zoom) covers 99° wide down to 30° tele, so one dome can be reframed after mount without physical adjustments.
- Extended DORI Reach: DORI Detect at 138.4m, Observe at 55.4m, Recognize at 27.7m, and Identify at 13.8m at the tele end, making this vandal dome a genuine option for long corridor and yard boundary applications.
- 30m IR + 120dB WDR: 850nm IR LEDs illuminate to 30m at 0.01 lux B/W, while 120dB WDR paired with SSNR keeps highlights and shadows readable under direct sun or against dark bay interiors.
- NEMA 4X Grade Weather Sealing: IP66 / IK10 / NEMA 250 type 4X plus -40°C to +55°C operating range suit exposed AU coastal and industrial mounts. Dual power via PoE (max 11.4W) or 12VDC (max 9.6W).

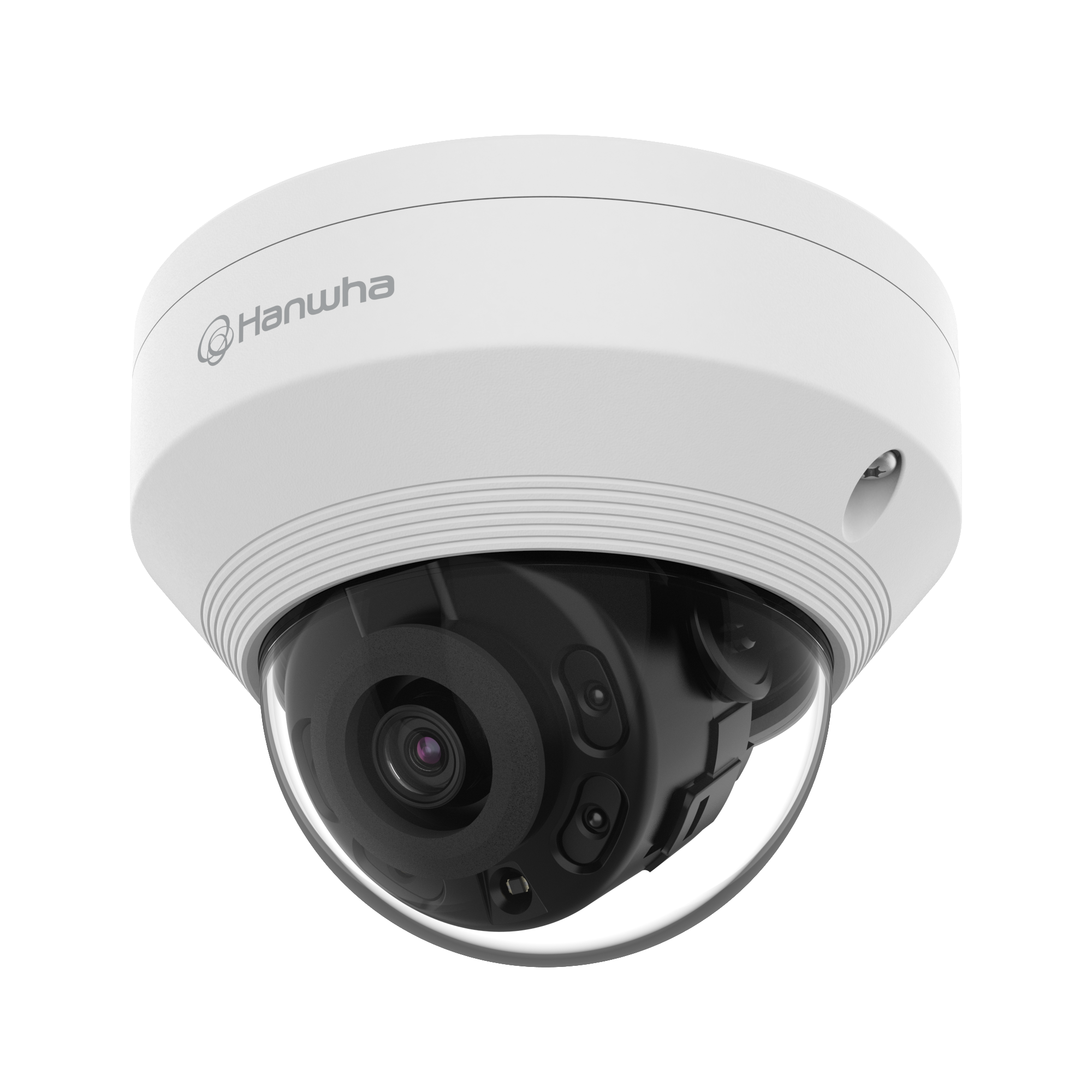

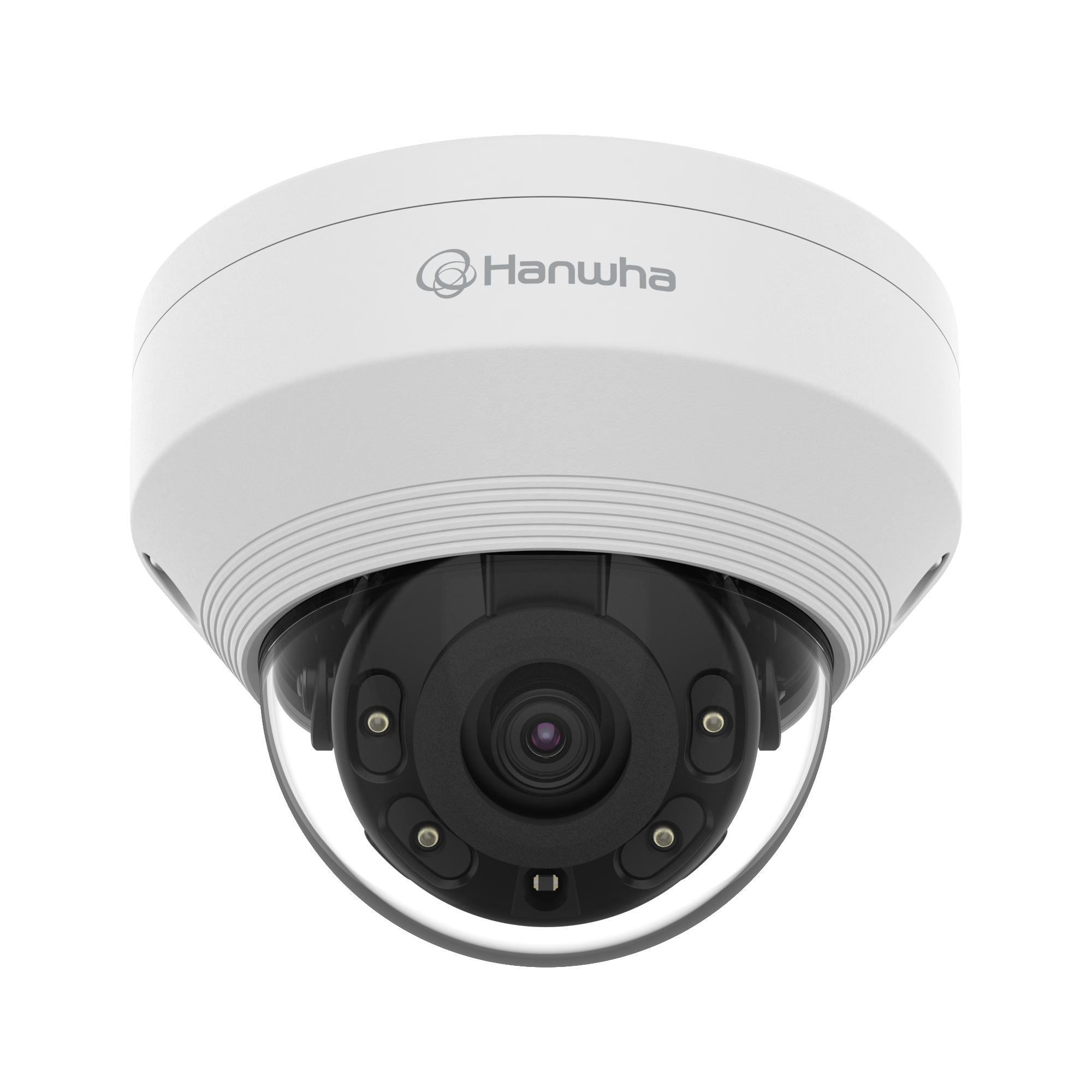

- 4MP Detail With 108° Coverage: Fixed 2.8mm F2.0 lens frames 2560×1440 detail across a 108° horizontal / 60° vertical field of view, ideal for wide indoor rooms, retail interiors, and covered thresholds.
- 20m IR With 120dB WDR: 850nm IR LEDs illuminate to 20m at 0.015 lux B/W, while 120dB WDR paired with SSNR keeps highlights and shadows readable under mixed lighting.
- Wide Operating Range: -40°C to +55°C operating temperature supports refrigerated coldrooms, outback deployments, and heavily air-conditioned commercial interiors that would exceed a standard camera's range.
- PoE or 12VDC Dual Power: Powered on IEEE 802.3af Class 3 PoE (max 10.7W) or 12VDC (max 9.1W), suiting refit installations where existing 12VDC cabling can be reused rather than pulled fresh.

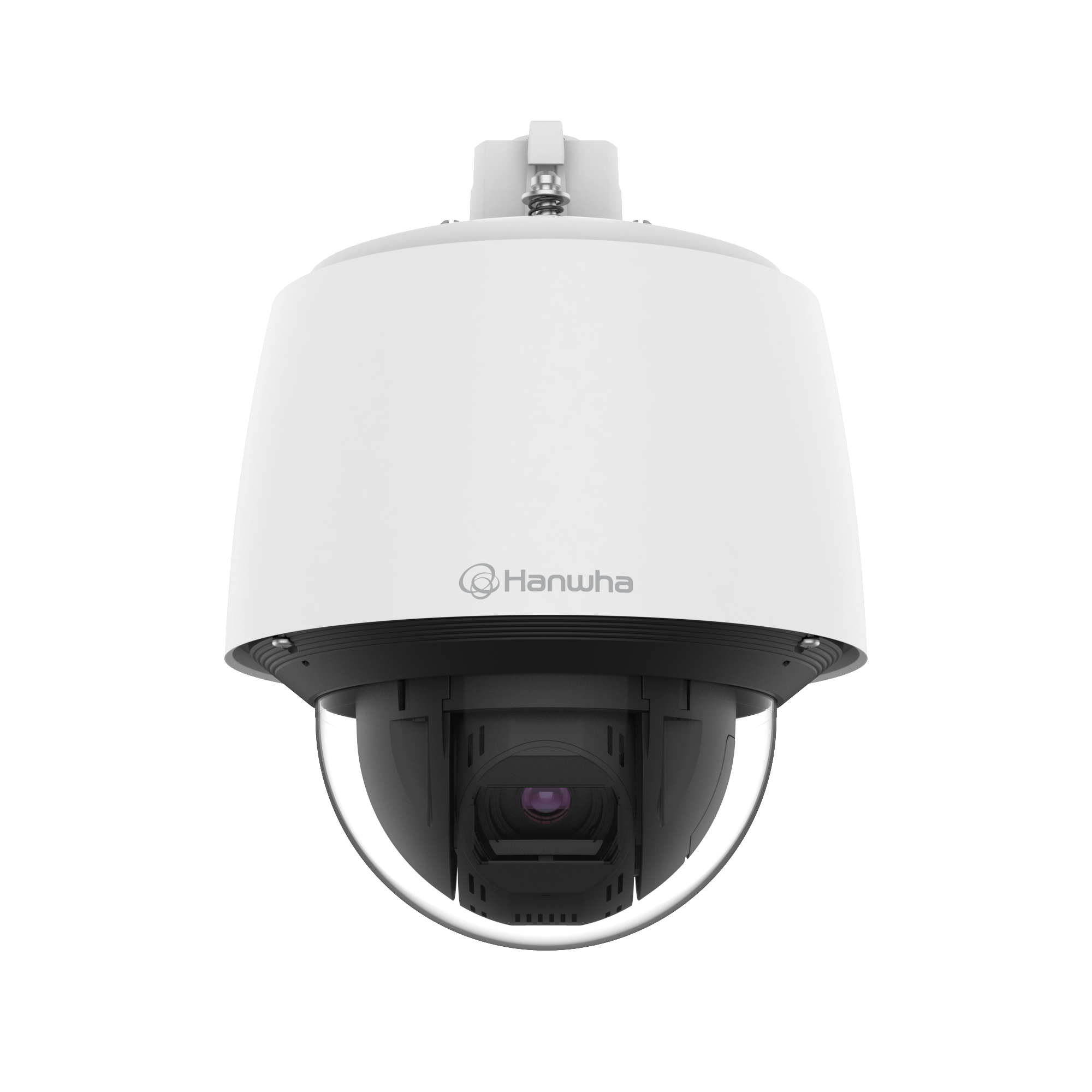

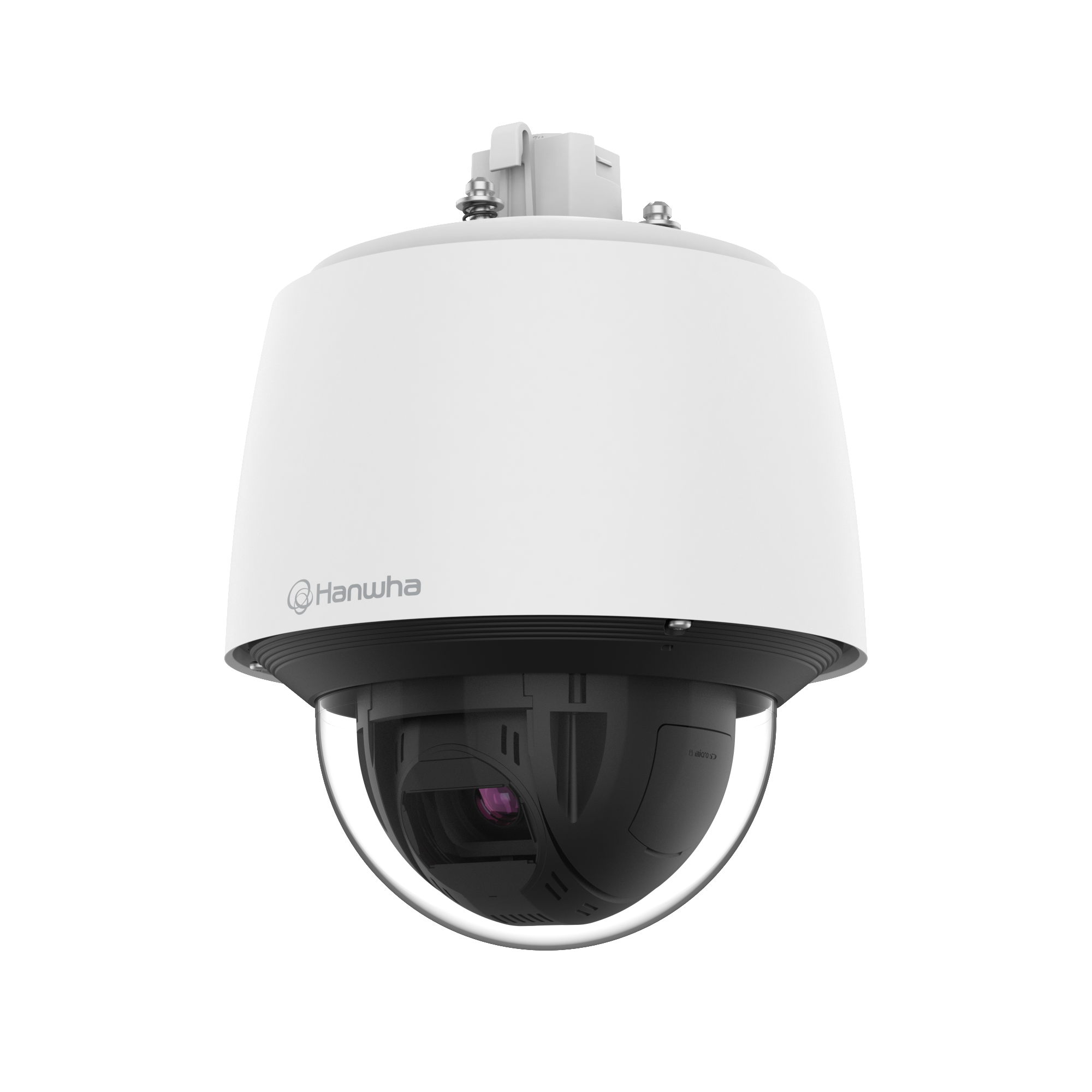

- Genuine 25x Optical Zoom PTZ: 4.44-111mm motorized zoom lens with 25x optical / 32x digital reach and Auto/Manual/Oneshot AF focus modes, letting one PTZ cover both a broad overview and a narrow long-throw target from the same mount.
- 60fps Full HD For Fast Action: 1920×1080 output up to 60fps under H.265/H.264 delivers smoother review footage on active outdoor scenes — vehicle plates, sports fields, and busy pedestrian flow — than a standard 30fps PTZ.
- 120dB WDR Plus Direction Indicator: 120dB WDR keeps highlights and shadows readable across mixed lighting; the on-screen Direction Indicator overlay shows current camera bearing during operator control.
- NEMA 4X Grade Weather Sealing: IP66 / IK10 / NEMA 250 type 4X aluminium and polycarbonate housing plus -35°C to +55°C operating range suit exposed AU outdoor mounts. Powered on IEEE 802.3at Class 4 PoE+ (max 23W, typical 14W).

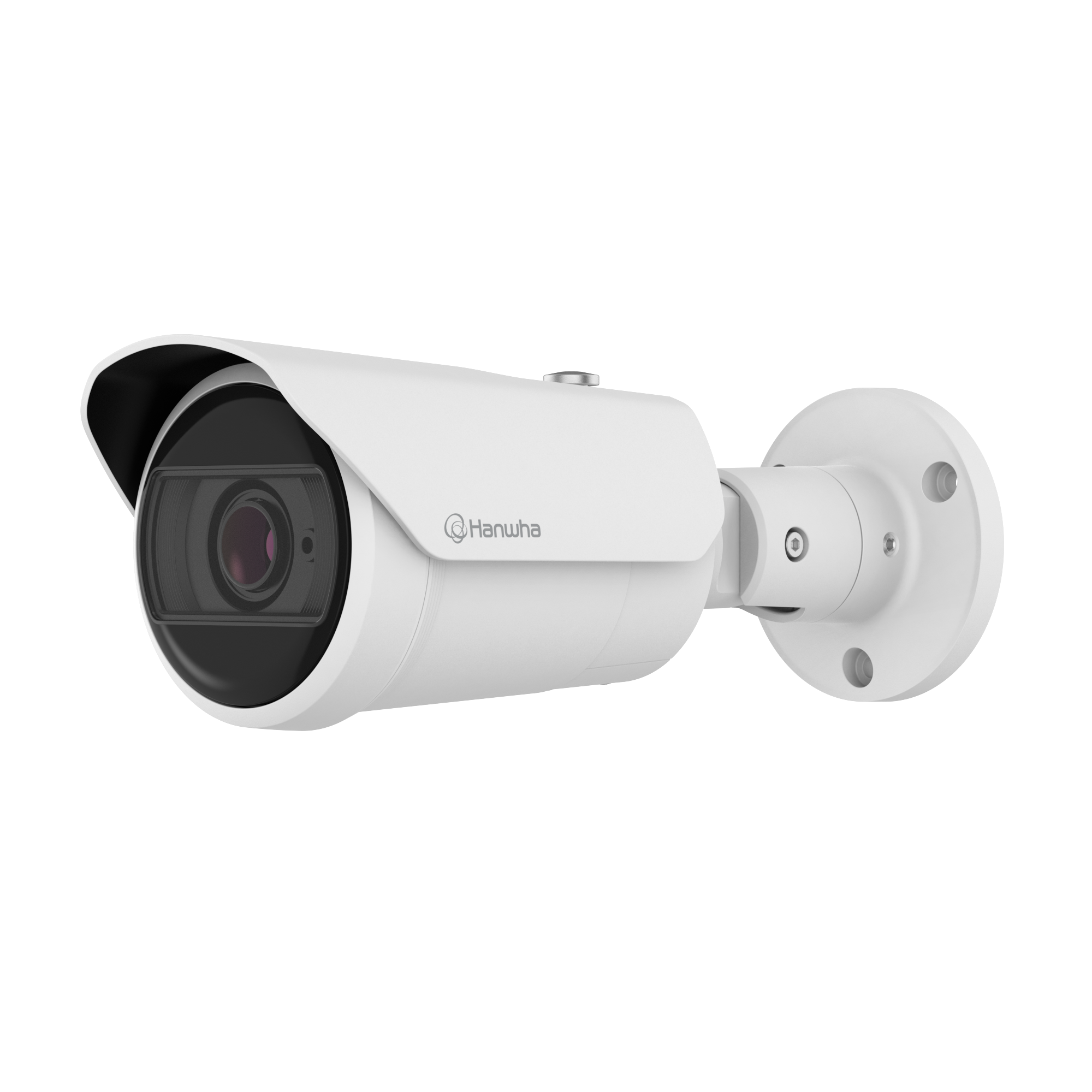

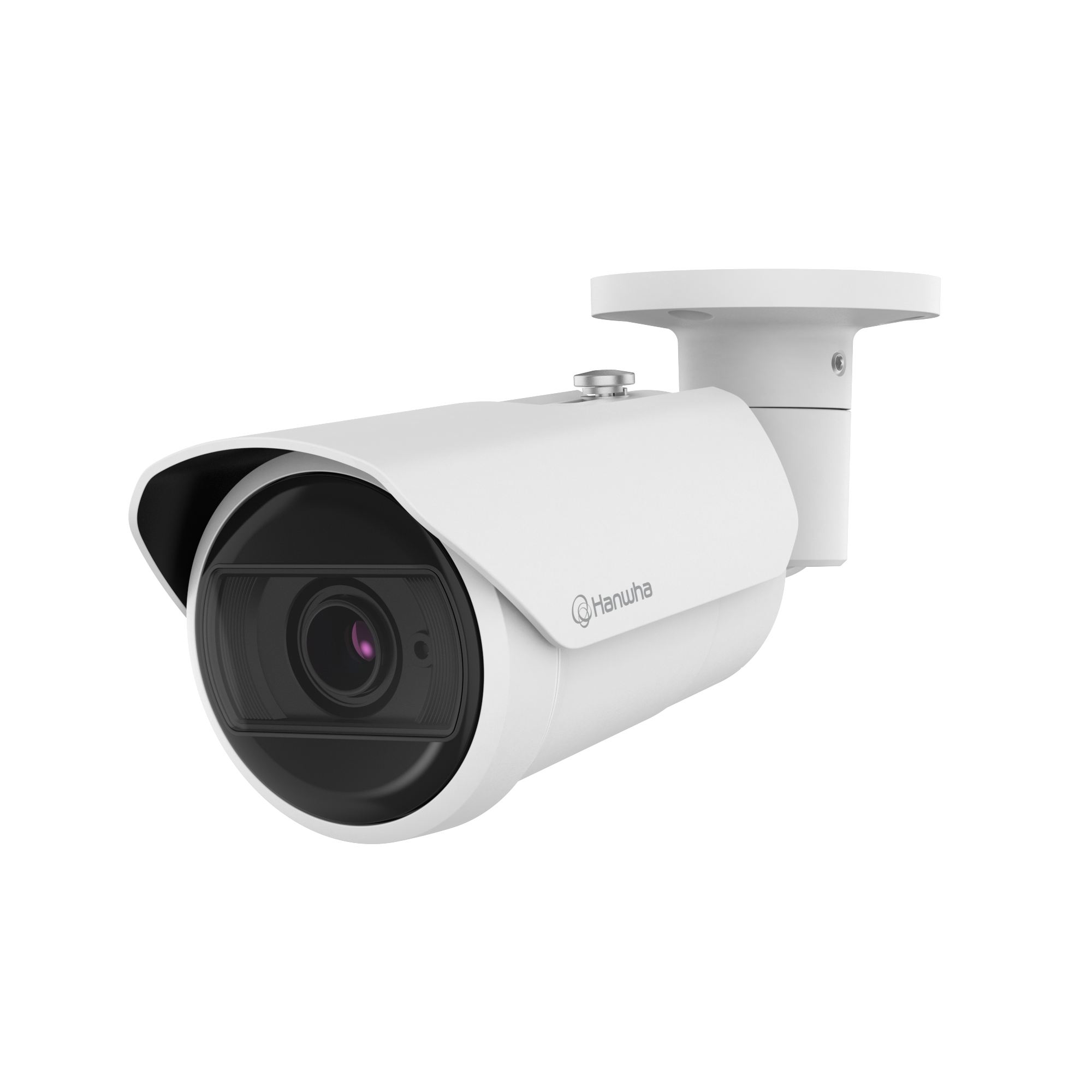

- 4K Ultra HD With Motorized Varifocal: An 8MP (3840×2160) sensor pairs with a 3.2-10.2mm F1.6-3.1 varifocal lens spanning 104° wide down to 31° tele, so a single bullet can be re-framed after mount without lens swaps.
- Long-Range Perimeter Reach: DORI Detect at 276.9m, Observe at 111.7m, Recognize at 55.4m, and Identify at 27.7m at the tele end — real long-throw performance for boundary walls, entrance roads, and industrial fence lines.
- On-Board AI + Business Intelligence: NPU Object detection classifies persons and vehicles (car, bus, truck, motorcycle, bicycle), captures DetectionShot thumbnails, and drives native people counting, queue management, heatmap, and vehicle counting.
- IP66 / IK10 / NEMA 4X, 12W PoE: 120dB WDR with WiseNR II (AI) plus 30m 850nm IR at 0.006 lux B/W, in a corrosion-rated aluminium housing on IEEE 802.3af Class 3 PoE (max 12W, typical 5.3W).

- Motorized 3.2x Varifocal AI Bullet: The 3.2-10.2mm F1.6-3.1 varifocal lens spans a 95° wide framing down to 29° telephoto, so one bullet covers both a broad approach and a distant target without swapping hardware.
- Extended DORI Reach at Tele: DORI Detect at 186.9m, Observe at 75.4m, Recognize at 37.4m, and Identify at 18.7m at the tele end make this bullet a genuine option for long driveways, boundary walls, and industrial perimeters.
- On-Board AI With Business Intelligence: NPU-driven Object detection classifies persons and vehicles (car, bus, truck, motorcycle, bicycle), and Business Intelligence adds people counting, queue management, heatmap, and vehicle counting.
- IP66 / IK10 / NEMA 4X, 12W PoE: 120dB WDR with WiseNR II (AI) plus 30m 850nm IR (0.007 lux B/W) and a NEMA 4X-rated aluminium housing suit exposed AU industrial mounts. Runs on IEEE 802.3af Class 3 PoE, max 12W typical 5.3W.

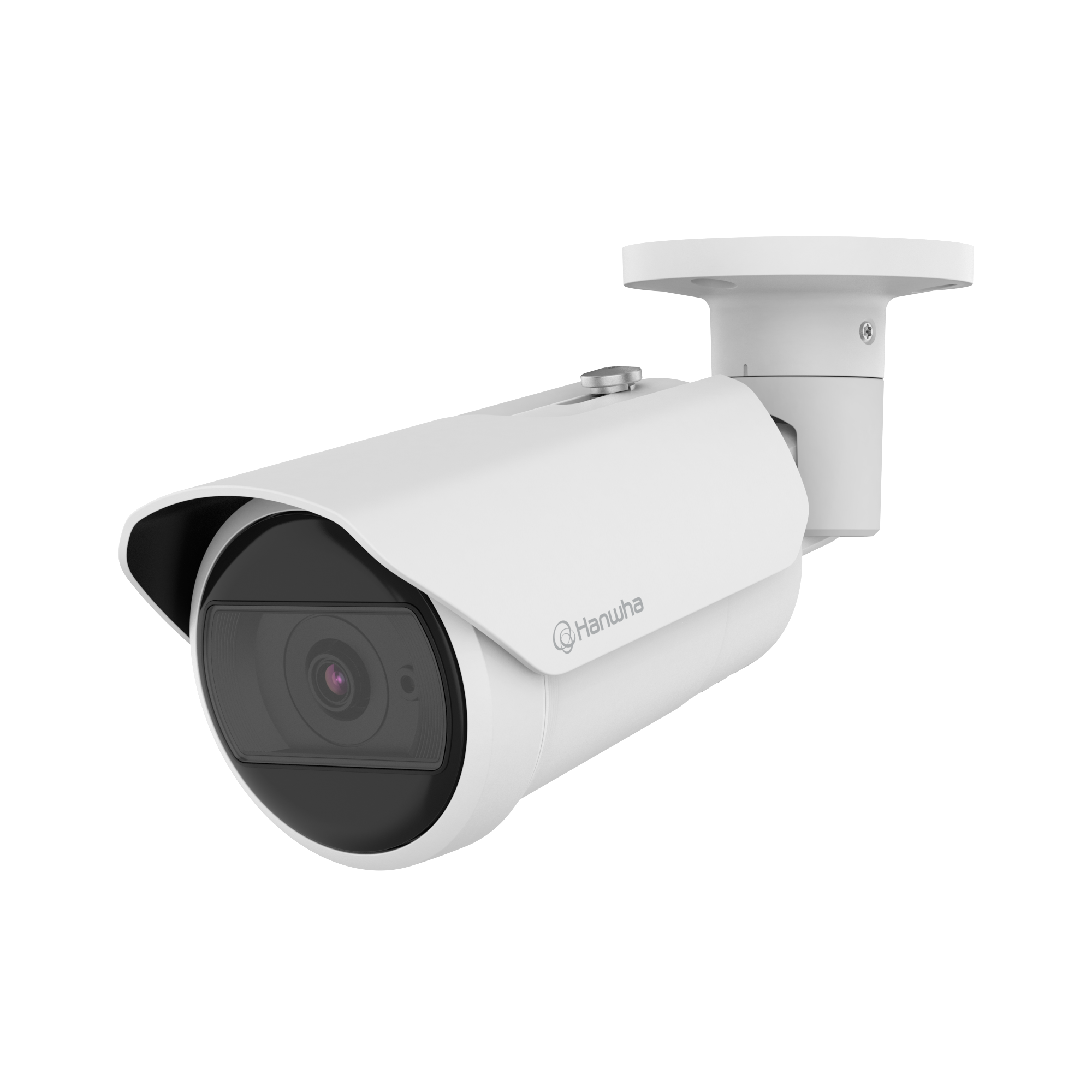

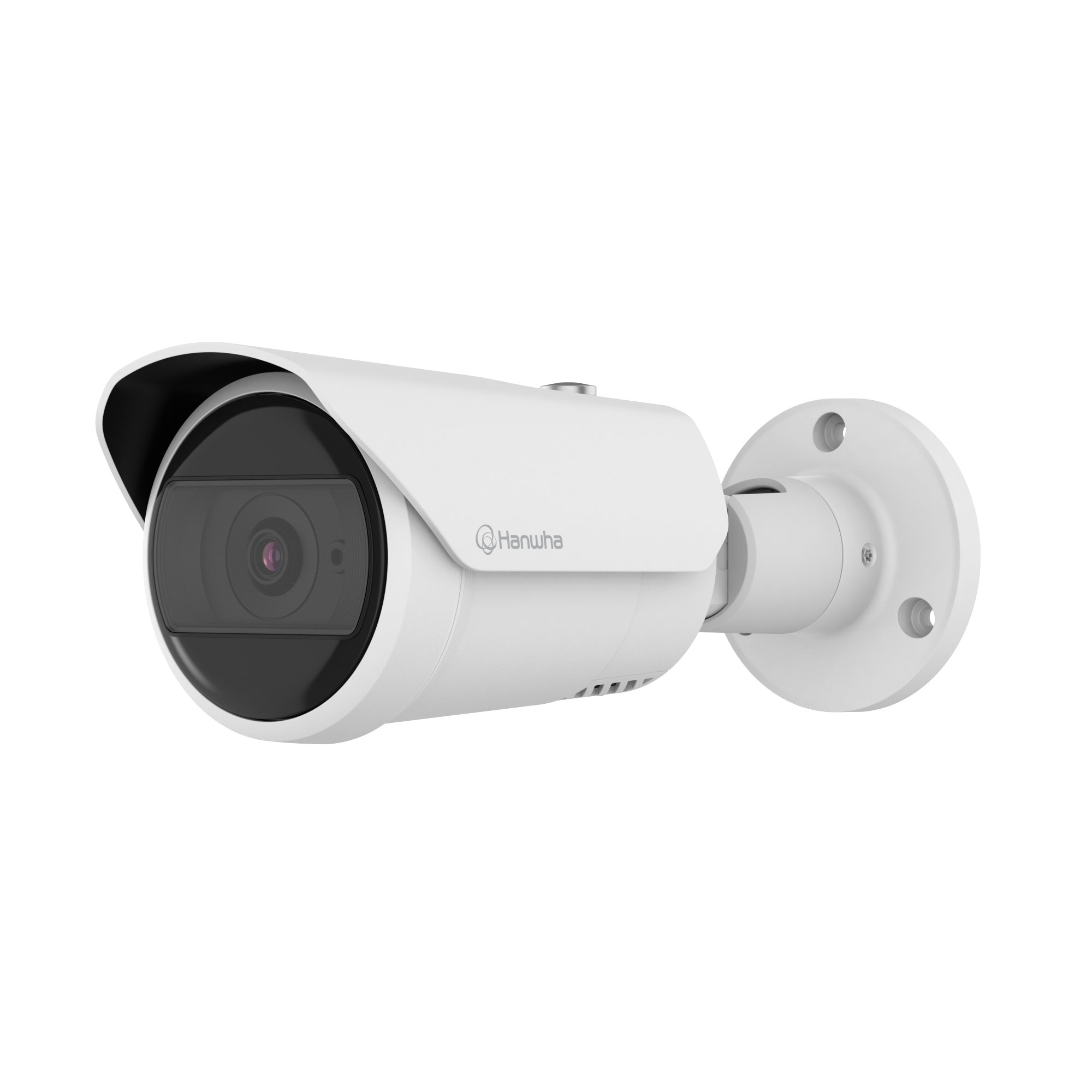

- On-Board AI Analytics: Classifies persons and vehicles, tags upper/lower clothing colour plus vehicle type and colour, and captures BestShot thumbnails so post-event searches jump straight to the frame that matters.
- 100° Fixed Wide-Angle Coverage: The 3mm F1.6 lens spans a 100° horizontal / 73° vertical field of view, letting one bullet cover a forecourt, car park bay, or loading approach that would otherwise need two mounts.
- 25m IR With 120dB WDR: Built-in 850nm IR LEDs illuminate to 25m at 0.005 lux B/W, while 120dB WDR paired with WiseNR II keeps highlights and shadows readable through mixed outdoor lighting.
- WiseStream III + 256GB Edge Storage: WiseStream III adapts bitrate scene-by-scene against a 30fps H.265 stream, and an on-board microSD slot up to 256GB (or 1TB with Hanwha's OnCloud-certified cards) preserves footage if the network drops.

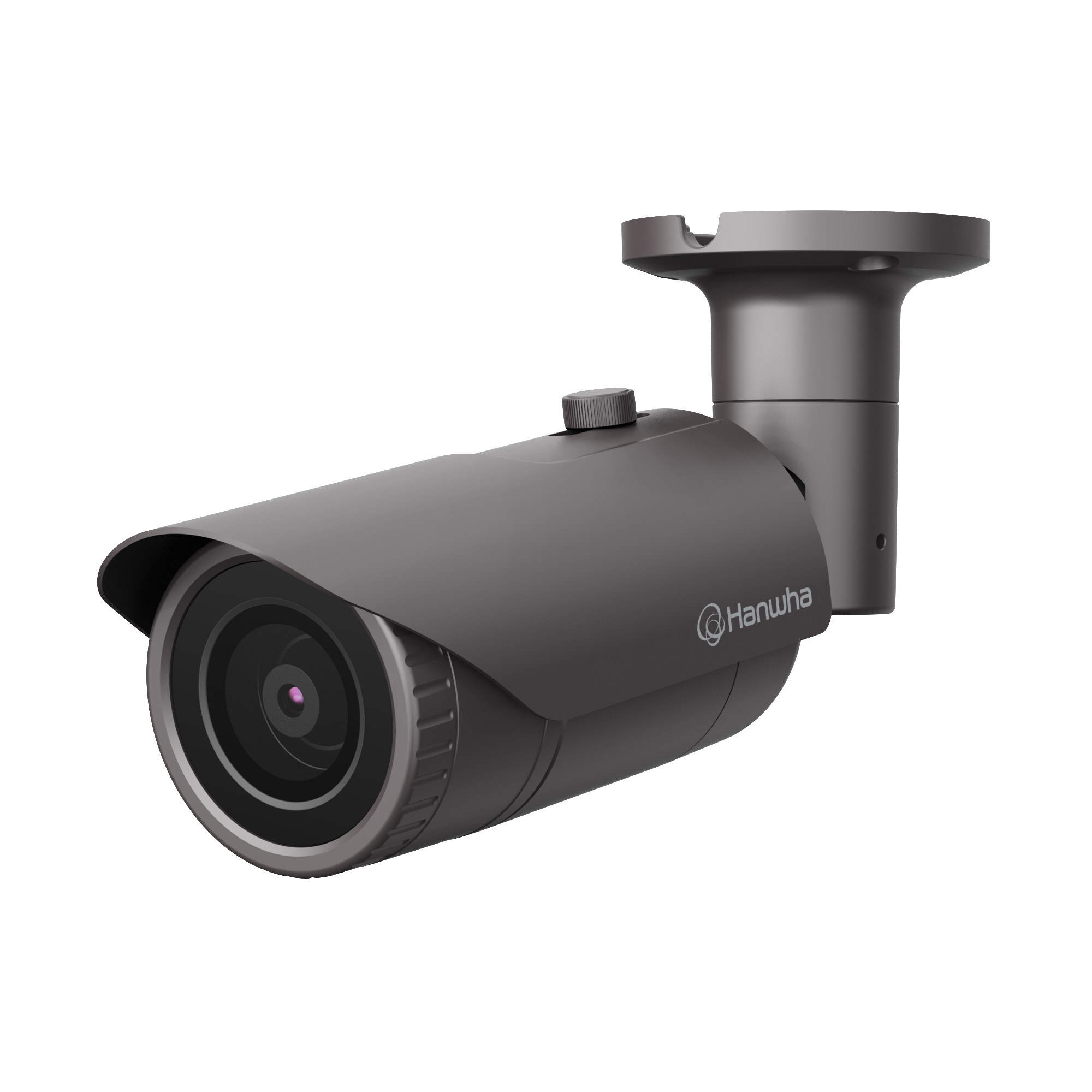

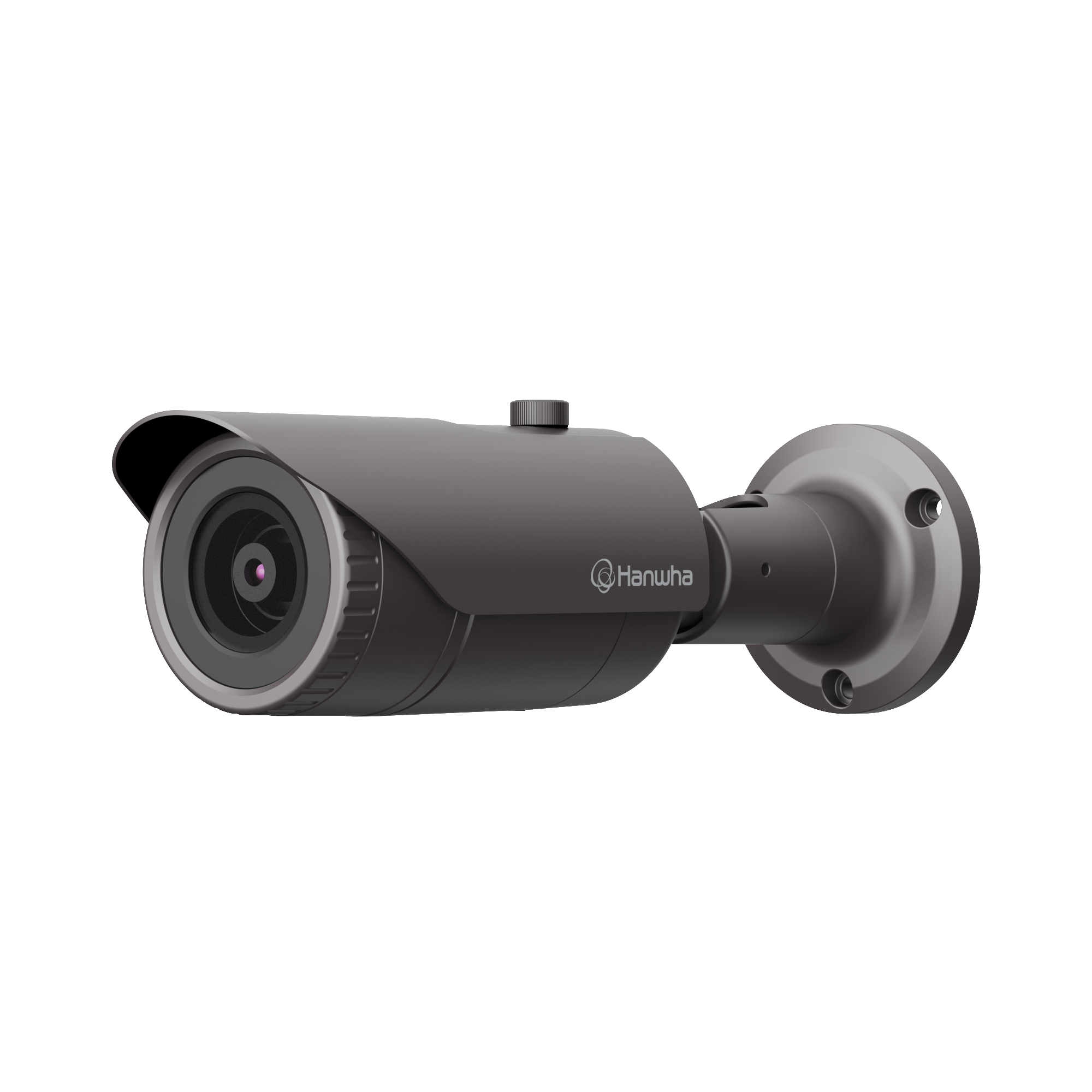

- 5MP Detail With Focused 80° Framing: Fixed 4.0mm F1.6 lens frames 2592×1944 detail across an 80° horizontal / 59° vertical field of view, better suited to targeted long-view scenes than a wider fixed lens.
- 25m IR With 120dB WDR: 850nm IR LEDs illuminate to 25m at 0.015 lux B/W, while 120dB WDR paired with SSNR preserves detail across sunlit thresholds and shaded interiors.
- Efficient H.265 + WiseStream II: H.265 / H.264 / MJPEG codecs run to 30fps under WiseStream II smart bitrate control, trimming storage and bandwidth on shared or multi-camera networks.
- Weatherproof Aluminium Housing: Dark grey aluminium bullet rated IEC 60529 IP66 and IEC 62262 IK10, powered on IEEE 802.3af Class 3 PoE (max 7.50W, typical 6.10W).
