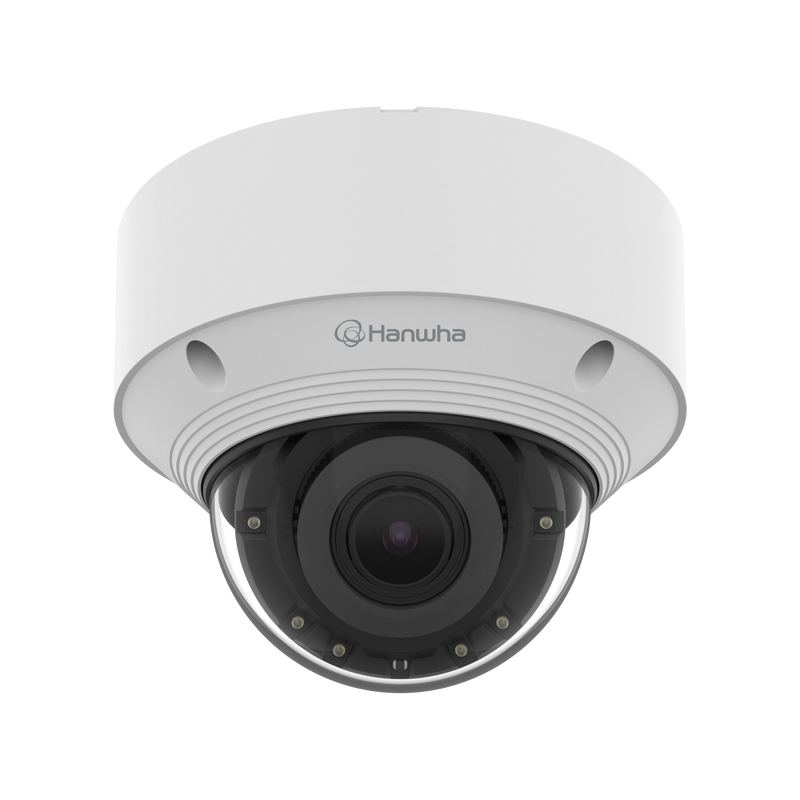

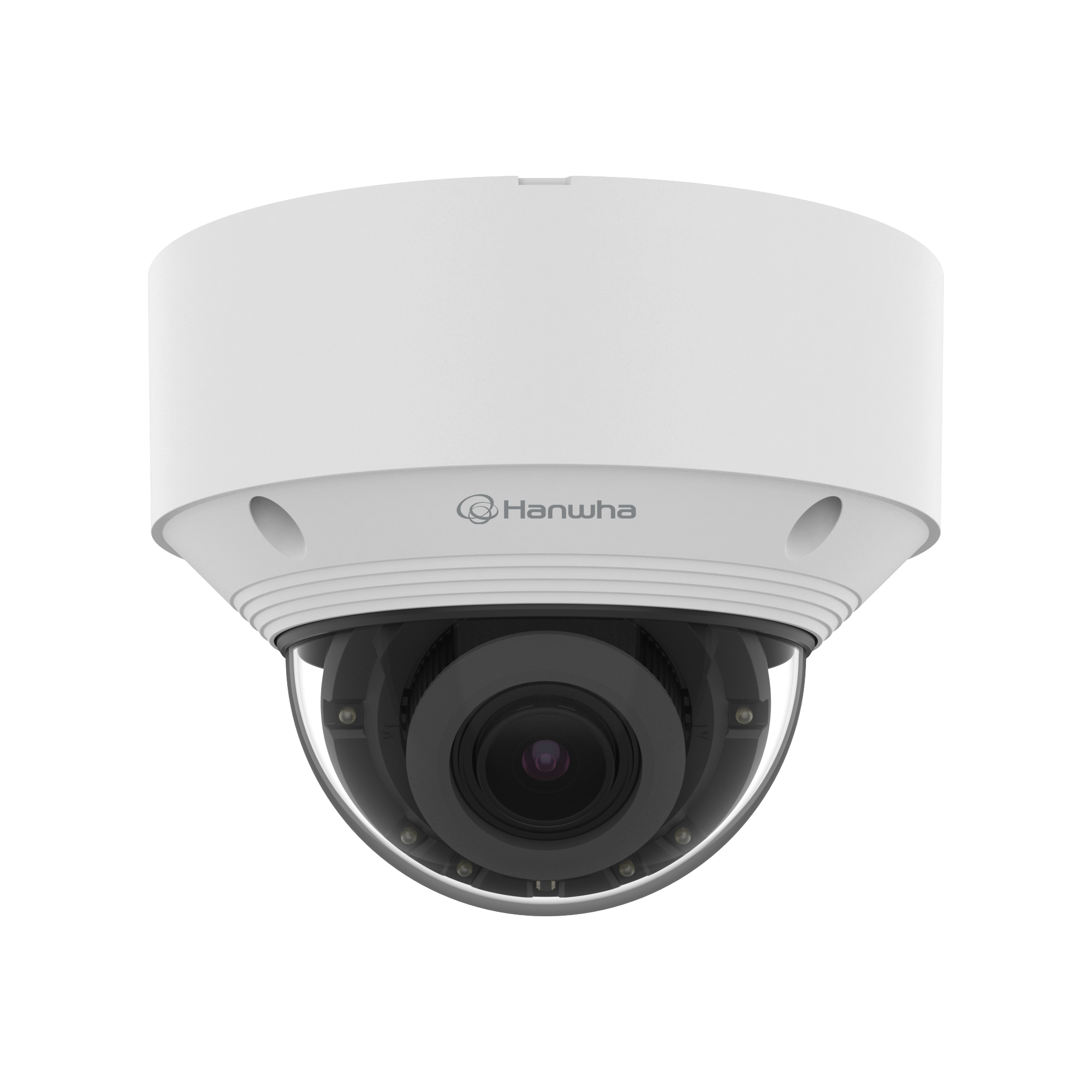

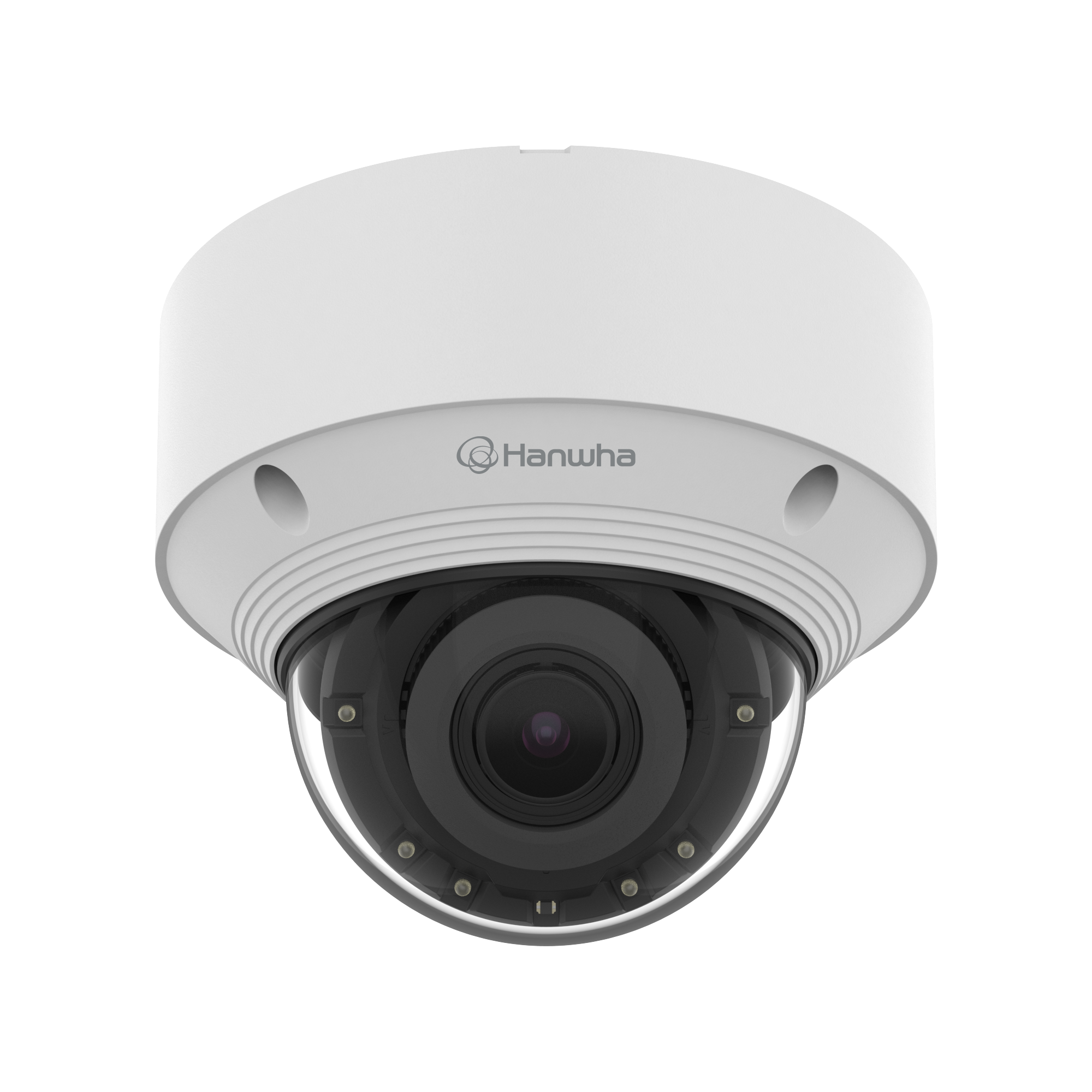

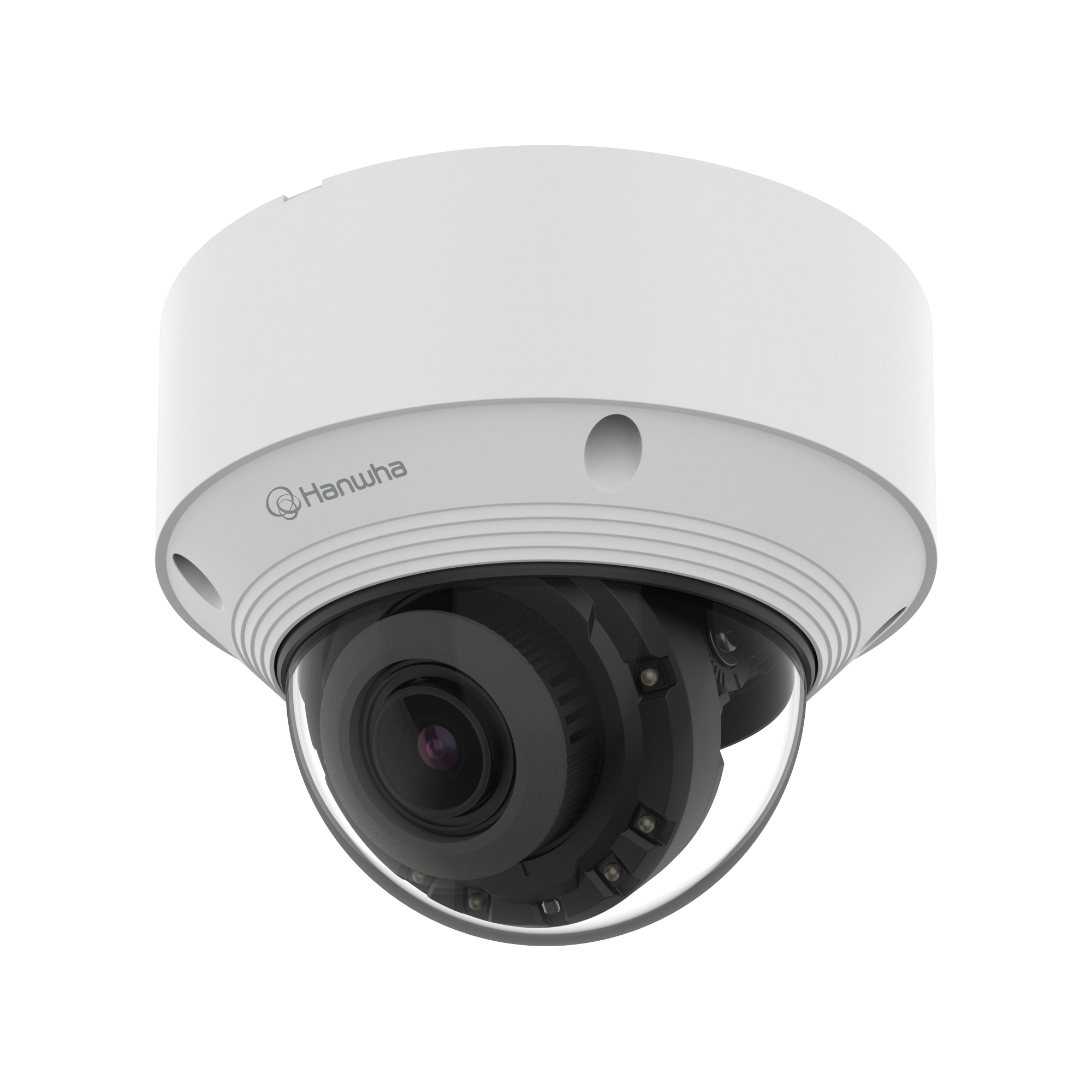

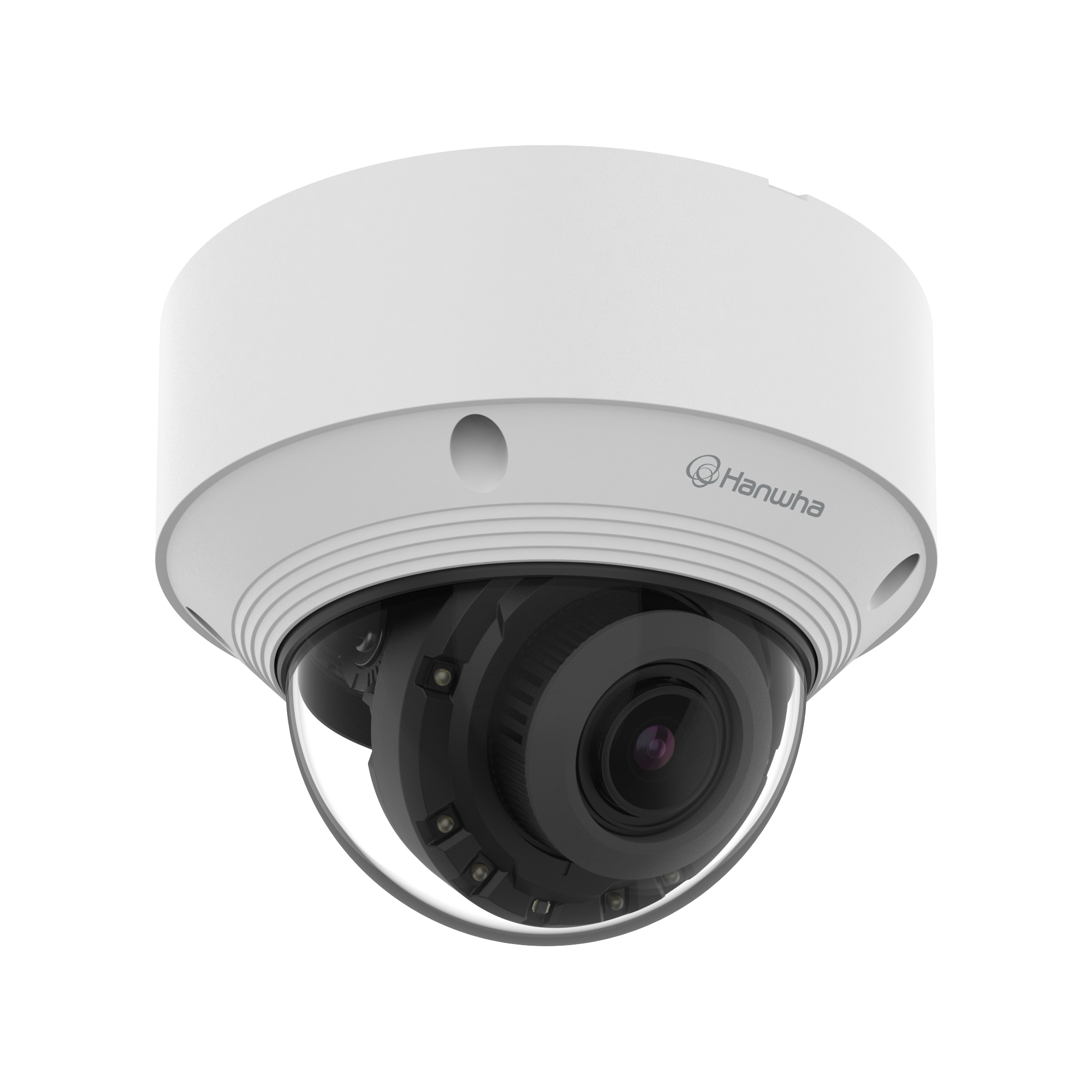

Hanwha QNV-C8083R 5MP AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR

SKU: QNV-C8083R
Description

- Motorised Varifocal + AI: The 3.2-10.2mm lens is adjustable remotely over the network — combined with on-device person/vehicle classification for meaningful event filtering.
- 5MP + 30m IR: Wide-to-tight framing spans building entries down to tight counter zones, with IR reach for after-hours coverage.
- Adaptable Post-Install: Dial in the exact field of view during commissioning without opening the housing — save site visits on multi-tenant office and evolving retail fitouts.
- Indoor / Outdoor Mount: Consistent camera choice across mixed-environment sites — office lobbies, adjacent covered walkways, retail entries.
$654.60 AUD $654.60 AUD $674.85 AUD
Sale 3.0% $20.25 AUD (3.0%)
Member Sign in to save $13.09 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $924.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $654.60
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the QNV-C8083R is

The Hanwha QNV-C8083R pairs a 3.2-10.2mm motorised varifocal lens with on-device AI in a 5MP vandal dome format, aimed at ceiling installations where the framing may need to change over the life of the site.

Zoom and focus are dialled in remotely — no housing to open, no site revisit — which makes the C8083R a fit for multi-tenant fitouts, evolving retail floors, and corridor intersections that get reconfigured with tenancy churn.

The AI engine separates real people and vehicles from raw pixel motion, so alerts point to actual events rather than shadow flicker or HVAC-driven curtain movement.

Sensor output is 2592x1944 at up to 30fps under H.265/H.264/MJPEG, with 120dB WDR handling backlit thresholds and 30m IR sustaining coverage into after-hours.

A microSD slot backs recording locally when the network link drops.

Housing is rated for both indoor and outdoor ceiling or surface mount — practical when the same camera model needs to run across an office lobby plus its adjacent covered walkway, or a retail floor plus its outdoor entry canopy, without the procurement fragmentation of two different SKUs.

§ 02Engineering

QNV-C8083R specifications

- 5MP resolution (2592x1944) at up to 30fps H.265/H.264
- 3.2-10.2mm motorised varifocal lens, adjustable remotely
- On-device AI person and vehicle classification
- Up to 120dB Wide Dynamic Range
- 30m IR viewable length
- H.265, H.264, MJPEG codecs
- microSD onboard recording for edge failover
- Indoor and outdoor ceiling or surface mount rated
- Vandal-resistant dome housing
- PoE powered

§ 04Why choose this

Built for the way you actually use the QNV-C8083R

Adjust Framing Without Opening the Housing

The 3.2-10.2mm motorised varifocal lens is adjusted from the web viewer or Wisenet WAVE — a slightly wrong guess on mounting position, or a change in site layout, doesn't mean climbing back up.

AI Cuts False Positives at the Same Time

On-device person/vehicle classification filters out shadow flicker, wind-blown vegetation, and animal traffic. Combined with remote framing adjustment, this saves both commissioning-time labour and ongoing operator review time.

One Camera Choice, Indoor and Outdoor

Rated for both indoor and outdoor ceiling/surface mount — meaningful on mixed-environment sites (office lobby + covered walkway, retail floor + outdoor canopy) where consistent hardware simplifies procurement and NVR configuration.

Meaningful Event Alerts

AI classification generates alerts on real events rather than raw motion — reducing operator review time on multi-camera commercial deployments where standard motion detection buries real incidents in noise.

§ 05Where it fits

Right at home in these scenarios

Retail Store Ceilings with Evolving Floor Layouts

Remote varifocal adjustment saves site visits when the floor plan changes — retail fitouts, seasonal counter reconfiguration, tenant changes. AI classification keeps alerts focused on real customers not shadow flicker from mirrored displays.

Multi-Tenant Office Corridors

Adjust framing when a tenant changes without needing a technician onsite. IK10 vandal rating suits publicly accessible mounts around lift lobbies and shared corridors.

Building Entrances and Corridor Intersections

Dial the lens to frame a specific stretch of corridor or intersection without opening the housing. AI person classification flags real people entering rather than triggering on shadows from external light sources.

Covered Outdoor Retail Entries and Canopies

30m IR sustains scene coverage across covered outdoor entries overnight, while the indoor/outdoor mount rating means consistent camera choice between the shopfront canopy and interior floor.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha QNV-C8083R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE — verify switch/injector budget when adding AI+varifocal cameras. 2. Storage: microSD card slot for edge recording failover. 3. Mounting: ceiling or surface mount, indoor or outdoor — vandal-resistant dome housing. 4. Sealing: preserve weatherproof rating on outdoor mounts by sealing all conduit and cable entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Power the camera via PoE and allow it to initialise on the network. 3. Dial in zoom and focus remotely on the varifocal lens without opening the housing. 4. Configure AI analytics: virtual lines, intrusion zones, and person/vehicle classification thresholds.

§ 07Questions

Frequently asked about the QNV-C8083R

Q.01

Q: How is this different from the fixed-lens C-series siblings?
A: The QNV-C8083R uses a 3.2-10.2mm motorised varifocal lens — the C8013R and C8023R use fixed 3mm and 4mm lenses respectively. Pick the C8083R when framing may need adjustment post-install (multi-tenant office, evolving retail floor) at a premium; pick the fixed-lens siblings when the field of view is set long-term at a lower price.
Q.02

Q: Can I adjust framing after the camera is mounted?
A: Yes — that's the primary reason to pick this model over the fixed-lens siblings. Zoom and focus on the motorised varifocal lens are controlled from the web viewer or Wisenet WAVE, so getting mounting slightly wrong doesn't mean climbing back up to reposition the housing.
Q.03

Q: How far does the IR reach?
A: Built-in IR extends usable coverage to approximately 30m — enough for typical commercial building entries, corridor intersections, and covered outdoor areas.
Q.04

Q: What AI events can the camera detect?
A: Person and vehicle classification, plus standard motion-based events. Configure through the web viewer or Wisenet WAVE during commissioning.
Q.05

Q: Can I mount this both indoors and outdoors?
A: Yes — explicitly rated for indoor and outdoor ceiling/surface mount installations. Practical impact: consistent camera choice across mixed-environment sites simplifies procurement and NVR configuration.
Q.06

Q: How does the microSD slot help?
A: The microSD card supports on-device recording as a local backup option alongside network storage. Useful when the primary NVR or network link is temporarily unavailable — the camera continues recording locally instead of losing footage.
Q.07

Q: Can this integrate with a third-party NVR or VMS?
A: Yes — the QNV-C8083R supports ONVIF for standard third-party integration. For AI-specific event forwarding into third-party VMS alarm workflows, test event delivery to your recorder before large rollouts.
