Hanwha XNV-C6083R X-Core 2MP AI IR Vandal Dome 2.8-12mm — 40m WiseIR, extremeWDR 150dB, IP66/IP67/IK10/NEMA4X
1 5
Hanwha

Hanwha XNV-C6083R X-Core 2MP AI IR Vandal Dome 2.8-12mm — 40m WiseIR, extremeWDR 150dB, IP66/IP67/IK10/NEMA4X

SKU: XNV-C6083R
Description

- X-Core AI Face + Plate: Person, vehicle, face, licence plate classification with intrusion, loitering, line crossing analytics.
- 150dB extremeWDR + WiseNR II: Top of Hanwha WDR range plus AI noise reduction — usable images across backlit, high-contrast, and low-light scenes.
- 2.8-12mm Motorised Varifocal: Adjust framing remotely from web viewer at commissioning or from the VMS later.
- Full Outdoor Environmental Spec: IP66 + IP67 + IK10 + NEMA4X vandal dome housing for exposed exterior and indoor-outdoor mounts.
$1,143.45 AUD $1,143.45 AUD $1,178.82 AUD
Sale 3.0% $35.37 AUD (3.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,513.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $1,143.45

§ 01Overview

What the XNV-C6083R is

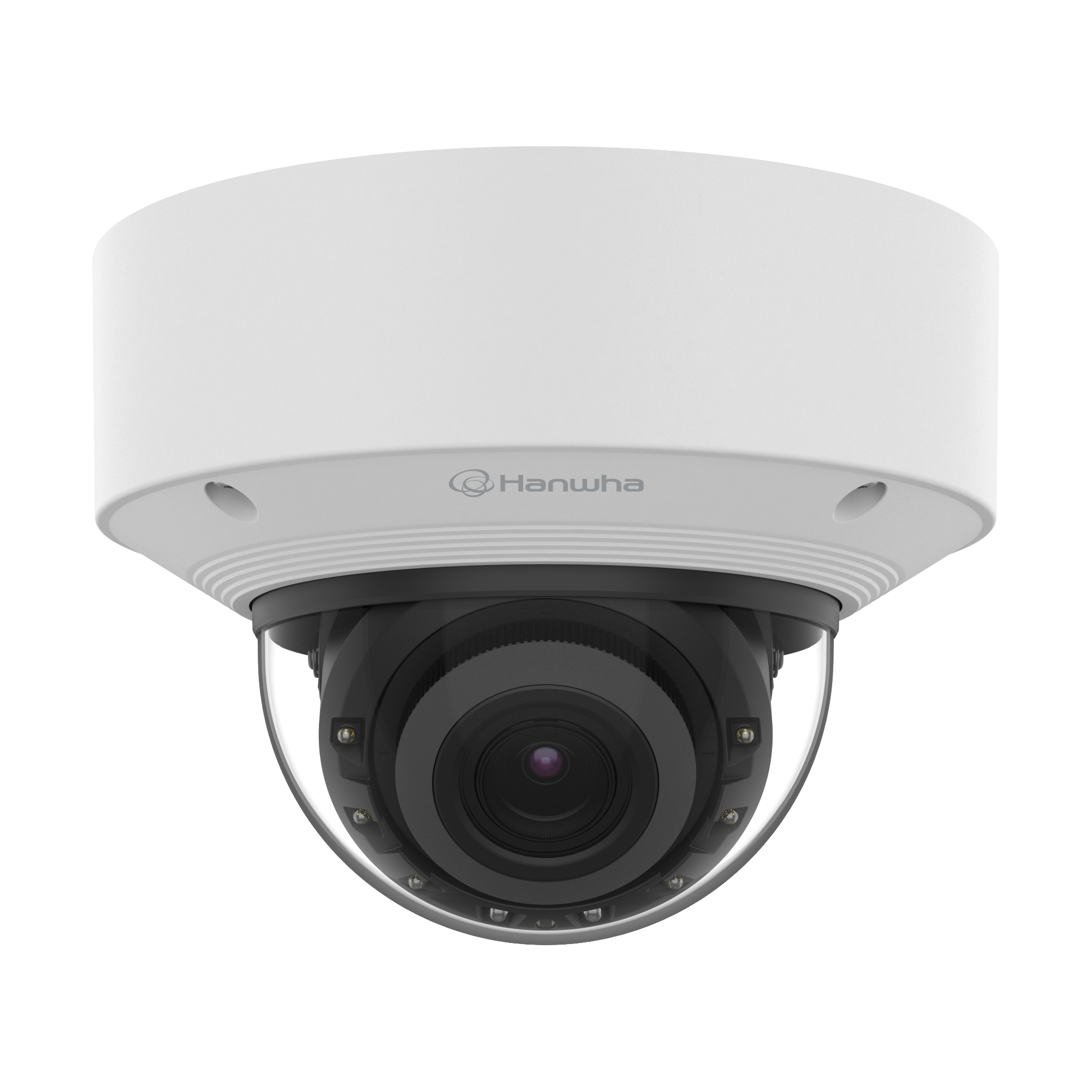

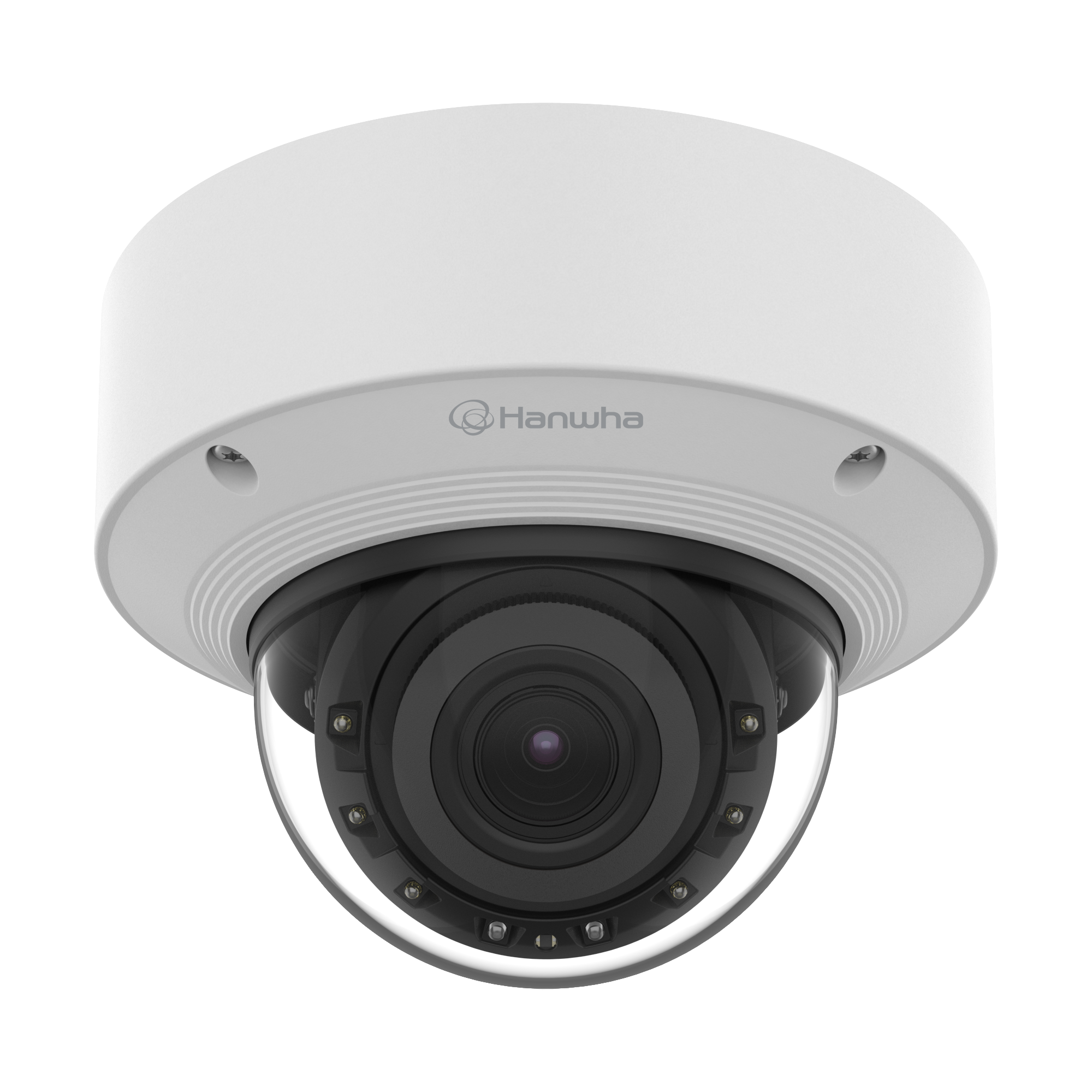

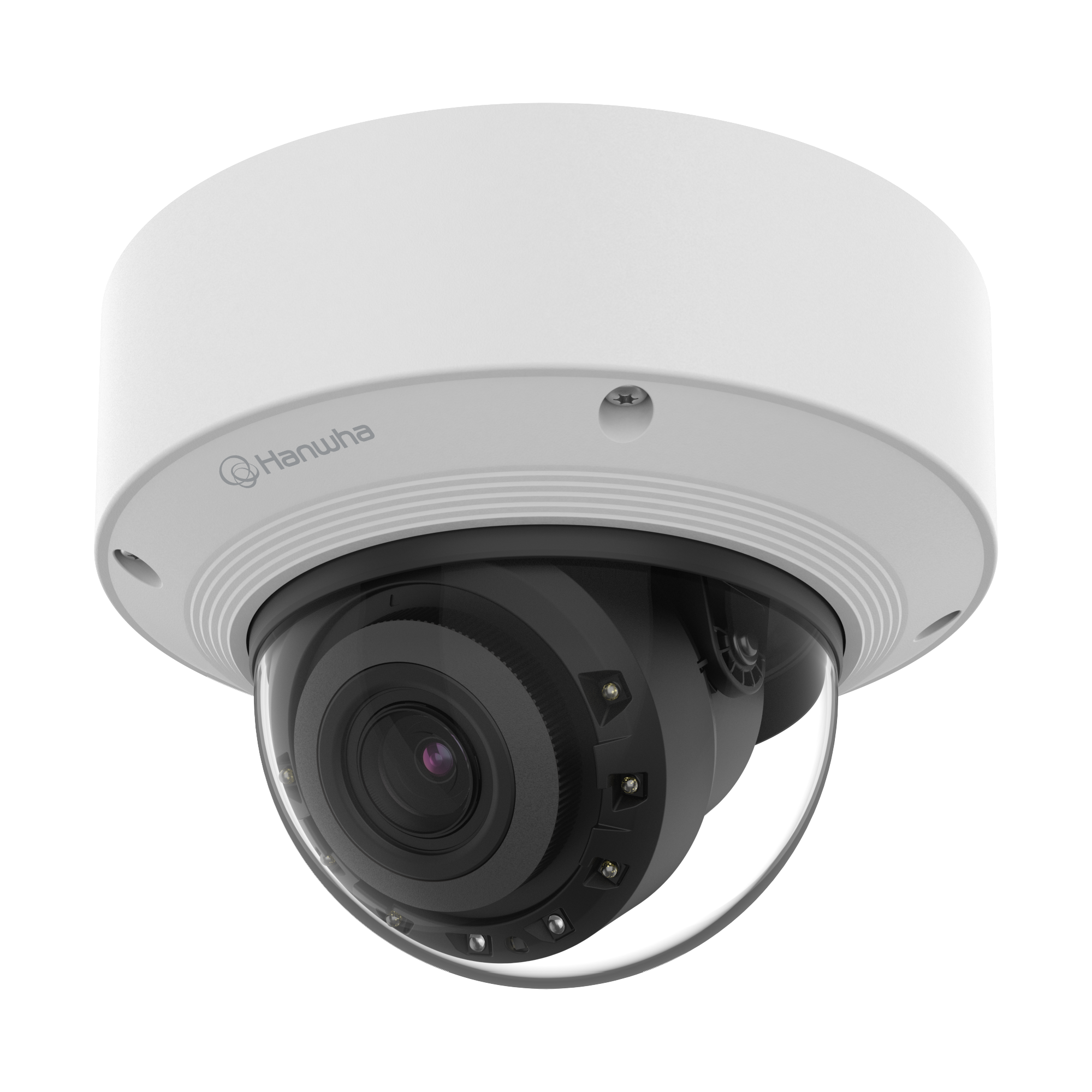

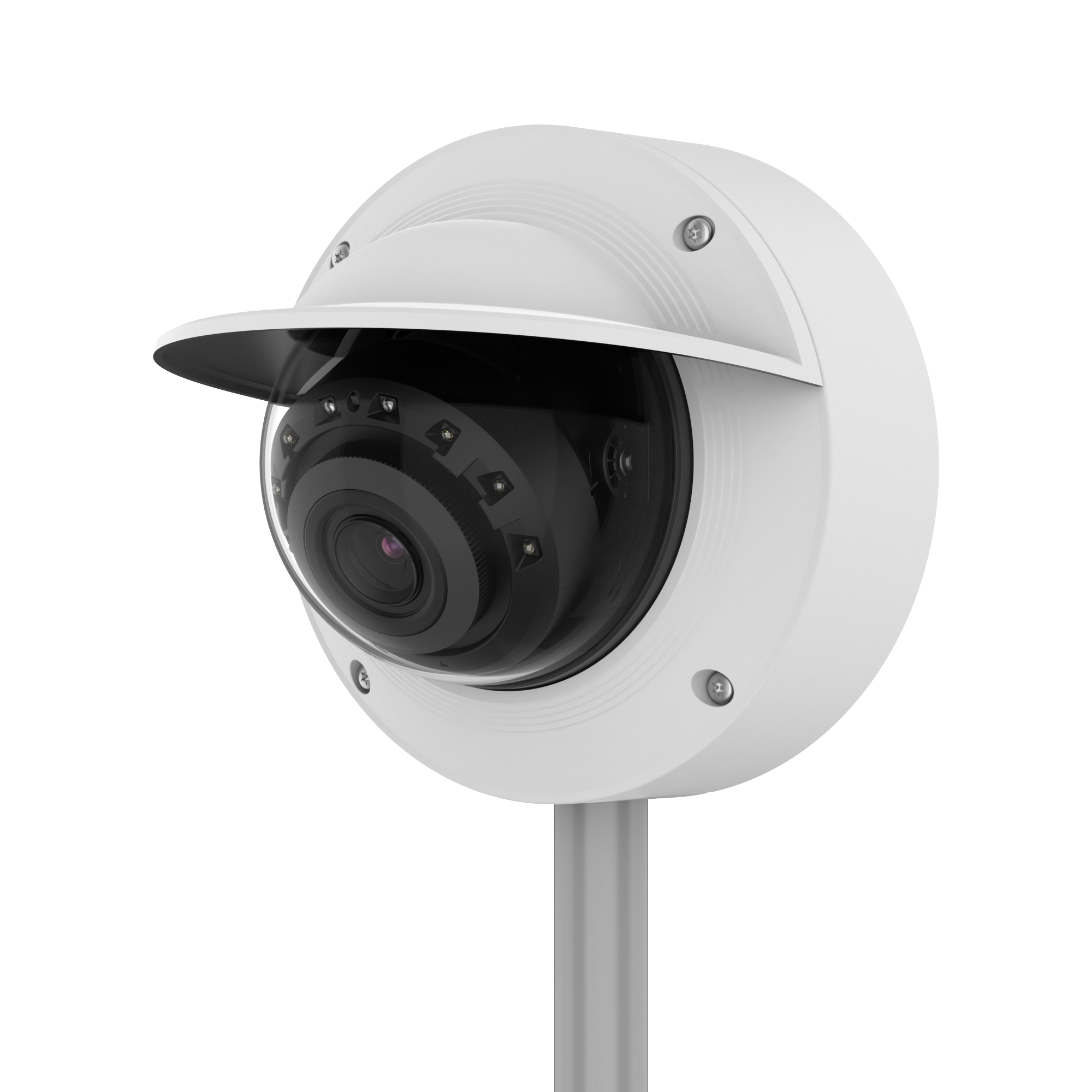

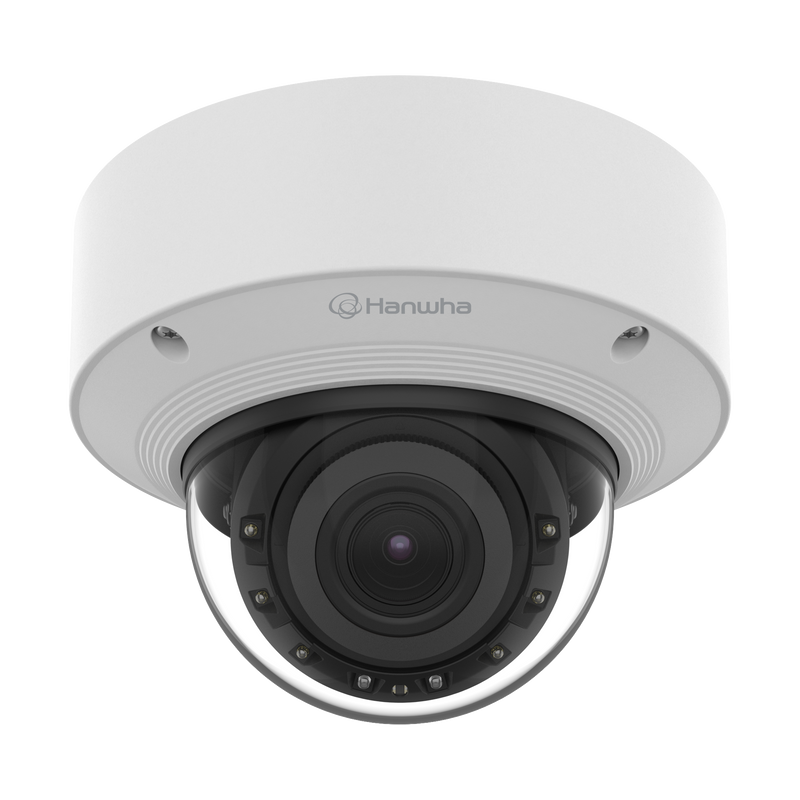

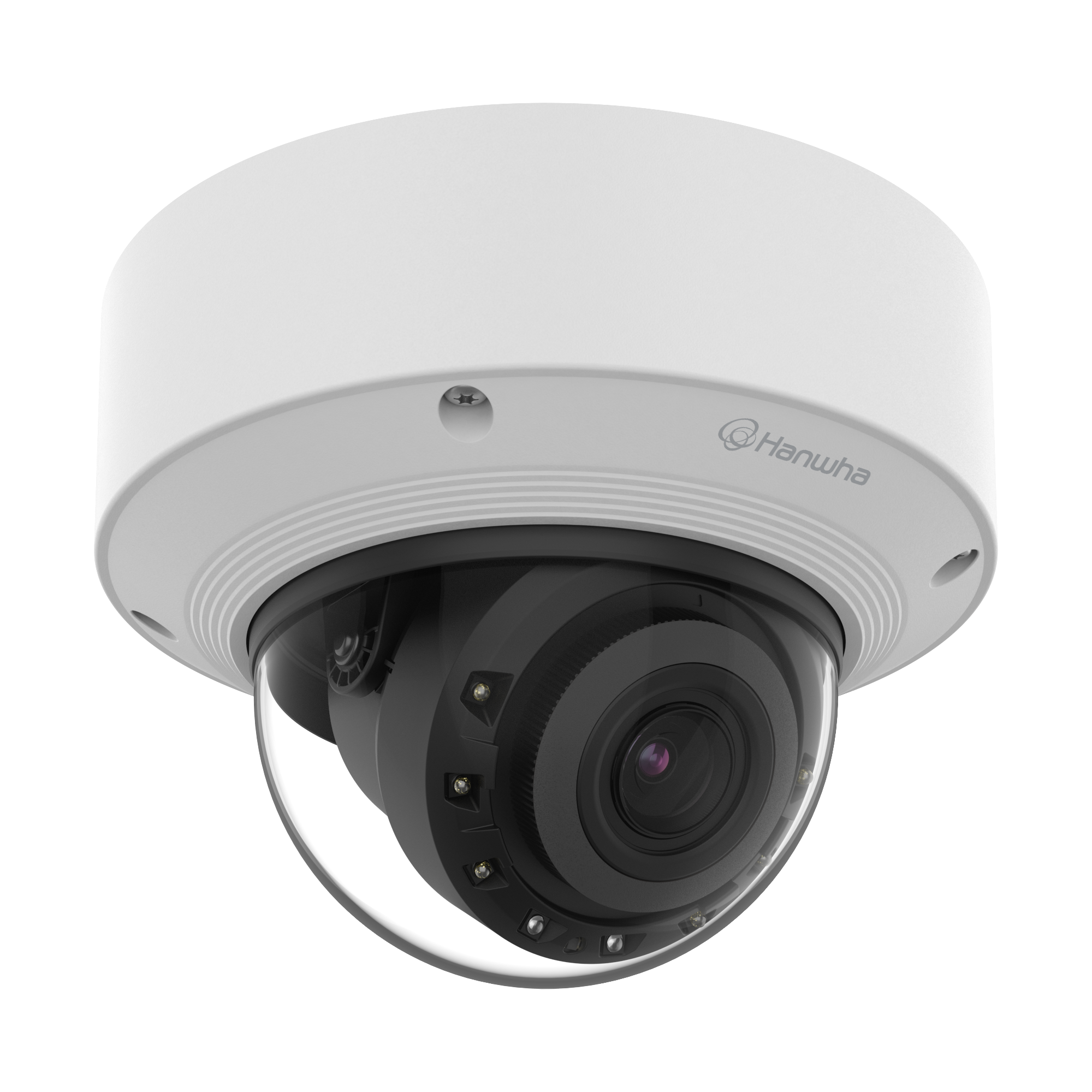

The Hanwha XNV-C6083R is a 2MP X-Core AI vandal dome — the outdoor-rated ceiling-mount counterpart to the XNO-C6083R bullet.

Fitted with a 2.8-12mm motorised varifocal lens, zoom and focus dial remotely from web viewer or VMS post-install; useful when the ideal framing is only known once on site or when tenancy layout changes.

The X-Core AI engine handles person, vehicle, face, and licence plate classification alongside behavioural rules (intrusion, loitering, line crossing).

WiseIR sustains scene coverage to 40m and extremeWDR at 150dB (top of Hanwha's WDR range) paired with WiseNR II noise reduction preserves detail across backlit, high-contrast, and low-light scenes — the specific failure modes where standard 120dB cameras lose face or plate definition on Australian glazed lobbies at midday.

IP66 + IP67 + IK10 + NEMA4X housing suits ceiling and soffit mounting on building exteriors, covered car park entries, lobbies with exterior exposure, and perimeter access points.

Pick this dome variant when the camera should blend into ceiling architecture; pick the XNO-C6083R bullet variant when directional aim at a fence line matters more than form-factor discretion.

§ 02Engineering

XNV-C6083R specifications

- 2MP Full HD resolution (1920x1080) at up to 60fps H.265/H.264
- 1/2" CMOS sensor
- 2.8-12mm motorised varifocal lens
- On-device AI person, vehicle, face, licence plate classification
- Intrusion, loitering, line crossing analytics
- extremeWDR 150dB — top of Hanwha WDR range
- WiseNR II AI-based noise reduction
- WiseIR IR illumination up to 40m
- H.265, H.264, MJPEG codecs
- Wisenet X-Core platform
- IP66 + IP67 + IK10 + NEMA4X housing
- microSD edge storage
- PoE powered

§ 04Why choose this

Built for the way you actually use the XNV-C6083R

150dB WDR + WiseNR II

Top of Hanwha WDR range combined with AI-based noise reduction — handles the backlit entry / shaded foyer contrast that loses detail on standard 120dB cameras, and keeps IR-lit low-light footage clean without bitrate inflation.

Vandal Dome Form for Ceiling Mounts

Where the camera should be less visually obtrusive than a bullet — retail entries, lobbies with exterior exposure, apartment common areas. Dome form factor blends into ceiling architecture while X-Core AI provides identification-grade coverage.

Face + Plate AI Classification

Full X-Core AI feature set including face and licence plate detection — richer than Q-Core siblings. Supports identification workflows on building entries, corridor access points, and vehicle approach lanes.

Remote Framing Adjustment

The 2.8-12mm motorised varifocal lens dials from wide entry sweep to focused counter shot without site revisits — meaningful on multi-camera commercial fitouts where the ideal framing changes with tenancy or layout.

§ 05Where it fits

Right at home in these scenarios

Covered Car Park Entries

AI vehicle classification and licence plate detection plus 40m WiseIR and the adjustable varifocal lens support both wide coverage of the entry lane and focused framing on the boom-gate approach.

Building Exteriors and Indoor-Outdoor Lobbies

150dB extremeWDR handles the backlit-exterior / shaded-interior contrast typical of Australian glazed lobby fronts during peak trading hours; vandal dome form suits publicly accessible ceiling mounts.

Perimeter Access Points and Wall-Mounted Coverage

Full IP66/IP67/IK10/NEMA4X spec handles exposed wall mounts with weather and vandalism risk; face + plate classification supports identification workflows at gated commercial sites.

Retail Entries and Apartment Common Areas

Vandal dome housing blends into ceiling finishes in retail entries and apartment lift lobbies; AI cuts shopfront-reflection false triggers that clutter standard motion detection.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XNV-C6083R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE. 2. Mounting: ceiling, soffit, or wall — vandal dome housing. 3. Sealing: preserve IP66/IP67 rating by sealing all cable and conduit entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Dial in zoom across the 2.8-12mm range remotely. 3. Configure AI analytics: face/plate/person/vehicle classification, intrusion, loitering, line crossing. 4. Enable extremeWDR on scenes with strong backlight from external glazing.

§ 08Questions

Frequently asked about the XNV-C6083R

Q.01

Q: How is this different from the XNO-C6083R bullet sibling?
A: Same X-Core AI internals (2.8-12mm varifocal, 40m WiseIR, 150dB WDR, face/plate classification). Different housing: XNV-C6083R is a vandal dome for ceiling/soffit mounts where the camera should be less visually obtrusive; XNO-C6083R is a bullet for directional pole/wall mounts where the camera is visibly aimed at a target.
Q.02

Q: What AI events can this detect?
A: Person, vehicle, face, and licence plate classification plus intrusion detection, loitering, and line crossing. Configure through web viewer or Wisenet WAVE.
Q.03

Q: What field of view can I dial in?
A: The 2.8-12mm motorised varifocal lens covers wide entry sweep at 2.8mm to focused counter or gate shot at 12mm. Adjust remotely from web viewer.
Q.04

Q: How far does WiseIR reach?
A: Approximately 40m — appropriate for building entries, covered walkways, and small-medium perimeter runs.
Q.05

Q: What's the practical benefit of 150dB WDR vs 120dB?
A: 150dB handles extreme mixed lighting where 120dB loses detail — for example, reception areas against fully glazed exterior walls, or shopfront entries at midday. AI-based WiseNR II additionally targets low-light and IR-lit noise so dark-scene footage stays clean.
Q.06

Q: Is the housing suitable for direct outdoor exposure?
A: Yes — IP66 (water jets), IP67 (temporary immersion margin), IK10 (impact), and NEMA4X (corrosion). Full spec for exposed exterior mounts including coastal and industrial-chemical environments.
Q.07

Q: How is this different from the XNV-C7083R sibling?
A: The C6083R is 2MP; the C7083R is 4MP. Same X-Core AI feature set and 40m WiseIR. Pick the C7083R when 4MP identification detail matters at your mount distance; pick C6083R when 2MP is enough and budget matters.
Q.08

Q: Can this integrate with third-party VMS?
A: Yes — supports ONVIF for standard third-party integration.
