Bosch ICP-SOL3-P Solution 3000 16 Zone Alarm Control Panel

SKU: ICP-SOL3-P
Description

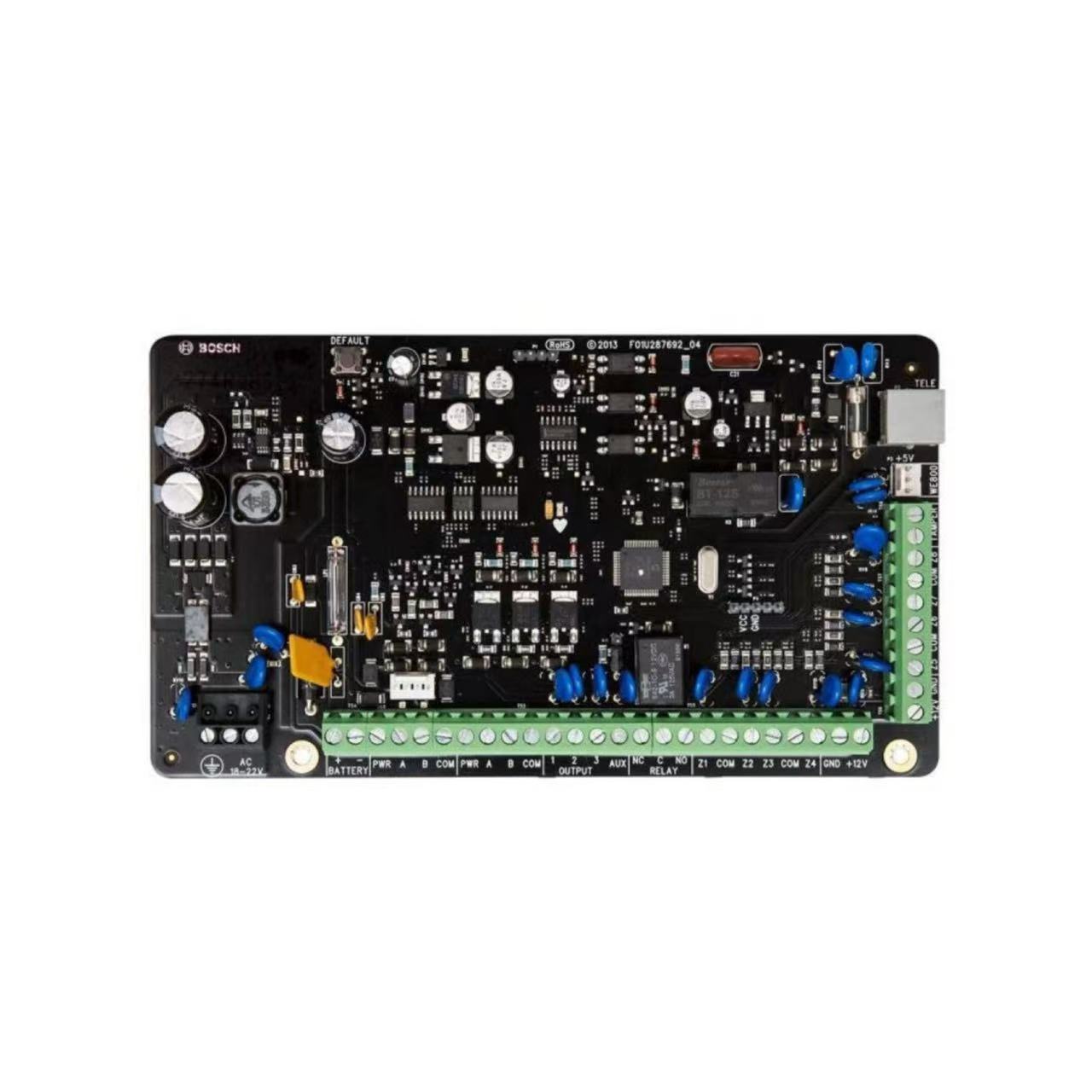

The Bosch ICP-SOL3-P is the Solution 3000 control panel board, the new-generation panel Bosch makes for small residential and commercial sites: 16 fully programmable zones that split into two independent areas, room for four keypads, and phone control once a communicator is added.

What you get

  • 1 × ICP-SOL3-P control panel PCB with a built-in PSTN dialler
  • Hardware pack: end-of-line resistors, battery wires, PSTN lead and screws

You'll also need

  • An enclosure to mount it in, such as the ICP-SOL-ENC
  • The TF008 plug pack for primary power and a 12 VDC, 6.5Ah sealed lead-acid battery for backup
  • At least one keypad: the IUI-SOL-ICON, the IUI-SOL-TEXT or a touchscreen such as the IUI-SOL-TS5
  • Detectors and cable for the zones, and a B426-M or B450-M communicator if the owner wants the phone app
  • A WE800EV2 or RADION receiver if wireless devices are part of the system, such as the WE800EV2KIT
$172.25 AUD $172.25 AUD $172.50 AUD
Sale 0.14% $0.25 AUD (0.14%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Optional extras Add alarm accessories

Choose optional additions for this product. Check each item for compatibility with your setup.

Add accessories Optional. Select the items you need and choose a quantity.
0
0
0
0
0
0
0
0
0
0
0
Bundle total: $172.25

01Overview

What the ICP-SOL3-P is

The Bosch ICP-SOL3-P is the board at the centre of a Solution 3000 system, sold only in Australia and New Zealand. It carries 16 fully programmable zones and splits into 2 separate areas, so a house with a granny flat, or a shop with an office behind it, can arm one half and leave the other live. Codes run to 33 in total: 32 users and one installer, with STAY and AWAY arming for each.

A panel is only as good as the things plugged into it. Up to four keypads sit on the SDI2 bus at addresses 01 to 04, and the choice runs from the icon and alphanumeric LCD pads to the TouchOne Mini and the 7 inch TouchOne. Only codepad 1 is switched on by default, allocated to Area 1, so extra pads are enabled and assigned during programming. One thing to plan for: the panel reliably powers only one TouchOne Mini, and further touchscreens need their own supply.

Wireless is where the Solution 3000 pulls ahead of its smaller sibling. It works with the WE800EV2 keyfob receiver and with the Bosch RADION transmitter range, holding 16 wireless devices; the receiver type is set at location 395, and up to 32 RADION keyfobs can be learned in, though an icon codepad only shows numbers 1 to 16 on its zone lights.

Reporting starts with the built-in PSTN dialler and Contact ID, SIA and domestic dialling. Add a B426-M Ethernet or B450-M mobile communicator and it also does CSV-IP, email and push notification, which is what makes the panel NBN-ready and puts it in the RSC+ app; the cloud connection needs panel firmware V2.0 or higher. Four on-board outputs drive sirens and strobes, and the B308 adds eight more.

Power is an 18 VAC feed at 1.3A from the TF008 plug pack, backed by a 12 VDC, 6.5Ah sealed lead-acid battery. The board is rated 0 °C to +45 °C at 10% to 95% non-condensing humidity, is packed at 306 x 262 x 84mm and 2.5kg, carries RCM and AS/CA S002:2010 approval for Australia and Telepermit for New Zealand, and has a 3 years warranty. The zone count does not expand: 16 is the ceiling.

02Engineering

ICP-SOL3-P specifications

Bosch ICP-SOL3-P zones — 16 fully programmable zones, with end-of-line resistors in the hardware pack — a full house or small shop on one board
Areas — partitionable into 2 separate areas with STAY and AWAY arming — a granny flat or back office arms on its own
Users — 33 codes: 32 users and one installer — a code each for family, staff and the cleaner
Keypads — up to four on SDI2 addresses 01 to 04, from LCD icon and alphanumeric to TouchOne touchscreens — a plain pad at the back door and a touchscreen at the front
Wireless — WE800EV2 receiver or the Bosch RADION range, 16 wireless devices, up to 32 RADION keyfobs — detectors where cable cannot go
Reporting — built-in PSTN dialler with Contact ID, SIA and domestic dialling — a monitored path with nothing added
App and IP — CSV-IP, email and push notification with a B426-M or B450-M module — NBN-ready reporting and the RSC+ app on a phone
Outputs — 4 on-board outputs, plus 8 more with a B308 SDI2 expander — enough for the sounders and the extras a site adds later
Power — 18 VAC at 1.3A from the TF008 plug pack, 12 VDC 6.5Ah battery backup — keeps running through a blackout
Ratings — 0 °C to +45 °C, RCM and AS/CA S002:2010, Telepermit for New Zealand, 3 years warranty — approved for Australian and New Zealand installs

03Full datasheet

Detailed specifications

Overview & Compatibility

Overview & Compatibility — Bosch ICP-SOL3-P Solution 3000 16 Zone Alarm Control Panel
FeatureDetail
Product ICP-SOL3-P Solution 3000 Control panel, 16-zone
Order number ICP-SOL3-P Control panel, 16-zone - Only sold in Australian and New Zealand
Description The Solution 2000 and Solution 3000 are new generation alarm control panels for small residential & commercial markets
Keypad options LCD Icon, LCD Alphanumeric, and various touchscreen options; IUI-SOL-TEXT LCD alphanumeric keypad, IUI-SOL-ICON LCD icon keypad, IUI-SOL-TS4 4.3" touch screen code pad, IUI-SOL-TS5 TouchOne Mini 5", IUI-SOL-TS7 TouchOne 7" code pad SDI2
Wireless the Solution 3000 supports both the WE800EV2 and the option to integrate with the Bosch RADION range of wireless transmitters
Communication modules B426-M Ethernet communication module, mobile; B450-M Plug-in communicator interface, mobile; B443 Plug-in Cellular, HSPA+ (3G+)
Output expansion B308 SDI2 8-Output Expansion Module
Apps Bosch Remote Security Control (RSC) app (iPhone, iPad or iPod Touch) and Remote Security Control Plus (RSC+) app for phones and tablets
Form (supplier listing) PCB, enclosure mount, black

04Why choose this

Built for the way you actually use the ICP-SOL3-P

Two systems on one board

The Bosch ICP-SOL3-P partitions into 2 separate areas, each with its own arming. A granny flat, a home office or a shop back room can be armed while the rest of the site stays live.

Room for the whole household

33 codes cover 32 users and the installer, and the panel offers STAY and AWAY arming. Nobody has to share a code, which is what makes the event log worth reading.

Wired and wireless on the same panel

Sixteen programmable zones take wired detectors, and the WE800EV2 receiver or the Bosch RADION range adds up to 16 wireless devices. A brick extension or a shed does not need a cable run.

The phone app is an add-on, not a rebuild

Fitting a B426-M Ethernet or B450-M mobile module brings CSV-IP, email and push notification, and puts the system in the RSC+ app. The panel is NBN-ready that way rather than relying on the phone line.

Keypads to suit the door

Up to four keypads run on the SDI2 bus, from the icon LCD pad to the TouchOne 7 inch touchscreen. Fit a plain pad at the back door and a touchscreen in the hallway.

Made for this market

It is sold only in Australia and New Zealand, and carries RCM with AS/CA S002:2010 here and Telepermit across the Tasman. The warranty is 3 years.

05Where it fits

Right at home in these scenarios

Family home with a granny flat

The Bosch ICP-SOL3-P covers the main house on Area 1 and the flat on Area 2, so each arms without touching the other. A keypad at each entrance, with codepad 1 already allocated to Area 1, keeps the two households apart.

Small shop with an office behind it

Sixteen zones cover the shop floor, storeroom and rear door, with the office partitioned into its own area for staff who stay back. Four on-board outputs are available, and a B308 expander adds eight more if the site needs them.

Older home being re-cabled in stages

Wired zones go in where the walls are open, and the RADION range or a WE800EV2 receiver covers the rooms that are not, up to 16 wireless devices. The zone count stops at 16, so plan the final layout before starting.

06Setup

Installation & setup

  1. What is in the box

    The Bosch ICP-SOL3-P arrives as a bare control panel PCB with a hardware pack holding end-of-line resistors, battery wires, a PSTN lead and screws. The enclosure, plug pack, battery, keypads and detectors are all ordered separately.

  2. Enclosure and power

    Mount the board in an enclosure such as the ICP-SOL-ENC, feed it 18 VAC at 1.3A from the TF008 plug pack, and fit a 12 VDC, 6.5Ah sealed lead-acid battery for backup. The plug pack has built-in thermal fuses and a three-wire lead that carries a mains earth to the panel.

  3. Zones and cabling

    Run one cable per zone back to the board and fit the supplied end-of-line resistors as the programming requires. Note that zone common on this panel is negative, the opposite of the older ICP-CC488, which is the usual trap when replacing one.

  4. Keypads

    Fit up to four keypads on SDI2 addresses 01 to 04. Only codepad 1 is switched on by default and it is allocated to Area 1, so enable and assign the others in programming. The panel reliably powers one TouchOne Mini only, so give any extra touchscreens their own supply.

  5. Wireless and communicators

    Choose either the WE800EV2 keyfob receiver or a RADION receiver and set the type at location 395. For the app, fit a B426-M or B450-M, then create the panel profile in RSC+ from the Cloud ID on the module and connect with the profile name and the arming code.

  6. Handover

    Show the owner STAY and AWAY arming, the panic combination of 1 and 3 or STAY and AWAY together, and the duress code that ends in 9 or 3. Push notifications also have to be switched on in the phone's own notification settings.

  7. When to call an electrician

    The panel runs on low voltage from the plug pack, but the plug pack needs a mains outlet. A new or altered mains point, or any cabling inside a wall cavity, is work for a licensed electrician.

07Documentation

Manuals & guides

User Manual

08Questions

Frequently asked about the ICP-SOL3-P

Q.01

How many zones does the Bosch ICP-SOL3-P have?
Sixteen fully programmable zones, and the count does not expand beyond that. Plan the finished system before ordering if the site is likely to grow.
Q.02

Can it arm part of the house on its own?
Yes. The panel partitions into 2 separate areas, each with STAY and AWAY arming, which suits a granny flat or an office behind a shop.
Q.03

How many keypads and user codes does it support?
Up to four keypads on SDI2 addresses 01 to 04, and 33 codes in total: 32 users plus the installer. Only codepad 1 is enabled by default, allocated to Area 1.
Q.04

Does it take wireless detectors?
Yes. The Solution 3000 works with the WE800EV2 keyfob receiver or the Bosch RADION transmitter range and holds 16 wireless devices, with up to 32 RADION keyfobs learned in.
Q.05

What do I need for the phone app?
A B426-M Ethernet or B450-M mobile communicator, and panel firmware V2.0 or higher for the cloud connection. The module also brings CSV-IP, email and push notification reporting.
Q.06

How is it powered?
Primary power is 18 VAC at 1.3A from the TF008 plug pack, with a 12 VDC, 6.5Ah sealed lead-acid battery as backup. Neither is supplied with the board.
Q.07

How do panic and duress alarms work?
A codepad panic alarm is raised by pressing 1 and 3, or STAY and AWAY, together. A duress alarm is raised by ending the user code with 9 or 3, and a keyfob cannot send a duress alarm.
Q.08

I am replacing an ICP-CC488. What should I watch for?
Zone common on this panel is negative, where the ICP-CC488 was common positive, so the zone wiring needs checking before power-up. A 7,3 fault means codepad 1 has failed, often the small spring on the back of the pad coming off.
Q.09

What is the warranty, and where is it sold?
The panel carries a 3 years warranty and is sold only in Australia and New Zealand, with RCM and AS/CA S002:2010 approval here and Telepermit in New Zealand.
