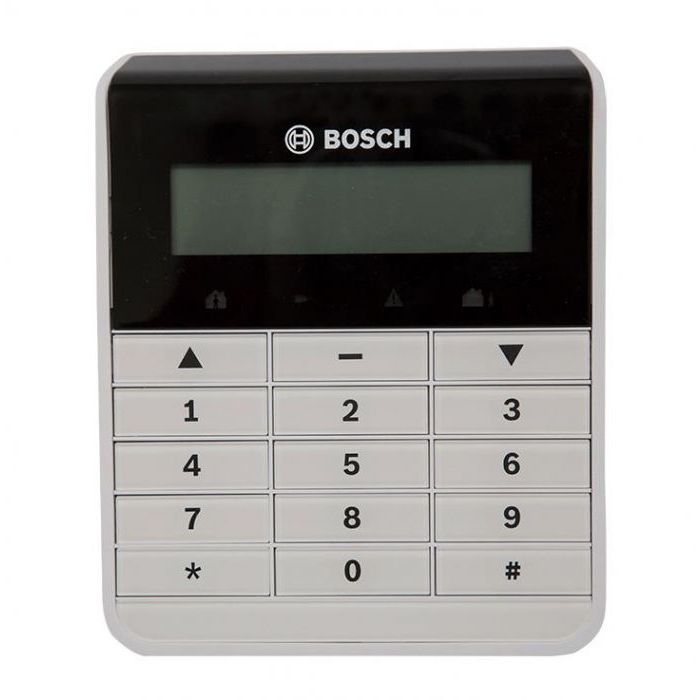

Bosch IUI-SOL-TEXT LCD Text Keypad for Solution Panels
SKU: IUI-SOL-TEXT
Description
The Bosch IUI-SOL-TEXT is an LCD alphanumeric keypad for Solution 2000, 3000 and 4000 control panels. Its menu-style interface uses a three-line display with up to 18 characters per line. Highly visible indicators show arm, disarm, power and fault status.
What you get
- 1 × IUI-SOL-TEXT keypad
- 1 × Hardware pack
The keypad has a self-locking base, a nominal supply voltage of 12 VDC and dimensions of 139 mm × 117 mm × 23 mm (H × W × D). Weight: 275 g. Order number: IUI-SOL-TEXT | F.01U.301.795.
Regular price
$167.30 AUD
Sale price
$167.30 AUD
Regular price
$155.00 AUD
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch IUI-SOL-TEXT LCD Text Keypad for Solution Panels
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the IUI-SOL-TEXT is
The Bosch IUI-SOL-TEXT operates Solution 2000, 3000 and 4000 control panels through an LCD alphanumeric display. Its three lines provide up to 18 characters per line, with a menu-style interface for straightforward system operation.
Highly visible arm, disarm, power and fault indicators show system status. A self-locking base helps with installation; the keypad measures 139 mm × 117 mm × 23 mm (H × W × D) and weighs 275 g.
The nominal supply voltage is 12 VDC. Operating conditions are -10 °C to 55 °C and 5% to 95% relative humidity, non-condensing. The package contains one keypad and one hardware pack, under order number IUI-SOL-TEXT | F.01U.301.795.
02Engineering
IUI-SOL-TEXT specifications
Bosch IUI-SOL-TEXT compatibility — operates Solution 2000, 3000 and 4000 control panels
LCD window — three lines with up to 18 characters per line
User interface — menu-style operation
Status indicators — highly visible arm, disarm, power and fault indicators
Installation — self-locking base
Nominal voltage — 12 VDC
Dimensions and weight — 139 mm × 117 mm × 23 mm (H × W × D); 275 g
Operating conditions — -10 °C to 55 °C; 5% to 95% relative humidity, non-condensing
Included items — one keypad and one hardware pack
LCD window — three lines with up to 18 characters per line
User interface — menu-style operation
Status indicators — highly visible arm, disarm, power and fault indicators
Installation — self-locking base
Nominal voltage — 12 VDC
Dimensions and weight — 139 mm × 117 mm × 23 mm (H × W × D); 275 g
Operating conditions — -10 °C to 55 °C; 5% to 95% relative humidity, non-condensing
Included items — one keypad and one hardware pack
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | IUI-SOL-TEXT LCD alphanumeric keypad |
| Compatible control panels | Solution 2000 / 3000 / 4000 |
| Order number | IUI-SOL-TEXT | F.01U.301.795 |
| Parts included | 1 Keypad; 1 Hardware pack |
Keypad & Display
| Feature | Detail |
|---|---|
| Display window | 3 line display; 18 characters per line |
| User interface | Menu-style user interface |
| Indicators | Arm, disarm, power and fault |
Power & Electrical
| Feature | Detail |
|---|---|
| Nominal voltage (VDC) | 12 VDC |
Physical & Environment
| Feature | Detail |
|---|---|
| Base | Self-locking base |
| Dimensions (H x W x D) (mm) | 139 mm x 117 mm x 23 mm |
| Weight (g) | 275 g |
| Operating temperature (°C) | -10 °C – 55 °C |
| Operating relative humidity, non-condensing (%) | 5% – 95% |
| Overview & Compatibility — Product | IUI-SOL-TEXT LCD alphanumeric keypad |
|---|---|
| Overview & Compatibility — Compatible control panels | Solution 2000 / 3000 / 4000 |
| Overview & Compatibility — Order number | IUI-SOL-TEXT | F.01U.301.795 |
| Overview & Compatibility — Parts included | 1 Keypad; 1 Hardware pack |
| Keypad & Display — Display window | 3 line display; 18 characters per line |
| Keypad & Display — User interface | Menu-style user interface |
| Keypad & Display — Indicators | Arm, disarm, power and fault |
| Power & Electrical — Nominal voltage (VDC) | 12 VDC |
| Physical & Environment — Base | Self-locking base |
| Physical & Environment — Dimensions (H x W x D) (mm) | 139 mm x 117 mm x 23 mm |
| Physical & Environment — Weight (g) | 275 g |
| Physical & Environment — Operating temperature (°C) | -10 °C – 55 °C |
| Physical & Environment — Operating relative humidity, non-condensing (%) | 5% – 95% |
04Why choose this
Built for the way you actually use the IUI-SOL-TEXT
Visible system status
Dedicated arm, disarm, power and fault indicators make system status visible.
Self-locking base
The base supports easy installation. The keypad measures 139 mm × 117 mm × 23 mm and weighs 275 g.
05Where it fits
Right at home in these scenarios
Operating a Solution panel
The Bosch IUI-SOL-TEXT provides a menu-style interface for Solution 2000, 3000 and 4000 control panels.
Reading system status
The LCD text display works alongside visible arm, disarm, power and fault indicators.
Choosing a text interface
The alphanumeric display offers three lines with up to 18 characters per line.
06Setup
Installation & setup
-
01
Included components and base
The Bosch IUI-SOL-TEXT package contains one keypad and one hardware pack. The keypad uses a self-locking base.
-
02
Size and supply
Dimensions are 139 mm × 117 mm × 23 mm (H × W × D), weight is 275 g and nominal voltage is 12 VDC.
-
03
Operating environment
Operating temperature is -10 °C to 55 °C. Relative humidity is 5% to 95%, non-condensing.
08Questions
Frequently asked about the IUI-SOL-TEXT
Q.01
Which panels does the Bosch IUI-SOL-TEXT operate?
It operates Solution 2000, 3000 and 4000 control panels.
Q.02
How much text can the LCD display?
The display has three lines with up to 18 characters per line. It uses a menu-style interface for system operation.
Q.03
Which status indicators are provided?
The keypad has highly visible arm, disarm, power and fault indicators.
Q.04
What is the nominal supply voltage?
The nominal voltage is 12 VDC.
Q.05
What are the dimensions and weight?
Dimensions are 139 mm × 117 mm × 23 mm (H × W × D). The keypad weighs 275 g.
Q.06
What are the operating temperature and humidity limits?
Operating temperature is -10 °C to 55 °C. Relative humidity is 5% to 95%, non-condensing.
Q.07
What comes in the package?
One keypad and one hardware pack are included. The keypad has a self-locking base.
Q.08
What is the full order number?
The order number is IUI-SOL-TEXT | F.01U.301.795.
