Bosch WE800EV2KIT Keyfob Arming Kit for Solution 2000/3000/4000

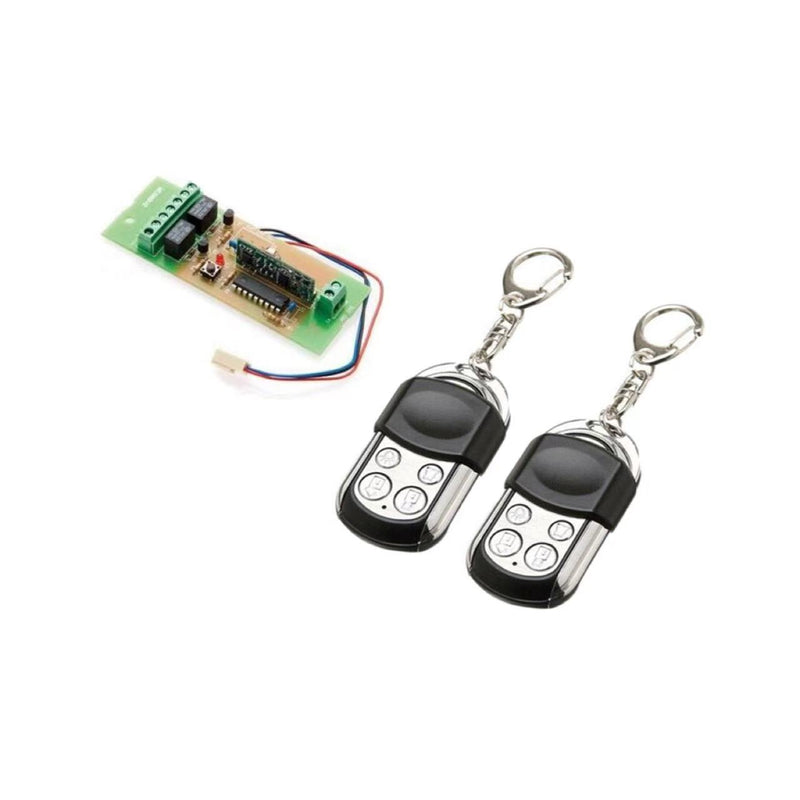

The Bosch WE800EV2KIT is the keyfob arming kit for a Solution 2000, 3000 or 4000 panel: a WE800EV2 receiver that plugs onto the panel board, with HCT-4R keyfobs already learned to it, so the household arms, disarms and raises a panic alarm from the driveway instead of the keypad.
What you get
- WE800EV2 433.92 MHz keyfob receiver with two on-board relays, made in Australia
- HCT-4R four-button keyfobs, supplied already learned to the receiver with both relays set for momentary operation
You'll also need
- A Solution panel to plug it into: the ICP-SOL3-P or ICP-SOL4-P board, or the panel inside a Solution 2000 or 3000 kit
- Extra HCT-4 keyfobs for more users, up to 21 in the receiver's memory
- A 12V 27A alkaline battery for each keyfob when the original runs down
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the BoschKeyFobsReceiverKit is
The Bosch WE800EV2KIT turns a keypad-only alarm into one that arms and disarms from a keyring. The receiver is described for the Solution 8XX and 2000, 3000 and 4000 series, and its two on-board relays can also switch up to two external devices, so a fob can work a gate as well as the alarm.
The kit is set up before it leaves the box. The supplied fobs are already learned to the receiver, with both relays set for momentary operation, and every HCT-4 keyfob works with every version of the receiver, so a household that grows simply adds fobs. Memory holds a maximum of 21 fobs in EEPROM.
Radio security is code hopping on 433.92 MHz, with a superheterodyne AM ASK receiver, and each fob shows a blue LED when a button is pressed. Holding buttons 1 and 2 together for 2 seconds raises a panic alarm, or buttons 3 and 4 when DIP switch 2 is on; a keyfob can raise a panic alarm but not a duress alarm.
Installation is a plug onto the panel. The receiver takes 5VDC from the panel's 3-pin connector and draws 6mA on standby or 45mA with both relays operating, while the relay terminal accepts 9 - 15VDC. Each relay is SPDT rated at 1 Amp at 12VDC, and the first learned fob sets how the buttons drive them: button 1 pulses both outputs, button 4 toggles both, and buttons 2 and 3 toggle one and pulse the other. In panel programming the receiver type is set to WE800EV2 with value 2 at location 395.
Two things to know before ordering. On a Solution 4000 this receiver and the B810 RADION receiver cannot be fitted together, and only one WE800EV2 goes on a Solution 2000 or 3000. Fobs cannot be deleted one at a time either: a lost fob means the receiver memory is wiped and the remaining fobs learned again. The receiver is made in Australia by Circuit Level Electronics and carries a 36 Months supplier warranty.
02Engineering
BoschKeyFobsReceiverKit specifications
Ready to go — supplied fobs already learned, both relays set for momentary operation — plug in and test, no fob learning on day one
Capacity — EEPROM memory for a maximum of 21 fobs, every HCT-4 fob works with every receiver version — add users as the household grows
Radio — 433.92 MHz, superheterodyne AM ASK, code hopping RF security — a captured code cannot be replayed
Relays — two on-board programmable SPDT relays, 1 Amp maximum at 12VDC — up to two external devices switched from the fob
Button mapping — the first learned fob selects which outputs pulse and which toggle, DIP 1 frees the STAY channel for a door, DIP 2 reverses the buttons — set once at installation
Panic — hold buttons 1 and 2 for 2 seconds, or 3 and 4 with DIP 2 on — a panic alarm from anywhere in range
Power — 5VDC from the panel's 3-pin connector, 6mA standby, 45mA with both relays on — no separate power supply
Origin and cover — made in Australia by Circuit Level Electronics, 36 Months supplier warranty — an Australian-made receiver
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | WE800EV2 RF Arming Kit for Solution 2000, 3000 - RF receiver with HCT-4R keyfobs |
| Description | The WE800EV2 RF Arming Kit is designed to provide a convenient ON/OFF Control for the Solution 8XX and 2000 / 3000 / 4000 series of alarm panels. Provision is also made for the control of up to two (2) external devices via on board relays. |
| Compatible control panels | Solution 8XX and 2000 / 3000 / 4000 series of alarm panels |
| Keyfob compatibility | This version includes new keyfobs. All HCT-4 keyfobs are compatible with all versions of the WE800EV2 receiver |
| Supplied keyfobs | The supplied fobs are already learned to the WE800EV2 with both relays set for momentary operation |
| Additional receivers for extra relays | HCR-1, HCR-424, HCR-15, HCR-624 |
| Made in | Made in Australia by Circuit Level Electronics (Aust) Pty Ltd |
| Panel programming (Solution 2000 / 3000) | Set RF Receiver as WE800EV2 Receiver (Value 2 in Location 395); keyfob numbers 301 to 332; up to 21 fobs can be added, but only the current fob (1 to 16) displays through zone indicators on the ICON codepad |
Users, Codes & Access
| Feature | Detail |
|---|---|
| Fob storage | EEPROM Maximum 21 Fobs |
| Panic function | Holding down buttons 1 and 2 at the same time for 2 secs will cause a panic alarm. Or 3 and 4 if DIP 2 is ON |
| Keyfob channels | 4 |
| Relay programming (first learned fob) | Button 1 = Both outputs momentary; Button 2 = Output 1 toggling, Output 2 momentary; Button 3 = Output 2 toggling, Output 1 momentary; Button 4 = Both outputs toggling |
| Selectable options | DIP switch 1 ON: STAY mode will not function from the keyfob, allowing this channel to control a door, gate etc on another receiver; DIP switch 2 ON: keyfob button functions are reversed (buttons 1 and 2 control the onboard relays, 3 arms AWAY, 4 arms STAY) |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Onboard relays | Two onboard programmable relays |
| Relay rating | SPDT 1Amp Maximum @ 12VDC |
Wireless & Radio
| Feature | Detail |
|---|---|
| Operating frequency | 433.92mhz |
| Receiver type | Superheterodyne AM ASK |
| Receiver bandwidth | 250khz |
| Antenna | 165mm insulated 1mm wire |
| RF security | Code Hopping RF security |
| Transmitter bandwidth | 380khz |
| Transmitter tuning | SAW resonator locked |
| Keyfob visual indicator | Blue LED |
Power & Electrical
| Feature | Detail |
|---|---|
| Receiver operating voltage | 3 Pin Connector 5VDC from Solution Panel; +12V Relay Terminal 9 - 15VDC |
| Receiver current consumption | 6mA Standby; 45mA Both relays operating |
| Reverse polarity protection | No |
| Keyfob battery | 12V 27A Alkaline battery |
Physical & Environment
| Feature | Detail |
|---|---|
| Keyfob weight | 31g including battery |
| Receiver fixing | #6 x 3/8 screw or M3 x 6mm bolt fixing to panel housing |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Supplier warranty | 36 Months |
| Overview & Compatibility — Product | WE800EV2 RF Arming Kit for Solution 2000, 3000 - RF receiver with HCT-4R keyfobs |
|---|---|
| Overview & Compatibility — Description | The WE800EV2 RF Arming Kit is designed to provide a convenient ON/OFF Control for the Solution 8XX and 2000 / 3000 / 4000 series of alarm panels. Provision is also made for the control of up to two (2) external devices via on board relays. |
| Overview & Compatibility — Compatible control panels | Solution 8XX and 2000 / 3000 / 4000 series of alarm panels |
| Overview & Compatibility — Keyfob compatibility | This version includes new keyfobs. All HCT-4 keyfobs are compatible with all versions of the WE800EV2 receiver |
| Overview & Compatibility — Supplied keyfobs | The supplied fobs are already learned to the WE800EV2 with both relays set for momentary operation |
| Overview & Compatibility — Additional receivers for extra relays | HCR-1, HCR-424, HCR-15, HCR-624 |
| Overview & Compatibility — Made in | Made in Australia by Circuit Level Electronics (Aust) Pty Ltd |
| Overview & Compatibility — Panel programming (Solution 2000 / 3000) | Set RF Receiver as WE800EV2 Receiver (Value 2 in Location 395); keyfob numbers 301 to 332; up to 21 fobs can be added, but only the current fob (1 to 16) displays through zone indicators on the ICON codepad |
| Users, Codes & Access — Fob storage | EEPROM Maximum 21 Fobs |
| Users, Codes & Access — Panic function | Holding down buttons 1 and 2 at the same time for 2 secs will cause a panic alarm. Or 3 and 4 if DIP 2 is ON |
| Users, Codes & Access — Keyfob channels | 4 |
| Users, Codes & Access — Relay programming (first learned fob) | Button 1 = Both outputs momentary; Button 2 = Output 1 toggling, Output 2 momentary; Button 3 = Output 2 toggling, Output 1 momentary; Button 4 = Both outputs toggling |
| Users, Codes & Access — Selectable options | DIP switch 1 ON: STAY mode will not function from the keyfob, allowing this channel to control a door, gate etc on another receiver; DIP switch 2 ON: keyfob button functions are reversed (buttons 1 and 2 control the onboard relays, 3 arms AWAY, 4 arms STAY) |
| Zones, Outputs & Capacity — Onboard relays | Two onboard programmable relays |
| Zones, Outputs & Capacity — Relay rating | SPDT 1Amp Maximum @ 12VDC |
| Wireless & Radio — Operating frequency | 433.92mhz |
| Wireless & Radio — Receiver type | Superheterodyne AM ASK |
| Wireless & Radio — Receiver bandwidth | 250khz |
| Wireless & Radio — Antenna | 165mm insulated 1mm wire |
| Wireless & Radio — RF security | Code Hopping RF security |
| Wireless & Radio — Transmitter bandwidth | 380khz |
| Wireless & Radio — Transmitter tuning | SAW resonator locked |
| Wireless & Radio — Keyfob visual indicator | Blue LED |
| Power & Electrical — Receiver operating voltage | 3 Pin Connector 5VDC from Solution Panel; +12V Relay Terminal 9 - 15VDC |
| Power & Electrical — Receiver current consumption | 6mA Standby; 45mA Both relays operating |
| Power & Electrical — Reverse polarity protection | No |
| Power & Electrical — Keyfob battery | 12V 27A Alkaline battery |
| Physical & Environment — Keyfob weight | 31g including battery |
| Physical & Environment — Receiver fixing | #6 x 3/8 screw or M3 x 6mm bolt fixing to panel housing |
| Compliance & Warranty — Supplier warranty | 36 Months |
08Questions
Frequently asked about the BoschKeyFobsReceiverKit
Q.01
Which panels does the Bosch WE800EV2KIT work with?
Q.02
What is in the kit?
Q.03
How many keyfobs can it hold?
Q.04
Can I delete one lost keyfob?
Q.05
How is it connected and programmed?
Q.06
Can a keyfob button open my gate or roller door?
Q.07
What do the four buttons do?
Q.08
How do I raise a panic alarm from the keyfob?
Q.09
What battery does the keyfob take?
