Bosch HCT-4 Four Button Keyfob for the WE800EV2 Receiver

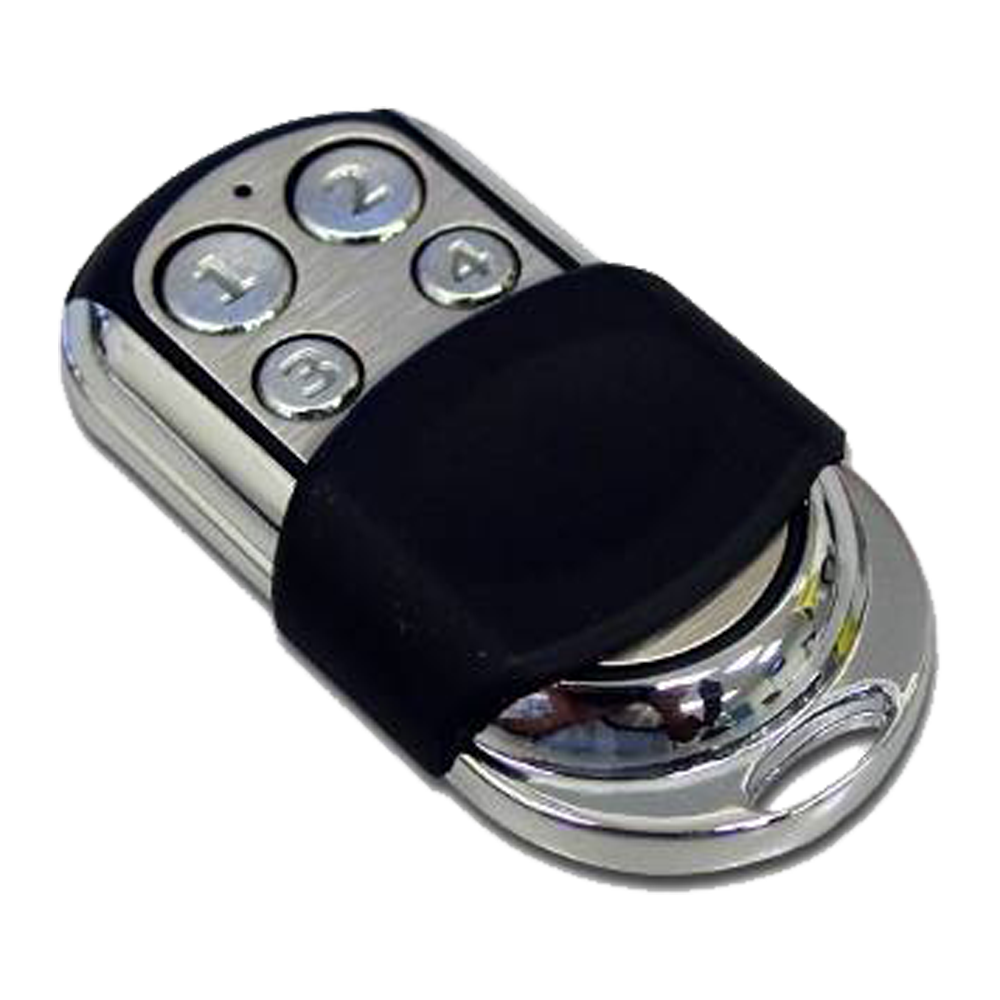

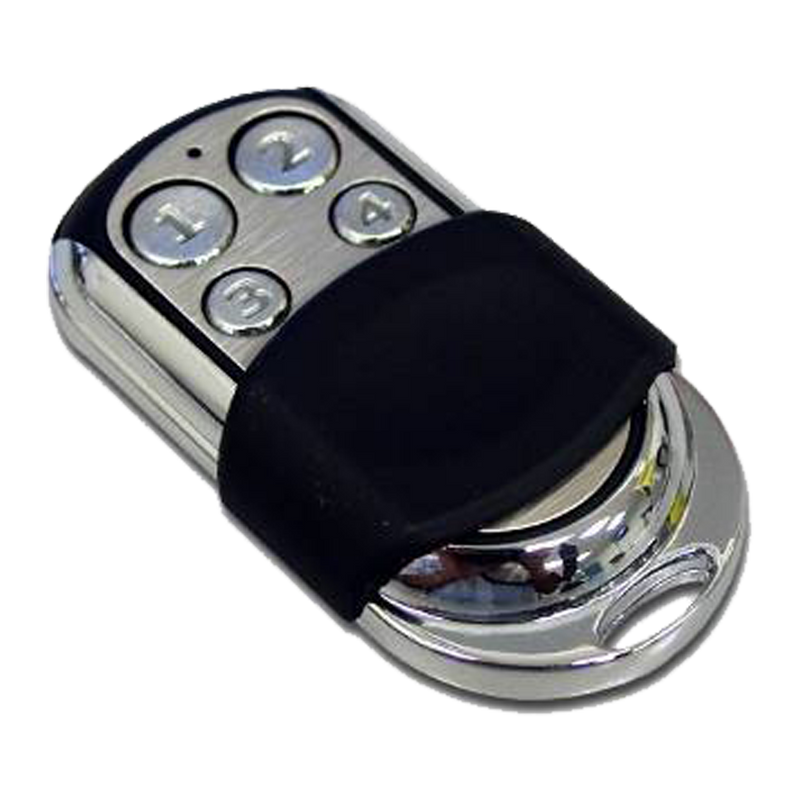

The Bosch HCT-4 is the extra keyfob for a Bosch alarm running a WE800EV2 receiver: four fixed buttons for away arming, stay arming and two relay outputs, with a panic alarm on two buttons held together.
What you get
- 1 × HCT-4 four-button keyfob transmitter, silver
You'll also need
- A WE800EV2 receiver already fitted to the alarm panel, such as the one in the WE800EV2KIT
- An installer or a competent user to learn the new fob into the receiver, which holds a maximum of 21
- A 12VDC 27A battery when the time comes to replace it
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the HCT-4 is
The Bosch HCT-4 is bought when a household grows: another adult, a cleaner, a tenant in the flat out the back. It works with the WE800EV2 receiver, which stores a maximum of 21 fobs, so there is room for far more people than most sites need.
The four buttons are fixed and cannot be reassigned: away arm and disarm, stay arm and disarm, and the receiver's two relay outputs, which are commonly used for a gate or a roller door. Holding buttons 1 and 2 together for two seconds raises a panic alarm. The radio is 433.92mHz with code hopping security, a SAW resonator locked transmitter and a blue LED that confirms a press, and the fob weighs 35g with its battery. One habit worth passing on: the receiver will not respond to rapid arming attempts, so leave two seconds between presses. The warranty is 36 Months.
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | HCT-4 4 button keyfob transmitter for the WE800EV2 RF Arming Kit |
| Kit description | The WE800EV2 RF Arming Kit is designed to provide a convenient ON/OFF control for the Solution 800 Series alarm panels. Provision is also made for the control of up to two (2) external devices via on board relays |
| Kit ordering | 321070 WE800EV2KIT 433mHz Receiver with 2 x 4 Button Fobs |
| Compatible receiver | WE800EV2 RF receiver (receiver stores a maximum of 21 fobs) |
| Button functions | AWAY Arm / Disarm; STAY Arm / Disarm; Output 1 Relay; Output 2 Relay - the button functions are fixed and cannot be changed |
| Panic function | Holding down buttons 1 and 2 at the same time for 2 secs will cause a panic alarm |
| Arm/disarm timing | The receiver will not respond to rapid attempts to ARM/DISARM; wait 2 seconds between arm/disarm attempts |
| Relay programming (first learned fob) | Button 1 = Both outputs momentary; Button 2 = Output 1 toggling, Output 2 momentary; Button 3 = Output 2 toggling, Output 1 momentary; Button 4 = Both outputs toggling |
Wireless & Radio
| Feature | Detail |
|---|---|
| Operating frequency | 433.92mHz |
| RF security | Code hopping RF security (4.2 billion combinations) |
| Bandwidth | 380khz |
| Tuning | SAW resonator locked |
| Channels | 4 |
| Visual indicator | Blue LED |
Power & Electrical
| Feature | Detail |
|---|---|
| Operating voltage | 12VDC Battery 27A |
Physical & Environment
| Feature | Detail |
|---|---|
| Weight | 35g including battery |
| Colour (supplier listing) | Silver |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Supplier warranty | 36 Months |
| Overview & Compatibility — Product | HCT-4 4 button keyfob transmitter for the WE800EV2 RF Arming Kit |
|---|---|
| Overview & Compatibility — Kit description | The WE800EV2 RF Arming Kit is designed to provide a convenient ON/OFF control for the Solution 800 Series alarm panels. Provision is also made for the control of up to two (2) external devices via on board relays |
| Overview & Compatibility — Kit ordering | 321070 WE800EV2KIT 433mHz Receiver with 2 x 4 Button Fobs |
| Overview & Compatibility — Compatible receiver | WE800EV2 RF receiver (receiver stores a maximum of 21 fobs) |
| Overview & Compatibility — Button functions | AWAY Arm / Disarm; STAY Arm / Disarm; Output 1 Relay; Output 2 Relay - the button functions are fixed and cannot be changed |
| Overview & Compatibility — Panic function | Holding down buttons 1 and 2 at the same time for 2 secs will cause a panic alarm |
| Overview & Compatibility — Arm/disarm timing | The receiver will not respond to rapid attempts to ARM/DISARM; wait 2 seconds between arm/disarm attempts |
| Overview & Compatibility — Relay programming (first learned fob) | Button 1 = Both outputs momentary; Button 2 = Output 1 toggling, Output 2 momentary; Button 3 = Output 2 toggling, Output 1 momentary; Button 4 = Both outputs toggling |
| Wireless & Radio — Operating frequency | 433.92mHz |
| Wireless & Radio — RF security | Code hopping RF security (4.2 billion combinations) |
| Wireless & Radio — Bandwidth | 380khz |
| Wireless & Radio — Tuning | SAW resonator locked |
| Wireless & Radio — Channels | 4 |
| Wireless & Radio — Visual indicator | Blue LED |
| Power & Electrical — Operating voltage | 12VDC Battery 27A |
| Physical & Environment — Weight | 35g including battery |
| Physical & Environment — Colour (supplier listing) | Silver |
| Compliance & Warranty — Supplier warranty | 36 Months |
