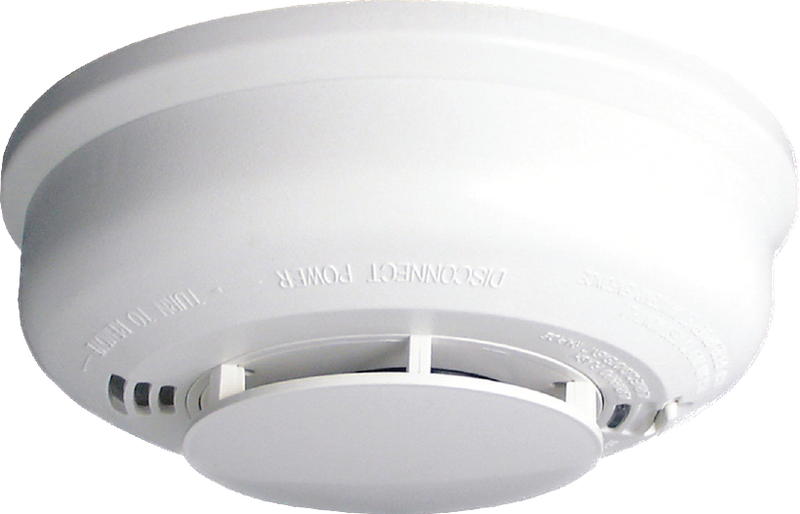

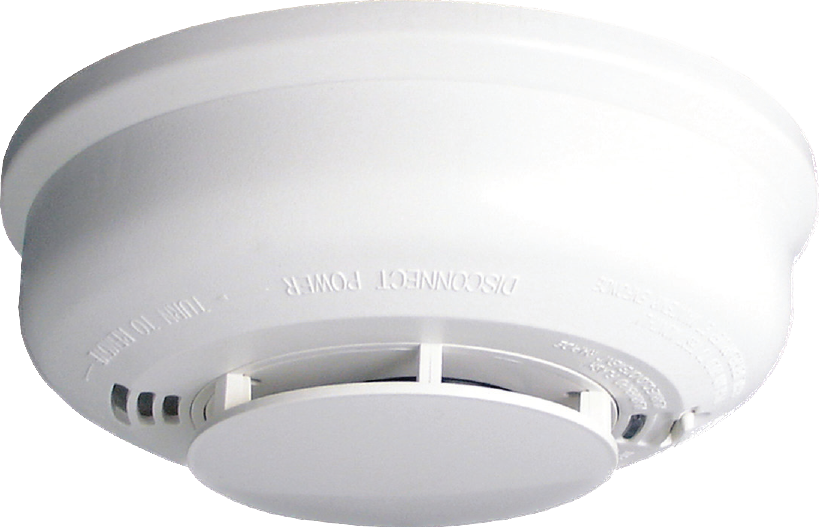

Honeywell 2012/24AUSI Photoelectric Smoke Alarm with Sounder
SKU: 2012/24AUSI
Description
The Honeywell 2012/24AUSI is a low-voltage photoelectric smoke alarm with its own sounder: it wakes the room on its own at 85dB(A), interconnects with up to 24 alarms in total, and reports to a security panel or access control system through a Form C relay.
What you get
- 1 × 2012/24AUSI photoelectric smoke alarm in a low-profile ceiling-white housing
- 1 × mounting ring and a 9 VDC back-up battery, both supplied with the alarm
You'll also need
- A 10 VDC to 30 VDC supply, typically from an alarm panel. The ICP-SOL3-P and CC610P are the panels sold here; check their supply and zone inputs against the figures below
- Four-wire cable from the panel for power and the relay, plus the end-of-line resistors the panel requires
- A ceiling position in the area to be protected, and cable between alarms if they are to interconnect
Regular price
$132.45 AUD
Sale price
$132.45 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Honeywell 2012/24AUSI Photoelectric Smoke Alarm with Sounder
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the 2012/24AUSI is
The Honeywell 2012/24AUSI sits between a household smoke alarm and a fire panel. It is a photoelectric smoke alarm for open-area protection with its own 85dB(A) sounder at 3 m, so it warns the people in the room first; and it is a four-wire, multi-voltage device with a change-over relay, so it can also tell a security or access control system that something is happening.
Interconnection is the reason it suits a larger building. Up to 24 alarms can be linked, so smoke detected in a hallway sounds every alarm in an apartment or a nursing home wing rather than only the one that saw it. Honeywell points at exactly those buildings: the low-voltage wiring is what makes it practical there.
It is built to be lived with. An 8 second alarm verification feature makes it look twice before sounding, the HUSH and test push button silences a cooking-smoke alarm without disabling it, and a custom easy-clean chamber keeps servicing simple. An automatic diagnostic test runs on its own, and a bi-colour green and red LED gives visual indication alongside the audible warning for a low battery or another fault.
It is not a fire panel and does not replace one: it is a smoke alarm with a relay, so what happens after that relay closes is up to the system it is wired into. When it does sound, it sounds like an evacuation. The alarm uses the temporal horn pattern of the ISO 8201 audible emergency evacuation signal, which is the three-beat pattern people are taught to recognise, rather than a plain continuous tone.
Electrically it is undemanding: 10 VDC to 30 VDC supply, 60 μA maximum average on standby, 65 mA maximum average in alarm, with a 9 VDC carbon zinc back-up battery supplied. The relay is 1 Form C rated 1A at 30 V DC or AC with normally-open and normally-closed change-over contacts. The housing is low profile in ceiling white at 55mm high and 135mm across, weighs 220 grams, and works from 0 to 50 degrees Celsius at 5% to 93% relative humidity. It is CSIRO certified and ActivFire listed to AS3786:2014.
§ 02Engineering
2012/24AUSI specifications
Honeywell 2012/24AUSI detection — photoelectric smoke sensing for open-area protection — early warning of a developing fire in a room or hallway
Sounder — built-in temp-3 sounder at 85dB(A) at 3 m — the alarm wakes the room itself, with no separate siren
Interconnect — up to 24 alarms in total linked together — smoke found in one room sounds every alarm in the building
Panel connection — 1 Form C relay, 1A at 30 V DC or AC, with change-over contacts — reports to a security alarm or access control system
Verification — 8 second alarm verification feature — a brief puff of steam is less likely to sound the building
Living with it — HUSH and test push button, custom easy-clean chamber — cooking smoke is silenced without disabling the alarm
Self-checking — automatic diagnostic test, bi-colour green and red LED, visual and audible low-battery and fault indication — a fault announces itself
Evacuation tone — ISO 8201 temporal horn pattern — the three-beat evacuation signal people are trained to recognise
Power — 10 VDC to 30 VDC, 60 μA standby and 65 mA in alarm, 9 VDC back-up battery supplied — a light load with its own fallback
Fitting — low-profile ceiling-white housing, 55mm high and 135mm across, mounting ring supplied, CSIRO ActivFire listed to AS3786:2014 — a discreet fitting with Australian listing
Sounder — built-in temp-3 sounder at 85dB(A) at 3 m — the alarm wakes the room itself, with no separate siren
Interconnect — up to 24 alarms in total linked together — smoke found in one room sounds every alarm in the building
Panel connection — 1 Form C relay, 1A at 30 V DC or AC, with change-over contacts — reports to a security alarm or access control system
Verification — 8 second alarm verification feature — a brief puff of steam is less likely to sound the building
Living with it — HUSH and test push button, custom easy-clean chamber — cooking smoke is silenced without disabling the alarm
Self-checking — automatic diagnostic test, bi-colour green and red LED, visual and audible low-battery and fault indication — a fault announces itself
Evacuation tone — ISO 8201 temporal horn pattern — the three-beat evacuation signal people are trained to recognise
Power — 10 VDC to 30 VDC, 60 μA standby and 65 mA in alarm, 9 VDC back-up battery supplied — a light load with its own fallback
Fitting — low-profile ceiling-white housing, 55mm high and 135mm across, mounting ring supplied, CSIRO ActivFire listed to AS3786:2014 — a discreet fitting with Australian listing
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | 2012/24AUSI Photoelectric smoke alarm with integral temp-3 sounder |
| Description | the 2012/24ausi is designed to provide early warning of developing fires for occupants of residential and commercial buildings. the 2012/24ausi is a photoelectric smoke alarm that is designed for open area protection. |
| Applications | the low-voltage wiring make them ideal for applications such as apartment buildings and nursing homes. |
| Third-party connection | these multi-voltage, 4 wire smoke alarms can be connected to many third-party devices such as security alarm systems and access control systems. |
| Supplied with | the 2012/24ausi is supplied complete with mounting ring and 9VDC back-up battery. |
Detection & Coverage
| Feature | Detail |
|---|---|
| Interconnect | Interconnect up to 24 smoke alarms |
| Sound output | 85dB(A) at 3 meters |
| p-horn Sound output level | 85 dBA @ 3m |
| Alarm verification | 8 second alarm verification feature |
| Evacuation signal | Audible emergency evacuation signal (ISO 8201); Temporal Horn Pattern |
| Hush / Test | ‘HUSH’ / Test Push Button feature |
| Diagnostics | Automatic diagnostic test feature |
| Chamber | Custom ‘easy-clean’ chamber |
| LED | Green and Red Bi-color LED Indication; Visual and Audible indication of low battery and other fault conditions |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Relay contact rating | 1 Form C, 1A @ 30 V(DC or AC) |
| Relay | NO/NC change-over alarm relay contacts; Custom dual-mode alarm relay, interconnect feature |
Power & Electrical
| Feature | Detail |
|---|---|
| Supply Voltage Range | 10 VDC to 30 VDC |
| Operation | 9-24 volt DC operation |
| Maximum Standby Current | 60 μA maximum average |
| Maximum Alarm Current | 65 mA maximum average @10~30VDC |
| Back-up Battery | 9 VDC carbon zinc battery |
Physical & Environment
| Feature | Detail |
|---|---|
| Size | 55mm (H) × 135mm (diameter) |
| Weight | 220 grams |
| Housing | Low profile design in ceiling white housing |
| Operating Temperature Range | 0 ̊C to 50 ̊C |
| Relative Humidity | 5% to 93% R.H. |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Listing | CSIRO certified and listed to AS3786:2014; CSIRO ActivFire listed to AS3786:2014 (27 August 2015) |
| Overview & Compatibility — Product | 2012/24AUSI Photoelectric smoke alarm with integral temp-3 sounder |
|---|---|
| Overview & Compatibility — Description | the 2012/24ausi is designed to provide early warning of developing fires for occupants of residential and commercial buildings. the 2012/24ausi is a photoelectric smoke alarm that is designed for open area protection. |
| Overview & Compatibility — Applications | the low-voltage wiring make them ideal for applications such as apartment buildings and nursing homes. |
| Overview & Compatibility — Third-party connection | these multi-voltage, 4 wire smoke alarms can be connected to many third-party devices such as security alarm systems and access control systems. |
| Overview & Compatibility — Supplied with | the 2012/24ausi is supplied complete with mounting ring and 9VDC back-up battery. |
| Detection & Coverage — Interconnect | Interconnect up to 24 smoke alarms |
| Detection & Coverage — Sound output | 85dB(A) at 3 meters |
| Detection & Coverage — p-horn Sound output level | 85 dBA @ 3m |
| Detection & Coverage — Alarm verification | 8 second alarm verification feature |
| Detection & Coverage — Evacuation signal | Audible emergency evacuation signal (ISO 8201); Temporal Horn Pattern |
| Detection & Coverage — Hush / Test | ‘HUSH’ / Test Push Button feature |
| Detection & Coverage — Diagnostics | Automatic diagnostic test feature |
| Detection & Coverage — Chamber | Custom ‘easy-clean’ chamber |
| Detection & Coverage — LED | Green and Red Bi-color LED Indication; Visual and Audible indication of low battery and other fault conditions |
| Zones, Outputs & Capacity — Relay contact rating | 1 Form C, 1A @ 30 V(DC or AC) |
| Zones, Outputs & Capacity — Relay | NO/NC change-over alarm relay contacts; Custom dual-mode alarm relay, interconnect feature |
| Power & Electrical — Supply Voltage Range | 10 VDC to 30 VDC |
| Power & Electrical — Operation | 9-24 volt DC operation |
| Power & Electrical — Maximum Standby Current | 60 μA maximum average |
| Power & Electrical — Maximum Alarm Current | 65 mA maximum average @10~30VDC |
| Power & Electrical — Back-up Battery | 9 VDC carbon zinc battery |
| Physical & Environment — Size | 55mm (H) × 135mm (diameter) |
| Physical & Environment — Weight | 220 grams |
| Physical & Environment — Housing | Low profile design in ceiling white housing |
| Physical & Environment — Operating Temperature Range | 0 ̊C to 50 ̊C |
| Physical & Environment — Relative Humidity | 5% to 93% R.H. |
| Compliance & Warranty — Listing | CSIRO certified and listed to AS3786:2014; CSIRO ActivFire listed to AS3786:2014 (27 August 2015) |
§ 04Why choose this
Built for the way you actually use the 2012/24AUSI
One alarm sounds them all
Up to 24 alarms in total interconnect, so smoke in a hallway sounds the alarm in every bedroom. That is the difference between a warning and a warning that reaches someone asleep at the other end of the building.
Fewer nuisance alarms to live with
An 8 second alarm verification feature makes the alarm confirm what it has seen before sounding, and the HUSH button silences a cooking-smoke alarm without taking it out of service. Both reduce the temptation to disconnect it.
It sounds like an evacuation, not a beep
The alarm uses the ISO 8201 temporal horn pattern, the three-beat signal used for emergency evacuation. It is the pattern used for emergency evacuation rather than an unfamiliar continuous tone.
It tells you when it is unwell
An automatic diagnostic test runs on its own, and a bi-colour LED plus an audible indication reports a low battery or another fault. The easy-clean chamber makes the service that follows quick.
Australian listed and low voltage
It is CSIRO certified and ActivFire listed to AS3786:2014, and runs on 10 VDC to 30 VDC rather than mains. Honeywell points to apartment buildings and nursing homes as the applications the low-voltage wiring suits.
§ 05Where it fits
Right at home in these scenarios
Apartment building or unit block
The Honeywell 2012/24AUSI interconnects up to 24 alarms in total on low-voltage wiring, which is what Honeywell suggests it for. Smoke in a common hallway sounds inside the units as well as in the corridor.
Nursing home or supported accommodation
A building where residents may not react quickly needs the alarm heard everywhere at once, and the ISO 8201 evacuation pattern is the signal staff and residents are trained on. The relay also lets the security system pass the event on.
Australian home with a security panel
Wired to a spare zone on a security panel, the relay passes the smoke alarm on to that system as well as sounding in the house. Set the zone as a 24-hour fire zone and turn off bypass for it, so it cannot be armed away.
§ 06Setup
Installation & setup
What is in the box
The Honeywell 2012/24AUSI is supplied complete with its mounting ring and a 9 VDC back-up battery. The cable, the end-of-line resistors and the alarm panel are separate.
Where to mount it
Fit it on the ceiling in the open area to be protected, using the supplied mounting ring. The housing is low profile at 55mm high and 135mm across in ceiling white, so it sits close to the surface.
Power and wiring
Feed it 10 VDC to 30 VDC over four-wire cable, typically from an alarm panel: two conductors for the supply and two for the relay, so one cable run reaches each alarm. It draws 60 μA maximum average on standby and 65 mA maximum average in alarm, so several units are a light load. No maximum run length is published for the alarm itself, so the limit is whatever the panel supplying it allows for a detector run.
Connecting to the panel
Use the 1 Form C relay, rated 1A at 30 V DC or AC, with its normally-open and normally-closed change-over contacts, wired to a spare panel zone with the end-of-line resistors that panel requires.
Interconnecting alarms
Up to 24 alarms in total can be interconnected so that one detection sounds them all, which needs one additional cable run between alarms on top of the run back to the panel. Plan that route, and the position of the panel supplying them, before fixing the first mounting ring: the panel belongs in a ventilated indoor spot central to the runs rather than at one far end.
Programming the zone
Set the zone as a fire or 24-hour type on the panel, and turn off the bypass option for it, since zones can be bypassed by default and a fire zone should not be.
When to call an electrician
The alarm runs on low voltage and needs no mains work, but any new or altered fixed mains wiring in the installation is work for a licensed electrician. Fire detection in a commercial building may also be subject to local requirements, so confirm the design with the responsible party.
§ 08Questions
Frequently asked about the 2012/24AUSI
Q.01
How loud is the Honeywell 2012/24AUSI?
Its built-in sounder produces 85dB(A) at 3 m, using the ISO 8201 temporal horn pattern for emergency evacuation.
Q.02
How many alarms can be interconnected?
Up to 24 in total. One alarm detecting smoke then sounds all of them, which suits apartment buildings and nursing homes.
Q.03
Can it connect to my alarm panel?
Yes. It has a 1 Form C relay rated 1A at 30 V DC or AC with change-over contacts, and Honeywell describes it as connecting to third-party devices such as security alarm and access control systems.
Q.04
What voltage does it run on?
A supply of 10 VDC to 30 VDC, drawing 60 μA maximum average on standby and 65 mA maximum average in alarm.
Q.05
Is a battery included?
Yes. It is supplied complete with its mounting ring and a 9 VDC back-up battery, and it gives visual and audible indication when that battery is low.
Q.06
What stops it going off when I cook?
An 8 second alarm verification feature makes it confirm the detection first, and the HUSH and test push button silences an alarm without taking the unit out of service.
Q.07
How do I know it is still working?
An automatic diagnostic test runs on its own, and a bi-colour green and red LED shows the status along with an audible indication of a low battery or other fault.
Q.08
Is it approved for use in Australia?
It is CSIRO certified and CSIRO ActivFire listed to AS3786:2014.
Q.09
How big is it, and what conditions does it suit?
The housing is 55mm high and 135mm across in ceiling white, weighing 220 grams, for indoor use from 0 to 50 degrees Celsius at 5% to 93% relative humidity.
