Bosch CC610P Solution 6000 Control Panel PCB only
1 1
Bosch

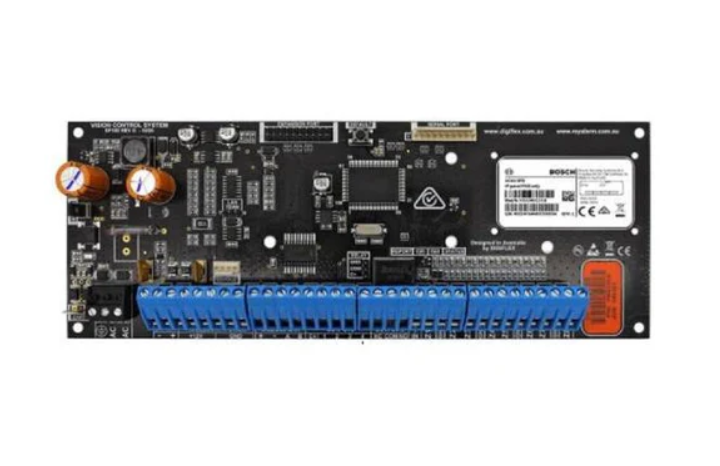

Bosch CC610P Solution 6000 Control Panel PCB only

SKU: CC610P
Description

The Bosch CC610P is the control panel PCB for the Bosch Solution 6000 alarm and access control system. It is the board (PCB only) at the heart of a Solution 6000, supporting 16 on-board zones expandable to 144 wired or wireless, eight areas and integrated access control for up to 16 doors.

Key points
- Solution 6000 control panel, supplied as the PCB only
- 16 on-board zones, expandable to 144 (wired or wireless)
- Partitionable into 8 areas; up to 990 users (PIN, token, keyfob, fingerprint)
- 5 on-board outputs, expandable to 37; access control for up to 16 doors
- Up to 16 keypads or readers; reporting by CID, SIA, IP, voice and SMS
- 16-18V AC supply; needs a keypad, enclosure, transformer, battery and detectors to make a system
$458.35 AUD $458.35 AUD $463.00 AUD
Sale 1.0% $4.65 AUD (1.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
0
0
Bundle total: $458.35

§ 01Overview

What the CC610P is

The Bosch CC610P is the Solution 6000 control panel PCB. It is the main board that runs a Bosch Solution 6000, one of the most popular alarm and integrated access control platforms in Australia for homes and commercial sites. This listing is the PCB only, supplied with the manuals, resistor pack, battery lead and phone lead, so the installer can build it into a complete system.

The board has 16 on-board zones and expands to 144 zones, wired or wireless, and partitions into eight areas so one panel can protect separate parts of a building independently. It supports up to 990 users (PIN, token, keyfob or fingerprint), 5 on-board outputs expandable to 37, up to 16 keypads or readers, and integrated access control for up to 16 doors. Reporting options include Contact ID, SIA, email, voice, domestic dialling, GSM-SMS and Conettix IP, so it can report back to base or to the free Bosch app over IP.

The CC610P runs from a 16-18V AC 24VA supply (external plug-pack or internal transformer) with a 12V 7.2Ah backup battery, and operates down to 10.2VDC. Because it is the board only, it is not a working system on its own: you also need a keypad (such as the CP736B or CP737B), a metal enclosure (the MW350), an 18V AC transformer, a backup battery and detectors. It is fitted and programmed by a licensed security installer.

§ 02Engineering

CC610P specifications

- Bosch Solution 6000 control panel supplied as the PCB only, with manuals, resistor pack, battery lead and phone lead.

- 16 on-board zones, expandable to 144 zones wired or wireless, and partitionable into 8 independent areas.

- Up to 990 users (PIN, token, keyfob or fingerprint), 5 on-board outputs expandable to 37, and up to 16 keypads or readers.

- Integrated access control for up to 16 doors, so intrusion and door access run on one panel.

- Reporting by Contact ID, SIA, email, voice, domestic dialling, GSM-SMS and Conettix IP, with the free Bosch app over IP.

- 16-18V AC 24VA supply with a 12V 7.2Ah backup battery; needs a keypad, enclosure, transformer, battery and detectors to form a complete system.

§ 04Why choose this

Built for the way you actually use the CC610P

Proven Solution 6000 platform

The CC610P is the board behind one of Australia's most widely installed alarm and access platforms, supported by installers nationwide.

Scales from home to commercial

16 zones grow to 144, with 8 areas and access control for 16 doors, so the same panel suits a house or a large site.

Alarm and access in one

Intrusion detection and door access run on a single panel, with up to 990 users and full event reporting.

Backed locally

Supplied by an authorised Bosch dealer with a 3-year warranty and Australia-wide support.

§ 05Where it fits

Right at home in these scenarios

Commercial and multi-tenant sites

8 areas and 144 zones let one panel protect separate offices, floors or tenancies independently.

Homes with access control

Add card or token entry on top of intrusion detection for a house or home office.

Back-to-base monitored alarms

Report to a monitoring centre by IP, Contact ID or SIA, or to the owner through the Bosch app.

Board replacement or upgrade

Re-board an existing Solution 6000 install, reusing the enclosure, keypad and detectors where compatible.

§ 06Setup

Installation & setup

01

What it is

The Solution 6000 control panel PCB only. It is not a complete system: you also need a keypad, a metal enclosure, an 18V AC transformer, a 12V backup battery and detectors.

02

What it controls

16 on-board zones (to 144), 8 areas, up to 990 users, 5 outputs (to 37), up to 16 keypads or readers and access control for up to 16 doors.

03

Power

16-18V AC 24VA from an external plug-pack or internal transformer, with a 12V 7.2Ah backup battery; the board operates down to 10.2VDC.

04

Professional install

In Australia a Bosch alarm should be installed by a licensed security installer, who wires the device to the panel, programs it and tests the system. The installer mounts the board in the enclosure, wires the keypad, detectors and power, and programs the panel.

§ 07Questions

Frequently asked about the CC610P

Q.01

What is the CC610P?
It is the control panel PCB for the Bosch Solution 6000 alarm and access control system, supplied as the board only.
Q.02

Is it a complete alarm system?
No. It is the PCB only. You also need a keypad, a metal enclosure, an 18V AC transformer, a 12V backup battery and detectors to make a working system.
Q.03

How many zones and areas does it support?
16 on-board zones expandable to 144 wired or wireless, partitionable into 8 areas.
Q.04

How many users can it have?
Up to 990 users by PIN, token, keyfob or fingerprint.
Q.05

Does it do access control?
Yes. It has integrated access control for up to 16 doors, and supports up to 16 keypads or readers.
Q.06

How does it report alarms?
By Contact ID, SIA, email, voice, domestic dialling, GSM-SMS and Conettix IP, including the free Bosch app over IP.
Q.07

What power does it need?
A 16-18V AC 24VA supply (external plug-pack or internal transformer) with a 12V 7.2Ah backup battery.
Q.08

Who should install it?
A licensed security installer mounts the board in an enclosure, wires the keypad, detectors and power, and programs the panel.

§ 09Bundles

Recommended packages

01

Add a keypad

Drive the panel with a CP736B graphic keypad or the CP737B WiFi graphic keypad.

02

Enclosure and modules

House the board in the MW350 metal enclosure, add the CM751B Conettix IP module for app and back-to-base, and the CM704B for extra zones.

03

Go wireless

Add the RF120 Smart RF base station for RADION and RF110 wireless devices, or the RFRC-STR2 RADION receiver.

04

Add detection

Add detectors such as the wired BDL2-WP12G TriTech pet PIR, or a card reader like the PR116B.
