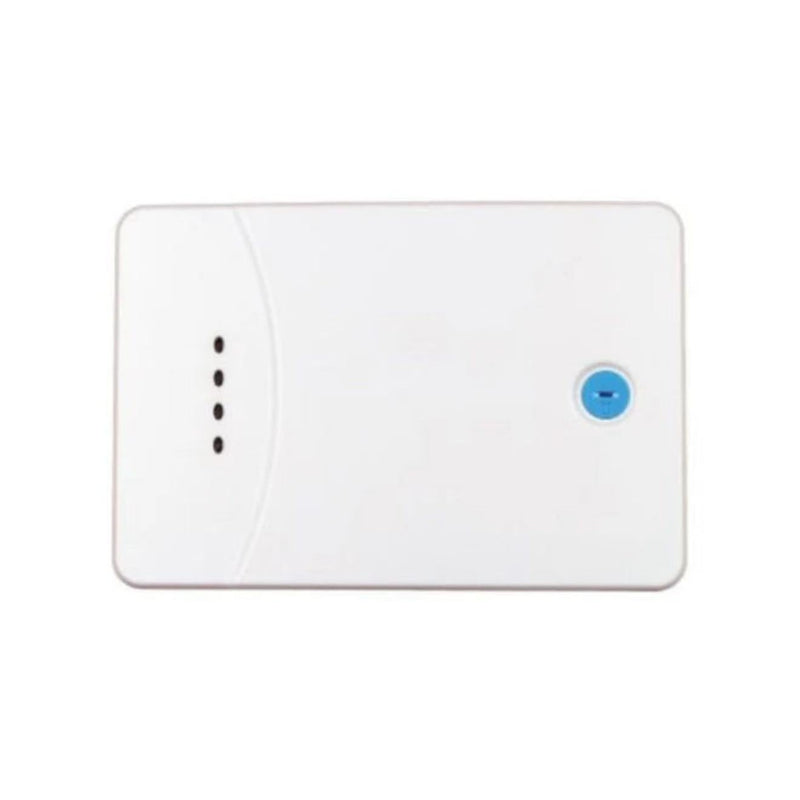

Bosch RF120 SMART RF 2-Way Base Station for Solution 6000
The Bosch RF120 is the two-way wireless base station for a Solution 6000 system: a 433.42 MHz transceiver on the panel’s RS485 LAN that talks both ways to SMART RF keyfobs and, with Bosch compatibility enabled, to selected Bosch RF detectors, so a site gets wireless devices where cable cannot go.
What you get
- 1 × base station: receiver PWA, front and back case with LED light pipe and cam lock, and an instruction sheet
You’ll also need
- A Solution 6000 panel at version 2.30, or a Vision-X panel at version 2.30
- An RS485 LAN cable run from the panel to the mounting position
- Wireless devices to pair with it, such as the RF110 five-button keyfob
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the SMART RF Base Station - RS485 is
The Bosch RF120 is a base station rather than a plain receiver, and that changes how a site is covered. Up to 4 of them sit on the same RS485 LAN, each given a unique address on its DIP switch, so the radio is placed near the devices instead of one point trying to hear a whole building.
The link is protected rather than merely present. Rolling code encryption with anti-substitution technology means a transmission captured off the air cannot be used again, and dual diversity internal antennas give the radio more than one path to a device.
It is not a control panel and not an expander. It has no alarm inputs or outputs of its own, so zones and outputs stay on the panel, and it does not work outdoors, so a detached shed or an unheated space needs a different approach.
Fitting it is a wall job. It screws to a vertical surface in either landscape or portrait orientation, which lets it share a cupboard or riser with the panel, and it is a light load at 10V to 14V, 12V nominal, drawing 70mA at most. Front and rear tampers report if the case is opened or pulled away from the wall.
02Engineering
SMART RF Base Station - RS485 specifications
Security — rolling code encryption with anti-substitution technology — a transmission captured off the air cannot be used again
Networked coverage — several base stations on one RS485 LAN, up to 4 on a Solution 6000 — the radio goes where the devices are
Addressing — a DIP switch sets each station’s unique address on the LAN — every station is told apart on the bus
Keyfobs — RF110 SMART RF two-way keyfob, five buttons, two independent functions each — one keyring covers more than one job
Bosch RF devices — selected PIRs, reed switches and shock sensors once Bosch compatibility is enabled — wireless sensors on a system that is otherwise wired
Power — 10V to 14V, 12V nominal, 70mA maximum — a light load on whatever feeds it
Housing — 140mm(W), 40mm(D), 270mm(H), front and rear tampers — a slim case that reports being opened
Warranty — 3 years return to base, made in Australia — a faulty unit goes back rather than being repaired in place
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | RF120 SMART RF Base Station - RS485 |
| Description | The SMART RF Base Station is an advanced 2-Way 433Mhz transceiver that interfaces directly to compatible control panels via an RS485 LAN connection. |
| Base Station Receiver Compatibility | RF120: Vision-X version 2.30 – 4 receivers supported; Solution 6000 version 2.30 – 4 receivers supported |
| Bosch RF Device Compatibility | The RF120 Base Station is capable of supporting selected Bosch RF peripherals like PIR’s, Reed Switches and Shock Sensors etc. You must enable Bosch compatibility mode in panel programming, MENU 6-2-0, Option 8 to enable this feature. |
| Keyfob | RF110 SMART RF 2-way keyfobs — Each of the 5 buttons can be programmed with two independent functions if required |
| Repeater note (product matrix) | RFRP Radion Repeater also available. Note: Repeater is not compatible with 2 Way SMART RF |
| Box Contents | RF Base Station Receiver PWA; Case (Front & Back) + LED Light Pipe + Cam Lock; Instruction Sheet |
| BRAND | BOSCH |
| SERIES | SOLUTION 6000 |
| DEVICE TYPE | RECEIVER |
Wireless & Radio
| Feature | Detail |
|---|---|
| Frequency | 433.42 MHz |
| Radio | There are two built in radio transmitters and receivers with dual diversity internal antennas. |
| Encryption | The 2-way communication is encrypted with rolling code and anti substitution technology |
| Multiple receivers | Multiple receivers can be installed on a single LAN creating a network of access points where RF devices can communicate across larger areas. Up to 4 receivers can be added. |
| Tamper | front and rear tampers protect against unauthorised access |
| WIRING | WIRELESS |
| FREQUENCY | 433MHz |
Communications & Reporting
| Feature | Detail |
|---|---|
| Module Connection | RS485 LAN |
| Receiver Addressing | Each receiver fitted to the system must be assigned a unique address on the LAN. Both models includes a DIP switch for quick address selection. Currently only 4 receivers are supported. |
| BUS TYPE | RS485 BUS |
Power & Electrical
| Feature | Detail |
|---|---|
| Operating Voltage | 10V D.C. - 14V D.C. @ 70mA Max. 12V D.C. nominal |
| POWER | 12VDC |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions | 140mm(W), 40mm(D), 270mm(H) |
| Environment | 0 to 49 °C Indoors |
| Fixing Method | Using mounting screws fix unit on a vertical surface in either landscape or portrait orientation. |
| COLOUR | WHITE |
| MATERIAL | PLASTIC |
| MOUNTING | WALL MOUNT |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Warranty | 3 years from date of manufacture (return to base). |
| Made in | Made in Australia |
| WARRANTY | 36 Months |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| ALARM I/O | NONE |
| Overview & Compatibility — Product | RF120 SMART RF Base Station - RS485 |
|---|---|
| Overview & Compatibility — Description | The SMART RF Base Station is an advanced 2-Way 433Mhz transceiver that interfaces directly to compatible control panels via an RS485 LAN connection. |
| Overview & Compatibility — Base Station Receiver Compatibility | RF120: Vision-X version 2.30 – 4 receivers supported; Solution 6000 version 2.30 – 4 receivers supported |
| Overview & Compatibility — Bosch RF Device Compatibility | The RF120 Base Station is capable of supporting selected Bosch RF peripherals like PIR’s, Reed Switches and Shock Sensors etc. You must enable Bosch compatibility mode in panel programming, MENU 6-2-0, Option 8 to enable this feature. |
| Overview & Compatibility — Keyfob | RF110 SMART RF 2-way keyfobs — Each of the 5 buttons can be programmed with two independent functions if required |
| Overview & Compatibility — Repeater note (product matrix) | RFRP Radion Repeater also available. Note: Repeater is not compatible with 2 Way SMART RF |
| Overview & Compatibility — Box Contents | RF Base Station Receiver PWA; Case (Front & Back) + LED Light Pipe + Cam Lock; Instruction Sheet |
| Overview & Compatibility — BRAND | BOSCH |
| Overview & Compatibility — SERIES | SOLUTION 6000 |
| Overview & Compatibility — DEVICE TYPE | RECEIVER |
| Wireless & Radio — Frequency | 433.42 MHz |
| Wireless & Radio — Radio | There are two built in radio transmitters and receivers with dual diversity internal antennas. |
| Wireless & Radio — Encryption | The 2-way communication is encrypted with rolling code and anti substitution technology |
| Wireless & Radio — Multiple receivers | Multiple receivers can be installed on a single LAN creating a network of access points where RF devices can communicate across larger areas. Up to 4 receivers can be added. |
| Wireless & Radio — Tamper | front and rear tampers protect against unauthorised access |
| Wireless & Radio — WIRING | WIRELESS |
| Wireless & Radio — FREQUENCY | 433MHz |
| Communications & Reporting — Module Connection | RS485 LAN |
| Communications & Reporting — Receiver Addressing | Each receiver fitted to the system must be assigned a unique address on the LAN. Both models includes a DIP switch for quick address selection. Currently only 4 receivers are supported. |
| Communications & Reporting — BUS TYPE | RS485 BUS |
| Power & Electrical — Operating Voltage | 10V D.C. - 14V D.C. @ 70mA Max. 12V D.C. nominal |
| Power & Electrical — POWER | 12VDC |
| Physical & Environment — Dimensions | 140mm(W), 40mm(D), 270mm(H) |
| Physical & Environment — Environment | 0 to 49 °C Indoors |
| Physical & Environment — Fixing Method | Using mounting screws fix unit on a vertical surface in either landscape or portrait orientation. |
| Physical & Environment — COLOUR | WHITE |
| Physical & Environment — MATERIAL | PLASTIC |
| Physical & Environment — MOUNTING | WALL MOUNT |
| Compliance & Warranty — Warranty | 3 years from date of manufacture (return to base). |
| Compliance & Warranty — Made in | Made in Australia |
| Compliance & Warranty — WARRANTY | 36 Months |
| Zones, Outputs & Capacity — ALARM I/O | NONE |
08Questions
Frequently asked about the SMART RF Base Station - RS485
Q.01
Bosch RF120 coverage: how many base stations can one system have?
Q.02
Does it have its own alarm inputs or outputs?
Q.03
Can a repeater extend its range?
Q.04
How is the wireless link protected?
Q.05
Which panels does it work with?
Q.06
Which keyfob works with it?
Q.07
Can it use Bosch wireless detectors?
Q.08
How is it wired?
Q.09
Where should it be mounted?
