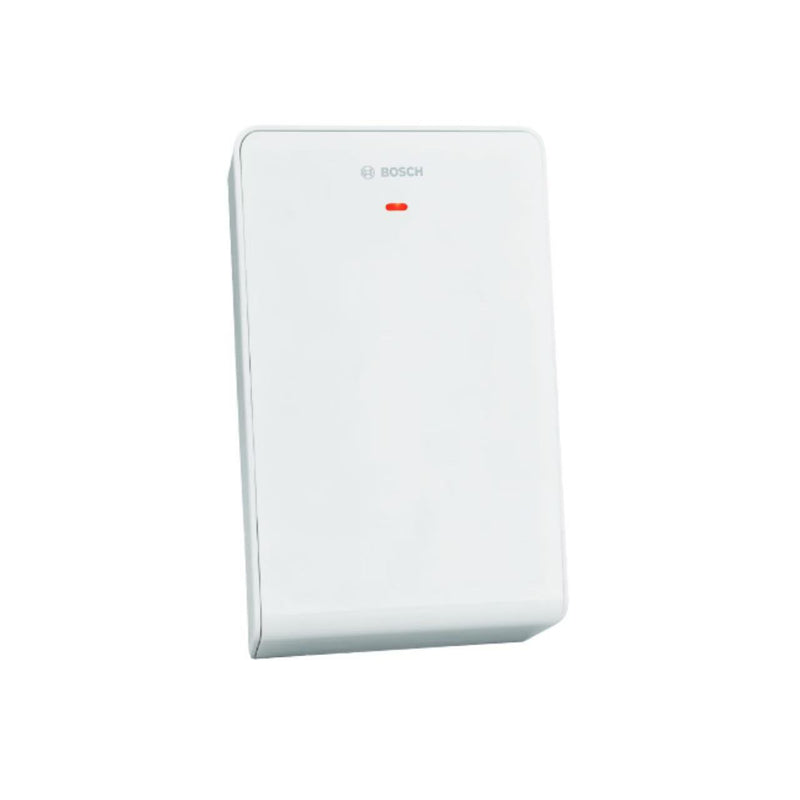

Bosch RFRC-STR2 RADION Wireless Receiver for Solution Panels
The Bosch RFRC-STR2 is the RADION receiver ST, the wireless receiver that puts RADION and DSRF devices on a Streamline Bus Solution panel: motion detectors, door contacts, keyfobs, panic buttons and repeaters on 433.42 MHz, wired to the panel on three terminals, and the replacement for the older RF3212E receiver.
What you get
- 1 × RFRC-STR2 wireless receiver in a white plastic sliding self-locking enclosure
- 1 × hardware pack, 1 × installation guide and 1 × reference guide
You'll also need
- A listed panel: Solution 6000 or 144, such as the CC610P board, Solution 64, 16Plus, 16i, Ultima 880 or 880, or any panel that previously used an RF3212E
- A three-core cable run from the panel, 0.65 mm (22 AWG) to 1.3 mm (16 AWG), no longer than 300 m
- Wireless devices to learn in, such as the RFDL-11 TriTech, the RFPR-12 PIR, the RFDW-SM contact or the RFKF-FBS keyfob
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the RFRC-STR2 is
The Bosch RFRC-STR2 is how a hardwired Solution system takes on wireless devices without changing the panel. It is enabled in the same programming location as the RF3212E it replaces, on a Solution 6000 at Menu 3-5-0 option 4, Bosch Serial Receiver, so an older site swaps the receiver and keeps its programming. The rotary dial on the back must be set to 3.
Reception is built for reliability rather than raw range. Dual internal antennas give spatial and polar diversity, the receiver reports signal strength and margin for each device, and it detects and reports jamming when ambient noise sits above 70 percent of full-scale signal strength for 30 out of 60 seconds. Cover and wall tamper detection sends a tamper signal if the receiver is pulled from its base or off the wall, and an RFRP repeater extends coverage where a large building needs it.
The device list is long. RADION detectors, contacts, keyfobs, panic buttons, glass-break and smoke detectors, the RFUN universal transmitter and the RFBT bill trap are supported, along with DSRF devices from the RF110E to the RF3503E, so both the current and the previous wireless generation learn in.
Installation is a three-wire run. The R, B and Y terminals connect to the panel over 0.65 mm (22 AWG) to 1.3 mm (16 AWG) cable up to 300 m away, the receiver runs on 12 VDC at no more than 100 mA, and the sliding self-locking enclosure has an integrated bubble level and a lift-gate terminal block. It is an indoor unit rated for -10 °C to +55 °C and up to 93% non-condensing humidity, measuring 139.7 mm x 209.6 mm x 31.8 mm.
Radio range depends on the building, and objects inside it including people, so receiver and repeater positions are tested on site rather than assumed. The receiver holds RCM approval for Australia, EN 50131 Grade 2, and a 36 Months supplier warranty.
02Engineering
RFRC-STR2 specifications
Replaces the RF3212E — same panels, enabled at the same programming location, rear dial set to 3 — the panel keeps the location it already uses
Antennas — dual internal antennas with spatial and polar diversity — two antennas listening rather than one
Devices — the listed RADION detectors, contacts, keyfobs, panic buttons, glass-break and smoke detectors plus the listed DSRF devices — two wireless generations on one receiver
Supervision — jamming detection at 70 percent of full scale for 30 of 60 seconds, signal strength and margin reporting, cover and wall tamper — interference and tampering are detected and reported
Repeater support — RFRP RADION repeater — coverage stretched across a larger building
Wiring — R, B and Y terminals, 0.65 mm (22 AWG) to 1.3 mm (16 AWG), up to 300 m from the panel — one three-core cable
Power — 12 VDC, 100 mA maximum — a light load on the panel supply
Housing — sliding self-locking enclosure, bubble level, lift-gate terminal block, 139.7 mm x 209.6 mm x 31.8 mm, -10 °C to +55 °C indoors — quick to fit level and square
Approvals — RCM for Australia, EN 50131 Grade 2, CE, 36 Months supplier warranty — graded equipment, approved for Australian installs
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | RADION receiver ST (RFRC-STR2) wireless receiver for Streamline Bus control panels |
| Order number | RFRC-STR - For use with compatible Streamline Bus control panels (streamline bus 433.42 MHz) |
| Description | The RADION receiver ST is a wireless receiver that connects RADION and DSRF wireless peripherals such as motion and specialty detectors, keyfobs, panic buttons, door/window contacts, repeaters and more to supported Bosch and other compatible control panels. |
| Compatible control panels | Solution 6000/144 (CC600); Solution 64 (CC110); Solution 16Plus (CC100); Solution 16i (CC500); Solution Ultima 880 (CC488); Solution 880 (CC408) |
| Compatible RADION devices | RFRP repeater; RFBT bill trap; RFDL-11 motion detector TriTech; RRDW-RM recessed door/window contact; RFDW-SM standard door/window contact; RFGB glass break; RFKF-FB keyfob; RFKF-TB keyfob; RFPB-SB panic; RFPB-TB panic; RFPR-12 motion detector PIR; RFPR-C12 motion detector (curtain) PIR; RFSM smoke detector; RFUN universal transmitter; RFKF-FBS/RFKF-TBS keyfob; RFKF-FBS-A/RFKF-TBS-A keyfob |
| Compatible DSRF devices | RF835E; RF940E; RF3401E; RF3405E; RF280E; RF110E; RF3406E; RF3332E; RF3334E; RF3503E |
| Replaces (setup guide) | The RFRC-STR-2 is the new receiver that replaces the RF3212E type receiver and can be used on any panels that previously used the RF3212E |
| Parts included | 1 Wireless receiver, 1 Hardware pack, 1 Installation guide, 1 Reference guide |
| Mounting locations | residential, commercial or industrial locations in which a compatible control panel is already installed |
Wireless & Radio
| Feature | Detail |
|---|---|
| Frequency | 433.42 MHz |
| Antennas | Dual internal antennas provide spatial and polar diversity for highly reliable RF signal reception |
| Repeater support | Supports RADION repeater to increase wireless system coverage and reliability |
| RF interference (jamming) detection | Detects and reports interference jamming when the ambient noise level is above jamming thresholds for a period of 30 out of 60 seconds; the jamming threshold is set at 70 percent of the full scaled received RF signal strength |
| Signal reporting | Signal strength and margin reporting |
| Tamper detection | Cover and wall tamper detection; transmits a tamper signal when someone removes the device from its base, or pulls it away from the wall |
| Wireless protocol | RADION wireless protocol |
Communications & Reporting
| Feature | Detail |
|---|---|
| Bus | Streamline bus communication |
| Panel connections | terminal block connections (R, B, Y) |
| Addressing | Address switch on the back of the receiver housing provides a single-digit setting for the receiver's mode selection |
| Status LED | External status LED provides status and troubleshooting information about the receiver and its connection |
Power & Electrical
| Feature | Detail |
|---|---|
| Voltage (operating) | 12 VDC |
| Maximum current draw | 100 mA |
| Wire length | 300 m (1000 ft) |
| Wire gauge | 0.65 mm (22 AWG) to 1.3 mm (16 AWG) |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions | 139.7 mm x 209.6 mm x 31.8 mm (5.5 in x 8.25 in x 1.25 in) |
| Temperature (operating) | -10 °C to +55 °C (+14 °F to +131 °F) |
| Relative humidity | Up to 93% non-condensing |
| Use | Intended for indoor use |
| Enclosure | Sliding self-locking enclosure with an integrated bubble level and a custom gap-free, lift gate style terminal block |
| Colour (supplier listing) | White |
| Material (supplier listing) | Plastic |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Australia | RCM 36 068 450 171 [RFRC-OPT, RFRC-STR] |
| Europe | CE 2014/30/EU EMC Directive (EMC); 2014/35/EU Low-Voltage Directive (LVD); 2011/65/EU RoHS [OPT and STR]; EN50130-5 Environmental Class II; EN60950-1; EN61000-3-2; EN61000-3-3; EN50130-4 |
| EN50131 | EN-ST-000157 EN 50131-3: 2009; EN50131-5-3: 2005 + A1:2008, Grade 2; EN 50130-5 Environmental Class II; RADION receivers OP, OPT, and STR |
| Germany | VdS H116003 AMAX RADION |
| Supplier warranty | 36 Months |
| Overview & Compatibility — Product | RADION receiver ST (RFRC-STR2) wireless receiver for Streamline Bus control panels |
|---|---|
| Overview & Compatibility — Order number | RFRC-STR - For use with compatible Streamline Bus control panels (streamline bus 433.42 MHz) |
| Overview & Compatibility — Description | The RADION receiver ST is a wireless receiver that connects RADION and DSRF wireless peripherals such as motion and specialty detectors, keyfobs, panic buttons, door/window contacts, repeaters and more to supported Bosch and other compatible control panels. |
| Overview & Compatibility — Compatible control panels | Solution 6000/144 (CC600); Solution 64 (CC110); Solution 16Plus (CC100); Solution 16i (CC500); Solution Ultima 880 (CC488); Solution 880 (CC408) |
| Overview & Compatibility — Compatible RADION devices | RFRP repeater; RFBT bill trap; RFDL-11 motion detector TriTech; RRDW-RM recessed door/window contact; RFDW-SM standard door/window contact; RFGB glass break; RFKF-FB keyfob; RFKF-TB keyfob; RFPB-SB panic; RFPB-TB panic; RFPR-12 motion detector PIR; RFPR-C12 motion detector (curtain) PIR; RFSM smoke detector; RFUN universal transmitter; RFKF-FBS/RFKF-TBS keyfob; RFKF-FBS-A/RFKF-TBS-A keyfob |
| Overview & Compatibility — Compatible DSRF devices | RF835E; RF940E; RF3401E; RF3405E; RF280E; RF110E; RF3406E; RF3332E; RF3334E; RF3503E |
| Overview & Compatibility — Replaces (setup guide) | The RFRC-STR-2 is the new receiver that replaces the RF3212E type receiver and can be used on any panels that previously used the RF3212E |
| Overview & Compatibility — Parts included | 1 Wireless receiver, 1 Hardware pack, 1 Installation guide, 1 Reference guide |
| Overview & Compatibility — Mounting locations | residential, commercial or industrial locations in which a compatible control panel is already installed |
| Wireless & Radio — Frequency | 433.42 MHz |
| Wireless & Radio — Antennas | Dual internal antennas provide spatial and polar diversity for highly reliable RF signal reception |
| Wireless & Radio — Repeater support | Supports RADION repeater to increase wireless system coverage and reliability |
| Wireless & Radio — RF interference (jamming) detection | Detects and reports interference jamming when the ambient noise level is above jamming thresholds for a period of 30 out of 60 seconds; the jamming threshold is set at 70 percent of the full scaled received RF signal strength |
| Wireless & Radio — Signal reporting | Signal strength and margin reporting |
| Wireless & Radio — Tamper detection | Cover and wall tamper detection; transmits a tamper signal when someone removes the device from its base, or pulls it away from the wall |
| Wireless & Radio — Wireless protocol | RADION wireless protocol |
| Communications & Reporting — Bus | Streamline bus communication |
| Communications & Reporting — Panel connections | terminal block connections (R, B, Y) |
| Communications & Reporting — Addressing | Address switch on the back of the receiver housing provides a single-digit setting for the receiver's mode selection |
| Communications & Reporting — Status LED | External status LED provides status and troubleshooting information about the receiver and its connection |
| Power & Electrical — Voltage (operating) | 12 VDC |
| Power & Electrical — Maximum current draw | 100 mA |
| Power & Electrical — Wire length | 300 m (1000 ft) |
| Power & Electrical — Wire gauge | 0.65 mm (22 AWG) to 1.3 mm (16 AWG) |
| Physical & Environment — Dimensions | 139.7 mm x 209.6 mm x 31.8 mm (5.5 in x 8.25 in x 1.25 in) |
| Physical & Environment — Temperature (operating) | -10 °C to +55 °C (+14 °F to +131 °F) |
| Physical & Environment — Relative humidity | Up to 93% non-condensing |
| Physical & Environment — Use | Intended for indoor use |
| Physical & Environment — Enclosure | Sliding self-locking enclosure with an integrated bubble level and a custom gap-free, lift gate style terminal block |
| Physical & Environment — Colour (supplier listing) | White |
| Physical & Environment — Material (supplier listing) | Plastic |
| Compliance & Warranty — Australia | RCM 36 068 450 171 [RFRC-OPT, RFRC-STR] |
| Compliance & Warranty — Europe | CE 2014/30/EU EMC Directive (EMC); 2014/35/EU Low-Voltage Directive (LVD); 2011/65/EU RoHS [OPT and STR]; EN50130-5 Environmental Class II; EN60950-1; EN61000-3-2; EN61000-3-3; EN50130-4 |
| Compliance & Warranty — EN50131 | EN-ST-000157 EN 50131-3: 2009; EN50131-5-3: 2005 + A1:2008, Grade 2; EN 50130-5 Environmental Class II; RADION receivers OP, OPT, and STR |
| Compliance & Warranty — Germany | VdS H116003 AMAX RADION |
| Compliance & Warranty — Supplier warranty | 36 Months |
08Questions
Frequently asked about the RFRC-STR2
Q.01
Which panels does the Bosch RFRC-STR2 work with?
Q.02
Does it replace the RF3212E?
Q.03
Which wireless devices can I use with it?
Q.04
How do I set it up on a Solution 6000?
Q.05
How far can it be from the panel?
Q.06
What is the wireless range to the detectors?
Q.07
Does it detect jamming or tampering?
Q.08
What do Low Battery and Receiver Missing troubles mean?
Q.09
Can it go outside or in a shed?
