Bosch RADION Wireless Glass Break Detector Square RFGB
Skip to product information
1
/
of
1
Vendor:
Bosch

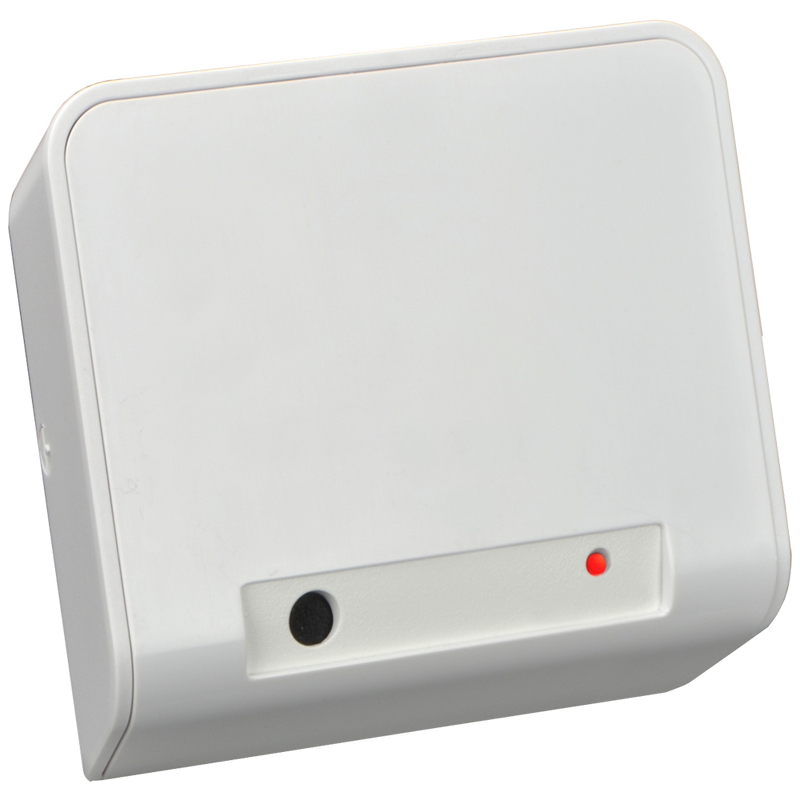

Bosch RADION Wireless Glass Break Detector Square RFGB
SKU: RFGB
Description
The Bosch RFGB is a RADION wireless glass break detector for Bosch Solution 3000 and 6000 alarm systems. It listens for the specific sound and pressure waves of breaking glass to protect windows and glass doors, and because it is wireless there is no cable to run to the sensor. It is a wireless device and needs a Bosch RADION wireless receiver.
Key points
- Dual acoustic detection: flex (pressure) wave then audio, to cut false alarms
- 360-degree omni-directional microphone; protects glass within about 6m
- Detects plate, tempered, wired and laminated glass up to 6.4mm
- Requires a RADION receiver: B810 (Solution 3000) or RFRC-STR2 (Solution 6000)
- One CR123A lithium battery, up to 5 years; low-battery and tamper supervision
- Indoor use; sliding self-locking enclosure with bubble level
Regular price
$258.40 AUD
Sale price
$258.40 AUD
Regular price
$261.00 AUD
Sale
1.0%
$2.60 AUD
(1.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Bosch RADION Wireless Glass Break Detector Square RFGB
1
/
of
1
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the RFGB is
The Bosch RFGB is the RADION wireless glass break detector used to protect windows and glass doors on a Bosch Solution 3000 or 6000, without running cable to the sensor. It guards the perimeter, so an intruder is detected at the glass before they are inside.
It uses dual acoustic detection: when something strikes glass, the pane first emits a low-frequency pressure (flex) wave, and only if it shatters does it emit a high-frequency audio signal. The detector listens for the flex wave first and the audio second, which rejects everyday sounds such as a bell or a dropped object that produce audio but no flex wave. An omni-directional microphone gives 360-degree coverage and detects breaking plate, tempered, wired and laminated glass up to 6.4mm thick, even through blinds or lightweight drapes.
The RFGB runs on one CR123A lithium battery for up to five years and is supervised for low battery, cover tamper and removal from its mount. It is a wireless device and is not standalone: it needs a Bosch RADION receiver, the B810 on a Solution 3000 or the RFRC-STR2 on a Solution 6000. Mount it indoors on the opposite wall or ceiling within clear view of the glass, at least 1.2m from the glass and ideally within 6m, in a room no smaller than 3m x 3m. Glass break detectors are a perimeter layer and work best alongside motion detectors.
§ 02Engineering
RFGB specifications
- Dual acoustic detection listens for the low-frequency flex (pressure) wave first and the high-frequency audio second, which rejects false alarms from sounds that produce audio but no flex wave.
- Omni-directional microphone gives 360-degree acoustic coverage and detects breaking plate, tempered, wired and laminated glass up to 6.4mm thick, through blinds and lightweight drapes.
- Wireless: requires a Bosch RADION receiver, the B810 on a Solution 3000 or the RFRC-STR2 on a Solution 6000 (it is not a standalone device).
- Powered by one CR123A lithium battery (3VDC) with up to five years of life, and supervised for low battery, cover tamper and removal from the mount.
- Sliding self-locking enclosure with an integrated bubble level makes installation and battery changes straightforward.
- Indoor use; mount on the opposite wall or ceiling within clear line of sight of the glass, at least 1.2m away and ideally within 6m, in a room of at least 3m x 3m.
- Omni-directional microphone gives 360-degree acoustic coverage and detects breaking plate, tempered, wired and laminated glass up to 6.4mm thick, through blinds and lightweight drapes.
- Wireless: requires a Bosch RADION receiver, the B810 on a Solution 3000 or the RFRC-STR2 on a Solution 6000 (it is not a standalone device).
- Powered by one CR123A lithium battery (3VDC) with up to five years of life, and supervised for low battery, cover tamper and removal from the mount.
- Sliding self-locking enclosure with an integrated bubble level makes installation and battery changes straightforward.
- Indoor use; mount on the opposite wall or ceiling within clear line of sight of the glass, at least 1.2m away and ideally within 6m, in a room of at least 3m x 3m.
§ 03Full datasheet
Detailed specifications
Audio
| Feature | Detail |
|---|---|
| Microphone | Omni-directional 360° electret |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Dual Acoustic Technology | When an object hits a pane of glass, the glass absorbs the blow and emits a low frequency sound pressure wave (flex wave). When the force is too great, glass shatters and emits a high frequency audio signal. The glassbreak detects the flex wave first, and the audio signal second, reducing false alarms from items that only emit high frequency audio signals. |
| Glass Break Sensitivity | Factory-set sensitivity levels allow the detector to suit any environment. |
| Glass types and thickness | Plate: 2.4 mm to 6.4 mm (3/32 in to 1/4 in); Tempered: 3.2 mm to 6.4 mm (1/8 in to 1/4 in); Laminated: 3.2 mm to 6.4 mm (1/8 in to 1/4 in); Wired: 6.4 mm (1/4 in) |
Network & Storage
| Feature | Detail |
|---|---|
| Frequency | 433.42 MHz |
| Compatibility (Receivers) | B810 wireless receiver (compatible with RFGB-A only) |
Event & Alarm
| Feature | Detail |
|---|---|
| Tamper Switches | Wall and cover tamper switch transmits a tamper signal when someone removes the device from its base, or pulls it away from the wall. |
| Minimum distance from glass | 1.2 m (4 ft) |
| Minimum pane size for all types of glass | 1.2 m (4 ft) |
General & Environment
| Feature | Detail |
|---|---|
| Dimensions | 101.42 mm x 112.90 mm x 35 mm (3.99 in x 4.44 in x 1.38 in) |
| Power/Voltage | 3 VDC |
| Battery type | One CR123A Lithium battery |
| Battery life | Up to 5 years |
| Temperature | Functional range: -10°C to +49° (+14°F to +120°F); UL only: 0°C to +49°C (+32°F to +120°F); EN 50130-5 Class II only: -10°C to 40°C (+14°F to +104°F) |
| Environment | Complies with EN50130-5 Class II |
| Relative humidity | Up to 93% non-condensing |
| Use | Intended for indoor use. |
| Self-locking Enclosure | The sliding self-locking enclosure has an integrated bubble level to make installation easier. |
| Certifications | Europe CE 2004/108EC EMC Directive (EMC), 2006/95/EC Low-Voltage Directive (LVD), 1999/5/EC Radio equipment and Telecommunications Terminal Equipment (R&TTE), 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment | USA FCC Part 15 Security/Remote Control Transmitter 433.42 MHZ [433.42 MHZ] | Canada IC 1249A-RWSSFT [-A model numbers] | China CCC 2013031901000078 [RFGB-CHI] | Brazil ANATEL 3566-13-1855 [RFGB-A] |
| Audio — Microphone | Omni-directional 360° electret |
|---|---|
| AI & Deep Learning — Dual Acoustic Technology | When an object hits a pane of glass, the glass absorbs the blow and emits a low frequency sound pressure wave (flex wave). When the force is too great, glass shatters and emits a high frequency audio signal. The glassbreak detects the flex wave first, and the audio signal second, reducing false alarms from items that only emit high frequency audio signals. |
| AI & Deep Learning — Glass Break Sensitivity | Factory-set sensitivity levels allow the detector to suit any environment. |
| AI & Deep Learning — Glass types and thickness | Plate: 2.4 mm to 6.4 mm (3/32 in to 1/4 in); Tempered: 3.2 mm to 6.4 mm (1/8 in to 1/4 in); Laminated: 3.2 mm to 6.4 mm (1/8 in to 1/4 in); Wired: 6.4 mm (1/4 in) |
| Network & Storage — Frequency | 433.42 MHz |
| Network & Storage — Compatibility (Receivers) | B810 wireless receiver (compatible with RFGB-A only) |
| Event & Alarm — Tamper Switches | Wall and cover tamper switch transmits a tamper signal when someone removes the device from its base, or pulls it away from the wall. |
| Event & Alarm — Minimum distance from glass | 1.2 m (4 ft) |
| Event & Alarm — Minimum pane size for all types of glass | 1.2 m (4 ft) |
| General & Environment — Dimensions | 101.42 mm x 112.90 mm x 35 mm (3.99 in x 4.44 in x 1.38 in) |
| General & Environment — Power/Voltage | 3 VDC |
| General & Environment — Battery type | One CR123A Lithium battery |
| General & Environment — Battery life | Up to 5 years |
| General & Environment — Temperature | Functional range: -10°C to +49° (+14°F to +120°F); UL only: 0°C to +49°C (+32°F to +120°F); EN 50130-5 Class II only: -10°C to 40°C (+14°F to +104°F) |
| General & Environment — Environment | Complies with EN50130-5 Class II |
| General & Environment — Relative humidity | Up to 93% non-condensing |
| General & Environment — Use | Intended for indoor use. |
| General & Environment — Self-locking Enclosure | The sliding self-locking enclosure has an integrated bubble level to make installation easier. |
| General & Environment — Certifications | Europe CE 2004/108EC EMC Directive (EMC), 2006/95/EC Low-Voltage Directive (LVD), 1999/5/EC Radio equipment and Telecommunications Terminal Equipment (R&TTE), 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment | USA FCC Part 15 Security/Remote Control Transmitter 433.42 MHZ [433.42 MHZ] | Canada IC 1249A-RWSSFT [-A model numbers] | China CCC 2013031901000078 [RFGB-CHI] | Brazil ANATEL 3566-13-1855 [RFGB-A] |
§ 04Why choose this
Built for the way you actually use the RFGB
Fewer false alarms
Dual acoustic detection needs both the pressure wave and the audio of breaking glass, so everyday noises do not trip it.
Wireless and long battery life
No cable to the sensor and up to five years from one CR123A battery, with low-battery supervision.
Backed locally
Supplied by an authorised Bosch dealer with a 3-year warranty and Australia-wide support.
§ 05Where it fits
Right at home in these scenarios
Living areas with large windows
Protect a lounge or sunroom with wide glazing, where motion detection alone may react too late.
Shopfronts and glass doors
Cover glass entries and display windows in homes and small businesses.
Hard-to-cable rooms
Add perimeter protection to upstairs or finished rooms without running wire back to the panel.
Layered protection
Combine with motion detectors so the perimeter and the interior are both covered.
§ 06Setup
Installation & setup
What it is
A RADION wireless glass break detector. It is not standalone and needs a Bosch RADION receiver: the B810 on a Solution 3000 or the RFRC-STR2 on a Solution 6000.
Where to mount
Indoors, on the opposite wall or the ceiling with clear line of sight to the glass, at least 1.2m from the glass and ideally within 6m. Use a room of at least 3m x 3m.
Where not to mount
Avoid corners, the same wall as the glass, humid rooms, rooms with heavy drapes or shutters, and rooms with loud equipment or constant noise.
Power and setup
In Australia a Bosch alarm should be installed by a licensed security installer, who wires the device to the panel, programs it and tests the system. The installer enrols the detector to the RADION receiver, sets sensitivity and walk-tests it; the CR123A battery lasts up to five years.
§ 07Questions
Frequently asked about the RFGB
Q.01
Does the RFGB work on its own?
No. It is a wireless detector and needs a Bosch RADION receiver: the B810 on a Solution 3000 or the RFRC-STR2 on a Solution 6000.
Q.02
How does it avoid false alarms?
It uses dual acoustic detection, listening for the low-frequency pressure (flex) wave first and the high-frequency audio second, so sounds that produce audio but no flex wave do not trip it.
Q.03
What glass does it protect?
Plate, tempered, wired and laminated glass up to 6.4mm thick, even through blinds or lightweight drapes.
Q.04
Where should it be mounted?
Indoors on the opposite wall or the ceiling with clear line of sight to the glass, at least 1.2m away and ideally within 6m, in a room of at least 3m x 3m.
Q.05
Where should it not be mounted?
Avoid corners, the same wall as the glass, humid rooms, rooms with heavy drapes or shutters, and rooms with loud equipment or constant noise.
Q.06
What battery does it use and how long does it last?
One CR123A lithium battery, with up to five years of life and low-battery supervision.
Q.07
Should I use it instead of motion detectors?
Glass break is a perimeter layer and works best alongside motion detectors, which cover movement inside the room.
Q.08
Who installs it?
A licensed installer enrols it to the RADION receiver, sets sensitivity and walk-tests it.
§ 09Bundles
Recommended packages
You need a receiver
This detector is wireless. Add the B810 for a Solution 3000 or the RFRC-STR2 for a Solution 6000.
Add motion detection
Glass break works best with motion sensors. Add the RFDL-11 TriTech pet PIR or the PFPR-12 pet PIR.
Door and window contacts
Cover opening doors and windows with the RFDW-SM wireless reed contact.
Add keyfobs
Arm and disarm from the door with the RFKF-FBS keyfob or the premium HCT-4UL.
