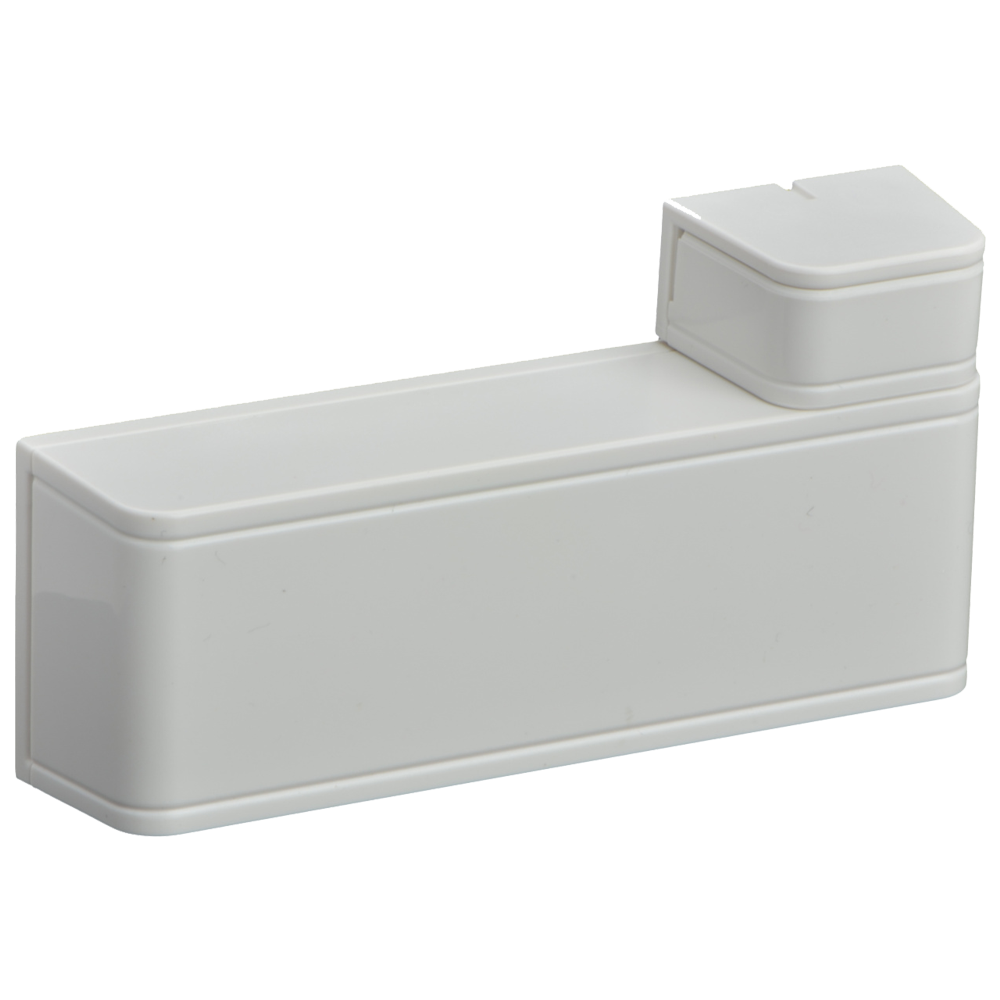

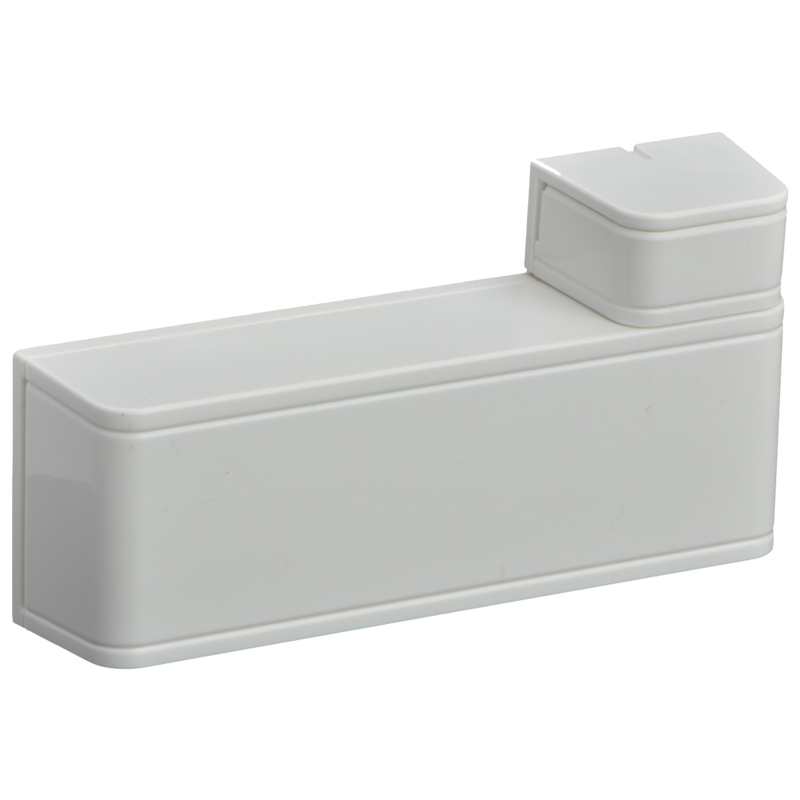

Bosch RFUN RADION Wireless Universal Transmitter with Input
1 1
Bosch

Bosch RFUN RADION Wireless Universal Transmitter with Input

SKU: RFUN
Description

The Bosch RFUN is the RADION universal transmitter: a wireless door contact with a loop input beside it, so an existing wired detector, a roller-door switch or a panic button can report to the alarm panel without a cable run.

What you get

  • 1 × RFUN wireless universal transmitter, the version for Europe, Africa and Australia

You'll also need

  • A RADION receiver on the alarm panel that lists the RFUN among the devices it accepts
  • The magnet assembly that pairs with it, fitted to the moving part of the door or window
  • A CR123A lithium battery when the time comes to replace it
  • Short cable of 0.65 mm to 1.5 mm between the transmitter and the external device, if the loop input is used
$95.55 AUD $95.55 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
Not sure? Read the guide →
0
0
0
Bundle total: $95.55

§ 01Overview

What the RFUN is

The Bosch RFUN solves the awkward part of a wireless retrofit: the sensor that already exists and cannot be replaced. It is a wireless transmitter with an integrated magnetic reed switch, so it works as a door or window contact on its own, and a single alarm loop input that can be configured for virtually any normally open or normally closed external detector.

That input is what makes it useful. A reed switch already fitted to a roller door, a panic button under a counter, a pressure mat, a smoke detector relay: any of them can be wired into the loop over a short run of 0.65 mm to 1.5 mm cable, and the RFUN carries the signal the rest of the way on 433.42 MHz. The input can also take a supervised dry contact from an external device.

As a contact in its own right, the magnet can sit within 12.7 mm on either side of the transmitter, and the base is marked to show where it goes. The wide gap and the marked base make it forgiving on a door that has moved with the seasons.

Supervision covers the three things that would otherwise fail quietly: a low battery, a removed cover, and the unit being pulled off its mounting surface. One CR123A lithium cell at 3 VDC runs it for up to five years.

Mount the transmitter on an interior door or window frame with the magnet on the moving part. The housing is 33.02 x 82.55 x 19.5 mm with an 18.5 mm x 24.5 mm x 12.5 mm magnet, rated IP30 and IK04 for indoor use at up to 93% non-condensing humidity, and it carries RCM approval in Australia. The RFAC-UN-10 spacers are available in packs of ten for frames that do not sit level.

§ 02Engineering

RFUN specifications

Bosch RFUN inputs — integrated magnetic reed switch plus a single alarm loop input — a wireless contact and a wireless input for an existing detector
Loop input — configurable for virtually any normally open or normally closed external detector, and supervised dry contacts — a roller-door switch or panic button gets on the alarm without a cable run
Wiring to the external device — 0.65 mm to 1.5 mm wire — a short tail from the transmitter to the sensor it is reading
Reed gap — magnet within 12.7 mm on either side, with the base marked to show the position — forgiving on a door that has shifted
Radio — 433.42 MHz to a RADION receiver — no cable between it and the panel
Supervision — low battery, cover tamper and removal from the mounting surface all reported — the failures that would otherwise be silent
Battery — one CR123A lithium cell at 3 VDC, up to five years — a change every few years, flagged by the panel first
Housing — 33.02 x 82.55 x 19.5 mm, IP30 and IK04, indoor use, RCM approved in Australia — an interior fitting with local approval

§ 03Full datasheet

Detailed specifications

Overview & Compatibility

Overview & Compatibility — Bosch RFUN RADION Wireless Universal Transmitter with Input
FeatureDetail
Product RFUN Wireless loop input and contact — RADION universal transmitter
Region For use in Europe, Africa, and Australia.
Description RADION universal is a wireless transmitter used for monitoring doors, windows, and dry contact devices.
Compatible receivers B810 wireless receiver (compatible with RFUN-A only); RFRC-OPT wireless receiver (compatible with RFUN only); RADION receiver ST (RFRC-STR) datasheet lists RFUN universal transmitter
Accessories RFAC-UN-10 Spacer for RADION universal TX, 10pcs
System overview RADION universal is a wireless detector used for monitoring doors, windows, and dry contact devices.
Compatibility — Receivers RFRC-OPT wireless receiver (compatible with RFUN only)
Order number RFUN | F.01U.253.619 F.01U.383.352

§ 08Questions

Frequently asked about the RFUN

Q.01

Bosch RFUN: what is it for?
It is a wireless transmitter with a built-in reed contact and a loop input. It reports a door or window opening on its own, and it can also carry the signal from a separate wired detector to the panel.
Q.02

What can I connect to the loop input?
Virtually any normally open or normally closed external detector, including a supervised dry contact from another device. A single alarm loop input is provided.
Q.03

What receiver does it need?
A RADION receiver on the alarm panel that lists the RFUN among the devices it accepts. It reports on 433.42 MHz, and the RFUN-A is a separate variant with its own receiver list.
Q.04

How close does the magnet have to be?
Within 12.7 mm of the transmitter, and it can sit on either side. The base carries marks that show where to position it.
Q.05

What cable does the loop input take?
Wire from 0.65 mm to 1.5 mm, which is a short tail between the transmitter and the device it is reading rather than a run back to the panel.
Q.06

How long does the battery last?
Up to five years from one CR123A lithium cell at 3 VDC. The transmitter is supervised for low battery, so the panel reports it before the zone goes quiet.
Q.07

What happens if it is removed from the wall?
It transmits a tamper signal. It is supervised for cover tamper and for removal from the mounting surface, as well as for a low battery.
Q.08

Can it be used outdoors?
No. It is rated IP30 and IK04 for indoor use, at up to 93% non-condensing humidity, on an interior door or window frame.
Q.09

What if the frame and the door do not line up?
The RFAC-UN-10 spacers are made for that and are sold in packs of ten. The magnet still has to end up within 12.7 mm of the transmitter when the door is closed.
