Bosch ICP-SOL-ENC Steel Enclosure for Solution Alarm Panels

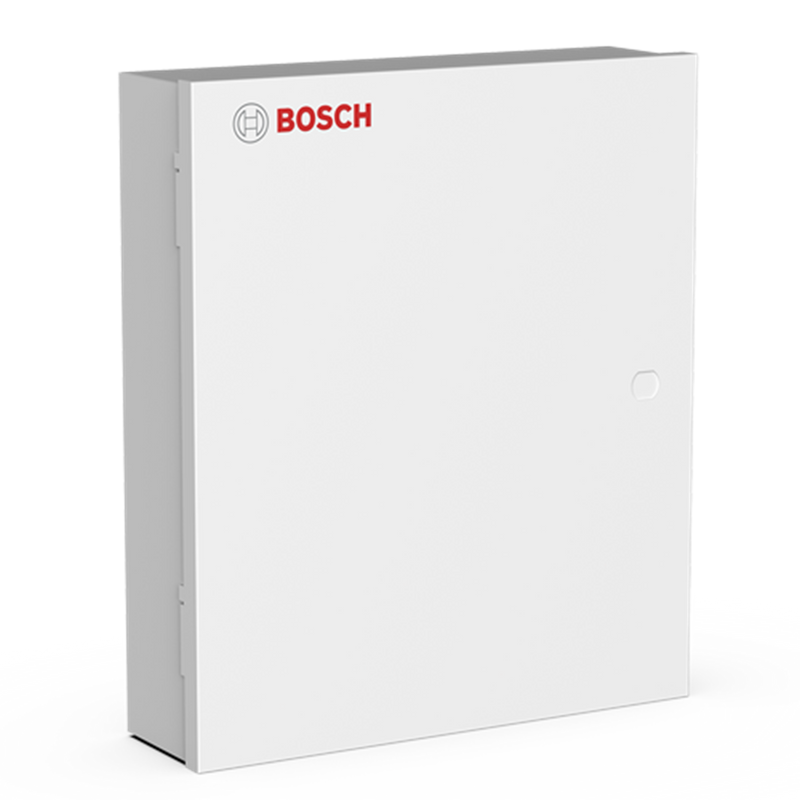

The Bosch ICP-SOL-ENC is the white steel box a Solution panel lives in: room for one control panel PCB, up to six SDI2 modules and two batteries, behind a removable, lockable front door.
What you get
- 1 × ICP-SOL-ENC steel enclosure, white, with a removable mounting plate and a removable lockable front door
- 1 × hardware pack with a tamper bracket for the control panel, an earth cable and screws
You'll also need
- The panel board it is for: the ICP-SOL3-P, the ICP-SOL4-P or the CC610P
- A plug pack and battery, since neither is supplied with the enclosure
- An enclosure tamper switch, which the box is designed to accept
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the ICP-SOL-ENC is
The Bosch ICP-SOL-ENC is bought for one of two reasons: a bare panel board needs a home, or an existing system has run out of room. It takes one control panel PCB plus up to six SDI2 modules and a WE800EV2 receiver, or, with a Solution 6000 board fitted, two small expander modules or one CM705B universal module. It also holds up to two batteries, which is what usually forces the upgrade from a smaller box.
The details are installer details. Standoff locations are provided for mounting supporting modules, the mounting plate lifts out to make wiring easier, cable entry points and punch-outs are spread around the box for cable or antenna routing, and the front door is removable, lockable and Bosch branded. It does not include a panel, a plug pack or a battery, and no tamper switch is fitted, although it is compatible with several. It suits residential and commercial burglary installations, and comes with a hardware pack holding the control panel tamper bracket, an earth cable and screws. The steel box measures 374 mm x 322 mm x 87 mm, works from 0 °C to 45 °C at 10% to 95% non-condensing humidity, and carries a 36 Months warranty.
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | ICP-SOL-ENC Steel enclosure, solution, white |
| Order number | ICP-SOL-ENC | F.01U.395.468 |
| Compatible control panels | Solution 2000 / 3000 / 4000 / 6000 control panels; compatible with ICP-SOL2-P, ICP-SOL3-P, ICP-SOL4-P, CC610P and CC615PB control panel PCBs |
| Application | The enclosure is for residential burglary installations and commercial burglary applications |
| Capacity | The enclosure has the ability to mount one control panel PCB and up to six SDI2 modules, plus one WE800EV2 receiver. Alternatively, when using the Solution 6000 PCB the enclosure can hold two small expander modules or one CM705B Universal module |
| Batteries | can hold up to two batteries |
| Tamper | compatible with multiple enclosure tamper switches |
| Cable entry | cable entry points in multiple locations with cable management points; numerous punch-outs around the enclosure for easy cable or antenna routing |
| Mounting features | Easy to install standoff locations for mounting supporting modules; removable mounting plate for easy installation; removable and lockable front door with Bosch branding |
| Parts included | 1 Hardware pack (tamper bracket for control panel, earth cable, screws) |
| Panel family ordering | ICP-SOL2-PE / ICP-SOL3-PE are the Solution 2000 / 3000 control panels supplied with this enclosure; ICP-SOL-ENC is sold separately for use with ICP-SOL2-P and ICP-SOL3-P |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions (H x W x D) | 374 mm x 322 mm x 87 mm |
| Weight | 3,600 g |
| Operating temperature | 0 °C – 45 °C |
| Operating relative humidity, non-condensing | 10% – 95% |
| Material (supplier listing) | Metal (steel) |
| Colour | White |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Supplier warranty | 36 Months |
| Overview & Compatibility — Product | ICP-SOL-ENC Steel enclosure, solution, white |
|---|---|
| Overview & Compatibility — Order number | ICP-SOL-ENC | F.01U.395.468 |
| Overview & Compatibility — Compatible control panels | Solution 2000 / 3000 / 4000 / 6000 control panels; compatible with ICP-SOL2-P, ICP-SOL3-P, ICP-SOL4-P, CC610P and CC615PB control panel PCBs |
| Overview & Compatibility — Application | The enclosure is for residential burglary installations and commercial burglary applications |
| Overview & Compatibility — Capacity | The enclosure has the ability to mount one control panel PCB and up to six SDI2 modules, plus one WE800EV2 receiver. Alternatively, when using the Solution 6000 PCB the enclosure can hold two small expander modules or one CM705B Universal module |
| Overview & Compatibility — Batteries | can hold up to two batteries |
| Overview & Compatibility — Tamper | compatible with multiple enclosure tamper switches |
| Overview & Compatibility — Cable entry | cable entry points in multiple locations with cable management points; numerous punch-outs around the enclosure for easy cable or antenna routing |
| Overview & Compatibility — Mounting features | Easy to install standoff locations for mounting supporting modules; removable mounting plate for easy installation; removable and lockable front door with Bosch branding |
| Overview & Compatibility — Parts included | 1 Hardware pack (tamper bracket for control panel, earth cable, screws) |
| Overview & Compatibility — Panel family ordering | ICP-SOL2-PE / ICP-SOL3-PE are the Solution 2000 / 3000 control panels supplied with this enclosure; ICP-SOL-ENC is sold separately for use with ICP-SOL2-P and ICP-SOL3-P |
| Physical & Environment — Dimensions (H x W x D) | 374 mm x 322 mm x 87 mm |
| Physical & Environment — Weight | 3,600 g |
| Physical & Environment — Operating temperature | 0 °C – 45 °C |
| Physical & Environment — Operating relative humidity, non-condensing | 10% – 95% |
| Physical & Environment — Material (supplier listing) | Metal (steel) |
| Physical & Environment — Colour | White |
| Compliance & Warranty — Supplier warranty | 36 Months |
