Bosch ICP-SOL4-P Solution 4000 32 Zone Alarm & Access Panel
Skip to product information
1
/
of
1
Vendor:
Bosch
Bosch ICP-SOL4-P Solution 4000 32 Zone Alarm & Access Panel
SKU: ICP-SOL4-P
Description

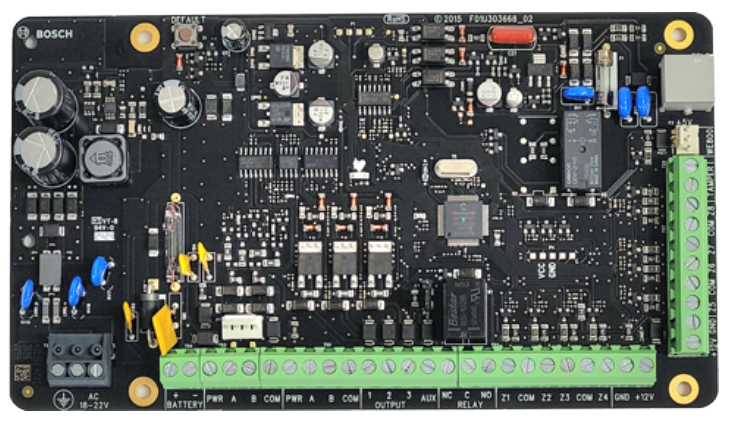

The Bosch ICP-SOL4-P is the Solution 4000 control panel board for a home or small to medium business that wants intrusion and door control in one system: 32 wired or wireless zones, 4 door zones through the B901 door controller, two partitions and 64 user codes.
What you get
- 1 × ICP-SOL4-P control panel PCBA, 1 hardware pack and 1 quick user guide
You'll also need
- A keypad: the IUI-SOL-ICON, IUI-SOL-TEXT, IUI-SOL-TS5 TouchOne Mini or IUI-SOL-TS7
- The ICP-SOL-ENC steel enclosure, a TF008 plug pack and a 12 VDC, 6.5Ah sealed lead-acid battery, all ordered separately
- Detectors for the zones, and a B426-M or B450-M communicator for Email, CSV-IP, push notifications and the RSC+ app
Regular price
$213.60 AUD
Sale price
$213.60 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch ICP-SOL4-P Solution 4000 32 Zone Alarm & Access Panel
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the ICP-SOL4-P is
The Bosch ICP-SOL4-P is the Solution 4000 panel, the step up from the Solution 2000 and 3000 for a site that needs more zones, more users or a controlled door. It carries 32 fully programmable intrusion zones, up to 16 on the board itself and the rest through a B228 input expander or a RADION wireless receiver, and it can be split into two partitions with STAY and AWAY arming so one system protects two areas.
Door control is built into the panel's programming rather than bolted on. Up to 4 B901 door controllers add 4 door zones, and the assigned codepad, A-Link Plus software or the RSC+ app can cycle, lock, unlock, secure and unsecure a door. There are 65 codes, one installer and 64 users, each of whom can hold a PIN, a keyfob or a card credential.
Reporting covers the monitored and the self-monitored site. CID, SIA and domestic dialling come from the board; Email, CSV-IP and push notifications need a B426-M Ethernet or B450-M cellular communicator, up to two of which can be fitted, and the IP module's CSV-IP technology makes the panel NBN-ready with most monitoring centres in Australia and New Zealand. The Remote Security Control Plus app arms, disarms and switches outputs from a phone once a communicator is fitted and the panel firmware is at V2.0 or later.
Wireless is a choice of two systems that cannot be fitted together: the WE800EV2 keyfob receiver, or a B810 receiver for the RADION range with up to 8 RF repeaters. The board also takes up to three of each expander, B228 for inputs and B308 for outputs, and up to four keypads.
It is a bare board. The enclosure, the TF008 plug pack, the 12 VDC, 6.5Ah battery, the keypads, detectors and communicators are all separate, and the SDI2 bus power is finite, so a TouchOne Mini touchscreen needs its own 12 V supply. The board measures 103 mm x 183 mm x 28 mm, is rated for 0 °C – 45 °C, and carries a 3 years warranty.
§ 02Engineering
ICP-SOL4-P specifications
Bosch ICP-SOL4-P zones — 32 intrusion zones, up to 16 on-board and the rest through a B228 expander or a RADION wireless receiver — wired and wireless detectors on one panel
Door control — 4 door zones through B901 controllers, with cycle, lock, unlock, secure and unsecure commands — the alarm panel runs the door too
Partitions and keypads — two partitions with STAY and AWAY arming, up to 4 keypads — one system that acts as two
Users — 65 codes, one installer and 64 users, each with a PIN, keyfob or card credential — everyone gets their own credential
Reporting — CID, SIA, domestic dialling, plus Email, CSV-IP and push notifications through a B426-M or B450-M communicator — monitored or self-monitored, NBN-ready
App — Remote Security Control Plus (RSC+) for phones and tablets — arm, disarm, switch outputs and control doors remotely
Wireless — WE800EV2 keyfob receiver or a B810 RADION receiver with up to 8 RF repeaters — keyfobs, or the full RADION detector range
Expansion limits — up to 2 communicators, 3 of each expander (B228, B308), 4 door controllers, 1 B810 — the growth ceiling is clear before you start
Power and board — TF008 plug pack primary, 12 VDC 6.5Ah battery secondary, 103 mm x 183 mm x 28 mm, 165 g — fits the ICP-SOL-ENC steel enclosure
Door control — 4 door zones through B901 controllers, with cycle, lock, unlock, secure and unsecure commands — the alarm panel runs the door too
Partitions and keypads — two partitions with STAY and AWAY arming, up to 4 keypads — one system that acts as two
Users — 65 codes, one installer and 64 users, each with a PIN, keyfob or card credential — everyone gets their own credential
Reporting — CID, SIA, domestic dialling, plus Email, CSV-IP and push notifications through a B426-M or B450-M communicator — monitored or self-monitored, NBN-ready
App — Remote Security Control Plus (RSC+) for phones and tablets — arm, disarm, switch outputs and control doors remotely
Wireless — WE800EV2 keyfob receiver or a B810 RADION receiver with up to 8 RF repeaters — keyfobs, or the full RADION detector range
Expansion limits — up to 2 communicators, 3 of each expander (B228, B308), 4 door controllers, 1 B810 — the growth ceiling is clear before you start
Power and board — TF008 plug pack primary, 12 VDC 6.5Ah battery secondary, 103 mm x 183 mm x 28 mm, 165 g — fits the ICP-SOL-ENC steel enclosure
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | ICP-SOL4-P Control panel, 32-zone — Solution 4000 |
| Application | ICP-SOL4-P control panel with door control is for small to medium residential and commercial applications. |
| Region | Sold in Australia, New Zealand and APR regions. |
| Keypads | With support for up to four keypads and the ability to be split into two separate partitions, you have the flexibility of one security system that can act as two. |
| User interfaces | The control panel has the variety of codepad options, including LCD alphanumeric, LCD icon, and various touchscreen options that are simple to use. |
| Accessories listed | IUI-SOL-TS5 TouchOne Mini 5"; IUI-SOL-TS7 TOUCHONE 7" CODE PAD SDI2; IUI-SOL-TEXT LCD alphanumeric keypad; IUI-SOL-ICON LCD icon keypad, 16-zone; B228 SDI2 8-Input, 2-Output Expansion Module; B308 Expansion module, SDI2, 8-output; B426-M Ethernet communication module, mobile; B450-M Plug-in communicator interface, mobile; B901 Door Controller; B520 Auxiliary power supply module, 2A 12V; WE800EV2KIT WE800EV2 433MHZ RX WITH 2X4 BUTTON FOB; ITS-ALINK-PLUS A-Link Plus software |
| Product matrix limits | Up to 2 Communications Modules; Up to 4 Keypads; Up to 3 of each expander (B228, B308); Up to 4 Door Controllers (B901); B810 RADION Wireless Receiver (1 only per system); Supports up to 8x RF Repeaters (RFRP-2) |
| Parts included | 1 Control panel PCBA, 1 Hardware pack, 1 Quick user guide |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Zones | 32 intrusion alarm zones — With 32 fully programmable wired or wireless zones, up to 16 on-board the control panel and the additional 16 zones can be hardwired using the B228 module or RADION wireless receiver. |
| Door zones | 4 door zones — 4 door zones can be added to the B901 door controller. |
| Areas | ability to be split into two separate partitions |
| Arming | STAY / AWAY arming options |
Users, Codes & Access
| Feature | Detail |
|---|---|
| Codes | 65 codes - 1 installer code, 64 user codes |
| Door control | The control panel supports door commands of cycle, lock, unlock, secure and unsecure from the assigned codepad, A-Link Plus software or RSC+ app. |
| Credentials (product matrix) | 64 users (PIN code/keyfob remote/card credential) |
Wireless & Radio
| Feature | Detail |
|---|---|
| Wireless | The control panel supports WE800EV2 or the option to integrate with the RADION range of wireless transmitters. |
Communications & Reporting
| Feature | Detail |
|---|---|
| Communications | CID, SIA, Email*, Domestic Dialing, CSV-IP, Push Notification* — *Requires B426-M IP Communications Module or B450-M Universal Communications Module |
| IP module | The IP module includes CSV-IP communications technology and makes the control panel fully NBN-ready /Fiber compatible with the majority of monitoring centers in Australia and New Zealand |
| Cellular | mobile communications via LTE networks |
| App | Remote Security Control Plus (RSC+) app allows users to control their security systems remotely from mobile devices such as phones and tablets. |
Power & Electrical
| Feature | Detail |
|---|---|
| Primary | TF008 Plug Pack (only sold in Australia) |
| Secondary | 12 VDC, 6.5Ah from rechargeable sealed lead/acid battery |
Physical & Environment
| Feature | Detail |
|---|---|
| Dimensions (H x W x D) | 103 mm x 183 mm x 28 mm |
| Weight | 165 g |
| Operating temperature | 0 °C – 45 °C |
| Operating relative humidity, non-condensing | 10% – 95% |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Australia | RCM; AS/CA S002:2010 |
| New Zealand | Telepermit |
| Europe | PCE - EN61000-3:2007/A1:2011; EN50130-4:2011 |
| Warranty | 3 years |
| Order number | ICP-SOL4-P | F.01U.418.606 |
| Overview & Compatibility — Product | ICP-SOL4-P Control panel, 32-zone — Solution 4000 |
|---|---|
| Overview & Compatibility — Application | ICP-SOL4-P control panel with door control is for small to medium residential and commercial applications. |
| Overview & Compatibility — Region | Sold in Australia, New Zealand and APR regions. |
| Overview & Compatibility — Keypads | With support for up to four keypads and the ability to be split into two separate partitions, you have the flexibility of one security system that can act as two. |
| Overview & Compatibility — User interfaces | The control panel has the variety of codepad options, including LCD alphanumeric, LCD icon, and various touchscreen options that are simple to use. |
| Overview & Compatibility — Accessories listed | IUI-SOL-TS5 TouchOne Mini 5"; IUI-SOL-TS7 TOUCHONE 7" CODE PAD SDI2; IUI-SOL-TEXT LCD alphanumeric keypad; IUI-SOL-ICON LCD icon keypad, 16-zone; B228 SDI2 8-Input, 2-Output Expansion Module; B308 Expansion module, SDI2, 8-output; B426-M Ethernet communication module, mobile; B450-M Plug-in communicator interface, mobile; B901 Door Controller; B520 Auxiliary power supply module, 2A 12V; WE800EV2KIT WE800EV2 433MHZ RX WITH 2X4 BUTTON FOB; ITS-ALINK-PLUS A-Link Plus software |
| Overview & Compatibility — Product matrix limits | Up to 2 Communications Modules; Up to 4 Keypads; Up to 3 of each expander (B228, B308); Up to 4 Door Controllers (B901); B810 RADION Wireless Receiver (1 only per system); Supports up to 8x RF Repeaters (RFRP-2) |
| Overview & Compatibility — Parts included | 1 Control panel PCBA, 1 Hardware pack, 1 Quick user guide |
| Zones, Outputs & Capacity — Zones | 32 intrusion alarm zones — With 32 fully programmable wired or wireless zones, up to 16 on-board the control panel and the additional 16 zones can be hardwired using the B228 module or RADION wireless receiver. |
| Zones, Outputs & Capacity — Door zones | 4 door zones — 4 door zones can be added to the B901 door controller. |
| Zones, Outputs & Capacity — Areas | ability to be split into two separate partitions |
| Zones, Outputs & Capacity — Arming | STAY / AWAY arming options |
| Users, Codes & Access — Codes | 65 codes - 1 installer code, 64 user codes |
| Users, Codes & Access — Door control | The control panel supports door commands of cycle, lock, unlock, secure and unsecure from the assigned codepad, A-Link Plus software or RSC+ app. |
| Users, Codes & Access — Credentials (product matrix) | 64 users (PIN code/keyfob remote/card credential) |
| Wireless & Radio — Wireless | The control panel supports WE800EV2 or the option to integrate with the RADION range of wireless transmitters. |
| Communications & Reporting — Communications | CID, SIA, Email*, Domestic Dialing, CSV-IP, Push Notification* — *Requires B426-M IP Communications Module or B450-M Universal Communications Module |
| Communications & Reporting — IP module | The IP module includes CSV-IP communications technology and makes the control panel fully NBN-ready /Fiber compatible with the majority of monitoring centers in Australia and New Zealand |
| Communications & Reporting — Cellular | mobile communications via LTE networks |
| Communications & Reporting — App | Remote Security Control Plus (RSC+) app allows users to control their security systems remotely from mobile devices such as phones and tablets. |
| Power & Electrical — Primary | TF008 Plug Pack (only sold in Australia) |
| Power & Electrical — Secondary | 12 VDC, 6.5Ah from rechargeable sealed lead/acid battery |
| Physical & Environment — Dimensions (H x W x D) | 103 mm x 183 mm x 28 mm |
| Physical & Environment — Weight | 165 g |
| Physical & Environment — Operating temperature | 0 °C – 45 °C |
| Physical & Environment — Operating relative humidity, non-condensing | 10% – 95% |
| Compliance & Warranty — Australia | RCM; AS/CA S002:2010 |
| Compliance & Warranty — New Zealand | Telepermit |
| Compliance & Warranty — Europe | PCE - EN61000-3:2007/A1:2011; EN50130-4:2011 |
| Compliance & Warranty — Warranty | 3 years |
| Compliance & Warranty — Order number | ICP-SOL4-P | F.01U.418.606 |
§ 04Why choose this
Built for the way you actually use the ICP-SOL4-P
Room to grow to 32 zones
Sixteen zones sit on the board and another sixteen come through a B228 expander or a RADION wireless receiver. Wired detectors in the main building and wireless ones in the shed share one panel.
One panel, two areas
Two partitions with STAY and AWAY arming let a home and a granny flat, or a shop and its office, arm independently. Up to four keypads spread control across the site.
Credentials for everyone
Sixty-four user codes, each able to carry a PIN, a keyfob or a card, mean staff and family members do not share codes. The installer code is separate.
Reports the way the monitoring centre wants
CID, SIA and domestic dialling are on the board, and a B426-M or B450-M communicator adds Email, CSV-IP and push notifications. Up to two communicators give a wired and a cellular path.
Control from a phone
The Remote Security Control Plus app arms and disarms, switches outputs and controls doors from a phone or tablet. It needs a communicator on the panel and firmware V2.0 or later.
§ 05Where it fits
Right at home in these scenarios
Small office with a controlled front door
The Bosch ICP-SOL4-P protects the office with wired detectors and runs the entry door through a B901 controller, so staff use one card or PIN for the alarm and the door. Up to two B426-M or B450-M communicators can be fitted for IP and mobile reporting.
Australian home with a granny flat or shed
Two partitions let the main house and the flat arm separately, and a RADION receiver puts wireless detectors in the shed without trenching cable. A TouchOne Mini at the front door and an icon keypad at the back cover both entries.
Shop with after-hours access
Cleaners and contractors get their own user codes and card credentials, and door commands from the RSC+ app let the owner unlock for a delivery from a phone. Push notifications reach the owner's phone through the RSC+ app.
§ 06Setup
Installation & setup
What's in the box
The Bosch ICP-SOL4-P arrives as the control panel PCBA with a hardware pack and a quick user guide. The ICP-SOL-ENC enclosure, TF008 plug pack, 12 VDC 6.5Ah battery, keypads, detectors and communicators are ordered separately.
Enclosure and power
Mount the board in the ICP-SOL-ENC steel enclosure, fit the TF008 plug pack as the primary supply and the 12 VDC, 6.5Ah sealed lead-acid battery as the secondary. The SDI2 bus power is finite: the bus supplies 900 mA in total and a TouchOne Mini touchscreen draws most of that on its own, so it needs its own supply.
Zones and cabling
Plan up to 16 wired zones on the board and add a B228 expander or a RADION receiver for the rest, with one cable run per wired zone back to the board and one SDI2 bus run per keypad or module, each kept within the length the installation manual allows for the cable type. A B901 controller and its reader wiring serve each controlled door.
Keypads and wireless
Fit up to four keypads and enable and assign each one to a partition. Choose the WE800EV2 keyfob receiver or a B810 RADION receiver, not both.
Communicator and app
Fit a B426-M or B450-M for IP or cellular reporting, then create the panel profile in the RSC+ app from the Cloud ID printed on the module and connect with the profile name and the arming code. Cloud connection needs firmware V2.0 or later.
When to call an electrician
The panel runs from a plug pack, so the alarm wiring itself is installer work. Use a licensed electrician for any new power point or fixed mains wiring, and a licensed security installer for the programming and door-control setup.
§ 08Questions
Frequently asked about the ICP-SOL4-P
Q.01
How many zones does the Bosch ICP-SOL4-P support?
The Bosch ICP-SOL4-P supports 32 intrusion zones, up to 16 on the board and the other 16 hardwired through a B228 module or supplied by a RADION wireless receiver. It also supports 4 door zones through B901 door controllers.
Q.02
How does door control work?
Each B901 door controller adds a supervised, addressable door on the SDI2 bus, up to four per panel. The assigned codepad, A-Link Plus software or the RSC+ app can cycle, lock, unlock, secure and unsecure the door.
Q.03
How many users and areas does it support?
Sixty-five codes, one installer and 64 users, each able to hold a PIN, keyfob or card credential. The system can be split into two partitions with STAY and AWAY arming and take up to four keypads.
Q.04
Which keypads work with it?
The IUI-SOL-ICON icon keypad, the IUI-SOL-TEXT text keypad, the IUI-SOL-TS5 TouchOne Mini and the IUI-SOL-TS7 TouchOne 7 inch code pad, up to four in total. The TouchOne Mini needs its own supply, because the SDI2 bus provides 900 mA in total and the touchscreen draws most of that alone.
Q.05
Which wireless receiver should I choose?
The WE800EV2 keyfob receiver, which takes up to 21 HCT-4 keyfobs, or a B810 RADION receiver, which takes the RADION detector range and up to 64 keyfobs plus 8 RF repeaters. The two cannot be fitted together, and only one B810 is allowed per system.
Q.06
Is it NBN-ready, and can I control it from my phone?
Yes, with a B426-M Ethernet or B450-M cellular communicator, up to two of which can be fitted; the IP module's CSV-IP technology suits most monitoring centres in Australia and New Zealand. The Remote Security Control Plus app then arms, disarms and controls outputs and doors, provided the panel firmware is V2.0 or later.
Q.07
What comes in the box, and what do I still need?
The control panel PCBA, a hardware pack and a quick user guide. The ICP-SOL-ENC enclosure, TF008 plug pack, 12 VDC 6.5Ah battery, keypads, detectors and communicators are separate.
Q.08
What is the warranty and where is it sold?
The panel carries a 3 years warranty, holds RCM and AS/CA S002:2010 approval for Australia and Telepermit for New Zealand, and is sold in Australia, New Zealand and the APR region. It is rated for 0 °C – 45 °C indoors.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a keypad for each entry
The Bosch ICP-SOL4-P takes up to four keypads. Start with the IUI-SOL-TS5 TouchOne Mini at the main entry and add an IUI-SOL-ICON or IUI-SOL-TEXT at the back door.
Add the enclosure, plug pack and battery
The board needs the ICP-SOL-ENC steel enclosure, the TF008 plug pack and a 12 VDC, 6.5Ah battery, all ordered separately. Order them with the panel so installation day is not held up.
Add a communicator for the app
A B426-M Ethernet module gives the panel Email, CSV-IP and push notifications and unlocks the RSC+ app. Add a B450-M as the second communicator for a cellular path.
