Bosch DS1101i Glass Break Detector, 7.6 m Sound Analysis
Email us
1 1
Bosch

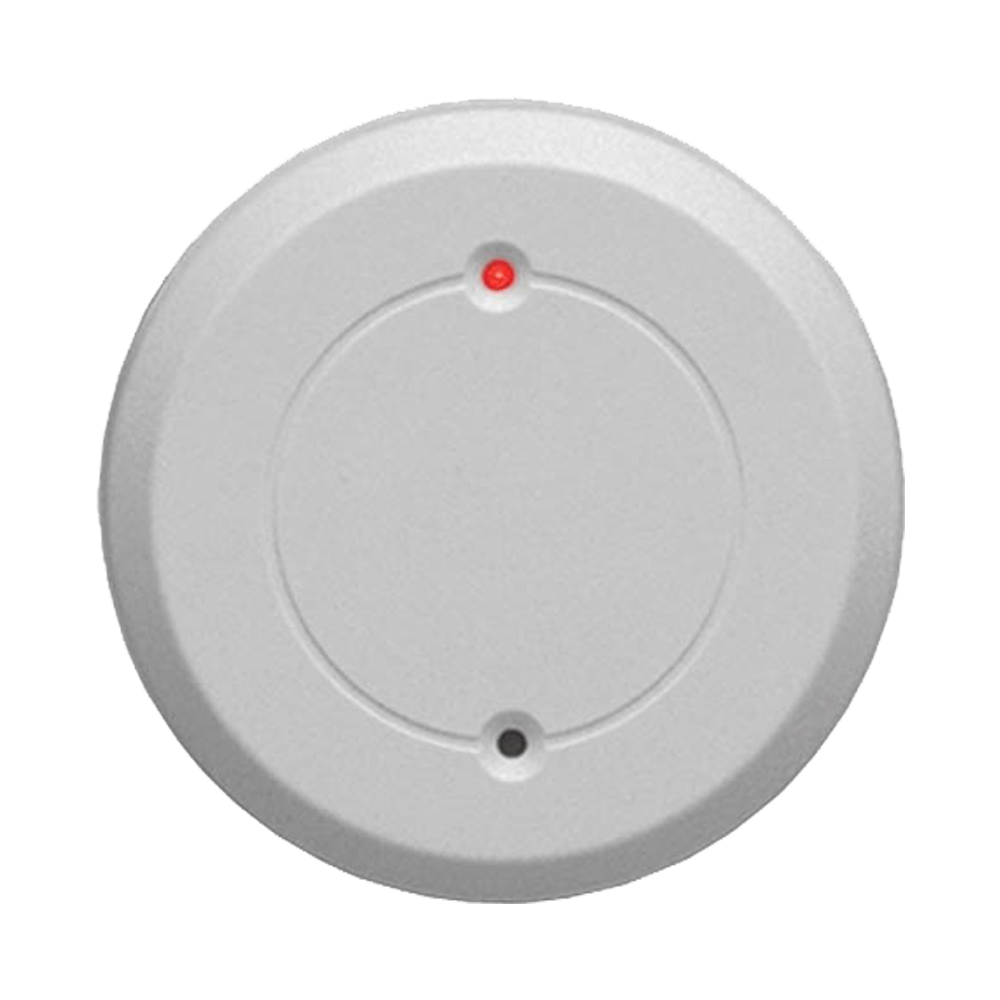

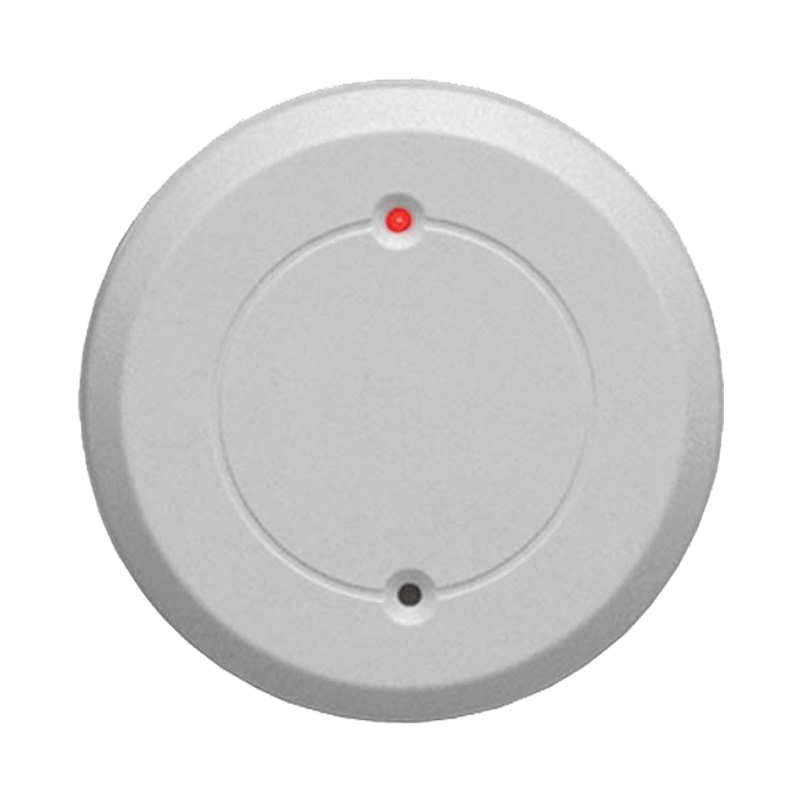

Bosch DS1101i Glass Break Detector, 7.6 m Sound Analysis

SKU: DS1101I
Description

The Bosch DS1101i catches the break-in at the window rather than after it: microprocessor sound analysis listens for the specific frequencies of breaking glass, up to 7.6 m from the glass being protected, and reports on a Form C relay to a hardwired alarm panel.

What you get

  • 1 × DS1101i glass break detector in a high-impact ABS enclosure for ceiling or wall mounting

You'll also need

  • An alarm panel with a spare zone and a tamper input, supplying 6 VDC to 15 VDC. The ICP-SOL3-P and CC610P are the panels sold here; check their zone inputs against the figures below
  • A cable run from the panel carrying its 6 VDC to 15 VDC supply, the alarm relay and the tamper, plus the end-of-line resistors the panel requires
  • Motion detectors as well, such as the ISC-BPR2-WP12, because a glass break detector is one component of a perimeter system rather than a system on its own
$113.85 AUD $113.85 AUD $115.00 AUD
Sale 1.0% $1.15 AUD (1.0%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Optional extras Add alarm accessories

Choose optional additions for this product. Check each item for compatibility with your setup.

Add accessories Optional. Select the items you need and choose a quantity.
0
0
Bundle total: $113.85

01Overview

What the DS1101I is

The Bosch DS1101i is for the window a burglar goes through instead of the door they would have to force. It uses microprocessor-based sound analysis technology, which listens for the specific frequency, signature and timing relationships that breaking glass produces, and covers plate, tempered, laminated and wired glass.

Coverage is 7.6 m to the farthest point of the glass being protected, for panes larger than 30.5 cm square. That is a distance, not a room size: a detector on the ceiling of a lounge can cover several windows if all of them sit inside that radius, while a long room with glass at both ends needs two.

Commissioning is where these detectors are usually got wrong, and this one has the tools for it. A magnet-operated test mode verifies the location and operation with the optional DS1110i tester, and the same mode runs an environmental test that flags ambient noise likely to cause false alarms. Bosch asks that every location be pre-tested with that tester, and the reason is exactly this: coverage depends on room acoustics and window size.

Day to day, the owner gets a check of their own. The automatic sound check lets them clap their hands to confirm the detector is powered and working, and the externally visible alarm LED shows an alarm or test condition and can be programmed to latch so a night-time event is still visible in the morning.

Wiring is conventional: a Form C reed relay rated 3.5 W, 125 mA at 28 VDC for resistive loads, and a separate normally-closed cover tamper on its own terminals. It draws 23 mA at 12 VDC from a 6 VDC to 15 VDC supply, measures 2.1 cm high by 8.6 cm across in a high-impact ABS enclosure, and is rated -29°C to +49°C. One thing to be clear about: a glass break detector is not a complete system and does not detect movement. It is intended only as a component of perimeter protection and should always be used together with motion sensors.

02Engineering

DS1101I specifications

Bosch DS1101i detection — microprocessor sound analysis technology matching frequency, signature and timing — the sound of breaking glass, not any loud noise
Glass types — plate, tempered, laminated and wired glass — one detector for a house, a shopfront and a wired-glass door
Coverage — a 7.6 m maximum to the farthest point of protected glass, for panes over 30.5 cm square — the position has to be tested, because room acoustics and window size decide the result
Commissioning — magnet-operated test mode with the optional DS1110i tester, plus an environmental test for ambient noise — the position is proven before the ceiling goes back up
Owner check — automatic sound check responds to a hand clap — the household can confirm it is powered and working without a technician
Indication — externally visible alarm LED, programmable to latch — an overnight alarm is still showing in the morning
Alarm output — Form C reed relay, 3.5 W, 125 mA at 28 VDC resistive — a conventional zone connection with a changeover contact
Tamper — normally-closed cover tamper on separate terminals, 28 VDC at 125 mA — opening the case is reported to the panel
Power and housing — 23 mA at 12 VDC from a 6 VDC to 15 VDC supply, 2.1 cm x 8.6 cm ABS enclosure, -29°C to +49°C — a light load and a low-profile fitting

03Full datasheet

Detailed specifications

Overview & Compatibility

Overview & Compatibility — Bosch DS1101i Glass Break Detector, 7.6 m Sound Analysis
FeatureDetail
Product DS1101i Glassbreak Detector — DS1101i Series
Description The DS1100i Detector Series uses microprocessor-based sound analysis technology (SAT) to listen for the specific frequencies associated with breaking glass. The DS1101i, DS1101i‑BEL, DS1101i‑CHI, and DS1101i‑FRA can be used to detect breakage of plate, tempered, laminated and wired glass types.
Notice Glassbreak detectors are intended only as a component of a perimeter protection system. They should always be used in conjunction with motion sensors.
Accessories DS1110i Glassbreak Tester — Used to test DS1101i, DS1102i, DS1103i, and DS1108i Glass Break Detectors.

04Why choose this

Built for the way you actually use the DS1101I

It catches the entry, not the aftermath

The Bosch DS1101i alarms as the glass breaks, before an intruder is inside and moving. A motion detector only reports once they are already in the room.

It listens for glass, not for noise

Sound analysis technology requires specific frequency, signature and timing relationships before it will alarm. It is looking for that combination rather than for loudness alone.

It works on the glass you actually have

Plate, tempered, laminated and wired glass are all covered, which matters in a shopfront or an older house where the panes are not all the same. One part number covers the site.

The position can be proven

A magnet-operated test mode with the optional DS1110i tester verifies both the location and the operation, and an environmental test flags ambient noise that might cause false alarms. Coverage depends on room acoustics, so testing beats assuming.

The owner can check it themselves

The automatic sound check responds to a hand clap, confirming the detector is powered and functioning. That is a check the owner can make themselves rather than a service call.

Honest about what it is

Bosch is explicit that a glass break detector is a component of a perimeter system and belongs alongside motion sensors. Buying it with that in mind gives a system that catches both the entry and the movement afterwards.

05Where it fits

Right at home in these scenarios

Australian home with large lounge windows

The Bosch DS1101i on the lounge ceiling can cover several windows, as long as each is within the 7.6 m maximum and the position has been tested, since room acoustics and window size decide the result. Pair it with a motion detector so the same room is covered both ways.

Shopfront or office glazing

A shop with a wide glass frontage gets its alarm at the moment of the break rather than after entry. Plate and laminated glass are both covered, so a mixed frontage does not need different detectors.

Sunroom, patio door or rear glazing

Rear glass doors are a common entry point and are often out of sight from the street. Mount the detector on the ceiling or on the wall opposite or adjacent to the glass, and pre-test the position because room acoustics change the result.

06Setup

Installation & setup

  1. Before you start

    Unpack the Bosch DS1101i and check the carton against the delivery note. The DS1110i tester, the cable and the end-of-line resistors are separate items, so have them on site: the tester in particular is needed to prove the position.

  2. Where to mount it

    Fit it on the ceiling, or on the wall opposite or adjacent to the window, within 7.6 m of the farthest point of the glass being protected. Coverage depends on room acoustics and window size, so treat that figure as a maximum rather than a guarantee.

  3. Pre-test the position

    Bosch asks that every location be pre-tested with the DS1110i glass break tester. Use the magnet-operated test mode, which verifies location and operation and also runs an environmental test that flags ambient noise likely to cause false alarms.

  4. Cabling

    Run one cable from the panel carrying the 6 VDC to 15 VDC supply, the Form C alarm relay and the normally-closed tamper on its separate terminals. Fit the end-of-line resistors the panel requires, and on a Solution 6000 note that a shorted zone loop reads as a tamper under every end-of-line configuration.

  5. Power

    The detector draws 23 mA at 12 VDC. Check that figure against the detector supply budget of the panel being used.

  6. Handover

    Show the owner the automatic sound check, which responds to a hand clap and confirms the detector is powered and working. Decide with them whether the alarm LED should latch, so an overnight alarm is still visible in the morning.

  7. When to call an electrician

    The detector runs on low voltage from the alarm panel and needs no mains work. Use a licensed electrician for any new or altered fixed wiring, and a licensed security installer for the panel programming.

08Questions

Frequently asked about the DS1101I

Q.01

How far does the Bosch DS1101i reach?
Up to 7.6 m to the farthest point of the glass being protected, for panes larger than 30.5 cm square. Coverage depends on room acoustics and window size, so the position should be tested.
Q.02

Which types of glass does it detect?
Plate, tempered, laminated and wired glass. That covers most domestic and shopfront glazing without changing detector.
Q.03

Will a slammed door set it off?
Sound analysis technology requires specific frequency, signature and timing relationships before an alarm, rather than reacting to loud noise alone. Any location should still be pre-tested with the tester, which includes an environmental check for ambient noise.
Q.04

Do I still need motion detectors?
Yes. Bosch states that glass break detectors are intended only as a component of a perimeter protection system and should always be used together with motion sensors.
Q.05

How do I test it?
Use the magnet-operated test mode with the optional DS1110i glass break tester, which verifies the location and operation. The same mode runs an environmental test for ambient noise that could cause false alarms.
Q.06

Can the owner check it without a technician?
Yes. The automatic sound check lets them clap their hands to confirm the detector is powered and functioning.
Q.07

Where should it be mounted?
On the ceiling, or on the wall opposite or adjacent to the window. Keep it within 7.6 m of the farthest glass it is protecting.
Q.08

How does it connect to the panel?
Through a Form C reed relay rated 3.5 W, 125 mA at 28 VDC for resistive loads, with a separate normally-closed cover tamper on its own terminals.
Q.09

What power does it need?
A 6 VDC to 15 VDC supply, drawing 23 mA at 12 VDC. It is rated for -29°C to +49°C, or 0°C to +49°C for UL certificated installations.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Add the tester that proves the position

The Bosch DS1101i is only as good as the spot it is mounted in, and Bosch asks that every location be pre-tested. The DS1110i glass break tester is the accessory made for it, and it also serves the DS1102i, DS1103i and DS1108i.

02

Pair it with a motion detector

Bosch is explicit that a glass break detector belongs alongside motion sensors rather than replacing them. The ISC-BPR2-WP12 is the Bosch motion detector sold here for the room the window opens into; its own page carries its coverage.

03

Give it a panel zone to report on

The detector needs a spare zone and a tamper input on a hardwired panel. The ICP-SOL3-P is the Solution 3000 board sold here; check its zone input and detector supply against the 6 VDC to 15 VDC and relay figures on this page.

04

Add a shock sensor where the glass is not the weak point

A safe, a roller door or a solid frame is attacked rather than broken. The ISC-SK10 is the Bosch shock sensor sold here for that kind of attack; see its own page for what it detects.
