The Bosch BPQ2-W12 is a Blue Line Gen2 Quad PIR motion detector. It uses two independent PIR sensors that must both detect a target before it raises an alarm, which gives strong, fast catch performance while filtering out the noise and minor disturbances that cause false alarms. It covers 12 m x 12 m wall-to-wall and is a wired detector for a hardwired Bosch alarm panel.

Key points
- Quad PIR: two independent PIR sensors must both activate to alarm
- 12 m x 12 m (40 ft) wall-to-wall coverage, 99° angle
- First Step Processing and dynamic temperature compensation
- Sealed optics and electronics for reliable performance
- Wired detector: normally-closed relay alarm output plus tamper
- Mounting height 2.2 m to 2.75 m, no field adjustments; EN50131 Grade 2
- Note: this is not a pet-immune model; for pets choose a TriTech WP detector

The Bosch PFPR-12 is a RADION wireless Blue Line PIR motion detector with pet immunity for Bosch Solution 3000 and 6000 alarm systems. It gives reliable indoor motion detection over 12 m without running cable, and ignores small pets while still catching intruders.

Key points
- RADION wireless PIR motion detector for Bosch Solution 3000 and 6000
- 12 m x 12 m (40 ft) coverage with advanced signal processing
- Pet immunity up to 13 kg (one dog), so pets do not trip the alarm
- One CR123A lithium battery, up to 5 years; low-battery and tamper supervision
- Needs a RADION receiver: B810 (Solution 3000) or RFRC-STR2 (Solution 6000)
- Indoor use; recommended mounting height 2.2 m to 2.75 m

The Bosch RFDL-11 is a RADION wireless TriTech motion detector with pet immunity up to 45kg, for Bosch Solution 3000 and 6000 alarm systems. It combines passive infrared and microwave detection for strong catch performance and false-alarm immunity, and runs on batteries so there is no cabling to the detector. It is a wireless device and needs a RADION wireless receiver.

Key points
- TriTech detection: PIR and microwave must both trigger to alarm
- 11m x 11m (35ft) coverage; pet immunity up to 45kg
- Battery powered: 4x AA, up to 5 years life
- Requires a RADION receiver: B810 (Solution 3000) or RFRC-STR2 (Solution 6000)
- Draft and insect immunity; supervised for low battery, cover and removal tamper
- Indoor use; mount 2 to 2.4m high

The Bosch BDL2-W12G is a Blue Line Gen2 TriTech motion detector that pairs a passive-infrared sensor with a 10.525 GHz microwave Doppler radar. Because both technologies have to agree before it alarms, it gives strong catch performance with excellent false-alarm immunity across a 12 m x 12 m area. First Step Processing and microwave noise-adaptive processing mean no field adjustments, and it is a wired detector with a normally-closed relay output and tamper. This is the standard (non pet-friendly) model.

Key points
- TriTech: PIR plus 10.525 GHz microwave; both must agree to alarm
- 12 m x 12 m (40 ft) wall-to-wall coverage at 94 degrees
- First Step Processing - automatic sensitivity, no field adjustments
- Microwave noise-adaptive processing rejects repetitive disturbances
- Wired NC relay and tamper; 9-15 VDC; mount 2.2-2.75 m
- Standard non-pet model (for pets up to 45 kg, choose the BDL2-WP12G)

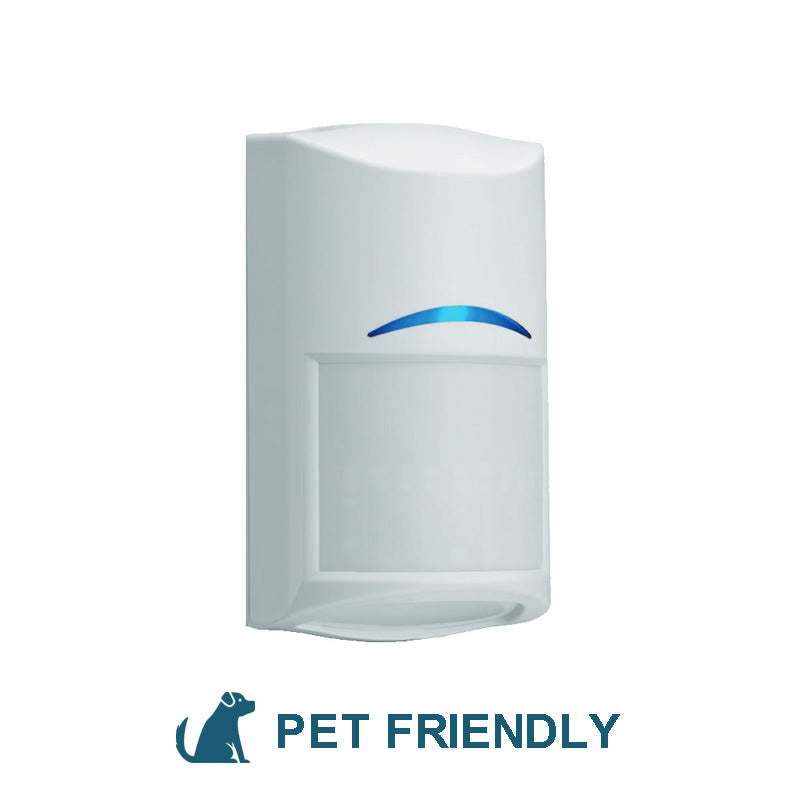

The Bosch BDL2-WP12G is a Blue Line Gen2 TriTech motion detector that combines passive infrared (PIR) with microwave detection, so both technologies have to agree before it raises an alarm. That dual-technology approach cuts false alarms, and a selectable pet-immunity mode lets it ignore one or two pets up to 45 kg while still catching intruders. It covers 12 m x 12 m wall-to-wall and is a wired detector for a hardwired Bosch alarm panel.

Key points
- TriTech detection: PIR plus microwave (10.525 GHz) must both agree to alarm
- Selectable pet immunity for one or two pets up to 45 kg (100 lb)
- 12 m x 12 m (40 ft) wall-to-wall coverage, 94° angle
- First Step Processing and dynamic temperature compensation
- Wired detector: normally-closed relay alarm output plus tamper
- Mounting height 2.2 m to 2.75 m, no field adjustments; EN50131 Grade 2
- Note: pet immunity is not assured if the detector is ceiling-mounted

The Bosch BO-48C18133A is an 18 V AC power supply for Bosch Solution alarm panels and other systems that need an 18 V AC input. It takes 240 V AC mains and delivers approximately 1.33 A of AC output through pre-attached bare-wire leads, making it a straightforward replacement or spare transformer for a Solution control panel. Because it outputs AC (not DC), it must match panels designed for an 18 V AC supply.

Key points
- 18 V AC output, approximately 1.33 A
- 240 V AC mains input
- AC output (not DC) - for panels that require 18 V AC
- Pre-attached bare-wire output leads for direct termination
- Compact, for panel or enclosure mounting
- Replacement or spare transformer for Bosch Solution systems; 3-year warranty

The Bosch ISC-PB1-100 (ND 100 GLT) is a wired panic button that connects to a zone on a standard intrusion alarm panel. Pressing it manually and discreetly triggers an alarm, for places at risk of a hold-up such as shops, offices and homes. It is a hardwired device with a built-in tamper contact.

Key points
- Wired panic / hold-up button for any standard intrusion panel zone
- DC circuit (GLT) technology with a built-in tamper contact
- Surface or flush cable mounting; optional cover cap to prevent false presses
- 12 to 30VDC, 0.5mA max; compact 81mm round ABS housing, 70g
- IP40, indoor use; 0 to 50 degrees C
- Supplied with adhesive seal and installation note

The Bosch MW350 is an empty powder-coated metal enclosure for housing a Bosch Solution 6000 or 144 alarm control board, expansion modules, power supply and backup battery. It gives the panel a tidy, secure, professional finish for residential and commercial installations.

Key points
- Empty metal enclosure for a Bosch Solution 6000 / 144 control board
- External dimensions 385 x 260 x 90mm (W x H x D)
- Room for the control board, expansion modules, power supply and backup battery
- Powder-coated steel for a durable, corrosion-resistant finish
- Provision for a tamper switch (some variants include the switch)
- Wall mount; indoor use; supplied with a removable lid and fixings
