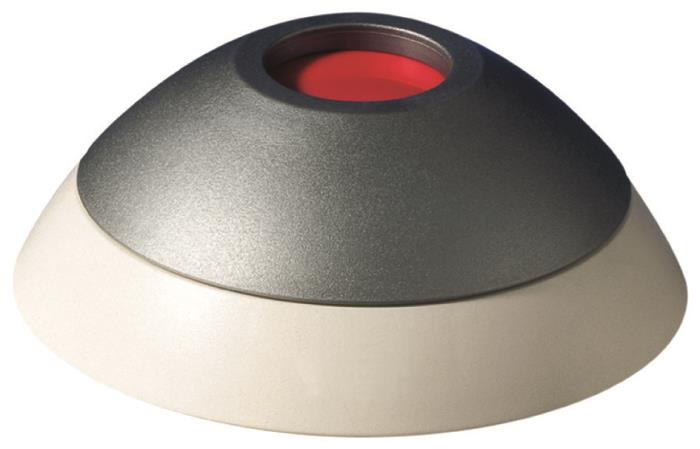

Bosch BOSISC-PB1-100 panic button
Skip to product information
1
/
of
1
Vendor:
Bosch
Bosch BOSISC-PB1-100 panic button
SKU: BOSISC-PB1-100
Description
The Bosch ISC-PB1-100 (ND 100 GLT) is a wired panic button that connects to a zone on a standard intrusion alarm panel. Pressing it manually and discreetly triggers an alarm, for places at risk of a hold-up such as shops, offices and homes. It is a hardwired device with a built-in tamper contact.
Key points
- Wired panic / hold-up button for any standard intrusion panel zone
- DC circuit (GLT) technology with a built-in tamper contact
- Surface or flush cable mounting; optional cover cap to prevent false presses
- 12 to 30VDC, 0.5mA max; compact 81mm round ABS housing, 70g
- IP40, indoor use; 0 to 50 degrees C
- Supplied with adhesive seal and installation note
Regular price
$51.50 AUD
Sale price
$51.50 AUD
Regular price
$52.00 AUD
Sale
0.96%
$0.50 AUD
(0.96%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch BOSISC-PB1-100 panic button
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the BOSISC-PB1-100 is
The Bosch ISC-PB1-100, also known as the ND 100 GLT panic button, is a simple wired button that sends an immediate alarm when pressed. It is wired to a zone on a standard intrusion alarm panel and is used to raise the alarm by hand, discreetly, in places that can be at risk of a hold-up, such as banks, jewellers, shops, reception desks and private homes.
It uses DC circuit (GLT) technology for reliable connection to the panel and has a built-in tamper contact, so the system is alerted if the button is opened or interfered with. The cable can be surface run or flush mounted, and an optional cover cap (order number 3902115343) can be added to help prevent accidental or false activation. The housing is a compact 81mm round ABS button weighing 70g, drawing only 0.5mA at 12 to 30VDC.
The ISC-PB1-100 is rated IP40 for indoor use and operates from 0 to 50 degrees C. It is a wired device, not wireless, and is fitted by a licensed installer who wires it to a panel zone and programs that zone as a panic or hold-up input. It is supplied with an adhesive seal and an installation note.
02Engineering
BOSISC-PB1-100 specifications
- Wired panic / hold-up button that connects to a zone on a standard intrusion alarm panel for an immediate, manually triggered alarm.
- DC circuit (GLT) technology for reliable integration with the panel, with a built-in tamper contact that alerts the system if the button is opened or removed.
- Surface or flush cable mounting, with an optional cover cap (order number 3902115343) to help prevent accidental or false activation.
- Very low power draw of 0.5mA max at 12 to 30VDC, so it adds almost no load to the panel.
- Compact 81mm round ABS housing (RAL 9002) weighing 70g, rated IP40 for indoor use and 0 to 50 degrees C.
- Supplied with the panic button, an adhesive seal and an installation note.
- DC circuit (GLT) technology for reliable integration with the panel, with a built-in tamper contact that alerts the system if the button is opened or removed.
- Surface or flush cable mounting, with an optional cover cap (order number 3902115343) to help prevent accidental or false activation.
- Very low power draw of 0.5mA max at 12 to 30VDC, so it adds almost no load to the panel.
- Compact 81mm round ABS housing (RAL 9002) weighing 70g, rated IP40 for indoor use and 0 to 50 degrees C.
- Supplied with the panic button, an adhesive seal and an installation note.
03Full datasheet
Detailed specifications
Event & Alarm
| Feature | Detail |
|---|---|
| Function | Panic button for unobtrusively and manually triggering alarms at work places that are in potential danger of being held up, such as banks, jewelry shops, businesses, private households etc. |
| Tamper Contact | Yes |
| Trigger Technology | Panic button in DC circuit technology (GLT) |
| Use With | For connecting to an intrusion panel |
Interface
| Feature | Detail |
|---|---|
| Mounting | Surface- or flush-mounting of the cable |
| Optional Cap | Compatible with optional cap with cover (Order number 3902115343) for additional protective cover to prevent false alarms |
General & Environment
| Feature | Detail |
|---|---|
| Minimum operating voltage | 12 VDC |
| Maximum operating voltage | 30 VDC |
| Maximum current consumption | 0.5 mA |
| Dimension (Ø x D) | 8.1 x 3.1 cm |
| Weight | 70 g |
| Housing material | ABS |
| Color (housing) | RAL 9002 |
| Color (cover) | Grey |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 50 °C |
| Maximum relative humidity | 95% |
| Environmental class | II |
| Protection class | IP40 |
| Parts Included | 1 × Panic button; 1 × Adhesive seal; 1 × Installation note |
| Certifications | Germany: VdS G 195065, C ND 100 GLT G 195065 | Europe: CE ND 100 GLT; EN50131 TAP-66/2015 ND100 GLT |
| Order Number | ISC-PB1-100 |
| Event & Alarm — Function | Panic button for unobtrusively and manually triggering alarms at work places that are in potential danger of being held up, such as banks, jewelry shops, businesses, private households etc. |
|---|---|
| Event & Alarm — Tamper Contact | Yes |
| Event & Alarm — Trigger Technology | Panic button in DC circuit technology (GLT) |
| Event & Alarm — Use With | For connecting to an intrusion panel |
| Interface — Mounting | Surface- or flush-mounting of the cable |
| Interface — Optional Cap | Compatible with optional cap with cover (Order number 3902115343) for additional protective cover to prevent false alarms |
| General & Environment — Minimum operating voltage | 12 VDC |
| General & Environment — Maximum operating voltage | 30 VDC |
| General & Environment — Maximum current consumption | 0.5 mA |
| General & Environment — Dimension (Ø x D) | 8.1 x 3.1 cm |
| General & Environment — Weight | 70 g |
| General & Environment — Housing material | ABS |
| General & Environment — Color (housing) | RAL 9002 |
| General & Environment — Color (cover) | Grey |
| General & Environment — Minimum operating temperature | 0 °C |
| General & Environment — Maximum operating temperature | 50 °C |
| General & Environment — Maximum relative humidity | 95% |
| General & Environment — Environmental class | II |
| General & Environment — Protection class | IP40 |
| General & Environment — Parts Included | 1 × Panic button; 1 × Adhesive seal; 1 × Installation note |
| General & Environment — Certifications | Germany: VdS G 195065, C ND 100 GLT G 195065 | Europe: CE ND 100 GLT; EN50131 TAP-66/2015 ND100 GLT |
| General & Environment — Order Number | ISC-PB1-100 |
04Why choose this
Built for the way you actually use the BOSISC-PB1-100
Discreet and tamper-protected
The compact button can be mounted out of sight under a counter or desk, and a built-in tamper contact reports interference.
Works with any standard panel
DC circuit (GLT) wiring connects it to a zone on a standard intrusion panel, so it suits Bosch and other systems.
Backed locally
Supplied by an authorised Bosch dealer with a 3-year warranty and Australia-wide support.
05Where it fits
Right at home in these scenarios
Shop and reception counters
Mount under a counter so staff can trigger a hold-up alarm without being seen.
Home duress point
Place a panic button by the bed or front door so the household can raise the alarm quickly.
Offices and back-of-house
Provide a fixed point to call for help in cash offices, pharmacies and similar sites.
Avoiding false trips
Add the optional cover cap where accidental presses are a concern, such as a busy counter.
06Setup
Installation & setup
-
01
What it is
A wired panic / hold-up button (not wireless). It connects to one zone on a standard intrusion alarm panel and is programmed as a panic or hold-up input.
-
02
Wiring
DC circuit (GLT) technology; cable can be surface run or flush mounted. The button draws 0.5mA max at 12 to 30VDC and has a tamper contact to wire in.
-
03
Mounting
Indoor use only (IP40). Mount it discreetly where it can be reached quickly, such as under a counter or beside a door.
-
04
Professional install
In Australia a Bosch alarm should be installed by a licensed security installer, who wires the device to the panel, programs it and tests the system. Add the optional cover cap (3902115343) where false presses are a risk.
08Questions
Frequently asked about the BOSISC-PB1-100
Q.01
What is the ISC-PB1-100 used for?
It is a wired panic or hold-up button that sends an immediate alarm when pressed, for places at risk of a hold-up such as shops, offices and homes.
Q.02
Is it wireless?
No. It is a hardwired button that connects to a zone on a standard intrusion alarm panel using DC circuit (GLT) technology.
Q.03
Which panels does it work with?
Any standard intrusion panel with a spare zone, including Bosch Solution panels. The installer programs the zone as a panic or hold-up input.
Q.04
Does it have tamper protection?
Yes. It has a built-in tamper contact that alerts the system if the button is opened or interfered with.
Q.05
Can I stop accidental presses?
Yes. An optional cover cap (order number 3902115343) can be added to help prevent accidental or false activation.
Q.06
Can it be used outdoors?
No. It is rated IP40 for indoor use, from 0 to 50 degrees C.
Q.07
How is it powered?
From the panel zone at 12 to 30VDC, drawing only 0.5mA max.
Q.08
Who installs it?
A licensed installer wires it to a panel zone, sets up the tamper and programs the zone.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Add it to a Bosch system
The ISC-PB1-100 wires to a panel zone. New to Bosch? See the Solution 3000 or Solution 2000 base kit, or the Solution 6000 3-PIR Solution 6000 kit.
Solution 6000 panel
Building a Solution 6000 from parts? See the CC610P control panel.
Add detection too
Pair the panic button with motion detection such as the wired BDL2-WP12G pet PIR.
