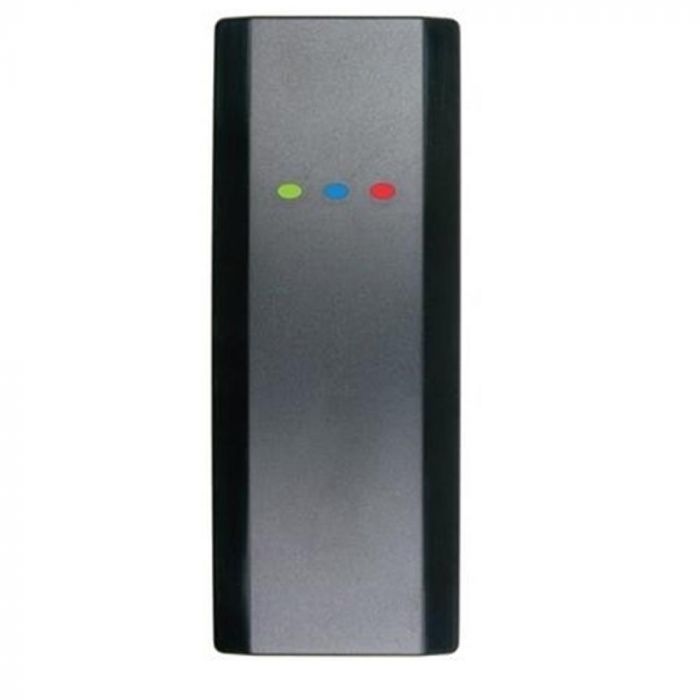

Bosch BOSPR115B reader, smartcard ext black slim keypad based
SKU: PR115B
Description
The Bosch PR115B is an external smart-card reader in a slimline black housing for the Bosch Solution 6000 alarm panel. Rated IP66 and made from vandal-resistant ASA plastic, it lets users arm, disarm and control a door by presenting a MiFare card or token at an entry point.
Key points
- External, IP66 weather-resistant, slimline black housing
- MiFare 40-bit smart-card reader (PR301B, PR350B, PR365B tokens)
- Alarm and access control on the Bosch Solution 6000 (also 16i and 144)
- Encrypted RS485 LAN; occupies one keypad position
- Red, green and blue LEDs for area and door-lock status
- 10 to 14.5VDC, 100mA max; 500mA lock output and egress input
Regular price
$304.90 AUD
Sale price
$304.90 AUD
Regular price
$308.00 AUD
Sale
1.01%
$3.10 AUD
(1.01%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch BOSPR115B reader, smartcard ext black slim keypad based
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the PR115B is
The Bosch PR115B is the slimline black external smart-card reader for the Bosch Solution 6000. It brings arming, disarming and door access to an entry point, so users tap a MiFare card or token instead of keying a PIN, and it is built to handle the weather outside.
It is rated IP66 and made from UV-stabilised ASA plastic for vandal and weather resistance. The reader uses the MiFare 40-bit proprietary format at 10.3MHz and works with Bosch PR301B, PR350B and PR365B cards and tokens. Red, green and blue LEDs show area and door-lock status at all times, and a 500mA lock output and an egress input let it control a single door alongside the alarm.
The PR115B connects to the panel over an encrypted RS485 LAN with two-way authentication and occupies one standard keypad position; each reader is given a unique address on the rotary switch. It runs on 10 to 14.5VDC at 100mA max and suits the Solution 6000 (and the Solution 16i and 144), not the Solution 2000 or 3000. It is for external mounting on a sturdy wall and is fitted by a licensed installer. The PR116B is the same reader in a white mullion housing.
02Engineering
PR115B specifications
- External smart-card reader in a slimline black housing, rated IP66 and made from UV-stabilised ASA plastic for vandal and weather resistance.
- MiFare 40-bit proprietary smart-card format at 10.3MHz, working with Bosch PR301B, PR350B and PR365B cards and tokens.
- Provides both alarm arming/disarming and access control on the Bosch Solution 6000 (also Solution 16i and 144); not for the Solution 2000 or 3000.
- Connects on an encrypted RS485 LAN with two-way authentication and occupies one standard keypad position; each reader has a unique rotary address (1-16).
- Red, green and blue LEDs show area and door-lock status, with a 500mA protected lock output and an egress input to control a single door.
- 10.0 to 14.5VDC at 100mA max; 44 x 21 x 114mm; -30 to 55 degrees C; LAN up to 500m (1200m with Belden 8723).
- MiFare 40-bit proprietary smart-card format at 10.3MHz, working with Bosch PR301B, PR350B and PR365B cards and tokens.
- Provides both alarm arming/disarming and access control on the Bosch Solution 6000 (also Solution 16i and 144); not for the Solution 2000 or 3000.
- Connects on an encrypted RS485 LAN with two-way authentication and occupies one standard keypad position; each reader has a unique rotary address (1-16).
- Red, green and blue LEDs show area and door-lock status, with a 500mA protected lock output and an egress input to control a single door.
- 10.0 to 14.5VDC at 100mA max; 44 x 21 x 114mm; -30 to 55 degrees C; LAN up to 500m (1200m with Belden 8723).
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 500m, Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See full control panel manual for complete wiring instructions. |
| Format | Smart Card (MiFare) 40bit Proprietary, 10.3Mhz |
| Reader Compatibility | Solution 16i (Version 2.19, Up to 8 Keypads); Solution 144 (Version 2.00, Up to 16 Keypads); Solution 6000 (Version 2.12, Up to 16 Keypads) |
Event & Alarm
| Feature | Detail |
|---|---|
| Reader Alert Tones | Fire Alarm: 3 short beeps followed by a 1.5 second pause; Burglary Alarm: continuous siren tone; Trouble: 4 fast short beeps followed by 5 second pause; Exit Delay: 1 short beep every second; Entry Delay: hi/lo entry delay warning tone; Error: 2 second warning tone; Chime Alert: fast short beeps |
| LED Indicators | Red and Green indicators show area status; Blue indicator shows door status |
Interface
| Feature | Detail |
|---|---|
| Lock Output | Protected open collector transistor output 500mA |
| Egress Input | Low to trigger. Can be disabled via software control |
General & Environment
| Feature | Detail |
|---|---|
| Part Number | PR115B - Black - Vandal and Weather Resistant Reader (IP66); PR116B - White - Vandal and Weather Resistant Reader (IP66) |
| Operating Voltage | 10.0VDC - 14.5VDC @ 100mA Max. |
| Dimensions | 44mm(W), 21mm(D), 114mm(H). CM444B = 46mm(W), 12.5mm(D), 12mm H) |
| Environment | -30˚ to 55˚C RH 5 to 85% at 30˚C non-condensing |
| Protection | IP66 |
| Material | UV stabilised ASA plastic |
| Fixing Method | The PR115B and PR116B should be mounted on a sturdy vertical wall using fixtures appropriate for the wall construction type. |
| Warranty | 3 years from date of manufacture (return to base) |
| Box Contents | Reader Base Unit; Reader Cover; Mounting Template; Instruction Sheet; 1 x (M3 x 6mm) Hex Screw; 1 x 2mm Hex Key |
| Compliance | N12138; TELEPERMIT; CE; RoHS |
| Network & Storage — Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 500m, Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See full control panel manual for complete wiring instructions. |
|---|---|
| Network & Storage — Format | Smart Card (MiFare) 40bit Proprietary, 10.3Mhz |
| Network & Storage — Reader Compatibility | Solution 16i (Version 2.19, Up to 8 Keypads); Solution 144 (Version 2.00, Up to 16 Keypads); Solution 6000 (Version 2.12, Up to 16 Keypads) |
| Event & Alarm — Reader Alert Tones | Fire Alarm: 3 short beeps followed by a 1.5 second pause; Burglary Alarm: continuous siren tone; Trouble: 4 fast short beeps followed by 5 second pause; Exit Delay: 1 short beep every second; Entry Delay: hi/lo entry delay warning tone; Error: 2 second warning tone; Chime Alert: fast short beeps |
| Event & Alarm — LED Indicators | Red and Green indicators show area status; Blue indicator shows door status |
| Interface — Lock Output | Protected open collector transistor output 500mA |
| Interface — Egress Input | Low to trigger. Can be disabled via software control |
| General & Environment — Part Number | PR115B - Black - Vandal and Weather Resistant Reader (IP66); PR116B - White - Vandal and Weather Resistant Reader (IP66) |
| General & Environment — Operating Voltage | 10.0VDC - 14.5VDC @ 100mA Max. |
| General & Environment — Dimensions | 44mm(W), 21mm(D), 114mm(H). CM444B = 46mm(W), 12.5mm(D), 12mm H) |
| General & Environment — Environment | -30˚ to 55˚C RH 5 to 85% at 30˚C non-condensing |
| General & Environment — Protection | IP66 |
| General & Environment — Material | UV stabilised ASA plastic |
| General & Environment — Fixing Method | The PR115B and PR116B should be mounted on a sturdy vertical wall using fixtures appropriate for the wall construction type. |
| General & Environment — Warranty | 3 years from date of manufacture (return to base) |
| General & Environment — Box Contents | Reader Base Unit; Reader Cover; Mounting Template; Instruction Sheet; 1 x (M3 x 6mm) Hex Screw; 1 x 2mm Hex Key |
| General & Environment — Compliance | N12138; TELEPERMIT; CE; RoHS |
04Why choose this
Built for the way you actually use the PR115B
Built for outside
An IP66 rating and vandal-resistant ASA housing let you mount it at an exposed entry, gate or carport.
Alarm and access in one
It controls the Solution 6000 alarm and a single door, with a lock output and egress input built in.
Slim, discreet look
The slimline black housing suits door frames and narrow mounting surfaces.
05Where it fits
Right at home in these scenarios
Front-door or gate access
Tap a card to disarm and enter, with a reader rated for sun and rain.
Staff entries
Issue PR-series cards or tokens so staff enter without sharing a PIN, with events logged on the panel.
Carports and side gates
A weather-rated reader suits exposed entries where an indoor keypad would not survive.
Narrow mounting points
The slim black housing fits door frames and tight surfaces at an entrance.
06Setup
Installation & setup
-
01
What it is
An external MiFare smart-card reader for the Bosch Solution 6000 (also 16i and 144). It occupies one keypad position and provides alarm and access functions; it does not suit the Solution 2000 or 3000.
-
02
Wiring
Connect over the panel's encrypted RS485 LAN (up to 500m, or 1200m with Belden 8723). Power is 10 to 14.5VDC at 100mA max. Set a unique address on the rotary switch.
-
03
Door control
Use the 500mA protected lock output and the egress input to control a single door; cards are PR301B, PR350B or PR365B.
-
04
Professional install
In Australia a Bosch alarm should be installed by a licensed security installer, who wires the device to the panel, programs it and tests the system. Mount it on a sturdy wall and enrol the access cards to the panel.
08Questions
Frequently asked about the PR115B
Q.01
Which panel does the PR115B work with?
The Bosch Solution 6000 (and the Solution 16i and 144). It does not suit the Solution 2000 or 3000.
Q.02
What is the difference between the PR115B and PR116B?
They are the same reader. The PR115B is a slimline black housing and the PR116B is a white mullion housing.
Q.03
What cards does it use?
The MiFare 40-bit proprietary format at 10.3MHz, with Bosch PR301B, PR350B and PR365B cards and tokens.
Q.04
Can people enter with a card instead of a code?
Yes. Users present a PR-series card or token to disarm and open a door, and events are logged on the panel.
Q.05
Can it be used outdoors?
Yes. It is rated IP66 and made from vandal-resistant ASA plastic for external installation.
Q.06
How does it connect to the panel?
Over an encrypted RS485 LAN with two-way authentication; it occupies one keypad position and has a unique rotary address.
Q.07
Can it control a door?
Yes. It has a 500mA protected lock output and an egress input to control a single door.
Q.08
Who installs it?
A licensed installer wires it to the LAN, mounts it on a sturdy wall and enrols the access cards.
