Bosch CC610GWF-2 144-Zone Panel + CP737B Wi-Fi Keypad
SKU: CC610GWF-2
Description

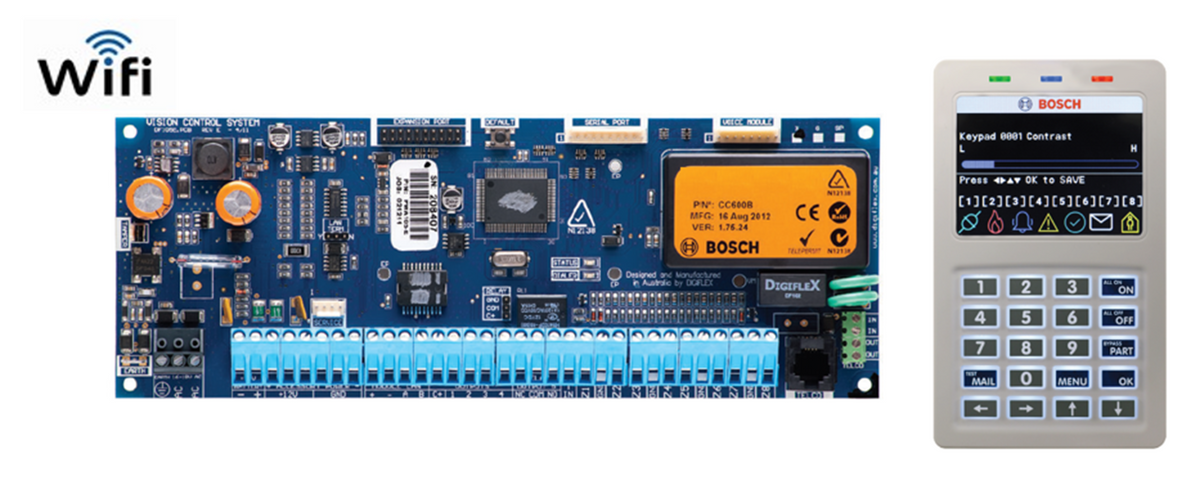

The Bosch CC610GWF-2 pairs the Solution 6000 control panel PCB with a colour Wi-Fi keypad for homes and small businesses seeking MyAlarm app compatibility.
What you get
- CC610PB Solution 6000 control panel PCB — 16 on-board zones, 8 areas, 5 on-board outputs, 256 users and access control for up to 16 doors
- CP737B graphic keypad — 3.5" colour display, 40bit MiFare smart card reader and 802.11 b/g/n Wi-Fi built in
- Keypad manual and mounting back plate
You'll also need
- An MW720B or MW730B enclosure selected with your licensed security installer
- A 16-18V A.C 50-60Hz - 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer, plus a 12 VDC, 7.2AH sealed rechargeable back-up battery
- Detectors, alarm outputs and a MyAlarm subscription if you want app control
- A qualified and licensed security installer to fit and commission the system
Regular price
$551.45 AUD
Sale price
$551.45 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch CC610GWF-2 144-Zone Panel + CP737B Wi-Fi Keypad
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the CC610GWF-2 is
The Bosch CC610GWF-2 is a Solution 6000 panel-and-keypad kit for homes and small businesses that want app access from the outset. It bundles the CC610PB control panel PCB with the CP737B keypad, whose built-in Wi-Fi supports MyAlarm interactive services and the iFob Control smartphone app.
The Australian-designed and manufactured system starts with 16 on-board zones and expands to 144, partitions into 8 areas, and holds 256 users with PIN, token, keyfob or fingerprint credentials. It also supports access control for up to 16 doors. The event log stores 1000 events, while up to 16 time zones can each have up to 4 time periods including days of the week and holidays.
The CP737B serves as the user interface and Wi-Fi connection point. It provides a 3.5" graphical display with alpha-numeric text prompting and programming, a 40bit MiFare smart card reader, lock and egress terminals, and a customisable installer banner. The keypad draws 110mA Max from +12VDC LAN power and connects through the proprietary RS485 LAN.
The kit does not include an enclosure, primary power source, stand-by battery, detectors or alarm outputs, so these must be added for a working installation. MyAlarm app control is a paid subscription service rather than a free Bosch service. The panel must be installed and commissioned by a qualified and licensed security installer.
This model suits a site where the entry keypad can remain within Wi-Fi reach of the router. Its expandable zones, outputs, areas and access-control capacity also allow the system to grow as the site changes.
§ 02Engineering
CC610GWF-2 specifications
Bosch CC610GWF-2 — CC610PB Solution 6000 control panel PCB plus CP737B Wi-Fi keypad — combines the alarm controller and Wi-Fi user interface in one kit
Zones — 16 on-board zones, expandable to 144 wired or wireless — allows the system to grow as more detection points are added
Areas and users — up to 8 areas, 256 PIN, token, keyfob and fingerprint users — supports separately managed areas and individual credentials
Access control — integrated access control for up to 16 doors — brings alarm and entry functions under the same system
Wi-Fi keypad — CP737B with 802.11 b/g/n Wi-Fi connectivity built-in, compatible with MyAlarm interactive services and the iFob Control smartphone app — enables supported phone control through the keypad
Keypad interface — 3.5" colour graphical display with LED backlight and 40bit MiFare smart card reader — provides written prompts and card-based operation at the entry
Communications — CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP — provides multiple reporting choices for different installations
Outputs — 5 on-board outputs, expandable to 37 — provides room for additional programmed alarm and control functions
Power — 16-18V A.C 50-60Hz - 24VA input, 12 VDC, 7.2AH stand-by battery and keypad 110mA Max — combines primary power with rechargeable battery support
Zones — 16 on-board zones, expandable to 144 wired or wireless — allows the system to grow as more detection points are added
Areas and users — up to 8 areas, 256 PIN, token, keyfob and fingerprint users — supports separately managed areas and individual credentials
Access control — integrated access control for up to 16 doors — brings alarm and entry functions under the same system
Wi-Fi keypad — CP737B with 802.11 b/g/n Wi-Fi connectivity built-in, compatible with MyAlarm interactive services and the iFob Control smartphone app — enables supported phone control through the keypad
Keypad interface — 3.5" colour graphical display with LED backlight and 40bit MiFare smart card reader — provides written prompts and card-based operation at the entry
Communications — CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP — provides multiple reporting choices for different installations
Outputs — 5 on-board outputs, expandable to 37 — provides room for additional programmed alarm and control functions
Power — 16-18V A.C 50-60Hz - 24VA input, 12 VDC, 7.2AH stand-by battery and keypad 110mA Max — combines primary power with rechargeable battery support
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | CC610GWF-2 Solution 6000 alarm panel kit: CC610PB control panel PCB + CP737B Wi-Fi LCD keypad, 144 zone, white |
| Kit contents (supplier listing) | CC610PB PCB + CP737B WIFI LCD KEYPAD |
| Control panel | CC610PB Solution 6000 Control Panel - includes control panel PCB only (order number CC600PB) |
| Keypad | CP737B 3.5" Colour keypad - S/C, Wi-Fi; Bosch RS485 Color graphic Keypad with Wi-Fi and Smart Card reader (White); order number CP737B | F.01U.403.613 |
| Keypad parts included | 1 Codepad, 1 Manual, 1 Mounting back plate |
| Made in | Designed and manufactured in Australia to meet local and international requirements |
| Keypad connectivity | Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported |
| Keypad Wi-Fi services | fully compatible with MyAlarm interactive services and the iFob Control smartphone app |
| Code pads and LAN readers | up to 16 key pad/reader style devices; any combination of CP700B, CP701B, CP710B, CP711B, CM150B, CP151B, CM728B, CM729B, PR109B, PR110B, PR111B and PR112B |
| Input expansion | CM704B - 8/16 zone expanders, CM705B - 8/16 universal zone expanders and CM707B - 8 zone piggy back expanders; up to 8 modules of any type |
| Output expansion | Up to 8 x CM710B 4 way relay output expanders for a total of 37 programmable outputs; outputs programmable to any one of more than 60 different event types |
| Wireless receivers - Bosch | One Bosch DSRF receiver RF3212E may be connected directly to the receiver / key switch input; up to 3 x wireless receivers may be connected using the CM195 |
| Wireless receivers - non Bosch | Support for non Bosch wireless equipment via inclusion of the CM195; up to 3 receivers of the same make and model |
| Additional LAN power supplies | up to 8 additional LAN power supplies; CM720B provides 1 amp with battery charger, CM723B provides 5 amps with dual battery chargers (batteries up to 18Ah) |
| Enclosure options | CM720B - Small Enclosure (MW720B: 385(W), 260(H), 90(D)mm); CM730B - Large Enclosure (MW730B: 385(W), 520(H), 90(D)mm) |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| On-board zones | 16 on-board zones (expandable to 144 wired or wireless) |
| Areas | partitionable to 8 areas |
| On-board outputs | 5 on-board outputs (expandable to 37) |
| Access control doors | Integrated access control for up to 16 doors |
| Time zones | Up to 16 time zones, each with up to 4 time periods including day of the week and holidays |
| Event log | up to 1000 events from all areas |
| Zone expander modules | Up to 8 modules of any type |
Users, Codes & Access
| Feature | Detail |
|---|---|
| Users | 256 PIN, token, keyfob and fingerprint users |
| PIN length | variable length PIN codes up to 8 digits; free choice of PIN length or an exact PIN length requirement; PIN codes can be set to expire |
| Keypad smart card reader | 40bit MiFare smart card reader built-in |
| Keypad lock and egress | dedicated Lock and Egress terminals simplify access control applications; programmed by an Installer |
| Multi tenant | locks the first 128 users on the system to the first 128 zones |
Keypad & Display
| Feature | Detail |
|---|---|
| Keypad display | 3.5" Color graphical display with LED backlight |
| Display color | Color |
| Keypad prompting | Alpha-numeric text prompting/programming |
| Installer banner | Customizable Installer banner display (Site Name, Company Name or Contact Number) |
| Keypad keys | Color-coded, illuminated rubber keys; Red and Green indicators for Armed and Disarmed areas, Blue indicator for door status |
| Keypad sounder | in-built sounder; volume level individually programmable for each keypad |
| Keypad lighting | Brightness levels programmable via the keypad; keys illuminate with a subtle white glow and switch to a brighter mode during operation |
| Keypad colour | White |
| Keypad dimensions (H x W x D) | 149 mm x 88 mm x 21.5 mm |
Wireless & Radio
| Feature | Detail |
|---|---|
| Keypad Wi-Fi | 802.11 b/g/n Wi-Fi connectivity built-in |
| Wi-Fi standard | IEEE 802.11n; IEEE 802.11g; IEEE 802.11b |
Communications & Reporting
| Feature | Detail |
|---|---|
| Communications | CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP |
| Reporting formats | CID, SIA, DOMESTIC and SMS Text Reporting formats standard out of the box; dual reporting; Open / Close reporting per user and area |
| Communications options | GSM/GPRS and Ethernet options |
| Telephone connections | RJ-12 Socket or 4-way terminal |
| Module connection (RS485 LAN) | Max. total LAN length using multi strand security cable = 300m; using 2 pair twisted shielded data cable (Belden 8723) = 1200m |
| LAN security | anti-substitution technology and a proprietary data encryption algorithm |
Power & Electrical
| Feature | Detail |
|---|---|
| Voltage input | 16-18V A.C 50-60Hz - 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer (Primary Power Source) |
| Continuous power | 1 Amp MAX (combined power drawn from Accessory Power (+12V), LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp) |
| Alarm power | 4 Amp (Total with primary and secondary power sources fitted) |
| Stand-by battery | 12 VDC, 7.2AH sealed rechargeable battery - Panasonic LC-P127R2P or equivalent (Secondary Power Source) |
| Min operating voltage | 10.2 VDC |
| Battery charger | Pulse by pulse charger |
| On-board power supply | 1 Amp power supply and battery charger |
| Keypad power | +12VDC, 110mA Max (LAN powered +9VDC - +16VDC) |
Physical & Environment
| Feature | Detail |
|---|---|
| Panel temperature | 0 °C to 55 °C |
| Panel relative humidity | 5 to 85% non-condensing |
| PWA dimensions | 235(W), 85(H), 40(D)mm |
| Keypad operating temperature | 0 °C – 55 °C |
| Keypad operating relative humidity, non-condensing | 5% – 85% |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Warranty | 3 years |
| Keypad warranty | 3 years back to base from date of manufacture |
| Supplier warranty | 36 Months |
| C-tick supplier code | N12138 |
| CE | EN 55022:2010, EN60950-1:2001 |
| Telepermit | PTC 211/12/017 |
| Overview & Compatibility — Product | CC610GWF-2 Solution 6000 alarm panel kit: CC610PB control panel PCB + CP737B Wi-Fi LCD keypad, 144 zone, white |
|---|---|
| Overview & Compatibility — Kit contents (supplier listing) | CC610PB PCB + CP737B WIFI LCD KEYPAD |
| Overview & Compatibility — Control panel | CC610PB Solution 6000 Control Panel - includes control panel PCB only (order number CC600PB) |
| Overview & Compatibility — Keypad | CP737B 3.5" Colour keypad - S/C, Wi-Fi; Bosch RS485 Color graphic Keypad with Wi-Fi and Smart Card reader (White); order number CP737B | F.01U.403.613 |
| Overview & Compatibility — Keypad parts included | 1 Codepad, 1 Manual, 1 Mounting back plate |
| Overview & Compatibility — Made in | Designed and manufactured in Australia to meet local and international requirements |
| Overview & Compatibility — Keypad connectivity | Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported |
| Overview & Compatibility — Keypad Wi-Fi services | fully compatible with MyAlarm interactive services and the iFob Control smartphone app |
| Overview & Compatibility — Code pads and LAN readers | up to 16 key pad/reader style devices; any combination of CP700B, CP701B, CP710B, CP711B, CM150B, CP151B, CM728B, CM729B, PR109B, PR110B, PR111B and PR112B |
| Overview & Compatibility — Input expansion | CM704B - 8/16 zone expanders, CM705B - 8/16 universal zone expanders and CM707B - 8 zone piggy back expanders; up to 8 modules of any type |
| Overview & Compatibility — Output expansion | Up to 8 x CM710B 4 way relay output expanders for a total of 37 programmable outputs; outputs programmable to any one of more than 60 different event types |
| Overview & Compatibility — Wireless receivers - Bosch | One Bosch DSRF receiver RF3212E may be connected directly to the receiver / key switch input; up to 3 x wireless receivers may be connected using the CM195 |
| Overview & Compatibility — Wireless receivers - non Bosch | Support for non Bosch wireless equipment via inclusion of the CM195; up to 3 receivers of the same make and model |
| Overview & Compatibility — Additional LAN power supplies | up to 8 additional LAN power supplies; CM720B provides 1 amp with battery charger, CM723B provides 5 amps with dual battery chargers (batteries up to 18Ah) |
| Overview & Compatibility — Enclosure options | CM720B - Small Enclosure (MW720B: 385(W), 260(H), 90(D)mm); CM730B - Large Enclosure (MW730B: 385(W), 520(H), 90(D)mm) |
| Zones, Outputs & Capacity — On-board zones | 16 on-board zones (expandable to 144 wired or wireless) |
| Zones, Outputs & Capacity — Areas | partitionable to 8 areas |
| Zones, Outputs & Capacity — On-board outputs | 5 on-board outputs (expandable to 37) |
| Zones, Outputs & Capacity — Access control doors | Integrated access control for up to 16 doors |
| Zones, Outputs & Capacity — Time zones | Up to 16 time zones, each with up to 4 time periods including day of the week and holidays |
| Zones, Outputs & Capacity — Event log | up to 1000 events from all areas |
| Zones, Outputs & Capacity — Zone expander modules | Up to 8 modules of any type |
| Users, Codes & Access — Users | 256 PIN, token, keyfob and fingerprint users |
| Users, Codes & Access — PIN length | variable length PIN codes up to 8 digits; free choice of PIN length or an exact PIN length requirement; PIN codes can be set to expire |
| Users, Codes & Access — Keypad smart card reader | 40bit MiFare smart card reader built-in |
| Users, Codes & Access — Keypad lock and egress | dedicated Lock and Egress terminals simplify access control applications; programmed by an Installer |
| Users, Codes & Access — Multi tenant | locks the first 128 users on the system to the first 128 zones |
| Keypad & Display — Keypad display | 3.5" Color graphical display with LED backlight |
| Keypad & Display — Display color | Color |
| Keypad & Display — Keypad prompting | Alpha-numeric text prompting/programming |
| Keypad & Display — Installer banner | Customizable Installer banner display (Site Name, Company Name or Contact Number) |
| Keypad & Display — Keypad keys | Color-coded, illuminated rubber keys; Red and Green indicators for Armed and Disarmed areas, Blue indicator for door status |
| Keypad & Display — Keypad sounder | in-built sounder; volume level individually programmable for each keypad |
| Keypad & Display — Keypad lighting | Brightness levels programmable via the keypad; keys illuminate with a subtle white glow and switch to a brighter mode during operation |
| Keypad & Display — Keypad colour | White |
| Keypad & Display — Keypad dimensions (H x W x D) | 149 mm x 88 mm x 21.5 mm |
| Wireless & Radio — Keypad Wi-Fi | 802.11 b/g/n Wi-Fi connectivity built-in |
| Wireless & Radio — Wi-Fi standard | IEEE 802.11n; IEEE 802.11g; IEEE 802.11b |
| Communications & Reporting — Communications | CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP, CSV-IP |
| Communications & Reporting — Reporting formats | CID, SIA, DOMESTIC and SMS Text Reporting formats standard out of the box; dual reporting; Open / Close reporting per user and area |
| Communications & Reporting — Communications options | GSM/GPRS and Ethernet options |
| Communications & Reporting — Telephone connections | RJ-12 Socket or 4-way terminal |
| Communications & Reporting — Module connection (RS485 LAN) | Max. total LAN length using multi strand security cable = 300m; using 2 pair twisted shielded data cable (Belden 8723) = 1200m |
| Communications & Reporting — LAN security | anti-substitution technology and a proprietary data encryption algorithm |
| Power & Electrical — Voltage input | 16-18V A.C 50-60Hz - 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer (Primary Power Source) |
| Power & Electrical — Continuous power | 1 Amp MAX (combined power drawn from Accessory Power (+12V), LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp) |
| Power & Electrical — Alarm power | 4 Amp (Total with primary and secondary power sources fitted) |
| Power & Electrical — Stand-by battery | 12 VDC, 7.2AH sealed rechargeable battery - Panasonic LC-P127R2P or equivalent (Secondary Power Source) |
| Power & Electrical — Min operating voltage | 10.2 VDC |
| Power & Electrical — Battery charger | Pulse by pulse charger |
| Power & Electrical — On-board power supply | 1 Amp power supply and battery charger |
| Power & Electrical — Keypad power | +12VDC, 110mA Max (LAN powered +9VDC - +16VDC) |
| Physical & Environment — Panel temperature | 0 °C to 55 °C |
| Physical & Environment — Panel relative humidity | 5 to 85% non-condensing |
| Physical & Environment — PWA dimensions | 235(W), 85(H), 40(D)mm |
| Physical & Environment — Keypad operating temperature | 0 °C – 55 °C |
| Physical & Environment — Keypad operating relative humidity, non-condensing | 5% – 85% |
| Compliance & Warranty — Warranty | 3 years |
| Compliance & Warranty — Keypad warranty | 3 years back to base from date of manufacture |
| Compliance & Warranty — Supplier warranty | 36 Months |
| Compliance & Warranty — C-tick supplier code | N12138 |
| Compliance & Warranty — CE | EN 55022:2010, EN60950-1:2001 |
| Compliance & Warranty — Telepermit | PTC 211/12/017 |
§ 04Why choose this
Built for the way you actually use the CC610GWF-2
Expand without replacing the core panel
The system starts with 16 zones and 5 outputs and can reach 144 zones and 37 outputs. Supported expansion modules allow more detection and control points to be added later.
Bring doors and alarms together
The panel supports access control for up to 16 doors. The CP737B adds a smart card reader plus dedicated lock and egress terminals for access-control applications.
Make everyday operation clearer
The CP737B’s 3.5" display provides alpha-numeric text prompting and programming. Illuminated keys, coloured status indicators and a programmable sounder help users understand system conditions.
Choose from multiple reporting methods
The panel supports CID, SIA, SMS, Email, Voice, Domestic Dialling, GSM-CID, GSM-SMS, Connetix IP and CSV-IP communications. Dual reporting and open or close reporting per user and area suit varied reporting requirements.
Protect communication across larger sites
Modules communicate over an RS485 LAN with anti-substitution technology and a proprietary data encryption algorithm. The maximum total LAN length is 1200m with 2 pair twisted shielded data cable (Belden 8723), and CM797 isolators are recommended between separate buildings.
§ 05Where it fits
Right at home in these scenarios
House with the keypad near the router
Bosch CC610GWF-2 suits a house where the CP737B can sit at the entry within Wi-Fi reach of the router. Family members can use PIN or smart-card credentials, with MyAlarm services available by subscription.
Small business with individual users
The system can assign PIN, token, keyfob or fingerprint credentials to individual staff and divide a shop or office into separately managed areas. Open and close reporting can be configured per user and area.
Site expecting more zones or doors
The panel can begin with 16 on-board zones and expand using CM704B or CM705B zone expanders and CM710B relay output expanders. Keypads, readers and modules share the protected RS485 LAN.
§ 06Setup
Installation & setup
Check the supplied parts
Bosch CC610GWF-2 includes the CC610PB panel PCB and CP737B keypad, with a manual and mounting back plate supplied for the keypad. Complete the installation with an enclosure, primary power source, stand-by battery, detectors and alarm outputs.
Choose the enclosure and power source
Select the MW720B small enclosure or MW730B large enclosure with your installer after allowing space for the planned modules. The specified primary source is a 16-18V A.C 50-60Hz - 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer, with a 12 VDC, 7.2AH sealed rechargeable battery as the secondary source. Combined accessory, LAN and output power must not exceed 1 Amp.
Configure the Wi-Fi keypad
Connect and program the CP737B through the panel’s proprietary RS485 LAN. On a DHCP network no IP address needs to be entered, while a network without DHCP requires the assigned IP address during setup.
Plan every cable run
Provide a dedicated cable run for each wired detector, plus the RS485 LAN route for keypads, readers and modules. Max. total LAN length using multi strand security cable = 300m; using 2 pair twisted shielded data cable (Belden 8723) = 1200m. A shorted loop is a tamper condition for every EOL configuration, and normally-open contacts require Inverted Seal for each zone in MENU 3-1-8.
Program and test the system
Installer mode is entered with the installer PIN followed by MENU, with 1234 used as the default installer PIN. Commissioning can include walk, horn speaker, siren, strobe, battery and communication tests.
Use the appropriate licensed trades
The panel must be installed by a qualified and licensed security installer. A licensed electrician is also required when the 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer option involves connection to mains wiring.
§ 08Questions
Frequently asked about the CC610GWF-2
Q.01
Bosch CC610GWF-2: what comes in the kit?
It combines the CC610PB Solution 6000 control panel PCB with the CP737B Wi-Fi graphic keypad. The keypad is supplied with a manual and mounting back plate, while a complete alarm installation also needs an enclosure, power source, stand-by battery, detectors and alarm outputs.
Q.02
How many zones, areas and outputs does it support?
The Solution 6000 starts with 16 on-board zones and expands to 144 wired or wireless zones. It partitions into 8 areas and has 5 on-board outputs expandable to 37.
Q.03
Can I control the alarm from my phone?
The CP737B keypad is compatible with MyAlarm interactive services and the iFob Control app, which is a paid subscription service. Multiple Android and iOS users can control the panel and receive notifications.
Q.04
Can it control access doors as well as the alarm?
Yes. The panel provides integrated access control for up to 16 doors, and the keypad contains a 40bit MiFare smart card reader. Dedicated lock and egress terminals can be programmed by the installer for access-control applications.
Q.05
Can wireless detectors be added?
Yes, when a supported receiver is fitted. One Bosch DSRF receiver RF3212E can connect directly to the receiver or key-switch input, while the CM195 supports up to 3 x wireless receivers.
Q.06
Can I install the panel myself?
The panel must be installed by a qualified and licensed security installer. A licensed electrician is also required if the internal transformer option must be connected to 220-240V A.C. mains wiring. The RS485 LAN allows a maximum total length of 300m with multi strand security cable or 1200m with 2 pair twisted shielded data cable (Belden 8723).
Q.07
Which alarm systems support the CP737B keypad?
The keypad supports Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP panels. It connects through the proprietary RS485 LAN and provides built-in 802.11 b/g/n Wi-Fi connectivity.
Q.08
What warranty does the kit carry?
The warranty period is 3 years. The keypad has a 3 years back-to-base warranty from its date of manufacture.
Q.09
What is the default installer PIN, and what happens if it is lost?
The default installer PIN is 1234 and is followed by MENU to enter installer programming. If factory defaulting has been disabled and the changed PIN is unknown, a single-use CM255B default key can unlock the installer PIN and RAS security PIN in the field.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Choose an enclosure for the planned build
Bosch CC610GWF-2 can use the MW720B small enclosure or MW730B large enclosure. Select the cabinet after allowing space for the control panel and planned expansion modules.
Complete the primary and back-up power
Use a 16-18V A.C 50-60Hz - 24VA External Power Adaptor or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer, together with a 12 VDC, 7.2AH sealed rechargeable battery.
Add more detection zones
Use a CM704B 8/16 zone expander when the on-board zones are not enough. The panel supports up to 8 modules of the listed input-expander types.
Add more relay outputs
Fit a CM710B 4 way relay output expander for additional programmed functions. Up to 8 x CM710B expanders provide a total of 37 programmable outputs.
Add supported wireless reception
Connect one Bosch DSRF receiver RF3212E directly to the receiver or key-switch input. For a broader receiver arrangement, the CM195 supports up to 3 x wireless receivers of the same make and model.
