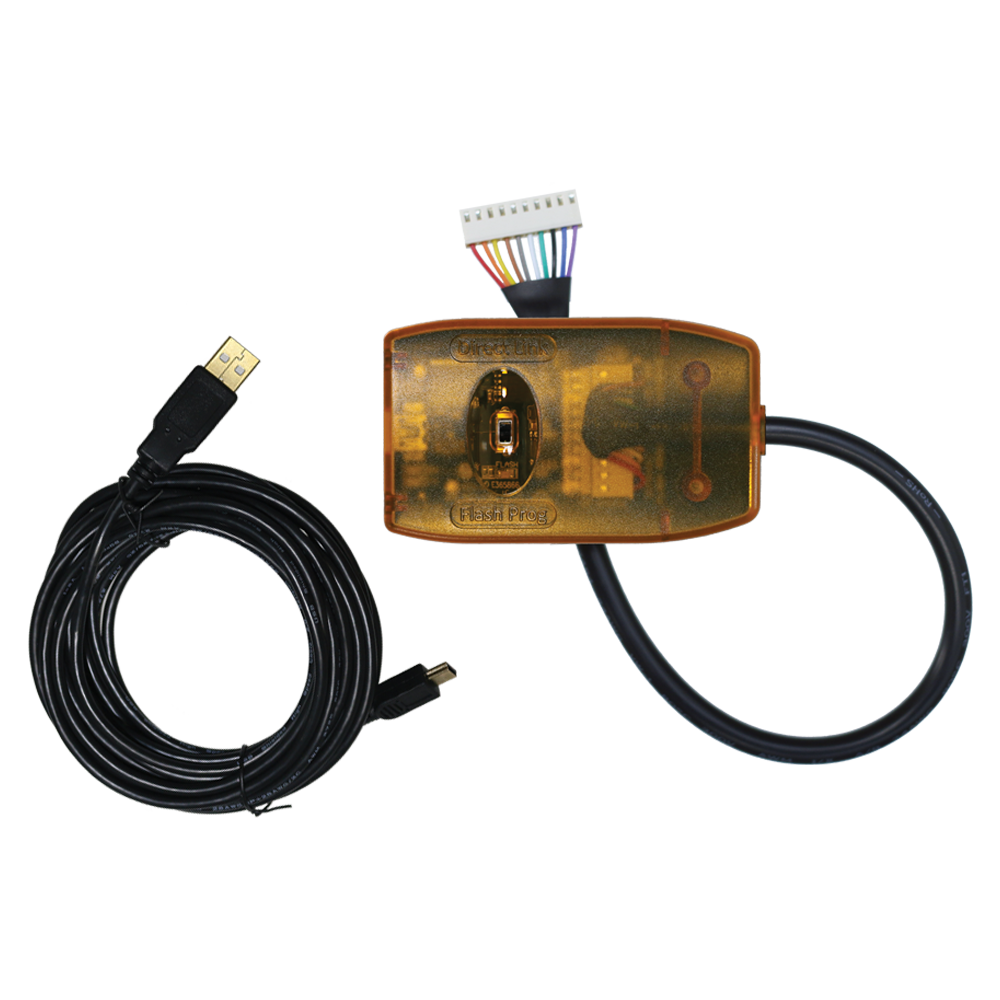

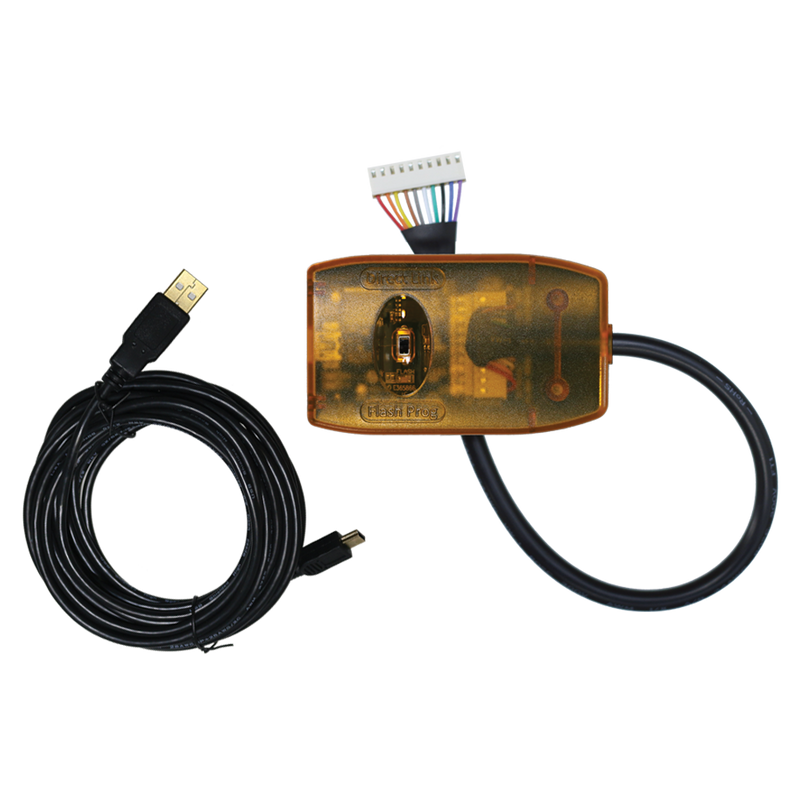

Bosch CM910 Direct Link & Flash Programming USB Cable
The Bosch CM910 is the installer's USB cable for Bosch Solution panels: a combined direct link and flash programmer that connects a Windows PC to the panel's 10 way serial header for on-site Solution Link programming sessions or firmware updates, with a select switch to choose between the two.
What you get
- 1 × CM910B direct link and flash programmer with a 10 way flying lead to the panel serial port header and a 5 metre USB cable
You'll also need
- A supported panel: Solution 16i, Solution 16Plus, Solution 64, Solution 144 or Solution 6000, sold here as the CC610P board
- A Windows PC with Solution Link software and the USB driver from the Solution Link RAS DVD or alarmsoftware.com.au
- The correct firmware file for the panel when flashing, and a Solution Link backup taken first
- For a panel with a lost installer code, the CM255B default key rather than this cable
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the CM910 is
The Bosch CM910 does two installer jobs with one lead. In Direct Link mode it carries a Solution Link RAS session, so a panel is programmed from a laptop on site instead of key by key at the code pad. In Flash Update mode it loads new control panel firmware. A switch on the module selects the mode, and the 5 metre USB cable reaches a panel mounted in a roof space or the back of a cupboard.
It is sold as the CM910, and the Bosch datasheet names the same module the CM910B. It supports the Solution 16i, Solution 16Plus, Solution 64, Solution 144 and Solution 6000, and the same panels plus the CM705B universal expander can be firmware updated through it. The module takes its power from the computer's USB port, so nothing else is wired in.
Software is where installers get stuck. The USB driver sits in the CM903 USB to Serial Converter Driver folder on the Solution Link RAS DVD, or downloads from alarmsoftware.com.au, and the flash update program only works on COM ports 1 to 4, so the port assigned in Windows Device Manager may need to be changed before flashing starts.
Two cautions apply on a Solution 6000. A firmware update may perform a complete system default at the end of the process, so the panel is backed up in Solution Link first, and firmware V2.53.19 only suits panels with serial numbers larger than 240000; a lower-numbered board will not run it.
The cable does not reset a lost installer code. That job belongs to the single-use CM255B default key, which unlocks both the installer PIN and the RAS security PIN on a Solution 6000. The programmer is rated for 0 to 55 °C and carries a 3 years return-to-base warranty from the date of manufacture.
§ 02Engineering
CM910 specifications
Panels — Solution 16i, Solution 16Plus, Solution 64, Solution 144 and Solution 6000, plus the CM705B for flashing — one programmer covers all five listed panels
Mode select — switch between Direct Link and Flash Update Programming Mode — no second cable to carry
Connection — 10 way flying lead to the panel serial port header, 5 metre USB cable — reaches a panel in a hard-to-reach place
Power — supplied via the computer USB port — no plug pack, no panel power drawn
Software — Solution Link for RAS sessions, driver from the RAS DVD or alarmsoftware.com.au, flash program on COM ports 1 to 4 — the known set-up traps, listed
Warranty — 3 years from date of manufacture, return to base — backed for the life of most tool kits
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | CM910B Combined Direct Link / Flash Programmer - USB |
| Purpose | The CM910B combined Direct Link / Flash Programmer module allows you to connect your PC or notebook to the control panel for on-site RAS sessions or to update control panel firmware using a single cable connected directly to a Windows PC USB port. |
| Module Compatibility | Panels Supported: Solution 16i, Solution 16Plus, Solution 64, Solution 144, Solution 6000 |
| Flash Firmware Upgrade Files | The following panels and modules can be firmware updated: Solution 16i, Solution 16+, Solution 64, Solution 144, Solution 6000, CM705B Universal Expander Module |
| Mode select | Use the select switch to change between Direct Link and Flash Update Programing Mode |
| Software | Solution Link software (direct link RAS session); The driver can be found on the Solutionlink RAS DVD in the CM903 - USB to Serial Converter Driver folder or you can download a copy from the alarmsoftware.com.au website. |
| COM port note | The flash update program is currently only capable of working on COM ports 1 - 4. |
Communications & Reporting
| Feature | Detail |
|---|---|
| Module Connection | Via 10 way flying lead to serial port header on the target device and 5M USB cable |
| Cable length | The CM910B is supplied with a 5 metre USB cable making it easy to program panels located in hard to reach places. |
Power & Electrical
| Feature | Detail |
|---|---|
| Operating Voltage | Supplied via computer USB port |
Physical & Environment
| Feature | Detail |
|---|---|
| Operating Environment | 0 to 55 °C RH 5 to 85% at 30 °C non-condensing. |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Warranty | 3 years from date of manufacture (return to base) |
| Overview & Compatibility — Product | CM910B Combined Direct Link / Flash Programmer - USB |
|---|---|
| Overview & Compatibility — Purpose | The CM910B combined Direct Link / Flash Programmer module allows you to connect your PC or notebook to the control panel for on-site RAS sessions or to update control panel firmware using a single cable connected directly to a Windows PC USB port. |
| Overview & Compatibility — Module Compatibility | Panels Supported: Solution 16i, Solution 16Plus, Solution 64, Solution 144, Solution 6000 |
| Overview & Compatibility — Flash Firmware Upgrade Files | The following panels and modules can be firmware updated: Solution 16i, Solution 16+, Solution 64, Solution 144, Solution 6000, CM705B Universal Expander Module |
| Overview & Compatibility — Mode select | Use the select switch to change between Direct Link and Flash Update Programing Mode |
| Overview & Compatibility — Software | Solution Link software (direct link RAS session); The driver can be found on the Solutionlink RAS DVD in the CM903 - USB to Serial Converter Driver folder or you can download a copy from the alarmsoftware.com.au website. |
| Overview & Compatibility — COM port note | The flash update program is currently only capable of working on COM ports 1 - 4. |
| Communications & Reporting — Module Connection | Via 10 way flying lead to serial port header on the target device and 5M USB cable |
| Communications & Reporting — Cable length | The CM910B is supplied with a 5 metre USB cable making it easy to program panels located in hard to reach places. |
| Power & Electrical — Operating Voltage | Supplied via computer USB port |
| Physical & Environment — Operating Environment | 0 to 55 °C RH 5 to 85% at 30 °C non-condensing. |
| Compliance & Warranty — Warranty | 3 years from date of manufacture (return to base) |
§ 08Questions
Frequently asked about the CM910
Q.01
What is the Bosch CM910 for?
Q.02
Which panels does it support?
Q.03
Is it the CM910 or the CM910B?
Q.04
How do I switch between programming and flashing?
Q.05
Do I need a driver?
Q.06
Why will the flash program not see the cable?
Q.07
Can flashing wipe the panel?
Q.08
Which Solution 6000 panels can take firmware V2.53.19?
Q.09
Does it reset a lost installer code?
