Bosch CM255B Panel Default Unlock Key for Solution 6000
The Bosch CM255B is the way into a Solution panel whose installer PIN nobody knows: a single-use plug-in key that resets the installer PIN and RAS security PIN on a Solution 6000, so the panel is taken over on site instead of being unwired and returned for defaulting.
What you get
- 1 × CM255B factory default module, blue, with red and green status indicators, for one use only
You'll also need
- Access to the panel board and its 10-pin connector marked Serial Port or Direct Link Port, such as on the CC610P
- A new key for every panel defaulted, because a used key cannot be used again
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the CM255B is
The Bosch CM255B exists for one situation. A Solution panel arrives second-hand, or an installer moves on, and the installer PIN is gone. When factory defaulting has been disabled in panel programming, the current installer PIN is needed to default the panel, which leaves two options: return the panel to the supplier, or unlock it in the field with this key.

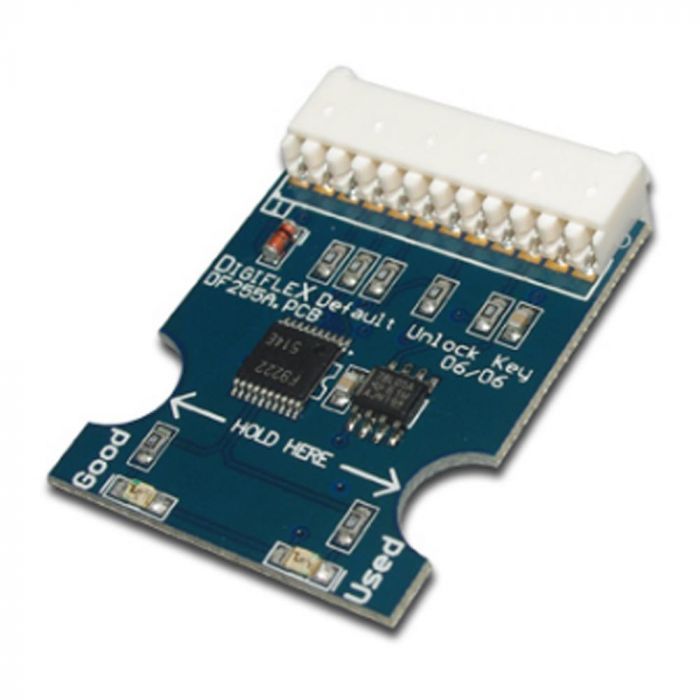

The key plugs into the 10-pin connector marked Serial Port or Direct Link Port. A steady green LED means the key is good; red and green flashing alternately means defaulting has been initiated and the key can be removed and thrown away; a steady red LED means the key has already been used and cannot be used again.
What gets reset depends on the panel. On a Solution 6000 it unlocks the installer PIN and the RAS security PIN, after which the panel is entered with the default installer PIN 1234 followed by MENU. On a Solution 16i, 16+ or 64 it performs a complete factory default, and on a Solution 144 it defaults only the installer code and RAS PIN.
It is a one-time-use device, discarded after use, and it carries no warranty because of its disposable nature. Budget one key per panel, and keep it for lost codes: a panel whose installer PIN is known does not need defaulting at all.
§ 02Engineering
CM255B specifications
Solution 6000 — unlocks the installer PIN and RAS security PIN — the way back into programming when the codes are lost
Other panels — complete factory default on Solution 16i, 16+ and 64, installer code and RAS PIN only on Solution 144 — know which result to expect before plugging in
Connection — 10-pin connector marked Serial Port or Direct Link Port, orientation matters — no wiring changes to the panel
Indicators — green steady is good, red and green alternating is defaulting under way, red steady is already used — the key reports its own state
Single use — one time use only, discard after use — one key per panel
Warranty and marks — no warranty because it is disposable, N12138 and RoHS marked — a consumable, priced as one
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | CM255B Solution 6000 factory default module - plug-in panel unlock key, one time use only, blue |
| Product type (supplier listing) | Plug in module |
| Purpose (installer guide) | The CM255B factory default module has been designed to eliminate the need to un-wire the control panel or spend the time and money returning it to the factory for defaulting |
| Use (installer guide) | The CM255B is a ONE TIME USE ONLY device. Discard after use! |
| Compatible panels (installer guide) | Solution 16i - Complete Factory Default; Solution 16+ - Complete Factory Default; Solution 64 - Complete Factory Default; Solution 144 - Installer code & RAS Pin Defaulted Only |
| Solution 6000 (product matrix) | Panel Default Unlock Key - Will reset Installer PIN and RAS PIN on Solution 6000 panels (F.01U.271.514) |
| Connection (installer guide) | Plugs into the control panel connector marked Serial Port or Direct Link Port (10 pin serial port) |
| Factory-default lockout (installer guide) | Selected Solution control panels include a software option that when selected will disable the factory defaulting option; if set, the current installer PIN code is required |
Keypad & Display
| Feature | Detail |
|---|---|
| Indicators (installer guide) | Red LED ON steady: module has already been used and can't be used again; Green LED ON steady: default module is good; Red & Green alternate flashing: factory defaulting initiated, module can be removed and discarded |
Physical & Environment
| Feature | Detail |
|---|---|
| Colour (supplier listing) | Blue |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Warranty (installer guide) | There is no warranty provided with this product because of its disposable nature |
| Supplier warranty | N/A |
| Marks (installer guide) | N12138; RoHS |
| Overview & Compatibility — Product | CM255B Solution 6000 factory default module - plug-in panel unlock key, one time use only, blue |
|---|---|
| Overview & Compatibility — Product type (supplier listing) | Plug in module |
| Overview & Compatibility — Purpose (installer guide) | The CM255B factory default module has been designed to eliminate the need to un-wire the control panel or spend the time and money returning it to the factory for defaulting |
| Overview & Compatibility — Use (installer guide) | The CM255B is a ONE TIME USE ONLY device. Discard after use! |
| Overview & Compatibility — Compatible panels (installer guide) | Solution 16i - Complete Factory Default; Solution 16+ - Complete Factory Default; Solution 64 - Complete Factory Default; Solution 144 - Installer code & RAS Pin Defaulted Only |
| Overview & Compatibility — Solution 6000 (product matrix) | Panel Default Unlock Key - Will reset Installer PIN and RAS PIN on Solution 6000 panels (F.01U.271.514) |
| Overview & Compatibility — Connection (installer guide) | Plugs into the control panel connector marked Serial Port or Direct Link Port (10 pin serial port) |
| Overview & Compatibility — Factory-default lockout (installer guide) | Selected Solution control panels include a software option that when selected will disable the factory defaulting option; if set, the current installer PIN code is required |
| Keypad & Display — Indicators (installer guide) | Red LED ON steady: module has already been used and can't be used again; Green LED ON steady: default module is good; Red & Green alternate flashing: factory defaulting initiated, module can be removed and discarded |
| Physical & Environment — Colour (supplier listing) | Blue |
| Compliance & Warranty — Warranty (installer guide) | There is no warranty provided with this product because of its disposable nature |
| Compliance & Warranty — Supplier warranty | N/A |
| Compliance & Warranty — Marks (installer guide) | N12138; RoHS |
§ 08Questions
Frequently asked about the CM255B
Q.01
What does the Bosch CM255B do on a Solution 6000?
Q.02
Can I use it more than once?
Q.03
How do I know if a key is still good?
Q.04
Where does it plug in?
Q.05
What happens after the reset on a Solution 6000?
Q.06
What does it reset on other Solution panels?
Q.07
What if factory defaulting has been disabled on the panel?
Q.08
Does it come with a warranty?
