Bosch CM705PB Universal Zone & Output Expander Solution 6000
The Bosch CM705PB is the universal expander PCB for the Solution 6000: one LAN module that adds up to 16 zone inputs, 4 monitored 500mA outputs and power terminals with a battery charger.
What you get
- Bosch CM705PB universal expander module — PCB only
You'll also need
- A compatible Solution 6000 control panel
- A 16-18V AC 50-60Hz – 24VA External Power Adaptor or internal transformer, a 12V DC, 7.2AH battery for the module's own supply and a suitable enclosure
- Detectors for the new zones and any devices required for the programmable outputs
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the CM705PB is

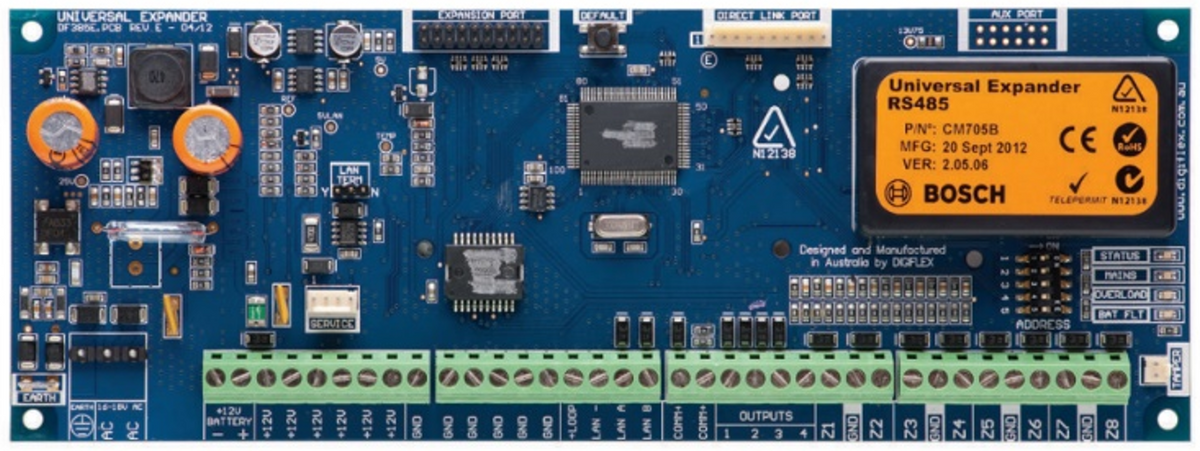

The Bosch CM705PB is the PCB-only version of the CM705B universal expander for Solution 6000. On one board, it combines up to 16 zone inputs, 4 protected open-collector outputs rated at 500mA each, 6 Power Out terminals and a power supply with its own battery charger.
The module's zone side supports Single, Alarm+Tamper and Split EOL monitoring with up to 15 different EOL Resistor options, and the optional CM707B plug-on module brings the hard wired inputs to 16 for Alarm + Tamper or single EOL configurations. The outputs are monitored for short and open circuit and can supervise horn speakers and other connected devices, so a connected horn speaker is monitored in the same way as other output devices.
It takes a 16-18V AC 50-60Hz – 24VA input from an external power adaptor or internal transformer, charges a 12V DC, 7.2AH sealed battery as its secondary source, and offers a 2.5A PTC-fused COMM+ terminal for the onboard outputs plus 1A fused +12V outputs for detectors and other modules. It is specified at 10.0V DC – 14.5V Dc @ 90mA Max.
It connects to the panel over the 4-wire encrypted RS485 LAN, is addressed with a DIP switch, and carries anti-substitution protection and resettable fuse protection on the power terminals. It provides a Service Code Pad connection point and a dedicated tamper input; if the tamper input is not required, the supplied shunt can disable it.
It is a bare board, so a metal cabinet is not included. The module needs a separate primary power source and battery, and that primary source can be an external power adaptor or internal transformer; a suitable enclosure and mounting arrangement are also selected for the PCB-only module.
§ 02Engineering
CM705PB specifications
Zones — Single, Alarm+Tamper and Split EOL with up to 15 different EOL Resistor options — matches the site's required supported wiring configuration
Outputs — 4 protected open-collector outputs, 500mA each, monitored for short and open circuit — horn speakers and other connected devices can be supervised
Power supply — 16-18V AC 50-60Hz – 24VA input with a charger for a 12V DC, 7.2AH battery — provides a secondary power source for the module
Power terminals — COMM+ 2.5A and +12V 1A outputs, PTC fuse protected — detectors and modules can be powered locally
Security — anti-substitution protection on the encrypted RS485 LAN — helps protect the system from module substitution
Service access — Service Code Pad connection point and dedicated tamper input with supplied disabling shunt — local servicing is supported and unused tamper monitoring can be disabled
Fit — PCB only, 235(W) x 85(D) x 40(H)mm — the module is supplied without a metal cabinet
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | CM705PB Universal LAN Zone Expander Module |
| Form | The Universal Expander is available in a metal cabinet (CM705B) or as a PCB module only (CM705PB) depending on your requirements. |
| Connection | The module connects to the control panel via the 4-wire encrypted RS485 LAN, and must be assigned a unique address on the LAN via the address DIP switch. |
| Fixing Method | The CM705B can be mounted in the MW700, MW710, Mw720 or MW730 enclosures using clip-in PCB mounts supplied |
| Optional plug on expander | The optional CM707B plug on module can be added via the expansion port on the CM705B Universal Expander to provide an additional 8 hard wired zone inputs, bringing the CM705B Universal Expander to 16 hard wired zone inputs for Alarm + Tamper, 4 state monitoring or single EOL configurations. |
| Panel compatibility (Solution 6000 datasheet) | Input zone expansion options include CM704B - 8/16 zone expanders, CM705B – 8/16 universal zone expanders and CM707B - 8 zone piggy back expanders. Up to 8 modules of any type can be used. |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Zone inputs | up to 16 zone inputs |
| EOL support | Supports Single, Alarm+Tamper and Split EOL, with up to 15 different EOL Resistor options |
| Programmable Outputs | 4 protected open-collector outputs capable of providing a maximum of 500mA (-) each. Outputs are monitored for short and open circuit and can monitor the state of horn speakers and other connected devices. |
| Power Out terminals | 6 Power Out terminals simplify wiring; outputs are overload and short circuit proof |
| Service Code Pad | Service Code Pad connection point |
| Tamper input | Dedicated service code pad and tamper inputs are provided. If the tamper input is not required, then it can be disabled by fitting the supplied shunt to the tamper input. |
Communications & Reporting
| Feature | Detail |
|---|---|
| Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 300m; Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. |
| Security | High security module with anti-substitution protection and resettable fuse protection on power out terminals |
Power & Electrical
| Feature | Detail |
|---|---|
| Operating Voltage | 10.0V DC – 14.5V Dc @ 90mA Max |
| Voltage Input (Primary Source) | 16-18V AC 50-60Hz – 24VA External Power Adaptor or 220-240V AC to 18V AC 50-60Hz – 24VA Internal Transformer |
| Stand-By – Battery (Secondary Source) | 12V DC, 7.2AH sealed rechargeable battery Panasonic LC-P127R2P or equivalent |
| Power Output Terminals | COMM+ - 2.5A high current output for use with onboard outputs, PTC fuse protected. +12V -1A outputs for use with detectors or powering other modules, PTC fuse protected. |
Physical & Environment
| Feature | Detail |
|---|---|
| PWA Dimensions | 235(W) x 85(D) x 40(H)mm |
| Temperature | -30 to 55 °C Operating |
| Humidity | 5% to 85% at 30 °C non-condensing |
Compliance & Warranty
| Feature | Detail |
|---|---|
| C-tick Supplier Code | N12138 |
| CE | EN 55022:2010, EN 60950-1:2001 |
| Telepermit | PTC 211/12/017 |
| Warranty | 3 years |
| Overview & Compatibility — Product | CM705PB Universal LAN Zone Expander Module |
|---|---|
| Overview & Compatibility — Form | The Universal Expander is available in a metal cabinet (CM705B) or as a PCB module only (CM705PB) depending on your requirements. |
| Overview & Compatibility — Connection | The module connects to the control panel via the 4-wire encrypted RS485 LAN, and must be assigned a unique address on the LAN via the address DIP switch. |
| Overview & Compatibility — Fixing Method | The CM705B can be mounted in the MW700, MW710, Mw720 or MW730 enclosures using clip-in PCB mounts supplied |
| Overview & Compatibility — Optional plug on expander | The optional CM707B plug on module can be added via the expansion port on the CM705B Universal Expander to provide an additional 8 hard wired zone inputs, bringing the CM705B Universal Expander to 16 hard wired zone inputs for Alarm + Tamper, 4 state monitoring or single EOL configurations. |
| Overview & Compatibility — Panel compatibility (Solution 6000 datasheet) | Input zone expansion options include CM704B - 8/16 zone expanders, CM705B – 8/16 universal zone expanders and CM707B - 8 zone piggy back expanders. Up to 8 modules of any type can be used. |
| Zones, Outputs & Capacity — Zone inputs | up to 16 zone inputs |
| Zones, Outputs & Capacity — EOL support | Supports Single, Alarm+Tamper and Split EOL, with up to 15 different EOL Resistor options |
| Zones, Outputs & Capacity — Programmable Outputs | 4 protected open-collector outputs capable of providing a maximum of 500mA (-) each. Outputs are monitored for short and open circuit and can monitor the state of horn speakers and other connected devices. |
| Zones, Outputs & Capacity — Power Out terminals | 6 Power Out terminals simplify wiring; outputs are overload and short circuit proof |
| Zones, Outputs & Capacity — Service Code Pad | Service Code Pad connection point |
| Zones, Outputs & Capacity — Tamper input | Dedicated service code pad and tamper inputs are provided. If the tamper input is not required, then it can be disabled by fitting the supplied shunt to the tamper input. |
| Communications & Reporting — Module Connection (RS485 LAN) | Max total LAN length using multi strand security cable = 300m; Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. |
| Communications & Reporting — Security | High security module with anti-substitution protection and resettable fuse protection on power out terminals |
| Power & Electrical — Operating Voltage | 10.0V DC – 14.5V Dc @ 90mA Max |
| Power & Electrical — Voltage Input (Primary Source) | 16-18V AC 50-60Hz – 24VA External Power Adaptor or 220-240V AC to 18V AC 50-60Hz – 24VA Internal Transformer |
| Power & Electrical — Stand-By – Battery (Secondary Source) | 12V DC, 7.2AH sealed rechargeable battery Panasonic LC-P127R2P or equivalent |
| Power & Electrical — Power Output Terminals | COMM+ - 2.5A high current output for use with onboard outputs, PTC fuse protected. +12V -1A outputs for use with detectors or powering other modules, PTC fuse protected. |
| Physical & Environment — PWA Dimensions | 235(W) x 85(D) x 40(H)mm |
| Physical & Environment — Temperature | -30 to 55 °C Operating |
| Physical & Environment — Humidity | 5% to 85% at 30 °C non-condensing |
| Compliance & Warranty — C-tick Supplier Code | N12138 |
| Compliance & Warranty — CE | EN 55022:2010, EN 60950-1:2001 |
| Compliance & Warranty — Telepermit | PTC 211/12/017 |
| Compliance & Warranty — Warranty | 3 years |
