Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Detector, 12 m x 12 m

SKU: BPR2-W12
Description

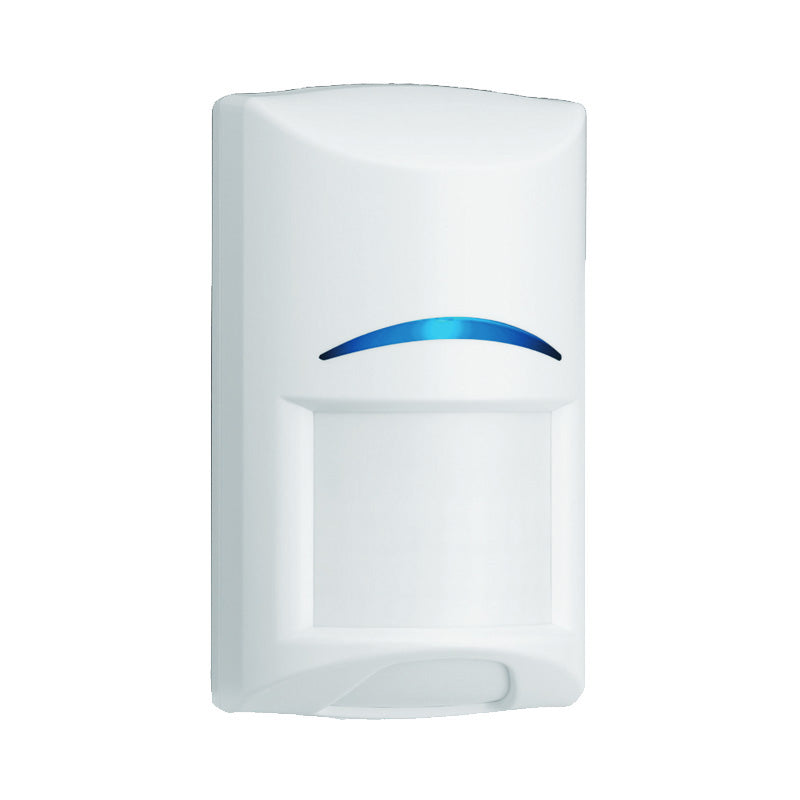

The Bosch ISC-BPR2-W12 is the everyday hardwired motion detector for a house or small business: 12 m x 12 m of wall-to-wall coverage from a dense 77 zone pattern, with First Step Processing setting the sensitivity so the installer does not have to.

What you get

  • 1 × ISC-BPR2-W12 detector in a white high-impact ABS enclosure with a bubble level and lift-gate terminal blocks
  • 1 × hardware pack with two anchors, two screws and a cable tie, plus an installation guide

You'll also need

  • An alarm panel with a spare zone and a 24-hour tamper circuit
  • A cable run from the panel carrying its supply, the alarm relay and the tamper, plus the end-of-line resistors the panel requires
  • A bracket if it is not going flat on a wall or into a corner, such as the B338 ceiling mount
$38.60 AUD $38.60 AUD $39.00 AUD
Sale 1.03% $0.40 AUD (1.03%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Optional extras Add alarm accessories

Choose optional additions for this product. Check each item for compatibility with your setup.

Add accessories Optional. Select the items you need and choose a quantity.
0
0
0
0
Bundle total: $38.60

01Overview

What the BPR2-W12 is

The Bosch ISC-BPR2-W12 is the detector most rooms in a house or a small office end up with, and the reason is that it is hard to get wrong. There is no sensitivity level to pick: First Step Processing sets it from the amplitude, polarity, slope and timing of the signal, which removes the guesswork a sensitivity pot invites.

A selectable lookdown lens adds three zones directly beneath the detector. That is the part of the room an intruder coming through the window below would otherwise cross unseen, and it is what makes the pattern reach the wall rather than stop short of it.

Dynamic temperature compensation then holds that sensitivity as conditions change, so a person is still identified when the room approaches body heat. The sealed optical chamber keeps drafts and insects away from the optics.

The enclosure is built for the installer. It slides and self-locks, has an integrated bubble level so it sits square, and uses gap-free lift-gate terminal blocks rather than screws that drop into the cavity.

Be clear about what it is not. This is the standard model: it carries no pet allowance, it is a single-technology PIR, and it cannot be used outdoors. Mounted 2.2 m to 2.75 m up with no adjustment needed, it draws 10 mA at 12 VDC, so the panel supply is rarely the constraint.

02Engineering

BPR2-W12 specifications

Bosch ISC-BPR2-W12 optics — two Fresnel lenses giving a high density 77 zone, seven-layer pattern — sharply focused detection across the whole field of view
Lookdown — selectable lookdown lens adding three zones beneath the detector — the area directly below is covered, not just the far corner
Coverage — 12 m x 12 m wall to wall from 2.2 m to 2.75 m with no adjustment — a domestic room from one corner
Sensitivity — First Step Processing sets sensitivity from amplitude, polarity, slope and timing — nothing for the installer to guess at on site
Temperature — dynamic temperature compensation adjusts sensitivity automatically — catch performance holds through a hot Australian afternoon
Installer enclosure — sliding self-locking case, integrated bubble level, gap-free lift-gate terminal blocks — quicker to fit level and terminate
Commissioning — externally visible alarm LED that can be disabled after installation — the pattern cannot be walked and mapped afterwards
Outputs — supervised Form A NC relay at 2.5 W, up to 100 mA at 25 VDC, NC tamper for the 24-hour circuit — a conventional panel zone connection
Power and build — 10 mA at 12 VDC from 9 VDC to 15 VDC, 105 mm x 61 mm x 44 mm ABS, -30°C to +55°C — a very light load on the panel supply

03Full datasheet

Detailed specifications

Overview & Compatibility

Overview & Compatibility — Bosch ISC-BPR2-W12 Blue Line Gen2 PIR Detector, 12 m x 12 m
FeatureDetail
Product ISC-BPR2-W12 Blue Line Gen2 PIR Motion Detector (12 m [40 ft] coverage)
Technology The Blue Line Gen2 PIR Motion Detectors (ISC-BPR2) use two Fresnel lenses designed to produce sharply-focused images throughout the field of view providing superior response to intruders.
Accessories B328 Mounting bracket, gimbal; B335-3 Mounting bracket, swivel, low profile; B338 Mounting bracket, ceiling, universal
Parts included 1 Detector; 1 Hardware pack (2 anchors, 2 screws, 1 cable tie); 1 Literature - Installation Guide
Order number ISC-BPR2-W12 | F.01U.134.140 F.01U.364.870 F.01U.399.655 F.01U.413.359 F.01U.435.163
Detection type PIR

04Why choose this

Built for the way you actually use the BPR2-W12

Bosch ISC-BPR2-W12: nothing to set wrong on site

First Step Processing decides sensitivity from the amplitude, polarity, slope and timing of the signal, so there is no sensitivity level for an installer to pick. One less setting is one less thing to get wrong in a hurry.

Focused detection across the whole room

Two Fresnel lenses give a high density 77 zone, seven-layer pattern with sharply focused images across the field of view. A denser pattern leaves fewer gaps between the zones for someone to move through.

It watches under itself too

A selectable lookdown lens adds three zones directly beneath the detector, which is where an intruder coming through the window below would otherwise be missed. With it, the 12 m x 12 m pattern is genuinely wall to wall.

It stays sensitive when the room is warm

Dynamic temperature compensation adjusts sensitivity so a human intruder is identified at virtually any temperature. In an Australian summer that is most afternoons, and it is when a fixed-sensitivity detector is weakest.

Made to be installed quickly

The sliding self-locking enclosure has a bubble level built in and gap-free lift-gate terminal blocks, so it sits square and terminates without dropped screws. Small things, repeated across a whole house.

Honest about what it is not

This is the standard model with no pet allowance and a single detection technology. Where a dog is left inside, or a room defeats a plain PIR, another model in the same family is the one to look at.

05Where it fits

Right at home in these scenarios

Bedrooms and hallways of an Australian home

The Bosch ISC-BPR2-W12 covers a 12 m x 12 m room from a corner at 2.2 m to 2.75 m, and the lookdown zones cover the window directly under it. It is the detector most rooms in a domestic system use.

Small office or shop without animals

A commercial room with no pets gets full catch performance without a pet allowance, and the automatic sensitivity keeps commissioning quick when several rooms are fitted at once.

Room with a heater or afternoon sun

Dynamic temperature compensation adjusts sensitivity as the room approaches body heat, and the sealed optical chamber keeps drafts and insects out of the optics. Both matter in a west-facing room in summer.

06Setup

Installation & setup

  1. What is in the box

    The Bosch ISC-BPR2-W12 comes with a hardware pack holding two anchors, two screws and a cable tie, plus an installation guide. Brackets, cable and end-of-line resistors are ordered separately.

  2. Where to mount it

    The recommended height is 2.2 m to 2.75 m, with no adjustment required at that height. Fit it flat on a wall surface or semi-flush, in a corner, or on the optional B328 gimbal, B335-3 low-profile swivel or B338 universal ceiling bracket, using the integrated bubble level to sit it square.

  3. Setting the lookdown

    The lookdown lens is selectable, so decide whether the area directly beneath the detector needs covering. In a room with a window below the mounting position, it usually does.

  4. Cabling

    Run one cable from the panel carrying the 9 VDC to 15 VDC supply, the Form A normally-closed alarm relay and the normally-closed tamper, taking the tamper to a 24-hour protection circuit and fitting the end-of-line resistors the panel requires. The lift-gate terminal blocks take the conductors without loose screws.

  5. Power

    The detector draws 10 mA at 12 VDC from a 9 VDC to 15 VDC supply. That is a very light load to plan for when the panel supply is worked out.

  6. Commissioning

    There is no sensitivity to set, so walk test using the externally visible alarm LED and then disable that LED once the pattern is confirmed.

  7. When to call an electrician

    The detector runs on low voltage from the alarm panel and needs no mains work. Use a licensed electrician for any new or altered fixed wiring, and a licensed security installer for the panel programming.

08Questions

Frequently asked about the BPR2-W12

Q.01

Bosch ISC-BPR2-W12 coverage: how much area does it watch?
Its pattern is 12 m x 12 m, described as wall to wall with the improved lookdown zone. The recommended mounting height is 2.2 m to 2.75 m.
Q.02

Do I need to set the sensitivity?
No. First Step Processing adjusts sensitivity itself from the amplitude, polarity, slope and timing of the signal, which removes the need for the installer to select a level.
Q.03

Is it pet friendly?
No. This is the standard Blue Line Gen2 PIR. The pet-friendly models in the same family are the ones to choose where animals are left inside while the system is armed.
Q.04

What is the lookdown lens for?
It is selectable and adds three zones directly beneath the detector, covering the area an intruder entering below the mounting position would otherwise pass through.
Q.05

Will a warm room stop it working?
Dynamic temperature compensation adjusts sensitivity so it identifies human intruders at virtually any temperature, and the sealed optical chamber keeps drafts and insects from affecting it.
Q.06

Can the alarm LED be turned off?
Yes. The externally visible alarm LED can be disabled after installation, so it cannot be used to map where detection starts.
Q.07

How does it connect to the panel?
Through a supervised solid-state Form A normally-closed relay rated 2.5 W and up to 100 mA at 25 VDC, with a normally-closed tamper that goes to a 24-hour protection circuit.
Q.08

How much power does it draw?
10 mA at 12 VDC, from a 9 VDC to 15 VDC supply.
Q.09

What conditions is it rated for?
Indoor use from -30°C to +55°C at up to 95% non-condensing humidity, or 0°C to +49°C for UL Listed product installations.
