Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision, Audible Warning 4CH PoE AI NVR + 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision, Audible Warning 4CH PoE AI NVR + 4TB HDD
SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2
Description
1 x DHI-NVR4104HS-P-AI/ANZ with 4TB HDD,
4 x DH-IPC-HDW3849H-AS-PV-ANZ-S2.
Regular price
$1,534.95 AUD
Sale price
$1,534.95 AUD
Regular price
$1,748.00 AUD
Sale
12.19%
$213.05 AUD
(12.19%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua 4 x 8MP TiOC CCTV Kit: Full Colour Night Vision, Audible Warning 4CH PoE AI NVR + 4TB HDD
1
/
of
1
Customize this kit Kit price $1,534.95

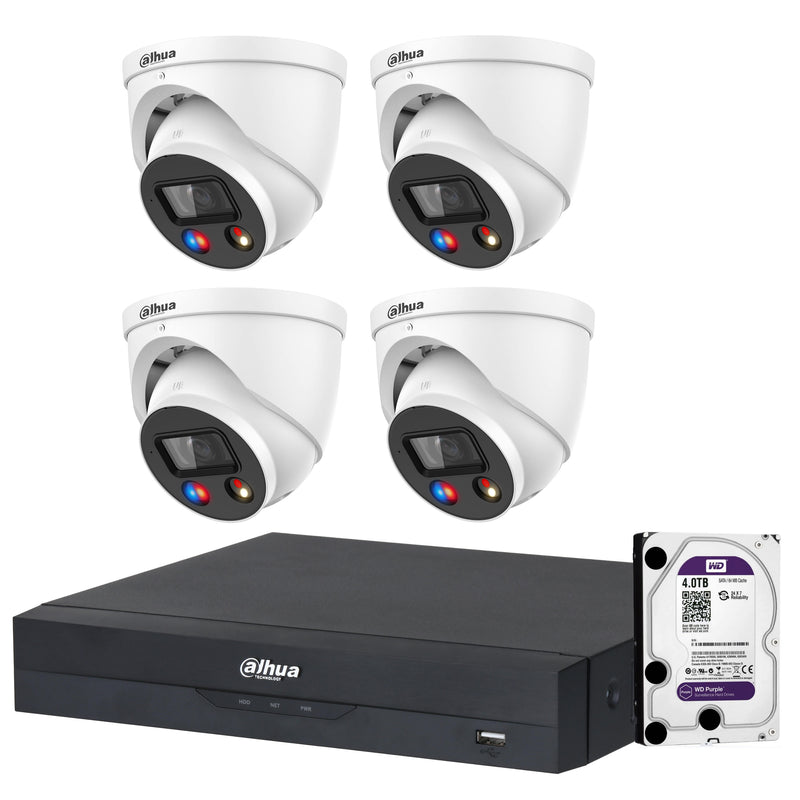

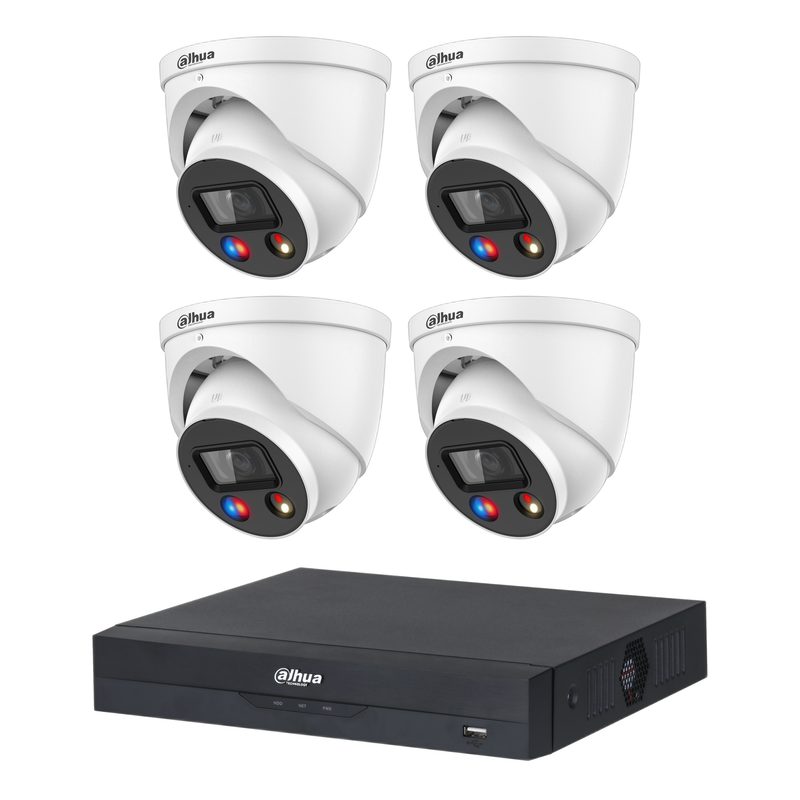

This kit includes:
- 4 × Dahua TIOC Advanced 3.0 DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP AI Active Deterrence Full color Starlight IP Turret Camera
- 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm or 4mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Dahua 4 x DH-IPC-HDW3849H-AS-PV-ANZ-S2 surveillance package delivers 8MP TiOC 3.0 full-colour monitoring with active deterrence features. This CCTV kit integrates warm light night vision, two-way audio, and AI-based motion detection for comprehensive protection in any environment.
§ 02Engineering
Technical specifications
- 8MP TiOC Cameras: Four cameras delivering 3840 × 2160 resolution with AI-powered vehicle/human classification and SMD 4.0.
- Full-Colour Monitoring: 24/7 colour imaging via dual warm/IR LEDs, featuring smart illumination modes.
- Active Deterrence: Red/blue strobe lights, 110dB speaker, and customisable voice/siren alerts for intrusion prevention.
- Two-Way Audio: Built-in mic and speaker enabling real-time communication and push notifications.
- PoE AI NVR: 4-channel recorder with 80Mbps throughput, supporting AI face recognition, SMD Plus, and adaptive decoding.
- All-Weather Durability: IP67-rated cameras and weatherproof junction brackets for outdoor deployment.
- Full-Colour Monitoring: 24/7 colour imaging via dual warm/IR LEDs, featuring smart illumination modes.
- Active Deterrence: Red/blue strobe lights, 110dB speaker, and customisable voice/siren alerts for intrusion prevention.
- Two-Way Audio: Built-in mic and speaker enabling real-time communication and push notifications.
- PoE AI NVR: 4-channel recorder with 80Mbps throughput, supporting AI face recognition, SMD Plus, and adaptive decoding.
- All-Weather Durability: IP67-rated cameras and weatherproof junction brackets for outdoor deployment.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | 3.6 mm: H: 85°; V: 45°; D: 102° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | 2.8 mm: Detect 66.0 m (216.54 ft); Observe 26.4 m (86.61 ft); Recognize 13.2 m (43.31 ft); Identify 6.6 m (21.65 ft) | 3.6 mm: Detect 78.0 m (255.91 ft); Observe 22.2 m (102.36 ft); Recognize 15.6 m (51.18 ft); Identify 7.8 m (25.59 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%); AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps) | Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 9/11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/MAC fltering;Generaton and importng of X.509 certfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) | Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
| Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use it
8MP 4K Ultra HD Clarity
Captures crystal-clear 3840 × 2160 resolution video for precise identification of people and vehicles
Full-Colour Night Vision
Smart Dual Light technology provides 24/7 colour monitoring even in dark outdoor environments
AI Human & Vehicle Detection
TiOC 3.0 technology accurately classifies targets to reduce false alarms from pets or swaying trees
§ 05Where it fits
Right at home in these scenarios
Front Verandah & Entrance
Monitors arrival of visitors with two-way audio for direct communication and active deterrence
Driveway & Garage Forecourt
Detects approaching vehicles using precision AI motion detection and intrusion settings
Backyard & Pool Area
Ensures safety in dark entertainment spaces with full-colour night vision and warm light illumination
Property Perimeter
Secures fence lines and boundaries with real-time strobe and audio alerts for unauthorised access
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires 12V DC power adapter or PoE (802.3af) network switch connection 2. Network Connection: Wired Ethernet cabling (Cat5e/Cat6) to router or NVR for data transmission 3. Mounting Surface: Solid wall, ceiling or eave capable of supporting camera weight
App Setup
1. Download the DMSS mobile application from the Apple App Store or Google Play Store 2. Create an account and scan the device QR code to add the camera to your network 3. Configure active deterrence parameters and motion detection zones within the app settings
