Dahua 6 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
Dahua 6 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
1 1
Dahua

Dahua 6 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence

SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2
Description

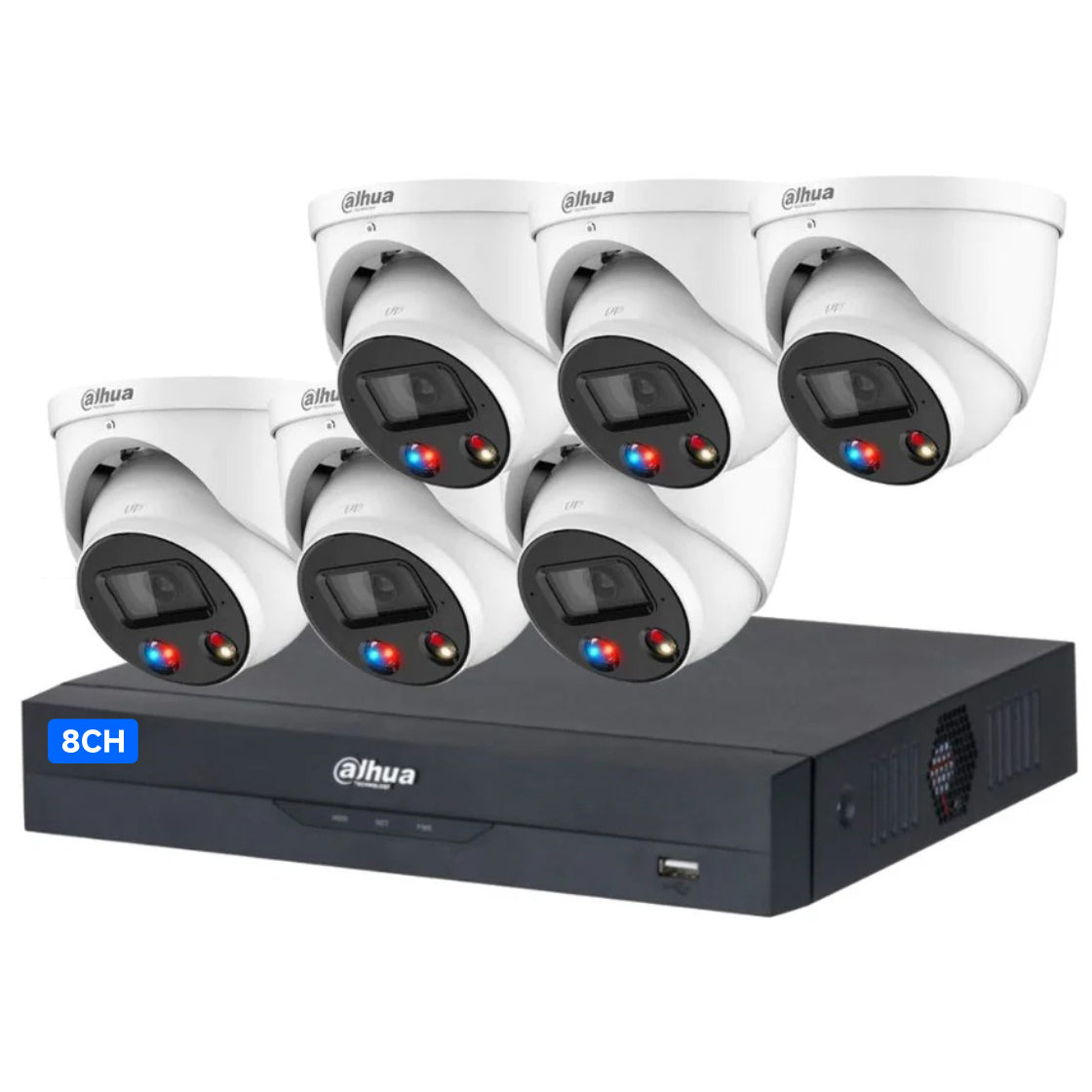

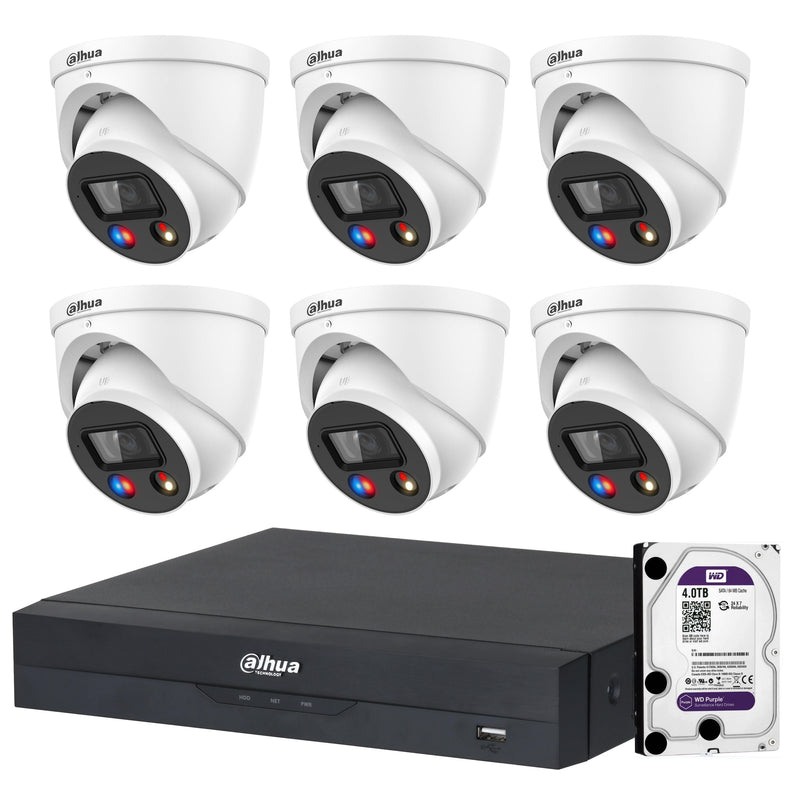

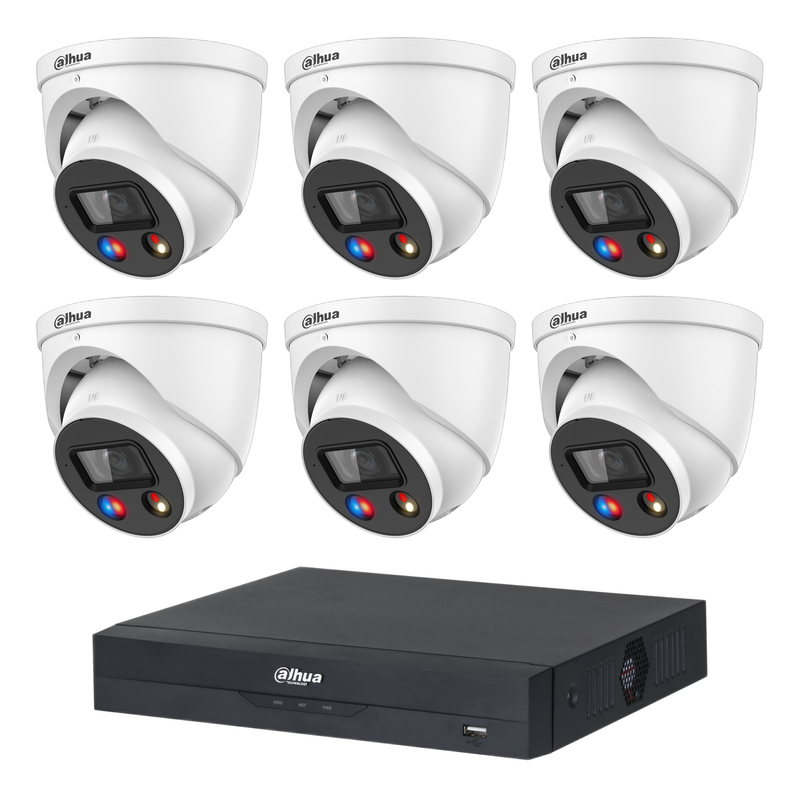

1 x DHI-NVR4108HS-8P-AI/ANZ 8CH PoE NVR with 4TB HDD installed,
6 x DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC turret cameras.
6 cameras 8MP Ultra HD 30m IR Night Vision Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Blue/Red Strobe Audio Alarm Two-Way Audio 8 x POE PORTS
$2,365.20 AUD $2,365.20 AUD $2,556.00 AUD
Sale 7.46% $190.80 AUD (7.46%)
Member Sign in to save $47.30 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Customize this kit Kit price $2,365.20
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 6 × Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm, AcuPick, Active Deterrence, Two-Way Talk
  • 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
  • 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
Add extra cameras Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm, AcuPick, Active Deterrence, Two-Way Talk · Max 16 · Each extra camera uses one NVR channel
+$0.00
NVR · channels ≥ your total camera count Base: 8ch · Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder
Hard Drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7 Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...
Add accessories
1
1
1
1
1
1
Price breakdown:
  • Dahua 6 x 8MP DH-IPC-HDW3849H-AS-PV-A... $2,365.20
Total: $2,365.20
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDW3849H-AS-PV-ANZ-S2 is

Lens options: 2.8mm focal length.

Color options: White or Black.

Note: Please indicate your choice in your order message.

This 6-camera TiOC 3.0 kit pairs six DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP turrets with the 8-channel DHI-NVR4108HS-8P-AI/ANZ recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.

Six cameras suits a two-storey home or a corner block: the four approaches plus the porch close-up and the blind side a four-camera setup leaves open.

Every position fights back — red and blue lights, a siren or voice warning, and a 4K full-colour event recording under the warm light.

Faces identify to about 6.6 metres, and SMD 4.0 keeps the alerts to humans and vehicles.

The 8CH NVR keeps two spare PoE channels.

Six 8MP streams fill the 4TB drive in around 10 days of continuous recording — on a six-camera 4K system, motion-only recording or a drive upgrade via the kit customiser on this page is the practical choice.

See it in action

What the DH-IPC-HDW3849H-AS-PV-ANZ-S2 features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Blue/Red Strobe — When activity is detected after dark, the camera can flash a bright red-and-blue strobe t...

Blue/Red Strobe

When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3849H-AS-PV-ANZ-S2 specifications

- 6 x 8MP TiOC 3.0 Turrets: 3840 × 2160 F1.0 sensors rated to 0.004 lux colour — red and blue lights, siren voices and two-way talk on every camera.
- 8CH AI NVR: DHI-NVR4108HS-8P-AI/ANZ with PoE on every channel — two channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: around 10 days of continuous 4K footage from six cameras, far longer on motion-only recording.
- Smart Dual Illuminators: 30m infrared for everyday nights; the warm light captures detected events in full colour.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 6 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
FeatureDetail
Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 G
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on)
S/N Ratio >56 dB
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3849H-AS-PV-ANZ-S2

Everything in one box, recording day one

Cameras, AI recorder and a pre-installed 4TB drive arrive matched and ready — no compatibility guesswork, no separate HDD purchase, no subscriptions.

Deterrence at every approach

Each camera answers its own zone: red and blue lights, a siren or voice warning through its speaker, and warm light so the event records in full colour — intruders are challenged at the boundary, not just filmed.

Covers what four cameras miss

Six cameras closes the gaps a four-corner layout leaves: the porch close-up and the blind side path are usually the first two added — here they're included from day one, each with its own deterrence.

Loud on purpose — check it suits your street

Strobes and siren voices confront whoever triggers them. Draw zones to your own boundary and schedule sound overnight — or for tight terrace streets and strata, the quieter 3866 WizSense turret records the same 4K detail without the noise.

§ 05Where it fits

Right at home in these scenarios

Two-storey family home

Four corners plus the front porch and balcony side — six cameras cover the approaches and the close-ups, and every one of them answers intruders with lights and a voice warning.

Corner block

Street frontage on two sides means more approaches to watch. Six cameras covers both frontages, the driveway and the rear — with zones drawn to your boundary so street traffic stays out of the alerts.

Small business premises

Entry, counter, storeroom, rear door and both external walls on one recorder, with voice warnings at the doors after close. Check your state's recording rules before enabling the mics.

Acreage house yard

Cover the house approaches and the carport or shed near the house — wildlife is filtered by SMD 4.0, and two spare channels wait for the front gate later.

§ 06Setup

Installation & setup

01

What's in the Box

1. Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 Camera × 6 2. DHI-NVR4108HS-8P-AI/ANZ NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1

02

Installation Requirements

1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power, video and every deterrence feature together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.

03

App Setup

1. Download the DMSS app, then scan the QR code shown on the NVR screen (Main Menu → Network → P2P). 2. Enable push notifications in DMSS, and keep one-tap disarming handy for expected visitors. 3. Draw each camera's tripwire and intrusion zones tight to your own property — zones are what fire the lights and siren voices, so keep footpaths and the neighbour's driveway out of them.

§ 07Questions

Frequently asked about the DH-IPC-HDW3849H-AS-PV-ANZ-S2

Q.01

Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all six cameras including their lights and sirens. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02

How long will the 4TB drive keep footage?
Around 10 days of continuous recording from six 8MP cameras (roughly 60GB per camera per day), and a month or more on motion-only recording. The NVR overwrites the oldest footage automatically — for longer retention, upgrade the drive with the kit customiser before checkout.
Q.03

Can I add more cameras later?
Yes — the 8CH NVR has two spare PoE channels, and any current Dahua PoE camera plugs straight in. To keep the deterrence features consistent, the same HDW3849 S2 turret is the natural choice — you can also add cameras before checkout with the kit customiser.
Q.04

How does the deterrence actually work across the kit?
Each camera runs its own tripwire and intrusion zones — the one that detects reacts on the spot with red and blue lights, a siren or voice warning through its speaker, and warm light so the event records in full colour. One-tap disarming in the DMSS app stands the system down when you're expecting people.
Q.05

Will the lights and sirens annoy the neighbours?
They can if zones are drawn carelessly — this is a kit that reacts out loud. Draw each camera's zones tight to your own property, schedule sound off overnight, or set individual cameras to light-only. For positions facing a shared driveway or footpath, the quieter 3866 WizSense turret records the same 4K detail without the noise.
Q.06

How far can the cameras see at night?
Each turret records colour down to 0.004 lux through its F1.0 lens, then switches to infrared with a 30-metre range in full darkness. When a person or vehicle is detected, the 30-metre warm light takes over and that event records in full colour.
Q.07

Can the cameras identify faces and number plates?
With the 2.8mm lens, faces are reliably identifiable to about 6.6 metres — porch and doorway distance — and the 4K frame leaves room to zoom into recordings afterwards. Number plates still need daylight or good lighting: glare and headlights work against any camera at night.
Q.08

Do these cameras support AcuPick search?
The cameras do — paired with an AcuPick-capable Dahua recorder, AcuPick matches a person across cameras in seconds. The AI NVR included in this kit runs SMD 4.0 classification and Quick Pick search, which already pulls every human or vehicle event from a day of footage in one pass.
Q.09

Should I have chosen a quieter WizSense kit instead?
Both families run the same Dahua AI — human and vehicle classification, SMD 4.0 and perimeter protection. The difference is the response. These TiOC turrets confront: lights, siren voices, full-colour event capture and two-way talk. A WizSense kit built on the 3866 records the same 4K detail quietly and just alerts your phone. Pick this kit where you want intruders challenged at the boundary; pick WizSense where evidence is enough.
Q.10

What's the difference between the 3849, the 3649 and the 3866?
All three are 3 Series turrets. The 3849 (the cameras in this kit) is the 8MP TiOC 3.0 — deterrence plus 4K detail, with AcuPick support on compatible recorders. The 3649 is the 6MP TiOC 2.0 — the same red and blue lights and siren at a lower price, with the family's best low-light rating (0.003 lux). The 3866 is the quiet pick: 4K WizSense detail with no lights or sirens.
Q.11

What does the AI NVR actually do beyond recording?
Three things: it classifies SMD alerts so only humans and vehicles notify you, Quick Pick search pulls every person or vehicle event from hours of footage in one pass, and it runs tripwire and intrusion zones per camera. It also powers all six cameras over its PoE ports.
Q.12

Does SMD 4.0 really reduce false alarms from animals and weather?
Yes. SMD 4.0 uses AI to distinguish humans and vehicles from small animals, tree movement and rain, and AI SSA re-tunes the image in rain, fog and backlight, so far fewer junk notifications get through than basic motion detection.
Q.13

Do I need to pay any subscription?
No. Recording, AI detection, deterrence and remote viewing through the DMSS app all run on your own hardware — no monthly fees and no cloud account requirement.
Q.14

Can I view the cameras on my phone away from home?
Yes — enable P2P on the NVR, scan the QR code in the DMSS app, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.15

Will it work without internet?
Yes. Cameras record to the NVR on a closed local network, and the lights and sirens still fire on local detection. Internet is only needed for remote viewing and push notifications.
Q.16

Is a Dahua system safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and encrypted firmware. On an isolated network it still records normally.
Q.17

What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.

§ 08In motion

Dahua WizColor Review HDW3849H-Pro

Dahua WizColor Review HDW3849H-Pro

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

Dahua Tioc 2.0 - the ultimate 3-in-1 camera

§ 09Bundles

Recommended packages

01

Bigger property?

The 8 camera version of this kit fills the recorder — the right call if every external wall needs its own camera.

02

Recording continuously?

Six 8MP streams fill 4TB in around 10 days. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.

03

Add mounts where walls don't suit

The PFA137 junction box keeps connections weatherproof on brick, cladding and fascia boards where a straight mount doesn't fit.
