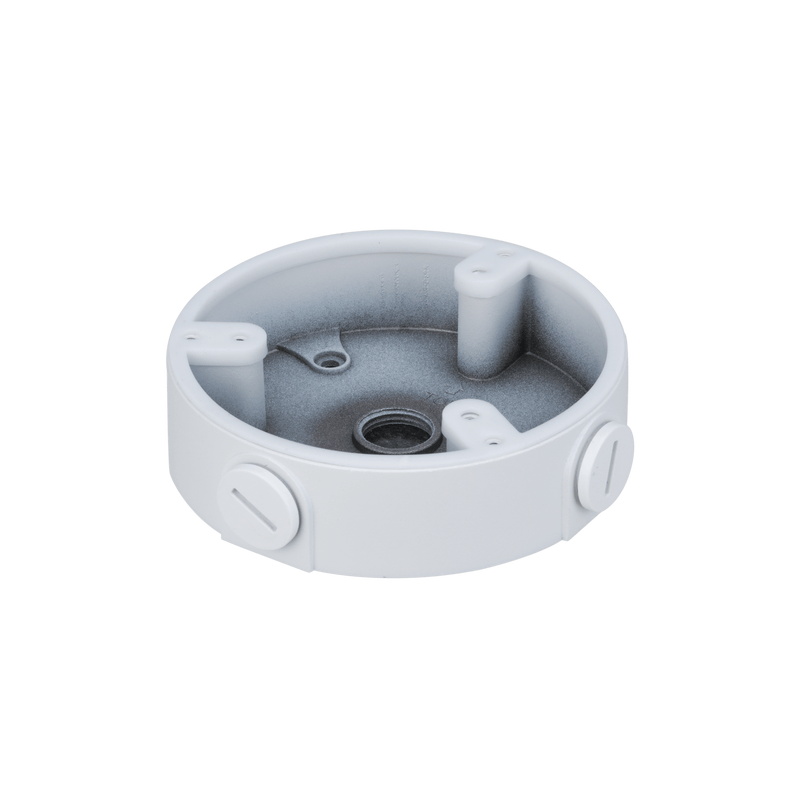

Dahua DH-PFA137 Water-proof Junction Box
SKU: PFA137
Description
The Dahua DH-PFA137 is the most widely used aluminium junction box for Dahua turret, eyeball and dome cameras. It mounts behind the camera to give a sealed, tidy space for the network cable and connector, and is the box Dahua lists under Accessory Selection for a large part of its HDW turret and eyeball range.
Key points
- Suits a wide range of Dahua turret, eyeball & dome cameras
- Aluminium alloy, white finish (black DH-PFA137-B also available)
- Ø122.0 mm × 34.2 mm, approx. 0.24 kg
- M20 (G1/2") cable gland thread; 1.0 kg load rating
- Weather-resistant for outdoor mounting when the entry is sealed
Regular price
$14.00 AUD
Sale price
$14.00 AUD
Regular price
$15.00 AUD
Sale
6.67%
$1.00 AUD
(6.67%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
Dahua DH-PFA137 Water-proof Junction Box
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the PFA137 is
The Dahua DH-PFA137 is the workhorse junction box in Dahua's accessory line-up, designed for the company's turret, eyeball and many dome cameras. It seats behind the camera and gives a sealed cavity for the network cable, connector and any pigtail, so the join is protected and hidden rather than left exposed on the wall.
It is aluminium alloy with a white finish, measures Ø122.0 mm by 34.2 mm at about 0.24 kg, uses an M20 (G1/2 inch) gland thread and is rated to a 1.0 kg load. It is the box most Dahua HDW-series turret and eyeball cameras call up under Accessory Selection, which is why installers keep them on the van.
Dahua does not publish a formal IP rating for this box; it is a weather-resistant aluminium housing that keeps the cable join dry once the entry is sealed. Compatibility is set by the camera's mounting pattern, so confirm the DH-PFA137 is listed on your camera's datasheet before ordering. A black DH-PFA137-B version is also made for darker installs.
§ 02Engineering
PFA137 specifications
- Genuine Dahua DH-PFA137 aluminium camera junction box
- The go-to box for many Dahua turret, eyeball and dome cameras (HDW series)
- Aluminium alloy with white finish; black DH-PFA137-B available
- Ø122.0 mm x 34.2 mm, approx. 0.24 kg
- M20 (G1/2") cable gland thread; 1.0 kg load rating
- Weather-resistant for outdoor mounting when the cable entry is sealed
- The go-to box for many Dahua turret, eyeball and dome cameras (HDW series)
- Aluminium alloy with white finish; black DH-PFA137-B available
- Ø122.0 mm x 34.2 mm, approx. 0.24 kg
- M20 (G1/2") cable gland thread; 1.0 kg load rating
- Weather-resistant for outdoor mounting when the cable entry is sealed
§ 03Full datasheet
Detailed specifications
General & Environment
| Feature | Detail |
|---|---|
| Model | DH-PFA137 |
| Material | Aluminum |
| Dimension | Φ122.0mmx34.2mm (Φ4.80”x1.35”) |
| Inch Thread | M20(G1/2”) |
| Load Bearing | 1.0kg(2.2lb) |
| Weight | 0.24kg(0.53lb) |
| Color | White |
| Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| Humidity | <90% RH |
| Applicable Model | Please see “Accessory Selection” |
| Package Information | Water-proof junction box *1; M4x12 screw *3; ST4x25 screw *3; Plastic anchor: 3; Water joint *1; Wrench *1 |
| General & Environment — Model | DH-PFA137 |
|---|---|
| General & Environment — Material | Aluminum |
| General & Environment — Dimension | Φ122.0mmx34.2mm (Φ4.80”x1.35”) |
| General & Environment — Inch Thread | M20(G1/2”) |
| General & Environment — Load Bearing | 1.0kg(2.2lb) |
| General & Environment — Weight | 0.24kg(0.53lb) |
| General & Environment — Color | White |
| General & Environment — Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| General & Environment — Humidity | <90% RH |
| General & Environment — Applicable Model | Please see “Accessory Selection” |
| General & Environment — Package Information | Water-proof junction box *1; M4x12 screw *3; ST4x25 screw *3; Plastic anchor: 3; Water joint *1; Wrench *1 |
§ 04Why choose this
Built for the way you actually use the PFA137
Genuine Dahua part
As the factory box, the base profile and screw pattern match the camera bodies it is listed for, giving a flush, watertight seat rather than a forced fit.
Protects the connection
A sealed aluminium cavity keeps the cable and connector dry and out of sight, which is where outdoor cameras most often fail.
Durable in Australian conditions
Aluminium alloy with a sprayed finish resists UV, heat and coastal corrosion far better than plastic boxes.
§ 05Where it fits
Right at home in these scenarios
Outdoor turret and eyeball installs
Seat a Dahua HDW turret or eyeball on the box under an eave or on a wall with the cable join sealed inside.
Mixed camera sites
Because it suits so many models, one box type covers most of the turret and eyeball cameras across a typical home or small-business job.
Rendered or uneven walls
The box gives a flat mounting face and hides any gap or oversized cable hole behind the camera.
Conduit terminations
Bring surface conduit into the M20 entry for a tidy, weather-resistant cable run.
§ 06Setup
Installation & setup
What's in the box
One DH-PFA137 junction box with an M20 water joint, three M4x12 screws, three ST4x25 screws, three plastic anchors and a wrench. The camera and network cable are not included.
Installation requirements
Fix the box to a flat wall or ceiling able to support several times the combined box and camera weight, using the supplied anchors in masonry. Route the cable through the M20 entry, seal it with the water joint for outdoor use, then mount the camera onto the box. Add outdoor silicone around the base on exposed walls.
§ 08Questions
Frequently asked about the PFA137
Q.01
Which cameras does the DH-PFA137 fit?
It is the most common junction box for Dahua turret, eyeball and many dome cameras, and is the box listed under Accessory Selection for a large part of the HDW turret and eyeball range. Because compatibility is set by the camera's mounting pattern, check the Accessory Selection line on your camera's datasheet, or send us the model and we will confirm.
Q.02
Why is the DH-PFA137 so commonly recommended?
Dahua designed it to suit a broad slice of its turret and eyeball cameras, so one box covers many popular models. That is why installers keep it on hand and why it is the default junction box suggestion for HDW-series cameras.
Q.03
Is the DH-PFA137 weatherproof outdoors?
It is an aluminium-alloy housing built for weather-resistant outdoor mounting. Dahua does not publish a formal IP rating for it, so seal the cable entry at the M20 gland and add outdoor silicone where the base meets the wall for exposed installs. If you specifically need a stated IP66 rating, the DH-PFA130-E is the box to choose.
Q.04
What are the dimensions and load rating?
It measures Ø122.0 mm by 34.2 mm, weighs about 0.24 kg and is rated to a 1.0 kg load, which is well above the weight of any compatible turret, eyeball or dome camera.
Q.05
Does it come in black as well as white?
Yes. The standard finish is white, and Dahua also makes a black version, the DH-PFA137-B, for installs where a darker box blends in better under eaves or against dark cladding.
Q.06
Is the camera included?
No. This is the junction box only. It is a mounting accessory you buy alongside the camera it suits.
Q.07
How do I choose between the DH-PFA137 and the DH-PFA139?
Both are turret and eyeball junction boxes. The DH-PFA137 is the larger Ø122 mm box with more internal room; the DH-PFA139 is the compact Ø108 mm box. Use whichever your camera's datasheet lists under Accessory Selection.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Cameras this box suits
The DH-PFA137 pairs with Dahua turret and eyeball cameras such as the IPC-HDW3666EMP-S 6MP WizSense turret and the dual-light IPC-HDW3667EM-S-IL 6MP dual-light turret.
Smaller or larger box
If your camera lists a different box, see the compact DH-PFA139 or the IP66-rated DH-PFA130-E.
Wall mounting instead
To angle a camera off a wall, pair it with the DH-PFB204W wall mount bracket.
