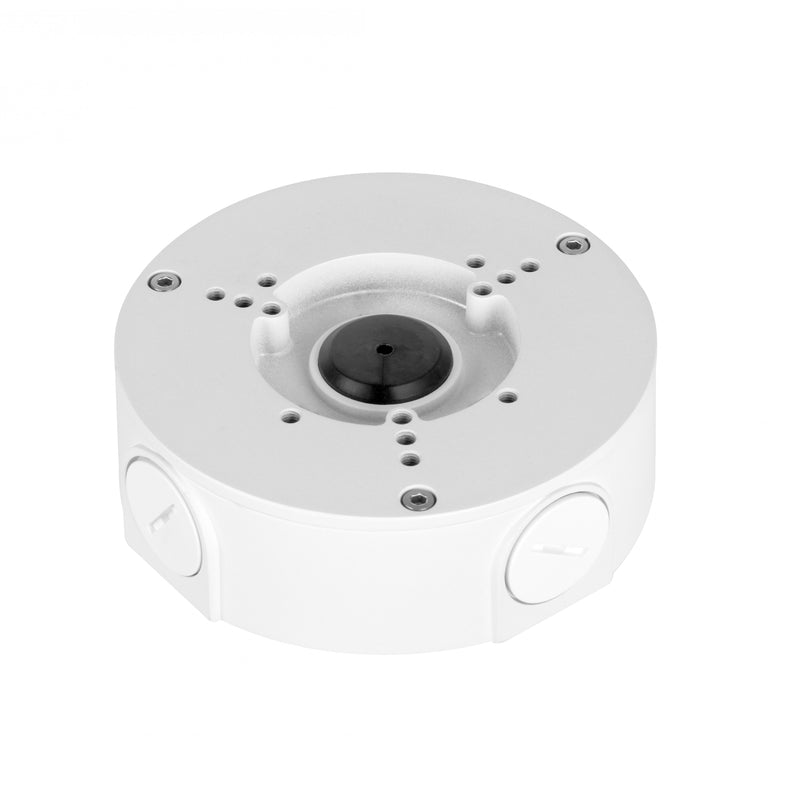

Dahua DH-PFA130-E Dahua Water proof Junction Box
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-PFA130-E Dahua Water proof Junction Box
SKU: PFA130-E
Description
The Dahua DH-PFA130-E is the larger, IP66-rated aluminium junction box in Dahua's range. It mounts behind turret and dome cameras to give a fully sealed cavity for the network cable and connector, with a higher 3.0 kg load rating and a G3/4 inch conduit entry for heavier or commercial installs.
Key points
- Suits Dahua turret & dome cameras (check the Accessory Selection line on your camera's datasheet)
- IP66 rated — the only box in this range with a stated weatherproof rating
- Aluminium alloy, white finish
- Ø124 mm × 41 mm, approx. 0.35 kg
- G3/4" conduit thread; 3.0 kg load rating
Regular price
$21.00 AUD
Sale price
$21.00 AUD
Regular price
$21.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
Dahua DH-PFA130-E Dahua Water proof Junction Box
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the PFA130-E is
The Dahua DH-PFA130-E is the premium junction box in Dahua's accessory line-up: larger, heavier and the only box in this group with a formal IP66 weatherproof rating. It seats behind a turret or dome camera and gives a sealed cavity for the network cable and connector, so the join is fully protected against dust and driving rain.
It is aluminium alloy with a white finish, measures Ø124 mm by 41 mm at about 0.35 kg, and uses a G3/4 inch conduit thread rather than the M20 entry on the smaller boxes. Its 3.0 kg load rating is three times that of the PFA137 and PFA139, which gives extra headroom for larger camera bodies and tougher mounting positions.
Because compatibility is set by the camera's mounting pattern, confirm the DH-PFA130-E is listed under Accessory Selection on your camera's datasheet before ordering. Choose this box when you want a stated IP66 rating, a larger conduit entry, or the extra load capacity for a commercial or exposed install.
02Engineering
PFA130-E specifications
- Genuine Dahua DH-PFA130-E aluminium camera junction box
- IP66 rated — the only junction box in this range with a stated weatherproof rating
- Suits Dahua turret and dome cameras (confirm via the camera's Accessory Selection)
- Ø124 mm x 41 mm, approx. 0.35 kg
- G3/4" conduit thread; higher 3.0 kg load rating
- Aluminium alloy with white finish for outdoor durability
- IP66 rated — the only junction box in this range with a stated weatherproof rating
- Suits Dahua turret and dome cameras (confirm via the camera's Accessory Selection)
- Ø124 mm x 41 mm, approx. 0.35 kg
- G3/4" conduit thread; higher 3.0 kg load rating
- Aluminium alloy with white finish for outdoor durability
03Full datasheet
Detailed specifications
General & Environment
| Feature | Detail |
|---|---|
| Model | DH-PFA130-E |
| Material | Aluminum |
| Dimension | Φ124mmx41mm(φ4.88”x1.61”) |
| Pipe thread | G3/4” |
| Weight | 0.35kg(0.77lb) |
| Load bearing | 3.0kg(6.61lb) |
| Color | White |
| Protection | IP66 |
| Operating temperature | -40ºC ~60ºC(-40℉~+140℉) |
| Humidity | <90% RH |
| Applicable model | Please see “Accessory Selection” |
| Package Information | Water-proof junction box DH-PFA130-E *1; M4x10 screw *4; ST4.2x25 screw *3; Plastic Anchor: 3; Mounting sticker *1; S3.0 wrench *1 |
| General & Environment — Model | DH-PFA130-E |
|---|---|
| General & Environment — Material | Aluminum |
| General & Environment — Dimension | Φ124mmx41mm(φ4.88”x1.61”) |
| General & Environment — Pipe thread | G3/4” |
| General & Environment — Weight | 0.35kg(0.77lb) |
| General & Environment — Load bearing | 3.0kg(6.61lb) |
| General & Environment — Color | White |
| General & Environment — Protection | IP66 |
| General & Environment — Operating temperature | -40ºC ~60ºC(-40℉~+140℉) |
| General & Environment — Humidity | <90% RH |
| General & Environment — Applicable model | Please see “Accessory Selection” |
| General & Environment — Package Information | Water-proof junction box DH-PFA130-E *1; M4x10 screw *4; ST4.2x25 screw *3; Plastic Anchor: 3; Mounting sticker *1; S3.0 wrench *1 |
04Why choose this
Built for the way you actually use the PFA130-E
More room and more load
At Ø124 mm by 41 mm with a 3.0 kg load rating, it gives extra internal space and headroom that the compact boxes do not, which suits larger camera bodies and commercial installs.
Larger conduit entry
The G3/4 inch thread takes a heavier conduit run, making it the better choice where cabling is run in external conduit on commercial sites.
Genuine Dahua durability
Aluminium alloy with a white finish stands up to Australian sun, heat and coastal air for years of service.
05Where it fits
Right at home in these scenarios
Fully exposed outdoor mounts
Where a camera sits in the open with no eave, the IP66 seal keeps dust and driving rain out of the cable join.
Commercial conduit installs
The G3/4 inch entry suits external conduit runs on shopfronts, factories and car parks.
Larger turret and dome bodies
The extra depth and 3.0 kg load rating give room and headroom for bigger Dahua cameras.
Coastal and harsh sites
Aluminium construction and an IP66 seal hold up where plastic boxes and lesser seals fail.
06Setup
Installation & setup
-
01
What's in the box
One DH-PFA130-E junction box with four M4x10 screws, three ST4.2x25 screws, three plastic anchors, a mounting sticker and an S3.0 wrench. The camera and network cable are not included.
-
02
Installation requirements
Use the mounting sticker to mark the holes, then fix the box to a flat surface able to support several times the combined box and camera weight, using the supplied anchors in masonry. Bring the cable through the G3/4 inch entry, seal it, then mount the camera. The IP66 seal does its job only when the entry and cover are closed up correctly.
08Questions
Frequently asked about the PFA130-E
Q.01
What makes the DH-PFA130-E different from the PFA137 and PFA139?
Three things: it carries a formal IP66 rating (the smaller boxes do not publish one), it is larger at Ø124 mm by 41 mm, and it is rated to a 3.0 kg load instead of 1.0 kg. It also uses a larger G3/4 inch conduit entry. Choose it when you want a stated weatherproof rating, more internal room, or extra load capacity.
Q.02
Is the DH-PFA130-E genuinely weatherproof?
Yes. It is rated IP66, meaning it is dust-tight and protected against powerful water jets, which makes it the box to pick for fully exposed or coastal outdoor positions. Still seal the conduit entry and mount it so the camera sheds water away from the join.
Q.03
Which cameras does it fit?
It is designed for Dahua turret and dome cameras and is listed under Accessory Selection on the datasheets of the models it suits. Compatibility is set by the camera's mounting pattern, so check that line for your exact model, or send us the model and we will confirm.
Q.04
What conduit size does the G3/4 inch entry take?
The DH-PFA130-E uses a G3/4 inch pipe thread, which is larger than the M20 (G1/2 inch) entry on the smaller boxes. That suits a heavier conduit run; match your gland or adaptor to the G3/4 inch thread.
Q.05
How much weight can it hold?
It is rated to a 3.0 kg load, three times the 1.0 kg rating of the PFA137 and PFA139. That is well beyond any compatible camera, so the wall fixings are the practical limit on exposed or rendered surfaces.
Q.06
Is the camera included?
No. This listing is the junction box only. It is a mounting accessory you add to the camera it suits.
Q.07
Does it come in black?
The standard finish is white. If you need a black box for a particular model, check the camera's Accessory Selection for the matching variant, or contact us and we can advise on the closest option.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Cameras this box suits
The DH-PFA130-E pairs with larger Dahua turret and dome cameras such as the IPC-HDBW3666EP 6MP WizSense dome and the dual-light IPC-HDW3667EM-S-IL 6MP dual-light turret.
Smaller or standard box
If your camera lists a smaller box, see the DH-PFA137 or the compact DH-PFA139.
Wall mounting instead
To angle the camera off a wall, pair it with the DH-PFB204W wall mount bracket.
