Dahua DH-PFB204W Water-proof Wall Mount Bracket

SKU: PFB204W
Description

The Dahua DH-PFB204W is an aluminium and steel wall mount bracket that holds a Dahua camera out from a vertical wall and conceals the cable through the arm. It is the current wall bracket in Dahua's range, used to angle a bullet, turret or dome camera over a door, driveway or path where there is no eave to mount under.

Key points
- Wall mount bracket for Dahua bullet, turret & dome cameras (check the camera's Accessory Selection)
- Aluminium & SECC steel, white finish
- 160 mm × 122 mm × 76 mm, approx. 0.49 kg
- 1.0 kg load rating; cable concealed through the bracket
- Current model that supersedes the DH-PFB203W
$20.00 AUD $20.00 AUD $20.00 AUD
Member Price$19.40 AUD
to save $0.60 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
Bundle total: $20.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the PFB204W is

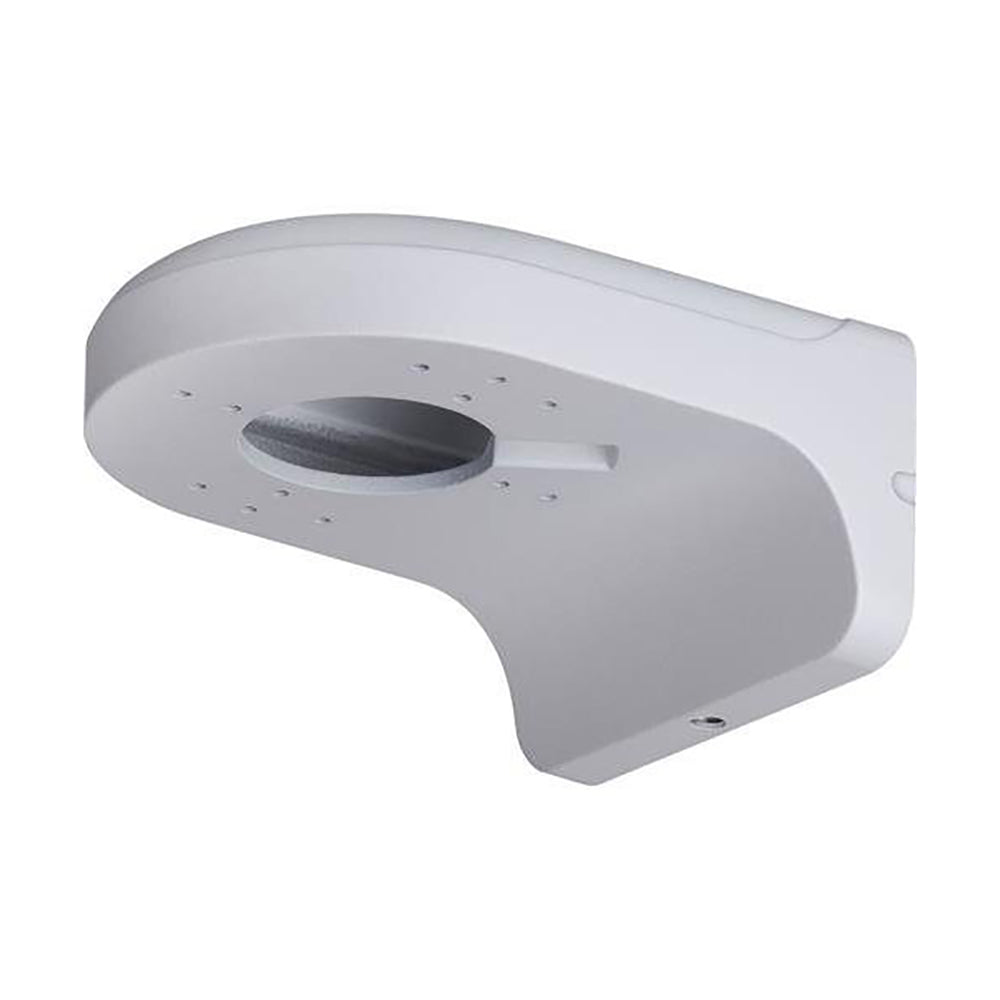

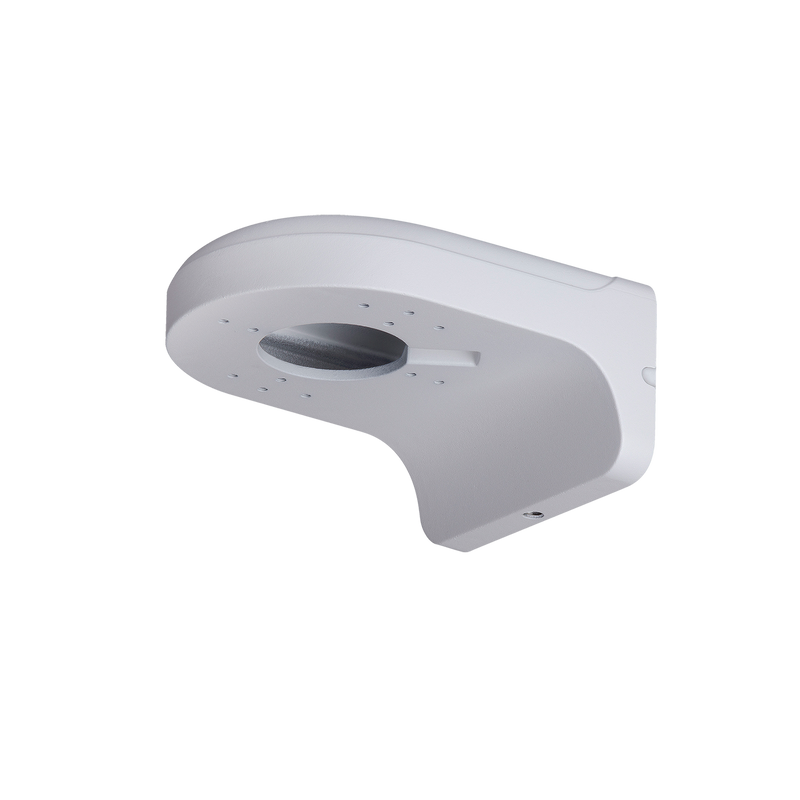

The Dahua DH-PFB204W is a wall mount bracket that holds a Dahua camera out from a vertical wall on a rigid arm, with the cable routed through the bracket so nothing is left exposed.

It is the go-to mount when an eave or soffit is not available and you need to bring a bullet, turret or dome camera off a flat wall and angle it over the area you want to watch.

It is built from aluminium alloy with an SECC steel back plate, finished in white, and measures 160 mm by 122 mm by 76 mm at about 0.49 kg.

The 1.0 kg load rating covers the lightweight turret, eyeball and small bullet cameras it is designed for.

It is the current bracket in Dahua's line-up and replaces the older DH-PFB203W, which it closely matches in size and form.

Compatibility is set by the camera's mounting pattern, so confirm the DH-PFB204W is listed under Accessory Selection on your camera's datasheet before ordering.

Many installers pair it with a junction box where the camera calls for one, so the cable join is both concealed and sealed.

§ 02Engineering

PFB204W specifications

- Genuine Dahua DH-PFB204W wall mount bracket (current model)
- Suits Dahua bullet, turret and dome cameras (confirm via the camera's Accessory Selection)
- Aluminium alloy with SECC steel back plate, white finish
- 160 mm x 122 mm x 76 mm, approx. 0.49 kg
- 1.0 kg load rating; cable concealed through the bracket
- Supersedes the older DH-PFB203W

§ 03Full datasheet

Detailed specifications

General & Environment

General & Environment — Dahua DH-PFB204W Water-proof Wall Mount Bracket
FeatureDetail
Model DH-PFB204W
Material Aluminum & SECC
Dimension(WxHxD) 160mmx122mmx76mm (6.30”x4.80”x2.99”)
Weight 0.49kg(1.08lb)
Load Bearing 1kg(2.2lb)
Color White
Operating Temperature -40ºC~+60ºC(-40℉~+140℉)
Humidity <90% RH
Applicable Model Please see ”Accessory Selection”
Package Information Wall mount bracket *1; M4 screw *4; ST4 screw *4; Plastic anchor *4; Wrench *1

§ 04Why choose this

Built for the way you actually use the PFB204W

Gets the camera off the wall

When there is no eave to mount under, the DH-PFB204W angles a bullet, turret or dome out from a vertical wall so it can look down over a door, driveway or path.

Concealed cabling

The cable runs through the bracket, leaving a clean wall face with no exposed lead for weather or tampering.

Current Dahua model

As the bracket that replaces the older PFB203W, it is the up-to-date part with current fixings, so you are not buying superseded stock.

Solid aluminium and steel

An aluminium arm on an SECC steel back plate holds the camera steady with no sag, and resists corrosion outdoors.

§ 05Where it fits

Right at home in these scenarios

Walls without an eave

Brick or render walls with no soffit to mount under: the arm angles the camera down over the area you want to watch.

Driveways and entries

Reach the camera out past guttering or trim so the view is not blocked by the wall line.

Corner and high mounts

Position a camera high on a wall and tilt it down over a yard, car park or shopfront.

Bracket plus junction box

Combine with a junction box where the camera calls for one, so the cable join is both concealed and sealed.

§ 06Setup

Installation & setup

01

What's in the box

One DH-PFB204W wall mount bracket with four M4 screws, four ST4 screws, four plastic anchors and a wrench. The camera is not included.

02

Installation requirements

Fix the back plate to a solid wall (brick, concrete or a stud) able to support several times the combined bracket and camera weight, using the supplied anchors in masonry. Feed the camera cable through the bracket before fitting the camera, and seal the wall entry on outdoor installs. Confirm your camera lists this bracket under Accessory Selection.

§ 07Questions

Frequently asked about the PFB204W

Q.01

What is the DH-PFB204W used for?
It is a wall mount bracket. It holds a Dahua camera out from a vertical wall on a rigid arm and feeds the cable through the bracket, so you can angle a bullet, turret or dome over a door, driveway or path when there is no eave to mount under. The cable stays concealed for a clean wall face.
Q.02

Which cameras does it fit?
It is designed for Dahua bullet, turret and dome cameras and is listed under Accessory Selection on the datasheets of the models it suits. Because compatibility is set by the mounting pattern, check that line for your exact camera, or send us the model and we will confirm.
Q.03

How is the DH-PFB204W different from the DH-PFB203W?
They are near-identical wall brackets at 160 mm by 122 mm by 76 mm. The DH-PFB204W is the current model and supersedes the DH-PFB203W; the differences are minor, down to the fixing pattern and a few grams of weight. For a new install, the DH-PFB204W is the one to buy.
Q.04

Is it a wall mount or a junction box?
It is a wall mount bracket, which extends the camera off the wall on an arm. A junction box like the DH-PFA137 only sits flat behind the camera to seal the cable. Many installs use both: the bracket to position the camera and a junction box where the camera calls for one.
Q.05

Can I use it outdoors?
Yes. It is aluminium and steel with a white finish and is built for outdoor wall mounting. Seal the cable entry at the wall and fit the camera's own gasket so the join stays dry.
Q.06

What weight can it hold?
It is rated to a 1.0 kg load, which covers the lightweight turret, eyeball and small bullet cameras it is designed for. Fix it to a wall that can carry several times the combined bracket and camera weight.
Q.07

Is the camera included?
No. This listing is the wall mount bracket only. The camera is purchased separately.

§ 09Bundles

Recommended packages

02

Older bracket

The DH-PFB204W supersedes the DH-PFB203W; for a new install choose the 204W.

03

Add a junction box

Where the camera calls for one, pair the bracket with the DH-PFA137 or the IP66-rated DH-PFA130-E to seal the cable join.
