Dahua DH-PFB203W Water-Proof Wall Mount Bracket
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-PFB203W Water-Proof Wall Mount Bracket
SKU: PFB203W
Description

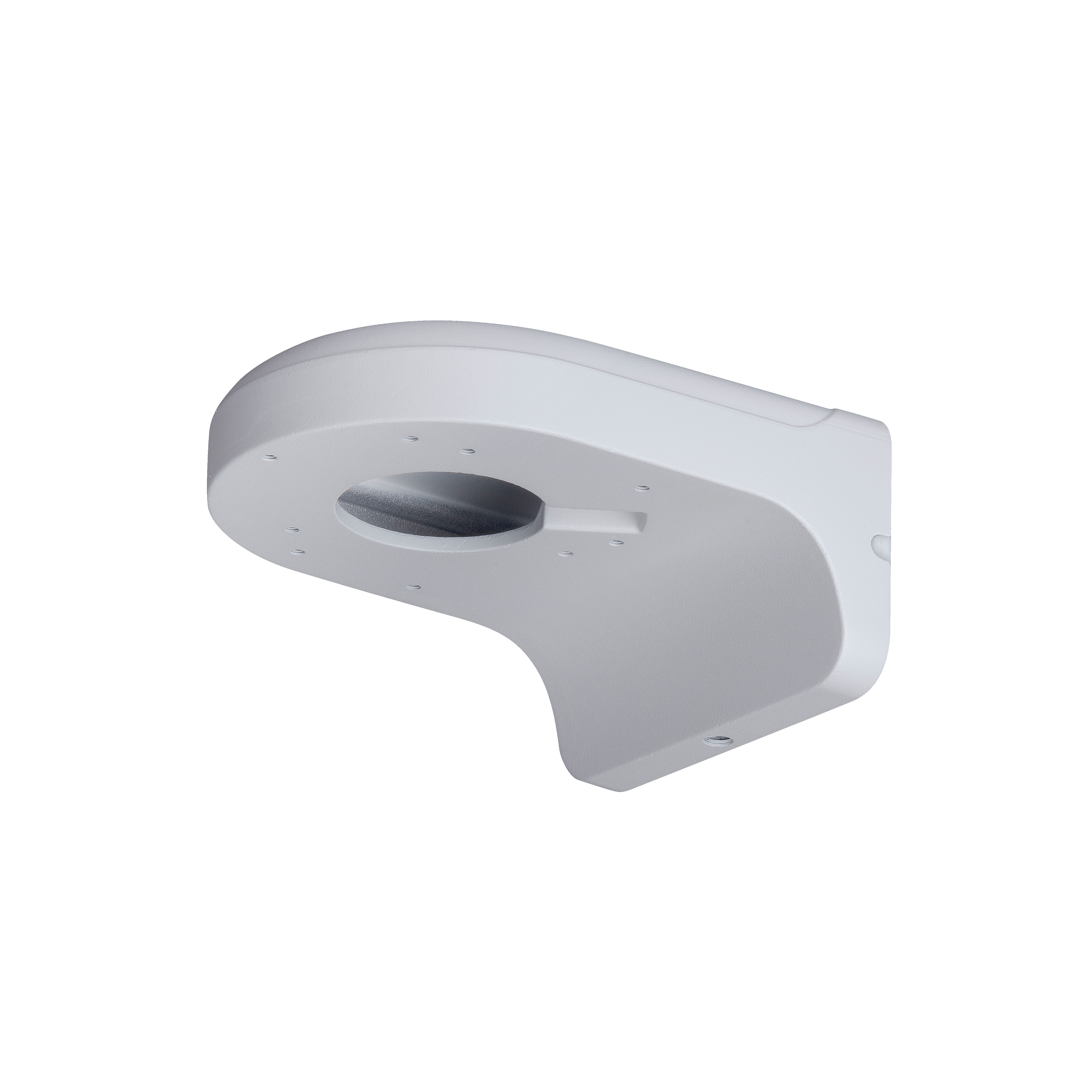

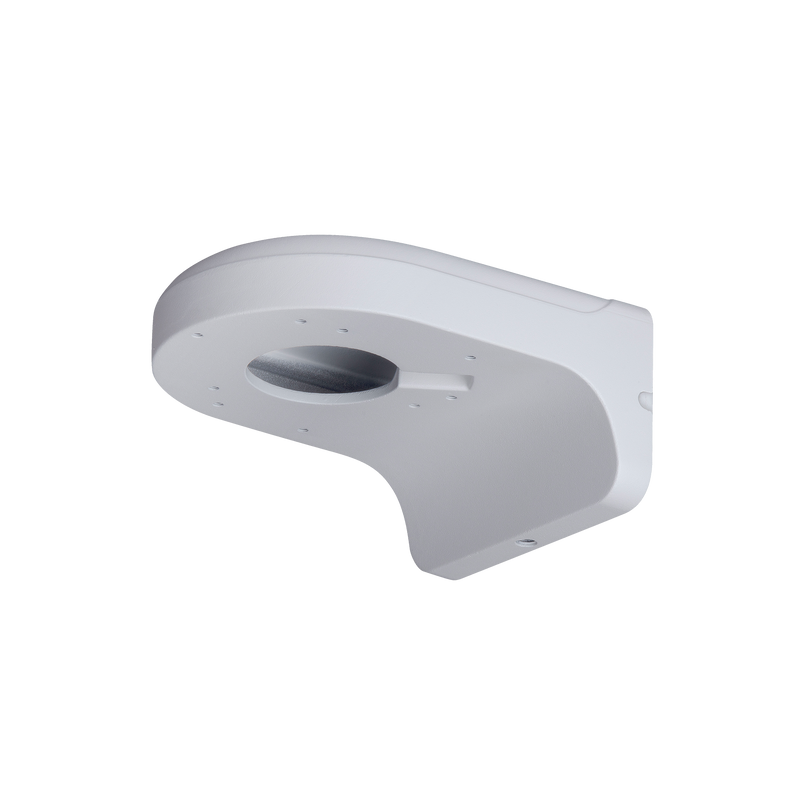

The Dahua DH-PFB203W is an aluminium and steel wall mount bracket that holds a Dahua camera out from a vertical wall and conceals the cable through the arm. It angles a bullet, turret or dome camera over a door, driveway or path where there is no eave to mount under. Dahua has since released the DH-PFB204W as its near-identical replacement.
Key points
- Wall mount bracket for Dahua bullet, turret & dome cameras (check the camera's Accessory Selection)
- Aluminium & SECC steel, white finish
- 160 mm × 122 mm × 76 mm, approx. 0.5 kg
- 1.0 kg load rating; cable concealed through the bracket
- Superseded by the near-identical DH-PFB204W
Regular price
$23.00 AUD
Sale price
$23.00 AUD
Regular price
$28.00 AUD
Sale
17.86%
$5.00 AUD
(17.86%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
Dahua DH-PFB203W Water-Proof Wall Mount Bracket
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the PFB203W is
The Dahua DH-PFB203W is a wall mount bracket that holds a Dahua camera out from a vertical wall on a rigid arm, with the cable routed through the bracket so nothing is left exposed. It is used when an eave or soffit is not available and you need to bring a bullet, turret or dome camera off a flat wall and angle it over the area you want to watch.
It is built from aluminium alloy with an SECC steel back plate, finished in white, and measures 160 mm by 122 mm by 76 mm at about 0.5 kg with a 1.0 kg load rating. Dahua has since introduced the DH-PFB204W as its replacement; the two brackets share the same dimensions and form, with only minor differences in the fixing pattern and a few grams of weight.
Compatibility is set by the camera's mounting pattern, so confirm the bracket is listed under Accessory Selection on your camera's datasheet before ordering. If you are specifying a fresh install and both are available, the current DH-PFB204W is the natural choice.
02Engineering
PFB203W specifications
- Genuine Dahua DH-PFB203W wall mount bracket
- Suits Dahua bullet, turret and dome cameras (confirm via the camera's Accessory Selection)
- Aluminium alloy with SECC steel back plate, white finish
- 160 mm x 122 mm x 76 mm, approx. 0.5 kg
- 1.0 kg load rating; cable concealed through the bracket
- Superseded by the near-identical DH-PFB204W
- Suits Dahua bullet, turret and dome cameras (confirm via the camera's Accessory Selection)
- Aluminium alloy with SECC steel back plate, white finish
- 160 mm x 122 mm x 76 mm, approx. 0.5 kg
- 1.0 kg load rating; cable concealed through the bracket
- Superseded by the near-identical DH-PFB204W
03Full datasheet
Detailed specifications
General & Environment
| Feature | Detail |
|---|---|
| Model | DH-PFB203W |
| Material | Aluminum & SECC |
| Dimension(WxHxD) | 160mmx122mmx76mm (6.30”x4.80”x2.99”) |
| Weight | 0.5kg(1.1lb) |
| Load Bearing | 1kg(2.2lb) |
| Color | White |
| Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| Humidity | <90% RH |
| Applicable Model | Please see ”Accessory Selection” |
| Package Information | Wall mount bracket *1; M4 screw *3; ST4 screw *4; Plastic anchor *4; Wrench *1 |
| General & Environment — Model | DH-PFB203W |
|---|---|
| General & Environment — Material | Aluminum & SECC |
| General & Environment — Dimension(WxHxD) | 160mmx122mmx76mm (6.30”x4.80”x2.99”) |
| General & Environment — Weight | 0.5kg(1.1lb) |
| General & Environment — Load Bearing | 1kg(2.2lb) |
| General & Environment — Color | White |
| General & Environment — Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| General & Environment — Humidity | <90% RH |
| General & Environment — Applicable Model | Please see ”Accessory Selection” |
| General & Environment — Package Information | Wall mount bracket *1; M4 screw *3; ST4 screw *4; Plastic anchor *4; Wrench *1 |
04Why choose this
Built for the way you actually use the PFB203W
Concealed cabling
The cable runs through the bracket, leaving a clean wall face with no exposed lead for weather or tampering.
Proven, widely used design
The 203W has been a standard Dahua wall bracket for years and shares its form with the current 204W, so it is a known, reliable mount.
Solid aluminium and steel
An aluminium arm on an SECC steel back plate holds the camera steady with no sag, and resists corrosion outdoors.
05Where it fits
Right at home in these scenarios
Walls without an eave
Brick or render walls with no soffit to mount under: the arm angles the camera down over the area you want to watch.
Driveways and entries
Reach the camera out past guttering or trim so the view is not blocked by the wall line.
Corner and high mounts
Position a camera high on a wall and tilt it down over a yard, car park or shopfront.
Bracket plus junction box
Combine with a junction box where the camera calls for one, so the cable join is both concealed and sealed.
06Setup
Installation & setup
-
01
What's in the box
One DH-PFB203W wall mount bracket with three M4 screws, four ST4 screws, four plastic anchors and a wrench. The camera is not included.
-
02
Installation requirements
Fix the back plate to a solid wall (brick, concrete or a stud) able to support several times the combined bracket and camera weight, using the supplied anchors in masonry. Feed the camera cable through the bracket before fitting the camera, and seal the wall entry on outdoor installs. Confirm your camera lists this bracket under Accessory Selection.
08Questions
Frequently asked about the PFB203W
Q.01
What is the DH-PFB203W used for?
It is a wall mount bracket. It holds a Dahua camera out from a vertical wall on a rigid arm and feeds the cable through the bracket, so you can angle a bullet, turret or dome over a door, driveway or path when there is no eave to mount under. The cable stays concealed for a clean wall face.
Q.02
How is the DH-PFB203W different from the DH-PFB204W?
They are near-identical brackets at 160 mm by 122 mm by 76 mm with the same 1.0 kg load rating. The DH-PFB204W is the newer model that supersedes the DH-PFB203W; the differences come down to the fixing pattern and a few grams of weight. For a new install, the DH-PFB204W is the current choice, but the DH-PFB203W does the same job.
Q.03
Which cameras does it fit?
It is designed for Dahua bullet, turret and dome cameras and is listed under Accessory Selection on the datasheets of the models it suits. Check that line for your exact camera, since compatibility is set by the mounting pattern, or send us the model and we will confirm.
Q.04
Is it a wall mount or a junction box?
It is a wall mount bracket that extends the camera off the wall on an arm. A junction box like the DH-PFA137 only sits flat behind the camera to seal the cable. Many installs use both together.
Q.05
Can I use it outdoors?
Yes. It is aluminium and steel with a white finish and is built for outdoor wall mounting. Seal the cable entry at the wall and fit the camera's own gasket so the join stays dry.
Q.06
What weight can it hold?
It is rated to a 1.0 kg load, which covers the lightweight turret, eyeball and small bullet cameras it is designed for. Fix it to a wall that can carry several times the combined bracket and camera weight.
Q.07
Is the camera included?
No. This listing is the wall mount bracket only. The camera is purchased separately.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Cameras this bracket suits
The DH-PFB203W pairs with Dahua cameras such as the IPC-HFW3666EP 6MP WizSense bullet and the IPC-HFW3667E-AS-IL 6MP Smart Dual-Light bullet.
Current replacement
Dahua's current equivalent is the DH-PFB204W; choose it for a new install if both are available.
Add a junction box
Where the camera calls for one, pair the bracket with the DH-PFA137 to seal the cable join.
