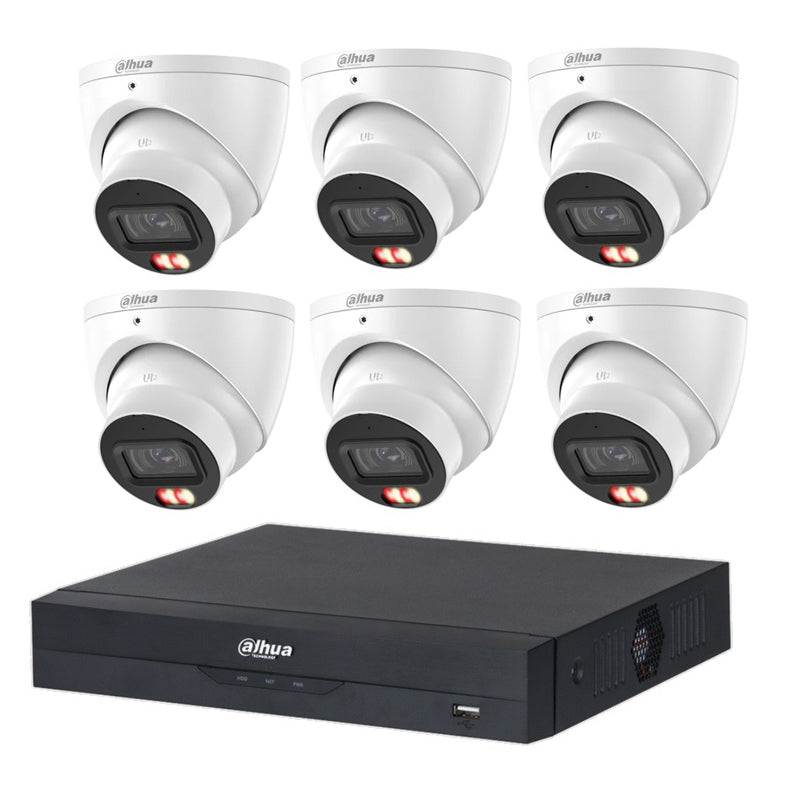

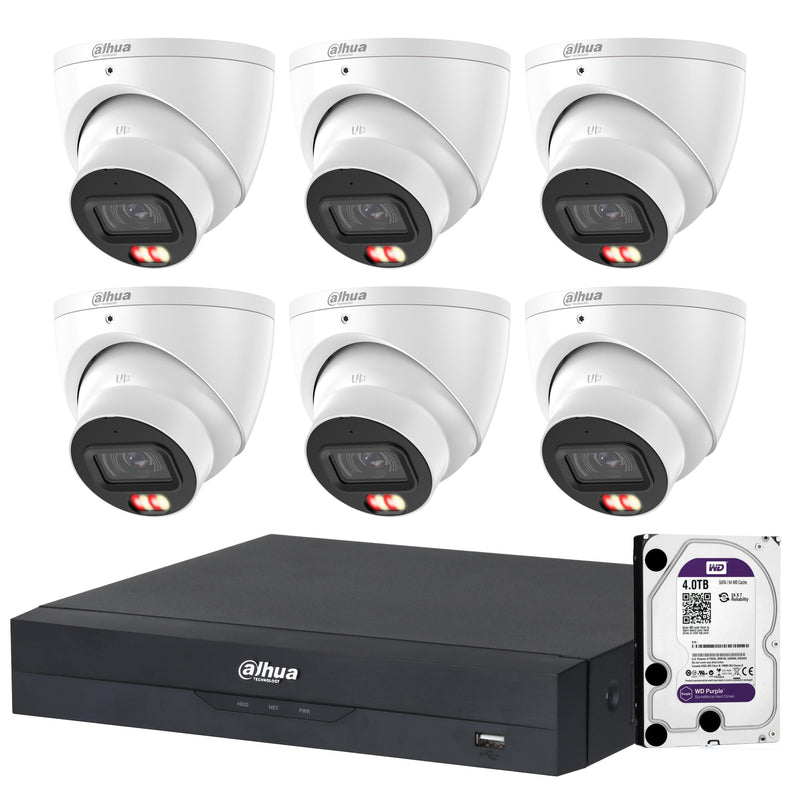

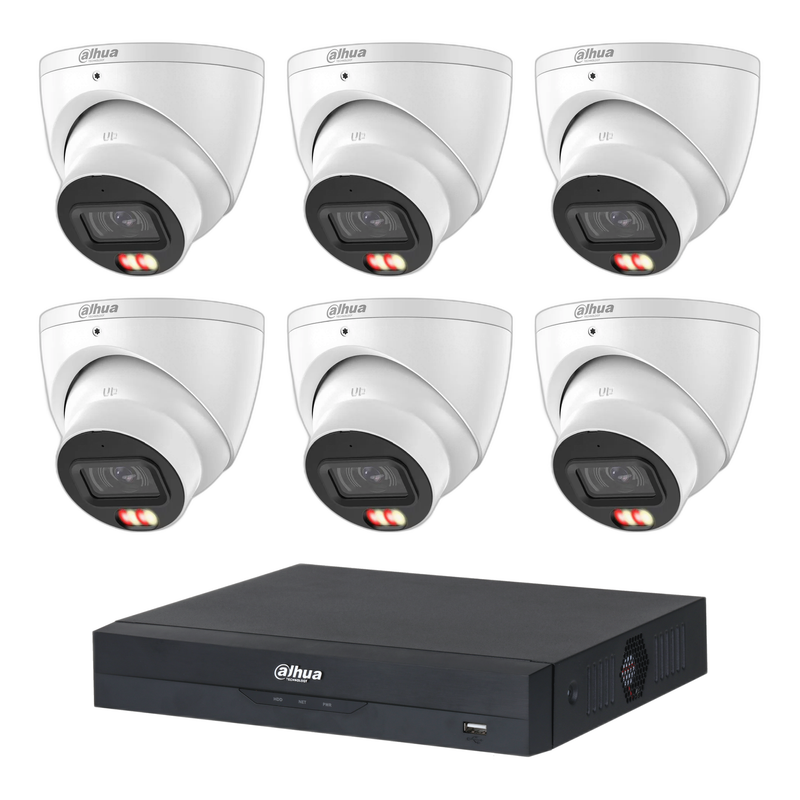

Dahua 6x 8MP HDW3867EM-S-IL Turret Kit + 8CH NVR 4TB

Name: Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Brand: Dahua
Price: 1733.1 AUD
Availability: InStock

Customize this kit Kit price $1,733.10

This kit includes: Cabling not included — add cables in the accessories below (one per camera).

6 × Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Camera Smart Dual Light + 30M IR ACUPICK
1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Camera Smart Dual Light + 30M IR ACUPICK · Max 16 · Each extra camera uses one NVR channel

+$0.00

NVR · channels ≥ your total camera count Base: 8ch · Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder

8ch Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up... Base (included)

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder

16ch Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 1... +$290.00

Hard Drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7 Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$135.55

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$429.55

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

Notes for warehouse (optional)

§ 01Overview

What the DH-IPC-HDW3867EM-S-IL-ANZ is

This Dahua 6-camera kit uses the same 8MP (4K) HDW3867EM-S-IL Smart Dual Light turret as the smaller kits, but with six cameras on the 8-channel DHI-NVR4108HS-8P-AI NVR and a pre-fitted 4TB drive.

It is the natural choice for a larger home or a small business where four cameras leave gaps and you want full coverage of the front, rear, sides and a driveway or yard.

Smart Dual Light keeps the cameras discreet on infrared when nothing is happening, then switches to warm white light for full-colour footage to about 30 metres the moment motion is detected.

That gives you colour detail of who is there without running white light all night.

SMD 4.0 deep-learning AI classifies people and vehicles and filters out animals, rain and foliage, so six cameras do not mean six times the nuisance alerts.

With six of the eight PoE ports used, there are two spare to add more cameras later on a single cable each.

Each camera has a built-in microphone for audio context, the IP67 metal housings cope with Australian weather, and the system is managed in the DMSS app.

Choose 2.8mm or 4mm lenses and white or black housings in your order note.

See it in action

What the DH-IPC-HDW3867EM-S-IL-ANZ features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Strobe Light — On detecting activity, the camera can trigger a bright flashing strobe to make an intruder a... — Strobe Light
On detecting activity, the camera can trigger a bright flashing strobe to make an intruder aware they've been spotted — a visible warning rather than silent recording.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3867EM-S-IL-ANZ specifications

- 6 x 8MP (3840 x 2160) HDW3867EM-S-IL Smart Dual Light turret cameras with Starlight low light.

- Full-colour night vision to 30m on motion, with discreet IR when the scene is idle.

- SMD 4.0 AI detection that filters animals and weather to flag only people and vehicles.

- DHI-NVR4108HS-8P-AI 8-channel NVR with 8 PoE ports and a pre-fitted 4TB drive.

- Two spare PoE ports to expand from six to eight cameras later.

- Built-in microphone, IP67 weatherproof housings, DMSS app management.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Image Sensor	1/2.7" CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	256 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56 dB
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes

Lens & Distance

Lens & Distance — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F1.4
Field of View	2.8 mm: H: 110°; V: 58°; D: 132° \| 3.6 mm: H: 86°; V: 49°; D: 100°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.4 m (4.59 ft); 3.6 mm: 1.9 m (6.23 ft)
DORI Distance	2.8 mm: Detect 84.8 m (278.22 ft); Observe 33.9 m (111.22 ft); Recognize 17.0 m (55.77 ft); Identify 8.5 m (27.89 ft) \| 3.6 mm: Detect 98.7 m (323.82 ft); Observe 39.5 m (129.59 ft); Recognize 19.7 m (64.63 ft); Identify 9.9 m (32.48 ft)
Pan Range	0°–360°
Tilt Range	0°–80°
Rotation Range	0°–360°

Night Vision

Night Vision — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Illumination Distance	Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control	Auto;Manual
Illuminator Number	2 (Multi-core (IR + warm) light)
Smart Illumination	Yes
Smart Dual Light	Yes

Video

Video — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 3840 × 2160@(1–25/30 fps) \| Sub stream: 1920 × 1080@(1–25/30 fps) \| Third stream: 1920 × 1080@(1–25/30 fps) \| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams
Resolution	8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	VBR;CBR;ABR
Video Bit Rate	H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps

Audio

Audio — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Built-in MIC	Yes, built-in Mic
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723

AI & Deep Learning

AI & Deep Learning — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD	SMD 4.0
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA	Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Cyber Security	Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Interoperability	ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser	IE: IE11; Chrome; Firefox
Management Software	Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client	iOS;Android

Event & Alarm

Event & Alarm — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; SMD; security exception

Interface

Interface — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)

General & Environment

General & Environment — Dahua 6 x DH-IPC-HDW3867EM-S-IL-ANZ Starlight Turret Cameras, 8CH AI NVR CCTV Kit + 4TB HDD
Feature	Detail
Power Supply	12 VDC/PoE (802.3af)
Dual Power Backup	When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption	Basic: 3.7 W (12 VDC); 5.3 W (PoE) \| Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Protection	IP67
Casing Material	Metal
Product Dimensions	105.5 mm × Φ122.0 mm (4.16" × Φ4.80")
Net Weight	0.53 kg (1.17 lb)
Gross Weight	0.71 kg (1.57 lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3867EM-S-IL-ANZ

Full coverage in 4K

Six 8MP cameras cover the front, rear, sides and a driveway or yard, capturing faces and plates across a larger property.

Colour at night, less light pollution

Smart Dual Light gives full-colour footage on motion and drops to IR when idle, so you get colour detail without flooding the area all night.

Fewer nuisance alerts

SMD 4.0 classifies people and vehicles across all six cameras, keeping alerts to genuine events rather than wildlife and weather.

Records out of the box

The bundled 4TB drive means the system records from day one with nothing extra to buy, plus two PoE ports spare to grow.

§ 05Where it fits

Right at home in these scenarios

Larger family homes

Cover all four sides plus a driveway and rear yard in 4K, with AI filtering pets and wildlife from genuine alerts.

Small business premises

Watch entries, the counter, stockroom and rear access with clear colour detail and audio context.

Hospitality venues

Monitor entrances, dining or service areas and the rear yard overnight, with colour footage on motion.

Acreage and sheds

Cover the house, sheds and gates from one NVR, with two spare ports for a future camera at a far approach.

§ 06Setup

Installation & setup

01

What's in the box

6 x Dahua turret cameras, 1 x DHI-NVR4108HS-8P-AI/ANZ 8-channel PoE NVR with a pre-fitted 4TB HDD, power lead and quick-start guide; choose 2.8mm or 4mm lens and white or black in your order note.

02

Cabling and power

Each camera runs on a single Cat5e/6 cable to a PoE port on the NVR (up to about 100m), so no separate camera power supplies are needed.

03

Network and recording

Connect the NVR to your router for remote viewing on any NBN type; the bundled HDD records straight away with no extra purchase.

04

App setup

In Australia a network camera is usually fitted by a licensed security installer or a competent IT/cabling technician who runs the Cat5e/6 cable, terminates the RJ45, mounts the unit and adds it to the NVR or app. Run the NVR start-up wizard, set a strong password and Australian time zone, then add it in the DMSS app by scanning the QR code.

§ 07Questions

Frequently asked about the DH-IPC-HDW3867EM-S-IL-ANZ

Q.01

Is a hard drive included?

Yes. The kit ships with a 4TB surveillance-grade hard drive already fitted in the NVR, so it records straight away with nothing extra to buy.

Q.02

Can I add more cameras?

Yes. Six of the eight PoE ports are used, leaving two spare for additional 8MP cameras on a single cable each.

Q.03

Why does the title say 6MP if the cameras are 8MP?

The cameras are 8MP (4K) HDW3867EM-S-IL turrets; this is a six-camera kit. The product fully records and displays at 8MP per channel.

Q.04

Does it record in colour at night?

Yes, on motion. Smart Dual Light switches to warm white light for full-colour footage to about 30 metres when movement is detected, then returns to discreet infrared.

Q.05

Will it cut down false alarms?

Yes. SMD 4.0 AI classifies people and vehicles and ignores animals, rain and foliage, so even with six cameras your alerts stay meaningful.

Q.06

How long will 4TB record six cameras?

Roughly two to three weeks of continuous 4K footage from six cameras, and longer on motion-only recording. Fit a larger drive for more history.

Q.07

Do the cameras have audio?

Each camera has a built-in microphone for audio context. They have no speaker, so there is no two-way talk on this turret model.

Q.08

Can I view it remotely?

Yes. The NVR connects to your router and the free DMSS app gives live and recorded viewing on iOS and Android over any NBN connection.

§ 08In motion

Dahua Acupick : Just One Pick (Quick Search)

§ 09Bundles

Recommended packages

01

Add two more cameras

Use the two spare PoE ports for extra 8MP turrets such as the HDW3867EM-S-IL, up to eight total.

02

Step up storage

Six 4K cameras fill a drive faster, so consider a larger 6TB or 8TB surveillance drive.

03

Add active deterrence

Swap in a TiOC camera such as the HDW3849H-AS-PV at a gate for strobe, siren and two-way audio.

04

Need more channels

Larger sites can step up to the 8-camera kit 8-camera or 16-channel kit 16-channel kit.
