Dahua 4 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 4 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2
Description
1 x DHI-NVR4108HS-8P-AI/ANZ 8CH PoE NVR with 4TB HDD installed,
4 x DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC turret cameras.
Regular price
$1,802.45 AUD
Sale price
$1,802.45 AUD
Regular price
$1,922.00 AUD
Sale
6.22%
$119.55 AUD
(6.22%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua 4 x 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC 3.0 Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
1
/
of
1
Customize this kit Kit price $1,802.45

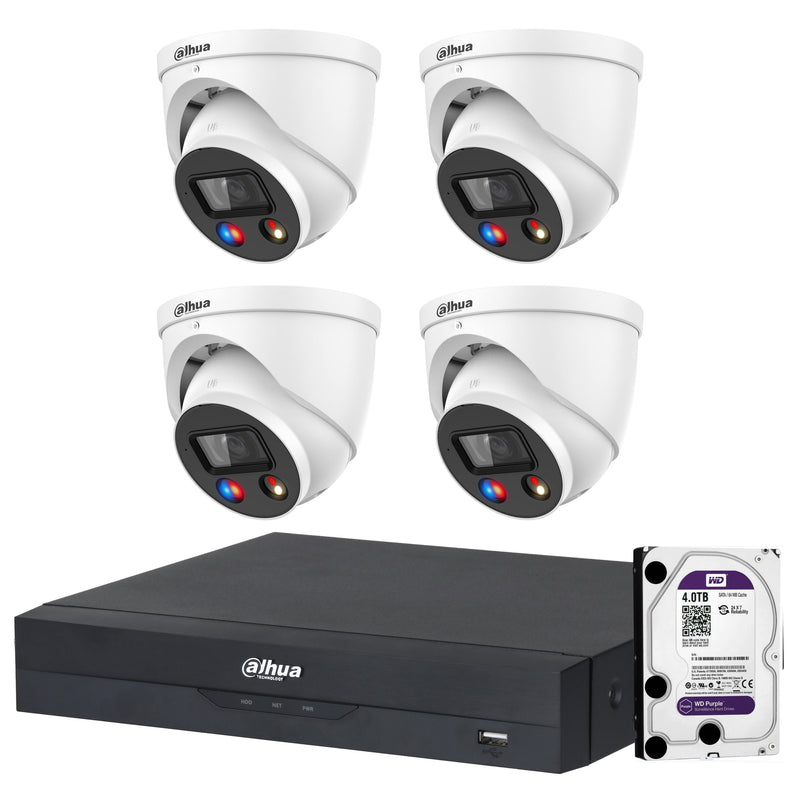

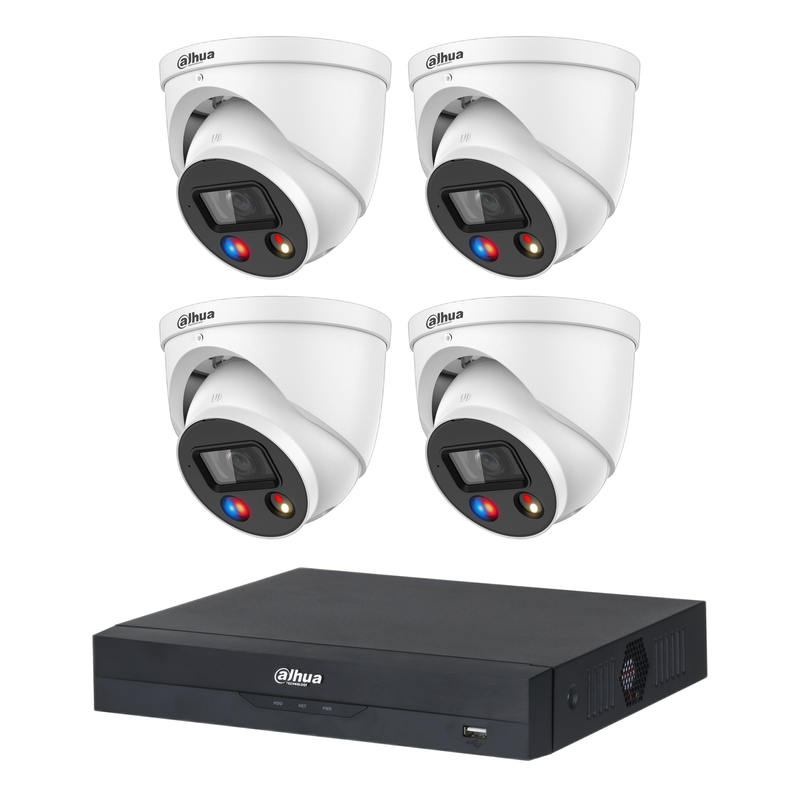

This kit includes:
- 4 × Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm, AcuPick, Active Deterrence, Two-Way Talk
- 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.

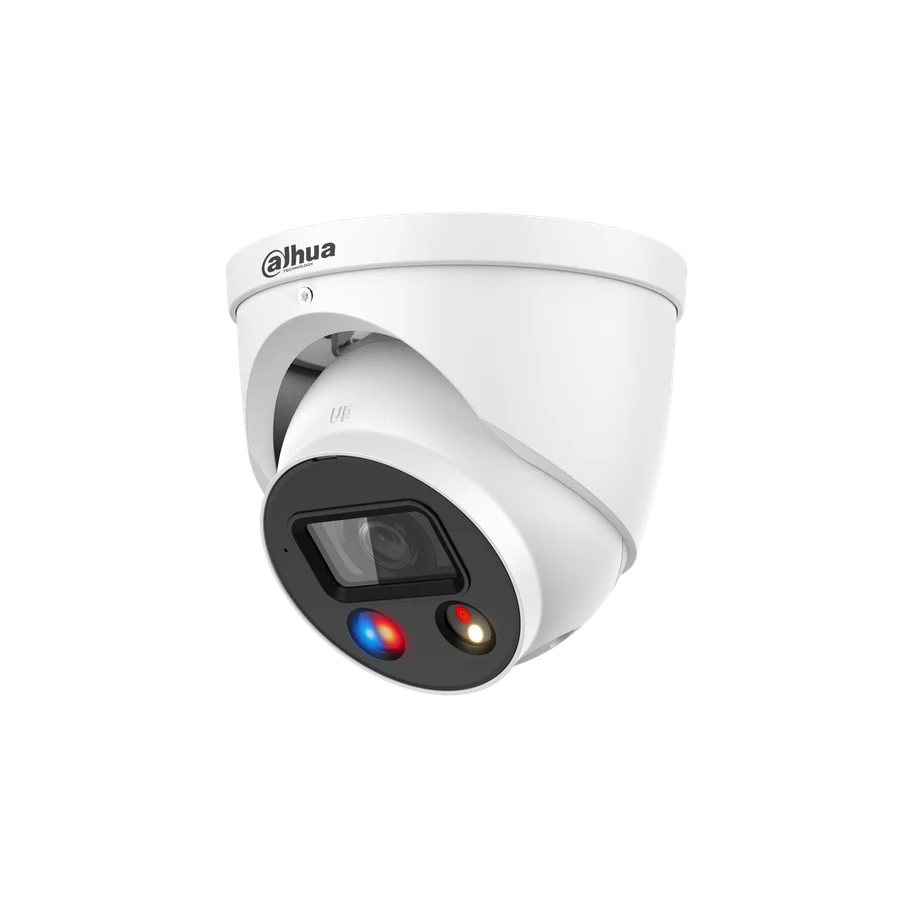

This 4-camera TiOC 3.0 kit pairs four DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP turrets with the 8-channel DHI-NVR4108HS-8P-AI/ANZ recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.
Four cameras is the standard single-storey layout — entry, driveway, backyard, side access — and here every position fights back: cross a tripwire and that camera flashes red and blue lights, plays a siren or voice warning, and records the event in 4K full colour under its warm light. Faces identify to about 6.6 metres, and SMD 4.0 keeps the alerts to humans and vehicles.
The 8CH NVR keeps four spare PoE channels — the buy-once option if more cameras are on the horizon. Four 8MP streams fill the 4TB drive in around 2 weeks of continuous recording; upgrade the drive with the kit customiser on this page if you record continuously.
§ 02Engineering
Technical specifications
- 4 x 8MP TiOC 3.0 Turrets: 3840 × 2160 F1.0 sensors rated to 0.004 lux colour — red and blue lights, siren voices and two-way talk on every camera.
- 8CH AI NVR: DHI-NVR4108HS-8P-AI/ANZ with PoE on every channel — four channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: around 2 weeks of continuous 4K footage from four cameras, far longer on motion-only recording.
- Smart Dual Illuminators: 30m infrared for everyday nights; the warm light captures detected events in full colour.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.
- 8CH AI NVR: DHI-NVR4108HS-8P-AI/ANZ with PoE on every channel — four channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: around 2 weeks of continuous 4K footage from four cameras, far longer on motion-only recording.
- Smart Dual Illuminators: 30m infrared for everyday nights; the warm light captures detected events in full colour.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | 3.6 mm: H: 85°; V: 45°; D: 102° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | 2.8 mm: Detect 66.0 m (216.54 ft); Observe 26.4 m (86.61 ft); Recognize 13.2 m (43.31 ft); Identify 6.6 m (21.65 ft) | 3.6 mm: Detect 78.0 m (255.91 ft); Observe 22.2 m (102.36 ft); Recognize 15.6 m (51.18 ft); Identify 7.8 m (25.59 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (IR); Up to 30 m (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%); AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps) | Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 9/11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/MAC fltering;Generaton and importng of X.509 certfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) | Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
| Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use it
Four channels spare for later
Same four cameras, but on an 8CH recorder — the granny flat, shed or front gate can join the system later by just plugging in. Buying headroom now is far cheaper than replacing a recorder.
Deterrence at every approach
Each camera answers its own zone: red and blue lights, a siren or voice warning through its speaker, and warm light so the event records in full colour — intruders are challenged at the boundary, not just filmed.
Loud on purpose — check it suits your street
Strobes and siren voices confront whoever triggers them. Draw zones to your own boundary and schedule sound overnight — or for tight terrace streets and strata, the quieter 3866 WizSense turret records the same 4K detail without the noise.
§ 05Where it fits
Right at home in these scenarios
Single-storey family home
The classic four-corner layout: front door, driveway, backyard and side gate — every approach covered in 4K, and every approach answers intruders with lights and a voice warning.
Home you'll grow into
Start with the four key approaches and add the pool, shed or granny flat later — the spare channels mean new cameras just plug in.
Townhouse with rear lane
Two cameras street-side, two on the courtyard and lane. Draw zones to your own boundary so lane foot traffic never triggers the sirens.
Small business after close
Entries and the rear door challenged with voice warnings the moment a zone is crossed — and dual mics on every camera add audio evidence where your state's recording rules allow it.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 Camera × 4 2. DHI-NVR4108HS-8P-AI/ANZ NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power, video and every deterrence feature together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.
App Setup
1. Download the DMSS app, then scan the QR code shown on the NVR screen (Main Menu → Network → P2P). 2. Enable push notifications in DMSS, and keep one-tap disarming handy for expected visitors. 3. Draw each camera's tripwire and intrusion zones tight to your own property — zones are what fire the lights and siren voices, so keep footpaths and the neighbour's driveway out of them.
§ 07Questions
Frequently asked
Q.01
Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all four cameras including their lights and sirens. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02
How long will the 4TB drive keep footage?
Around 2 weeks of continuous recording from four 8MP cameras (roughly 60GB per camera per day), and a month or more on motion-only recording. The NVR overwrites the oldest footage automatically — for longer retention, upgrade the drive with the kit customiser before checkout.
Q.03
Can I add more cameras later?
Yes — the 8CH NVR has four spare PoE channels, and any current Dahua PoE camera plugs straight in. To keep the deterrence features consistent, the same HDW3849 S2 turret is the natural choice — you can also add cameras before checkout with the kit customiser.
Q.04
How does the deterrence actually work across the kit?
Each camera runs its own tripwire and intrusion zones — the one that detects reacts on the spot with red and blue lights, a siren or voice warning through its speaker, and warm light so the event records in full colour. One-tap disarming in the DMSS app stands the system down when you're expecting people.
Q.05
Will the lights and sirens annoy the neighbours?
They can if zones are drawn carelessly — this is a kit that reacts out loud. Draw each camera's zones tight to your own property, schedule sound off overnight, or set individual cameras to light-only. For positions facing a shared driveway or footpath, the quieter 3866 WizSense turret records the same 4K detail without the noise.
Q.06
How far can the cameras see at night?
Each turret records colour down to 0.004 lux through its F1.0 lens, then switches to infrared with a 30-metre range in full darkness. When a person or vehicle is detected, the 30-metre warm light takes over and that event records in full colour.
Q.07
Can the cameras identify faces and number plates?
With the 2.8mm lens, faces are reliably identifiable to about 6.6 metres — porch and doorway distance — and the 4K frame leaves room to zoom into recordings afterwards. Number plates still need daylight or good lighting: glare and headlights work against any camera at night.
Q.08
Do these cameras support AcuPick search?
The cameras do — paired with an AcuPick-capable Dahua recorder, AcuPick matches a person across cameras in seconds. The AI NVR included in this kit runs SMD 4.0 classification and Quick Pick search, which already pulls every human or vehicle event from a day of footage in one pass.
Q.09
Should I have chosen a quieter WizSense kit instead?
Both families run the same Dahua AI — human and vehicle classification, SMD 4.0 and perimeter protection. The difference is the response. These TiOC turrets confront: lights, siren voices, full-colour event capture and two-way talk. A WizSense kit built on the 3866 records the same 4K detail quietly and just alerts your phone. Pick this kit where you want intruders challenged at the boundary; pick WizSense where evidence is enough.
Q.10
What's the difference between the 3849, the 3649 and the 3866?
All three are 3 Series turrets. The 3849 (the cameras in this kit) is the 8MP TiOC 3.0 — deterrence plus 4K detail, with AcuPick support on compatible recorders. The 3649 is the 6MP TiOC 2.0 — the same red and blue lights and siren at a lower price, with the family's best low-light rating (0.003 lux). The 3866 is the quiet pick: 4K WizSense detail with no lights or sirens.
Q.11
What does the AI NVR actually do beyond recording?
Three things: it classifies SMD alerts so only humans and vehicles notify you, Quick Pick search pulls every person or vehicle event from hours of footage in one pass, and it runs tripwire and intrusion zones per camera. It also powers all four cameras over its PoE ports.
Q.12
Does SMD 4.0 really reduce false alarms from animals and weather?
Yes. SMD 4.0 uses AI to distinguish humans and vehicles from small animals, tree movement and rain, and AI SSA re-tunes the image in rain, fog and backlight, so far fewer junk notifications get through than basic motion detection.
Q.13
Do I need to pay any subscription?
No. Recording, AI detection, deterrence and remote viewing through the DMSS app all run on your own hardware — no monthly fees and no cloud account requirement.
Q.14
Can I view the cameras on my phone away from home?
Yes — enable P2P on the NVR, scan the QR code in the DMSS app, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.15
Will it work without internet?
Yes. Cameras record to the NVR on a closed local network, and the lights and sirens still fire on local detection. Internet is only needed for remote viewing and push notifications.
Q.16
Is a Dahua system safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and encrypted firmware. On an isolated network it still records normally.
Q.17
What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.
§ 08In motion
Dahua WizColor Review HDW3849H-Pro
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
§ 09Bundles
Recommended packages
Why the 8CH recorder?
Four channels spare means the system grows with you — add cameras one at a time with no recorder swap. If you'll never go past four, the 4CH version of this kit saves a little upfront.
Recording continuously?
Four 8MP streams fill 4TB in around 2 weeks. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.
Add mounts where walls don't suit
The PFA137 junction box keeps connections weatherproof on brick, cladding and fascia boards where a straight mount doesn't fit.
