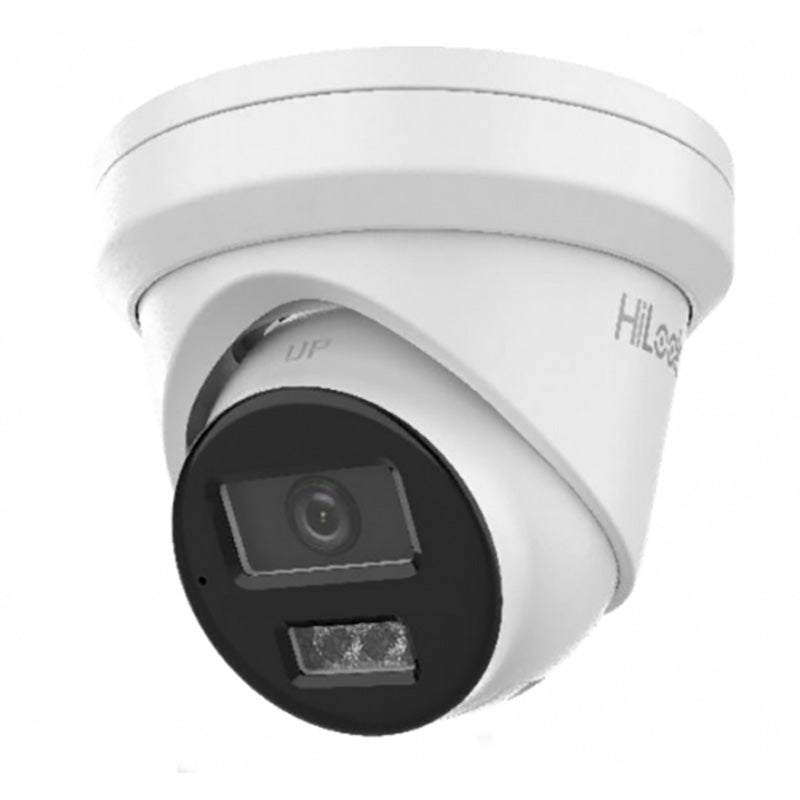

HiLook by Hikvision 6MP IPC-T262H-MU Acusense Turret IP Camera with Built in Mic
SKU: IPC-T262H-MU
Description
- 6MP High Resolution: Captures sharp video at 3200×1800 @20fps for detailed imaging.
- H.265+ Compression: Reduces bandwidth and storage needs while maintaining video quality.
- Built-in Mic & Dual IR LEDs: Provides real-time audio and up to 30m infrared night vision.
- IP67 Weather Resistance: Dustproof and waterproof design for reliable outdoor operation.
- Human/Vehicle Detection: Uses deep learning to accurately identify targets and reduce false alerts.
Regular price
$85.50 AUD
Sale price
$85.50 AUD
Regular price
$132.00 AUD
Sale
35.23%
$46.50 AUD
(35.23%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook by Hikvision 6MP IPC-T262H-MU Acusense Turret IP Camera with Built in Mic
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $525.95 or kits from $513.00
Or pick a ready-made kit
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The HiLook IPC-T262H-MU is a 6MP AI Fixed Turret Network Camera for high-quality surveillance clarity, ideal for indoor and outdoor applications.
Equipped with built-in microphone, smart human and vehicle detection, dual IR night vision up to 30m, H.265+ compression, and IP67 weather resistance.
§ 02Engineering
Technical specifications
- 6MP Resolution: Delivers high-quality imaging at 3072×2048 for detailed surveillance.
- Built-in Microphone: Enables real-time audio monitoring alongside video footage.
- AI Detection: Accurately identifies humans and vehicles via deep learning, reducing false alarms.
- H.265+ Compression: Optimizes bandwidth and storage efficiency while maintaining video quality.
- Dual IR LEDs: Provides up to 30m night vision range for clear low-light monitoring.
- 120dB True WDR: Ensures clear imaging in high-contrast or backlit environments.
- IP67 Rating: Dust and water-resistant for reliable outdoor durability.
- MicroSD Support: Local storage up to 256GB for flexible data management.
- Built-in Microphone: Enables real-time audio monitoring alongside video footage.
- AI Detection: Accurately identifies humans and vehicles via deep learning, reducing false alarms.
- H.265+ Compression: Optimizes bandwidth and storage efficiency while maintaining video quality.
- Dual IR LEDs: Provides up to 30m night vision range for clear low-light monitoring.
- 120dB True WDR: Ensures clear imaging in high-contrast or backlit environments.
- IP67 Rating: Dust and water-resistant for reliable outdoor durability.
- MicroSD Support: Local storage up to 256GB for flexible data management.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Protection | IP67: IEC 60529-2013 |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
§ 04Why choose this
Built for the way you actually use it
Smart AI Detection Reduces False Alarms
Built-in AcuSense Lite technology distinguishes between people, vehicles, and everyday movements, filtering 70-80% of nuisance notifications from trees or animals
Superior Image Detail in Australian Conditions
6MP resolution captures clear facial features at 7 metres and licence plate details at 15 metres, whilst 120dB WDR handles harsh midday sun
Audio Recording with Built-In Microphone
Integrated microphone captures conversations and audio evidence at entry points, adding critical context to visual recordings for security documentation
§ 05Where it fits
Right at home in these scenarios
Front Verandah and Driveway Monitoring
Covers standard suburban driveways and entry gates with 105-degree field of view, capturing visitors and vehicle movements with clear facial identification
Backyard and Pool Area Surveillance
IP67 weatherproof rating withstands Brisbane's subtropical humidity and Adelaide's dry heat whilst monitoring rear entrances and Australian pool safety compliance zones
Small Retail Shop Security
Perfect for newsagents, pharmacies, and convenience stores requiring till transaction recording, customer entry monitoring, and shoplifting deterrence with clear 6MP evidence
Workshop and Trade Facility Protection
Operates reliably in uninsulated sheds from -30°C to 60°C, monitoring tool storage, vehicle bays, and loading docks across Australia's extreme temperature ranges
§ 06Setup
Installation & setup
What's in the Box
1. HiLook IPC-T262H-MU Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires either Power over Ethernet injector or switch (IEEE 802.3af, 6.5W consumption) or 12V DC adaptor with RCM certification for Australian 240V mains 2. Network Cable: Cat5e or Cat6 Ethernet cable with solid copper core, maximum 100 metres length, outdoor-rated UV-resistant cable required for external cable runs 3. Mounting Surface: Solid brick, concrete, or timber surface capable of supporting 600-gram camera weight, or plasterboard with spring toggle anchors rated for 5 kilograms minimum 4. Storage Device: Compatible HiLook NVR with built-in PoE switch for plug-and-play operation or third-party NVR supporting ONVIF protocol for local recording capability 5. Coastal Limitation: Not suitable for installations within 2 kilometres of ocean due to lack of anti-corrosion protection, salt spray causes premature housing degradation
App Setup
1. Download the HiLookVision app from Apple App Store or Google Play Store and create your account with secure password meeting minimum complexity requirements 2. Connect camera to network via Ethernet cable and PoE power, wait 2 minutes for boot sequence, then locate camera IP address using SADP tool 3. Access camera web interface through browser, create strong administrator password, enable Platform Access for remote viewing, and generate verification code for mobile app pairing 4. Configure motion detection zones covering monitored areas, enable Human and Vehicle Detection, adjust sensitivity to 50-60, and activate notification preferences within camera settings
§ 07Questions
Frequently asked
Q.01
Does this camera work with my existing HiLook or Hikvision NVR?
Yes, the IPC-T262H-MU integrates seamlessly with HiLook and Hikvision NVRs that support H.265+ or H.264 encoding via plug-and-play PoE connection.
Q.02
Can I view the camera remotely on my phone?
Yes, you can use the free HiLookVision app (available on iOS and Android) for live viewing, playback, and receiving motion alerts from anywhere.
Q.03
Does the camera need a separate power supply or can I use PoE?
The camera supports Power over Ethernet (PoE - IEEE 802.3af), so a single cable provides both power and data when connected to a PoE NVR or switch.
Q.04
What warranty coverage does this camera have in Australia?
All HiLook IP cameras come with a 3-year back-to-base manufacturer warranty through authorised Australian distributors.
Q.05
How does the AcuSense feature reduce false alarms?
AcuSense uses AI deep learning to distinguish between humans and vehicles versus irrelevant motion like animals, leaves, or rain, significantly reducing false alerts.
Q.06
Is the camera suitable for Australian outdoor conditions?
Yes, with its IP67 rating, the camera is fully dust-tight and protected against heavy rain, making it ideal for harsh Australian weather including heat and storms.
Q.07
Does the camera support local recording to an SD card?
No, the standard IPC-T262H-MU model does not have an SD card slot. Only models with "-F" designation support memory card storage.
Q.08
How far can the night vision see in complete darkness?
The dual IR lights provide clear night vision up to 30 metres in total darkness.
