HiLook by Hikvision 6MP IPC-T361H-MU Acusense Turret IP Camera with Mic
SKU: IPC-T361H-MU
Description
- 6MP Ultra-Clear Resolution: Captures sharp video at 3200 × 1800 for detailed surveillance.
- Built-in Microphone & AI AcuSense: Records audio and enables smart human/vehicle detection to reduce false alarms.
- 30m IR Night Vision & IP67: Provides reliable low-light coverage and weatherproof durability for indoor/outdoor use.
- H.265+ Compression: Reduces bandwidth and storage requirements efficiently.
- PoE Support: Simplifies installation with single-cable power and data transmission.
Regular price
$99.75 AUD
Sale price
$99.75 AUD
Regular price
$90.00 AUD
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook by Hikvision 6MP IPC-T361H-MU Acusense Turret IP Camera with Mic
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $540.20 or kits from $484.50
Or pick a ready-made kit
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is

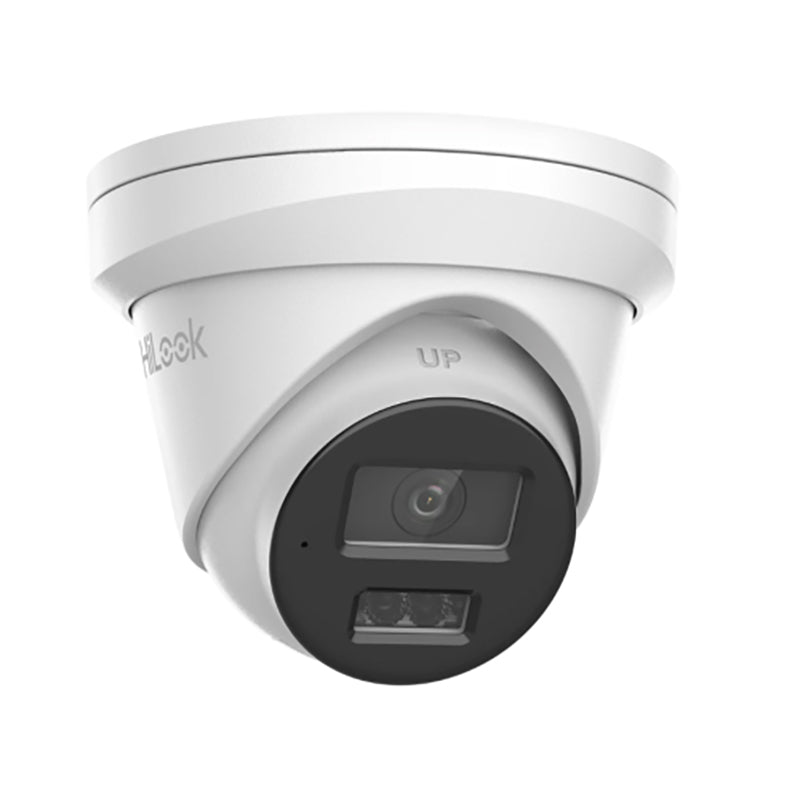

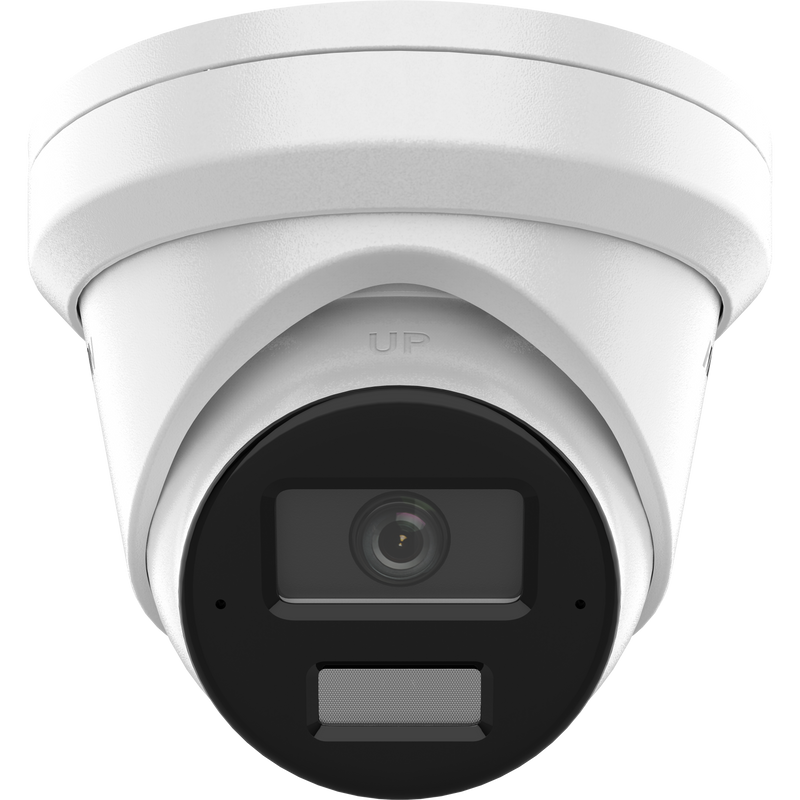

The HiLook IPC-T361H-MU is a compact 6MP AcuSense turret camera ideal for high-resolution indoor and outdoor surveillance. Equipped with 6MP resolution, built-in mic, smart human/vehicle detection, 30m IR night vision, and IP67 rating.
§ 02Engineering
Technical specifications
- 6MP Resolution: Captures sharp 3200 × 1800 video for detailed surveillance.
- AcuSense AI Detection: Identifies humans and vehicles while filtering out irrelevant motion to reduce false alarms.
- Built-in Microphone: Records audio for enhanced context in security footage.
- Dual IR LEDs: Delivers up to 30m infrared night vision for clear low-light coverage.
- IP67 Protection: Weatherproof design ensures durability in indoor or outdoor environments.
- H.265+ Compression: Minimises bandwidth and storage needs with advanced video encoding.
- AcuSense AI Detection: Identifies humans and vehicles while filtering out irrelevant motion to reduce false alarms.
- Built-in Microphone: Records audio for enhanced context in security footage.
- Dual IR LEDs: Delivers up to 30m infrared night vision for clear low-light coverage.
- IP67 Protection: Weatherproof design ensures durability in indoor or outdoor environments.
- H.265+ Compression: Minimises bandwidth and storage needs with advanced video encoding.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.8 m to ∞ | 4 mm: 3.1 m to ∞ |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -2U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Line crossing, intrusion; Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 11 | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ | Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -2U: Arrayed dual-microphone |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 96.3 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight | Approx. 515 g (1.1 lb.) |
| With Package Weight | Approx. 755 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 | LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use it
Hikvision Quality at Budget-Friendly Pricing
Delivers genuine Hikvision manufacturing quality and AcuSense AI technology at 30-50% less than Hikvision-branded equivalents, combining professional specifications with accessible pricing.
True 120 dB Wide Dynamic Range
Handles challenging high-contrast Australian lighting conditions like bright windows and doorways significantly better than budget competitors, ensuring clear footage in difficult scenes.
AI-Powered Human and Vehicle Detection
AcuSense deep learning technology filters out pets, foliage, and shadows to dramatically reduce false alarms, sending alerts only for genuine human and vehicle activity.
§ 05Where it fits
Right at home in these scenarios
Front Entrance and Driveway Monitoring
Wide 105° field of view with 2.8mm lens captures entire driveway and entrance areas, identifying visitors at 7-15 metres with audio recording for complete documentation.
Retail Customer Service Documentation
Dual-microphone audio captures customer interactions clearly within 5-10 metres, providing comprehensive visual and audio records essential for transaction verification and dispute resolution.
Office Reception and Common Areas
Documents visitor conversations and staff interactions with synchronised audio-video recording, ideal for security incident investigation and workplace safety compliance in Australian businesses.
Outdoor Weatherproof Perimeter Security
IP67 rating and -30°C to 60°C operating range withstands harsh Australian conditions from tropical Queensland humidity to Victorian winters, with 30-metre Smart IR night vision coverage.
§ 06Setup
Installation & setup
What's in the Box
1. Hilook IPC-T361H-MU Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: Requires IEEE 802.3af PoE switch or NVR with built-in PoE ports, or 12V DC mains power within 3 metres of mounting location for Australian 240V outlets. 2. Network Connection: Cat5e or Cat6 Ethernet cable with UV-rated outdoor jacket for external runs, supporting up to 100-metre cable distance at full 6MP performance. 3. Mounting Surface: Solid wall or eave surface capable of supporting 515g camera weight, with recommended mounting height between 2.5-3.5 metres and 15-30° downward tilt for optimal facial recognition.
App Setup
1. Download the free Hik-Connect app from Google Play or Apple App Store and create an account for remote access without ongoing subscription fees. 2. Enable Platform Access on your NVR or camera to generate QR code, then scan with Hik-Connect app to establish secure P2P connection automatically through Australian NBN. 3. Configure AcuSense AI detection zones, human and vehicle filtering, and notification schedules within camera web interface to reduce false alarms from pets and foliage movement.
§ 07Questions
Frequently asked
Q.01
Does this camera work with HiLook NVRs?
Yes, it works seamlessly with HiLook NVRs via PoE. The camera is commonly sold in kits with 4-channel or 8-channel HiLook NVRs like the NVR-104MH-C-4P and NVR-108MH-C-8P for plug-and-play installation.
Q.02
Is the camera suitable for outdoor use in Australian weather?
Absolutely. The IP67-rated weatherproof housing ensures resistance to rain, dust, and extreme temperatures, making it ideal for harsh Australian outdoor conditions.
Q.03
Which lens should I choose - 2.8mm or 4mm?
Choose 2.8mm for wide coverage (105° FOV) in open areas like yards and driveways. The 4mm lens (78° FOV) is better for focused areas like hallways and entrances where you need more detail at mid-range.
Q.04
Does the camera support audio recording?
Yes, it features built-in dual microphones that support live audio monitoring and recording. The dual-microphone array provides enhanced audio clarity with noise filtering.
Q.05
Can I store footage directly on the camera?
Yes, the camera supports microSD cards up to 512GB for onboard storage. You can also record to an NVR, NAS, or FTP server.
Q.06
How does the AI detection reduce false alarms?
The AcuSense technology uses deep learning to distinguish between humans and vehicles, filtering out false triggers from pets, leaves, rain, or insects.
Q.07
What warranty is included with this camera?
All HiLook IP cameras come with a 3-year back-to-base manufacturer warranty through authorized Australian distributors.
Q.08
Does the camera require special cabling?
No, it uses Power over Ethernet (PoE), so a single Ethernet cable provides both power and data, simplifying installation without needing separate power supplies.
