HiLook Hikvision 6MP AcuSense CCTV Kit – 8x Turret IPC-T361H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
Skip to product information
1
/
of
1
Vendor:
Hilook
HiLook Hikvision 6MP AcuSense CCTV Kit – 8x Turret IPC-T361H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
SKU: IPC-T361H-MU
Description
- 6MP Ultra HD Resolution: Captures crystal-clear 3200×1800 footage day and night.
- AcuSense AI Detection: Filters humans/vehicles while ignoring pets or rain to reduce false alarms.
- Built-in Dual Microphone: Records clear audio for enhanced event context.
- IP67 Weatherproof & 30m EXIR Night Vision: Weather-resistant metal casing with 30m infrared range.
- H.265+ Compression & PoE Support: Efficient bandwidth/storage usage with plug-and-play installation.
*(Precisely condensed from original specs without introducing new elements)*
Regular price
$854.05 AUD
Sale price
$854.05 AUD
Regular price
$1,643.00 AUD
Sale
48.02%
$788.95 AUD
(48.02%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
HiLook Hikvision 6MP AcuSense CCTV Kit – 8x Turret IPC-T361H-MU + 8CH PoE NVR (NVR-108MH-C/8P)
1
/
of
1
Customize this kit Kit price $854.05

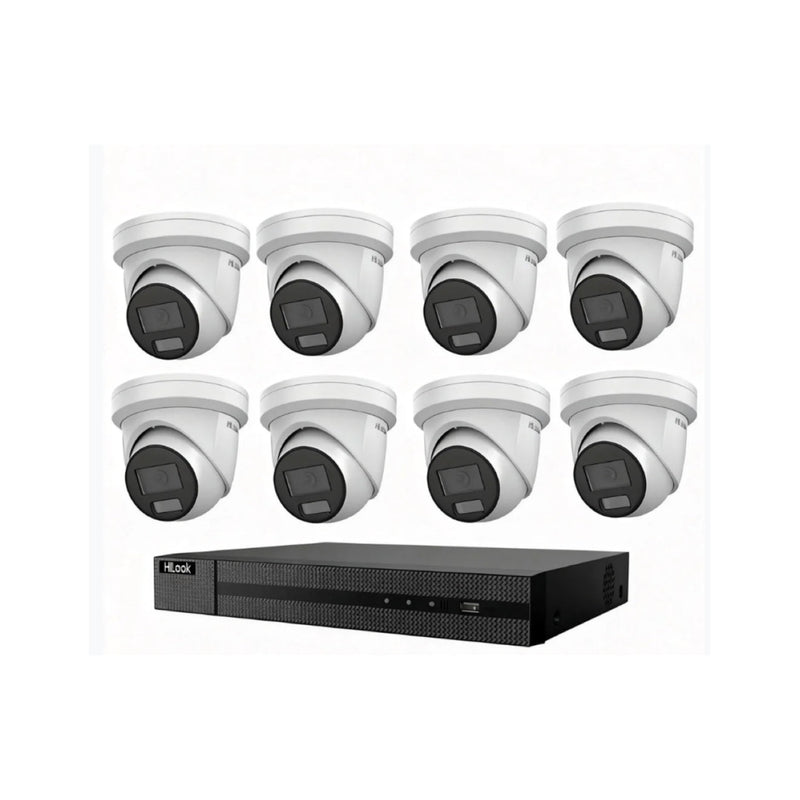

This kit includes:
- 8 × HiLook by Hikvision 6MP IPC-T361H-MU Acusense Turret IP Camera with Mic
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
- No HDD included (add one below)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the IPC-T361H-MU is
The HiLook 6MP AcuSense CCTV Kit (SKUs: IPC-T361H-MU cameras and NVR-108MH-C-8P NVR) is a professional-grade surveillance solution for homes, offices, or retail environments requiring accurate alerts and high-resolution footage.
Equipped with AcuSense motion detection for human/vehicle distinction, built-in dual microphones for audio capture, 6MP UHD clarity, 30m IR night vision, and 8CH PoE NVR support with remote access.
§ 02Engineering
IPC-T361H-MU specifications
- 6MP UHD Resolution: Captures sharp 3200 × 1800 footage for detailed identification of faces and license plates.
- AcuSense AI Detection: Distinguishes humans and vehicles while filtering irrelevant motion (e.g., pets, rain) to reduce false alarms.
- Built-in Dual Microphone: Captures audio alongside video to enhance event context and security deterrence.
- H.265+ Compression: Advanced encoding reduces bandwidth and storage requirements (supports H.265, H.264+, H.264).
- EXIR Night Vision: 30m IR range with smart IR optimization for clear low-light imaging.
- IP67 Weatherproof: Metal casing protects against dust, rain, and extreme weather conditions.
- True WDR: 120dB wide dynamic range balances exposure in high-contrast lighting.
- Plug-and-Play PoE NVR: 8-channel NVR supports automatic camera setup, 4K HDMI/VGA output, and remote mobile viewing.
- AcuSense AI Detection: Distinguishes humans and vehicles while filtering irrelevant motion (e.g., pets, rain) to reduce false alarms.
- Built-in Dual Microphone: Captures audio alongside video to enhance event context and security deterrence.
- H.265+ Compression: Advanced encoding reduces bandwidth and storage requirements (supports H.265, H.264+, H.264).
- EXIR Night Vision: 30m IR range with smart IR optimization for clear low-light imaging.
- IP67 Weatherproof: Metal casing protects against dust, rain, and extreme weather conditions.
- True WDR: 120dB wide dynamic range balances exposure in high-contrast lighting.
- Plug-and-Play PoE NVR: 8-channel NVR supports automatic camera setup, 4K HDMI/VGA output, and remote mobile viewing.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.8 m to ∞ | 4 mm: 3.1 m to ∞ |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -2U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -2U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Line crossing, intrusion; Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 11 | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ | Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -2U: Arrayed dual-microphone |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 9.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 96.3 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight | Approx. 515 g (1.1 lb.) |
| With Package Weight | Approx. 755 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 | LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
