HiLook Hikvision 6MP AcuSense 8CH CCTV Kit with 6 Turret IP Cameras + 8CH NVR IPC-T262H-MU
This HiLook 6MP kit pairs six IPC-T262H-MU AcuSense turret cameras with an 8-channel PoE NVR — a straightforward, dependable system for homes and small businesses, with room to grow. Each turret delivers 6MP detail, 30 metre infrared night vision and a built-in microphone, behind an IP67 weatherproof metal housing. AcuSense human and vehicle detection keeps alerts relevant, and the 8-port PoE recorder powers all six cameras over a single cable each and leaves two channels free for later.
This product has been discontinued – click here to view the replacement model Hilook IPC-T361H-MU

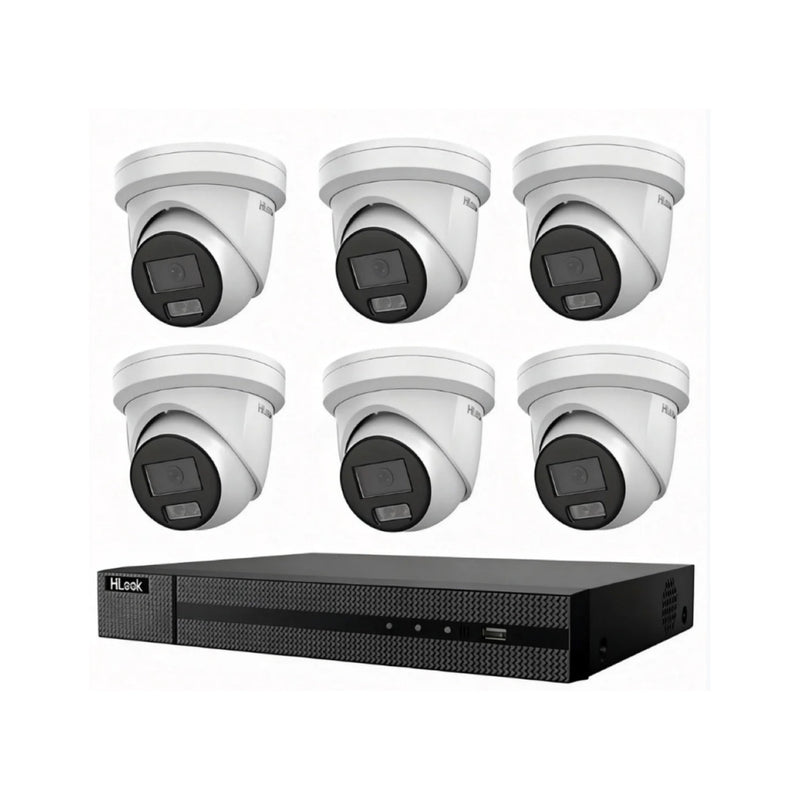

Kit includes
- 6 × HiLook IPC-T262H-MU 6MP AcuSense turret cameras (IP67, 30 m IR, built-in mic)
- 1 × HiLook NVR-108MH-C/8P 8-channel PoE network video recorder
- No hard drive included (add a surveillance-grade drive separately)
- AcuSense human and vehicle detection on every camera
- Two spare channels for future cameras; IP67 metal housings; 3-year warranty
$748.24 AUD
BEST PRICE
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Customize this kit Kit price $796.00
- 6 × HiLook by Hikvision 6MP IPC-T262H-MU Acusense Turret IP Camera with Built in Mic
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the IPC-T262H-MU is
This HiLook 6MP kit is a six-camera system for sites that want dependable, no-fuss AcuSense coverage with room to expand.
Six IPC-T262H-MU turret cameras run from a HiLook NVR-108MH-C/8P, an 8-channel recorder with eight built-in PoE ports, so each camera connects over a single network cable that carries power and data.
The IPC-T262H-MU is a workhorse turret.
Each camera captures 6MP detail by day and switches to 30 metre infrared at night in black and white, with 120 dB true WDR to handle bright and dark areas in the same frame.
A built-in microphone records audio alongside the video, and AcuSense classifies people and vehicles so the system can alert you only on what matters, cutting nuisance notifications from animals, rain and moving foliage.
The IP67 metal housings suit indoor and outdoor positions and H.265+ keeps recordings efficient.
Two honest notes.
The recorder ships without a hard drive, so add a surveillance-grade drive sized to six cameras and your retention; a 4TB drive is a sensible minimum and the NVR takes a single drive up to 8TB.
And the turrets have a microphone but no speaker, so they record audio without talk-back; if you want a and for active deterrence, the T269 all-in-one cameras are the ones to look at.
This is genuine HiLook stock with a local 3-year warranty and support.
See it in action
What the IPC-T262H-MU features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
30m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
IPC-T262H-MU specifications
- 30 m infrared night vision with dual IR LEDs; built-in microphone for audio recording
- AcuSense human and vehicle classification on every camera to cut false alerts
- HiLook NVR-108MH-C/8P 8-channel recorder with 8 built-in PoE ports (one cable per camera)
- 120 dB true WDR and H.265+ compression; IP67 metal housings
- Up to 4K HDMI output; remote access via the HiLookVision app and Hik-Connect
- No hard drive included; 1 SATA bay supports a drive up to 8TB; two spare channels
- Genuine HiLook (Hikvision sub-brand) stock with a local 3-year warranty
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Protection | IP67: IEC 60529-2013 |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
§ 04Why choose this
Built for the way you actually use the IPC-T262H-MU
Fewer false alerts
AcuSense human and vehicle classification keeps notifications about people and cars, not animals or weather.
Room to grow
An 8-channel recorder runs six cameras and leaves two spare channels for later expansion.
Simple PoE cabling
Eight built-in PoE ports mean one network cable per camera with no separate power supplies.
§ 05Where it fits
Right at home in these scenarios
Family homes
Cover the front, drive, yard and sides with reliable 6MP coverage and relevant alerts.
Shops and offices
Watch entries, floors and stock areas with AcuSense filtering out nuisance motion.
Warehouses and yards
General-purpose turret coverage of open areas, with two channels spare for later.
Budget-aware sites
Solid six-camera coverage now, with room to add deterrence or extra cameras down the track.
§ 06Setup
Installation & setup
What's in the box
Six IPC-T262H-MU turret cameras, one NVR-108MH-C/8P recorder and mounting accessories with guides. A hard drive, network cables and a monitor are supplied separately.
Installation requirements
Mount each turret over the area you want, run one network cable from each to the NVR's PoE ports, and fit a surveillance-grade hard drive before recording. Set up in the HiLookVision app or on a monitor, enable AcuSense rules, and test each view and the night mode before relying on it.
§ 07Questions
Frequently asked about the IPC-T262H-MU
Q.01
Yes. AcuSense classifies motion as human, vehicle or neither, so you can set the system to alert only on people and vehicles. That cuts the nuisance notifications that animals, rain and moving foliage would otherwise trigger. Are the cameras suitable for outdoor use?
§ 09Bundles
Recommended packages
Add a hard drive to record
This NVR ships without a hard drive, so add a surveillance-grade 2TB drive or 6TB drive sized to how long you want to keep footage; for six cameras recording continuously a 4TB drive is a sensible minimum, and the recorder takes a single drive up to 8TB.
Need fewer cameras
Compare the 5-camera T262H kit on the same 8-channel recorder for a smaller start.
Want colour night vision or deterrence
The 8-camera T363H Pro kit adds Smart Hybrid Light, and the mixed T269 + T262H kit adds strobe and talk-back.
Add matching cameras
Use the two spare channels for extra IPC-T262H-MU turret cameras.
