HiLook by Hikvision 6MP 8CH CCTV Kit with 2 Colour Deterrence Cameras IPC-T269-MU/SL + 4 Turret Cameras IPC-T262H-MU
This HiLook 6MP 8-channel kit mixes two IPC-T269-MU/SL all-in-one colour-deterrence cameras with four IPC-T262H-MU AcuSense turret cameras on an 8-channel PoE NVR — a six-camera system that puts active deterrence at your key entry points and reliable recording everywhere else. The two T269 cameras add a red and blue strobe, an audio alarm and two-way audio so they can actively warn an intruder off, while the four T262H turrets give clean 6MP coverage with 30 metre infrared at night. AcuSense human and vehicle detection keeps alerts meaningful. The 8-port PoE recorder powers every camera over a single cable and leaves two channels free for later.
This product has been discontinued – click here to view the replacement model Hilook IPC-T361H-MU

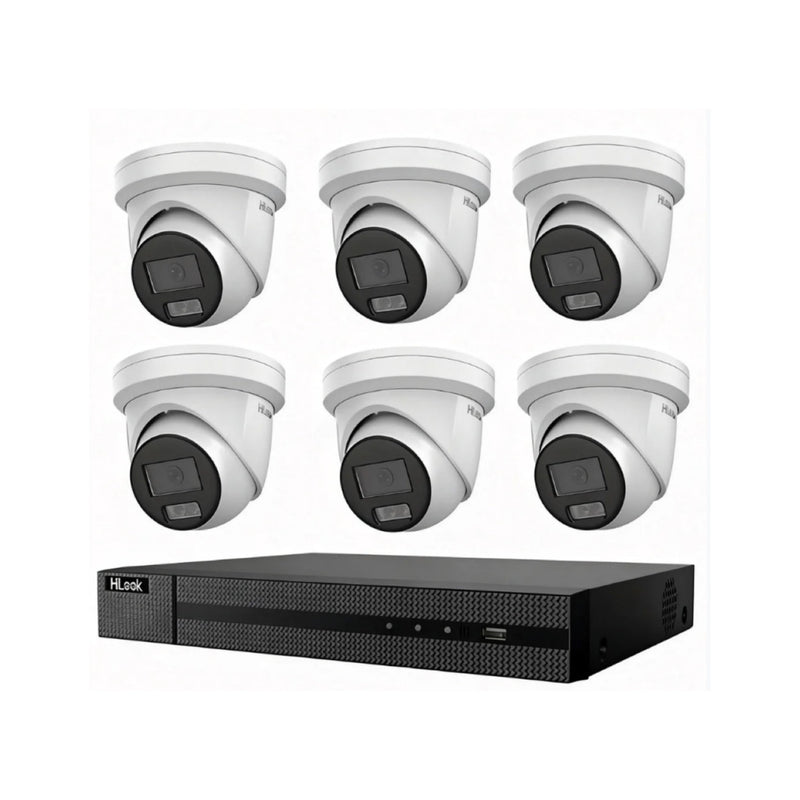

Kit includes
- 2 × HiLook IPC-T269-MU/SL 6MP all-in-one colour-deterrence cameras (strobe, audio alarm, two-way audio)
- 4 × HiLook IPC-T262H-MU 6MP AcuSense turret cameras (built-in mic, 30 m IR)
- 1 × HiLook NVR-108MH-C/8P 8-channel PoE network video recorder
- No hard drive included (add a surveillance-grade drive separately)
- Two spare channels for future cameras; IP67 metal housings; 3-year warranty
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
- 2 × HiLook by Hikvision 6MP IPC-T269H-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC)
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
§ 01Overview
What the KITS-IPC-2-T269-4-T262H is
This HiLook 6MP kit is a six-camera system built around a simple idea: put active deterrence where you need it and steady recording everywhere else. Two IPC-T269-MU/SL all-in-one cameras cover the spots where you want to scare an intruder off, not just film them, while four IPC-T262H-MU AcuSense turrets handle general coverage. All six run from a HiLook NVR-108MH-C/8P, an 8-channel recorder with eight built-in PoE ports, so each camera connects over a single network cable that carries both power and data.
The two T269 cameras are the standouts. Each keeps full colour at night using a built-in white light to about 30 metres, and when AcuSense classifies a person or a vehicle it can flash a red and blue strobe, sound an audio alarm and let you talk through the camera with two-way audio. The four T262H turrets take a more traditional approach: sharp 6MP images by day and 30 metre infrared at night in black and white, with a built-in microphone for audio recording and AcuSense to cut false alerts from animals and shadows. All six cameras carry IP67 metal housings and record efficiently with H.265+.
Two honest notes. The recorder does not include a hard drive, so add a surveillance-grade drive sized to six cameras and your retention; a 4TB drive is a sensible minimum, with 6TB for longer keeping. And the four T262H turrets have a microphone but no speaker, so the talk-back and strobe deterrence are features of the two T269 cameras only. The full strobe, audio-alarm and push-alert linkage is set up through a HiLook NVR and the HiLookVision app. This is genuine HiLook stock with a local 3-year warranty and support.
See it in action
What the KITS-IPC-2-T269-4-T262H features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
30m IR Night Vision
Full Color Night Vision
Human/Vehicle Detection
IP67 Weatherproof
Blue/Red Strobe
Illustrative — simulated for demonstration
§ 02Engineering
KITS-IPC-2-T269-4-T262H specifications
- 4 × IPC-T262H-MU 6MP AcuSense turret cameras: 30 m infrared night vision, built-in microphone
- HiLook NVR-108MH-C/8P 8-channel recorder with 8 built-in PoE ports (one cable per camera)
- AcuSense human and vehicle classification on every camera to cut false alerts
- All cameras 6MP (3200 x 1800), IP67 metal housings, H.265+ compression
- Up to 4K HDMI output; remote access via the HiLookVision app and Hik-Connect
- No hard drive included; 1 SATA bay supports a drive up to 8TB; two spare channels
- Genuine HiLook (Hikvision sub-brand) stock with a local 3-year warranty
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Built-in Microphone | Yes |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Camera & Image — Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3200 × 1800 |
| Camera & Image — Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Camera & Image — Shutter Time | 1/3 s to 1/100,000 s |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Camera & Image — Privacy Mask | 4 programmable polygon privacy masks |
| Lens & Distance — Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Lens & Distance — Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Lens & Distance — Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Night Vision — Supplement Light Type | IR |
| Night Vision — Supplement Light Range | Up to 30 m |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR Wavelength | 850 nm |
| Video — Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video — Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile, Main Profile, High Profile |
| Video — H.265 Type | Main Profile |
| Video — Bit Rate Control | CBR, VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream |
| Audio — Audio Type | Mono sound |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Sampling Rate | 8 kHz/16 kHz |
| Audio — Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio — Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio — Built-in Microphone | Yes |
| Network & Storage — Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Network & Storage — Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Network & Storage — User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network & Storage — Client | iVMS-4200, HiLookVision |
| Network & Storage — Web Browser | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Event & Alarm — Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Event & Alarm — Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Event & Alarm — Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — Reset Key | Yes |
| General & Environment — Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| General & Environment — Material | Metal |
| General & Environment — Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| General & Environment — Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| General & Environment — Weight | Approx. 600 g (1.3 lb.) |
| General & Environment — With Package Weight | Approx. 909 g (2.0 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Language | English, Ukrainian |
| General & Environment — General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| General & Environment — EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| General & Environment — Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| General & Environment — Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| General & Environment — Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use the KITS-IPC-2-T269-4-T262H
Smart, relevant alerts
AcuSense human and vehicle classification on every camera filters out animals, branches and shadows.
Room to grow
An 8-channel recorder runs six cameras and leaves two spare channels for later expansion.
Simple PoE cabling
Eight built-in PoE ports mean one network cable per camera with no separate power supplies.
§ 05Where it fits
Right at home in these scenarios
Home with a vulnerable entry
Put the T269 deterrence cameras on the front door and driveway, and the T262H turrets across the yard, side and rear.
Small shop or office
Active deterrence at the entrance, plus quiet AcuSense recording over the floor and stock areas.
Mixed coverage sites
Pair loud, visible deterrence at hot spots with discreet monitoring elsewhere on one recorder.
Growing setups
Start with six cameras and add up to two more on the spare channels as the site changes.
§ 06Setup
Installation & setup
What's in the box
Two IPC-T269-MU/SL cameras, four IPC-T262H-MU turret cameras, one NVR-108MH-C/8P recorder and mounting accessories with guides. A hard drive, network cables and a monitor are supplied separately.
Installation requirements
Mount the six cameras over the areas you want, run one network cable from each to the NVR's PoE ports, and fit a surveillance-grade hard drive before recording. Set the system up in the HiLookVision app or on a monitor, place the T269 deterrence cameras at your priority entries, then test each view and the night modes before relying on it.
§ 08Questions
Frequently asked about the KITS-IPC-2-T269-4-T262H
Q.01
Is a hard drive included in this kit?
Q.02
What is the difference between the T269 and T262H cameras in this kit?
Q.03
Which cameras have two-way audio and deterrence?
Q.04
Can I add more cameras later?
Q.05
How are the cameras powered and connected?
Q.06
Will the deterrence and alerts work on my phone?
Q.07
Can the cameras record in colour at night across the whole kit?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a hard drive to record
This NVR ships without a hard drive, so add a surveillance-grade 2TB drive or 6TB drive sized to how long you want to keep footage; for six cameras recording continuously a 4TB drive is a sensible minimum, and the recorder takes a single drive up to 8TB.
Want deterrence on every channel
Step up to the 8-camera T269 deterrence kit, where all eight cameras have strobe, audio alarm and talk-back.
Prefer matched turrets throughout
Compare the 6-camera T262H turret kit if you want consistent AcuSense turret coverage.
Add matching cameras
Use the two spare channels for extra IPC-T269-MU/SL deterrence cameras or IPC-T262H-MU turrets.
