Hikvision DS-1273ZJ-140 Bracket to suit G Series Turret cameras

SKU: DS-1273ZJ-140
Description

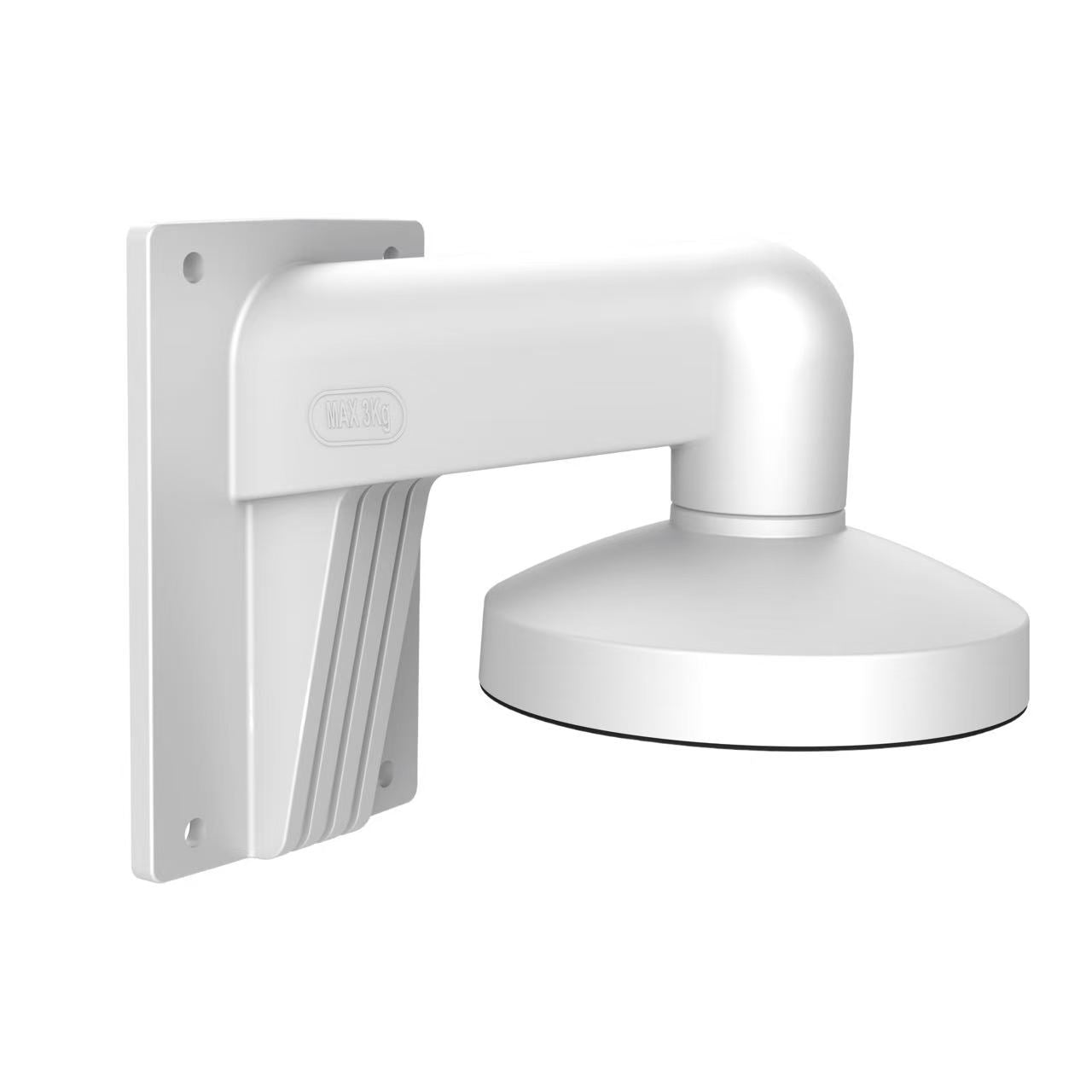

The Hikvision DS-1273ZJ-140 is an aluminium-alloy wall mount bracket (Hikvision pendant-cap code PC140 with wall arm). It lifts a turret or dome camera off the wall on a solid angled arm and feeds the cable through the centre of the bracket for a concealed, professional finish.

Key points
- Cable runs through the bracket for a concealed entry
- Aluminium alloy, Hikvision-white
- Φ140 mm × 183.5 mm × 232 mm, approx. 703 g
- Maximum load 4.5 kg
$33.00 AUD $33.00 AUD $34.00 AUD
Sale 2.94% $1.00 AUD (2.94%)
Member Sign in to save $0.66 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-1273ZJ-140 is

The Hikvision DS-1273ZJ-140 is a wall mount bracket that holds a turret or compatible dome camera out from the wall on a rigid angled arm, with the cable routed through the bracket so nothing is left exposed.

It is the go-to mount when an eave or soffit is not available and you need to bring the camera off a vertical wall.

It is aluminium alloy with a sprayed finish, measures Φ140 mm by 183.5 mm by 232 mm at about 703 g, and is rated to a 4.5 kg maximum load.

Hikvision's bracket cross-reference lists it (code PC140) for the 2CD23x7G2H turret family as well as the legacy DS-2CC51xx analog dome series it was originally designed for.

Australian resellers commonly list this bracket for G-series turret cameras such as the DS-2CD2386 and DS-2CD2387.

Because the same part number has carried across several camera generations, confirm the wall-mount accessory on your camera's datasheet before ordering.

§ 02Engineering

DS-1273ZJ-140 specifications

- Hikvision DS-1273ZJ-140 aluminium-alloy wall mount bracket (code PC140 + wall arm)
- Suits Hikvision turret cameras incl. the 2CD23x7G2H family, plus legacy DS-2CC51xx domes
- Cable routed through the bracket for a concealed, tidy finish
- Φ140 mm x 183.5 mm x 232 mm, approx. 703 g
- Maximum load capacity 4.5 kg
- Hikvision-white finish; black DS-1273ZJ-140B available

§ 04Why choose this

Built for the way you actually use the DS-1273ZJ-140

Gets the camera off the wall

When there is no eave to mount under, this bracket angles a turret or dome out from a vertical wall so it can look down over a door, driveway or path.

Concealed cabling

The cable runs through the centre of the bracket, leaving a clean wall face with no exposed lead for weather or tampering.

Solid aluminium build

At about 703 g of aluminium alloy with a 4.5 kg load rating, it holds the camera rock-steady with no sag or vibration in wind.

Genuine Hikvision finish

The Hikvision-white (or black -140B) finish matches Hikvision camera bodies for a factory-matched look.

§ 05Where it fits

Right at home in these scenarios

Walls without an eave

Brick or render walls with no soffit to mount under: the arm angles the camera down over the area you want to watch.

Doorways and entries

Mount above and beside a door to capture faces at the threshold from a turret camera.

Driveways and carports

Reach the camera out past guttering or trim so the view is not blocked by the wall line.

Tidy commercial installs

Concealed cabling and a matched finish give a professional result on shopfronts and offices.

§ 06Setup

Installation & setup

01

What's in the box

One DS-1273ZJ-140 wall mount bracket with mounting screws and cable gasket. The camera is not included.

02

Installation requirements

Fix the base to a solid wall (brick, concrete or a stud) able to support at least three times the combined bracket and camera weight; wall plugs are recommended in masonry. Feed the camera cable through the bracket before fitting the camera, and seal the wall entry on outdoor installs. Confirm your camera lists this bracket as a wall-mount option.

§ 07Questions

Frequently asked about the DS-1273ZJ-140

Q.01

Which cameras does the DS-1273ZJ-140 suit?
Hikvision's bracket cross-reference lists it (code PC140) for the 2CD23x7G2H turret family and the legacy DS-2CC51xx analog dome series. Australian resellers also list it for G-series turrets such as the DS-2CD2386 and DS-2CD2387. Confirm the wall-mount accessory on your camera's datasheet, because the part has spanned several generations.
Q.02

Why does the official datasheet mention DS-2CC51xx dome cameras?
The physical bracket has carried forward, and Hikvision's current cross-reference list also pairs it with newer 2CD23x7G2H turret cameras. The dimensions and load rating on that datasheet are still accurate for the bracket itself.
Q.03

Is this a wall mount or a junction box?
It is a wall mount bracket. It holds the camera out from a vertical wall on an angled arm, with the cable concealed inside. A junction box like the DS-1280ZJ-DM8 only sits flat behind the camera and does not extend it off the wall.
Q.04

What is the maximum load and how heavy is the bracket?
The bracket weighs about 703 g and is rated to a maximum load of 4.5 kg, which is far more than any compatible turret or dome camera. Fix it to a wall that can support at least three times the combined weight.
Q.05

Does the cable run inside the bracket?
Yes. The cable feeds through the centre of the bracket and out behind the camera, so there is no exposed cable on the wall face. This is the main reason installers choose it over a plain back box outdoors.
Q.06

Is the camera included?
No. This listing is the wall mount bracket only. The camera is bought separately.
Q.07

Is there a version with a junction box built in?
Yes. The DS-1273ZJ-140-DM45 combines the wall arm with a junction-box base as a complete solution, which some installers prefer for larger cameras and exposed sites.

§ 09Bundles

Recommended packages

03

Just need a back box?

If you only need to weatherproof the cable flat behind the camera, the DS-1280ZJ-DM8 junction box may be all you need.
