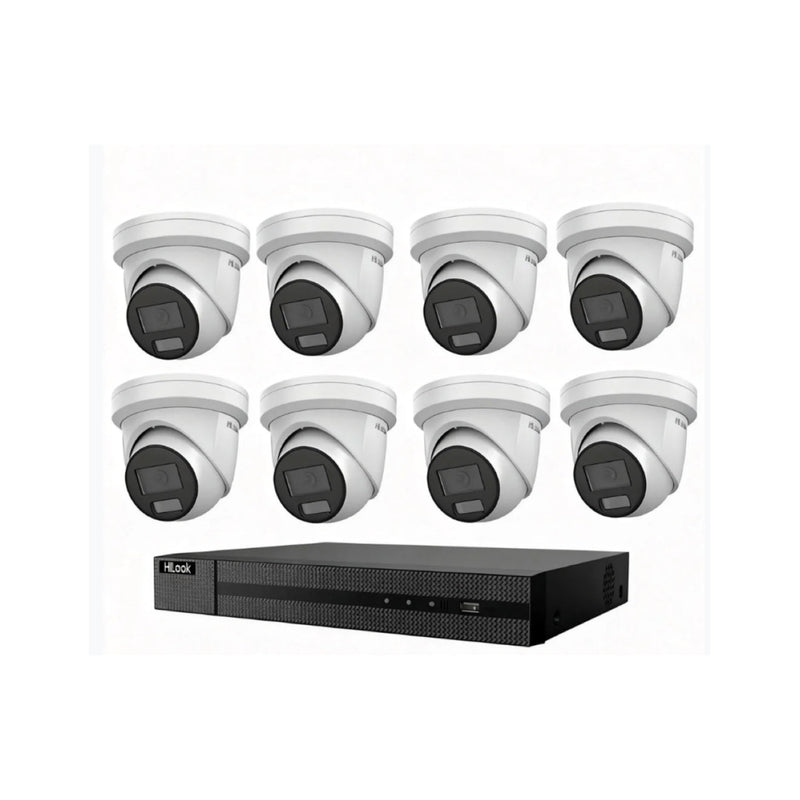

HiLook Hikvision 6MP AcuSense 8CH CCTV Kit with 8 Turret IP Cameras IPC-T262H-MU + 8CH NVR
This HiLook 6MP kit pairs eight IPC-T262H-MU AcuSense turret cameras with an 8-channel PoE NVR — full eight-camera coverage for a home or small business at a sensible price. Each turret records 6MP detail by day and 30 metre infrared at night in black and white, with a built-in microphone for audio and AcuSense human and vehicle detection to keep alerts relevant. The 8-port PoE recorder powers all eight cameras over a single cable each.
This product has been discontinued – click here to view the replacement model Hilook IPC-T361H-MU
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Customize this kit Kit price $996.00
- 8 × HiLook by Hikvision 6MP IPC-T262H-MU Acusense Turret IP Camera with Built in Mic
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder (8ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
§ 01Overview
What the IPC-T262H-MU is
This HiLook 6MP kit gives full eight-camera coverage on an 8-channel recorder — a dependable, value-focused system for a home with several approaches or a small business across a floor and a yard.
Eight IPC-T262H-MU turret cameras run from a HiLook NVR-108MH-C/8P, which has eight built-in PoE ports, so each camera connects over a single network cable that carries power and data.
The IPC-T262H-MU is a workhorse turret.
Each camera captures 6MP (3200 × 1800) detail by day and switches to 30 metre infrared at night, recording in black and white, with 120 dB true WDR to handle bright and dark areas in the same frame.
A built-in microphone records audio alongside the video, and AcuSense classifies people and vehicles so the system can alert you only on what matters, cutting nuisance notifications from animals, rain and moving foliage.
The IP67 metal housings suit indoor and outdoor positions and H.265+ keeps recordings efficient.
Two honest notes.
The recorder ships without a hard drive, so add a surveillance-grade drive sized to eight cameras and your retention; a 4TB drive is a sensible minimum, with 6TB for longer keeping, and the NVR takes a single drive up to 8TB.
And this kit uses all eight channels, so it is fully loaded; to add more cameras you would move to a 16-channel recorder.
The cameras have a built-in microphone that records sound, but no speaker, so there is no two-way talk-back; and they have no red-and-blue strobe or siren.
If you want talk-back and active deterrence, the HiLook T269 and T289 all-in-one camera kits are the ones to look at.
This is genuine HiLook stock with a local 3-year warranty and support.
See it in action
What the IPC-T262H-MU features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
30m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
IPC-T262H-MU specifications
- 30 m infrared night vision (black and white) with dual IR LEDs; built-in microphone
- AcuSense human and vehicle classification on every camera to cut false alerts
- HiLook NVR-108MH-C/8P 8-channel recorder with 8 built-in PoE ports (one cable per camera)
- 120 dB true WDR and H.265+ compression; IP67 metal housings
- Up to 4K HDMI output; remote access via the HiLookVision app and Hik-Connect
- No hard drive included; 1 SATA bay supports a drive up to 8TB; all eight channels used
- Genuine HiLook (Hikvision sub-brand) stock with a local 3-year warranty
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Protection | IP67: IEC 60529-2013 |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
| Camera & Image — Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3200 × 1800 |
| Camera & Image — Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Camera & Image — Shutter Time | 1/3 s to 1/100,000 s |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Camera & Image — Privacy Mask | 4 programmable polygon privacy masks |
| Lens & Distance — Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Lens & Distance — Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° | 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Lens & Distance — Pan Range | 0° to 360° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotation Range | 0° to 360° |
| Night Vision — Supplement Light Type | IR |
| Night Vision — Supplement Light Range | Up to 30 m |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR Wavelength | 850 nm |
| Video — Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video — Video Compression | Main stream: H.265+/H.265/H.264+/H.264, | Sub-stream: H.265/H.264/MJPEG |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile, Main Profile, High Profile |
| Video — H.265 Type | Main Profile |
| Video — Bit Rate Control | CBR, VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream |
| Audio — Audio Type | Mono sound |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Sampling Rate | 8 kHz/16 kHz |
| Audio — Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio — Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| AI & Deep Learning — Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Network & Storage — Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Network & Storage — Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Network & Storage — User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Network & Storage — Client | iVMS-4200, HiLookVision |
| Network & Storage — Web Browser | Plug-in required live view: IE 10, IE 11, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Event & Alarm — Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Event & Alarm — Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — Built-in Microphone | Yes |
| Interface — Reset Key | Yes |
| General & Environment — Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| General & Environment — Material | Metal |
| General & Environment — Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| General & Environment — Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| General & Environment — Weight | Approx. 600 g (1.3 lb.) |
| General & Environment — With Package Weight | Approx. 909 g (2.0 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Language | English, Ukrainian |
| General & Environment — General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| General & Environment — Protection | IP67: IEC 60529-2013 |
| General & Environment — EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7 |
| General & Environment — Safety | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| General & Environment — Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
§ 04Why choose this
Built for the way you actually use the IPC-T262H-MU
Fewer false alerts
AcuSense human and vehicle classification keeps notifications about people and cars, not animals or weather.
Dependable night vision
30 metre infrared and 120 dB WDR give usable footage in the dark and in high-contrast scenes.
Simple PoE cabling
Eight built-in PoE ports mean one network cable per camera with no separate power supplies.
§ 05Where it fits
Right at home in these scenarios
Family homes
Cover the front, drive, garage, yard and sides with reliable 6MP coverage and relevant alerts.
Shops and offices
Watch entries, floors and stock areas with AcuSense filtering out nuisance motion.
Warehouses and yards
General-purpose turret coverage of open areas and perimeters on one recorder.
Value-focused installs
Solid eight-camera coverage now, with a clear upgrade path to a 16-channel system.
§ 06Setup
Installation & setup
What's in the box
Eight IPC-T262H-MU turret cameras, one NVR-108MH-C/8P recorder and mounting accessories with guides. A hard drive, network cables and a monitor are supplied separately.
Installation requirements
Mount each turret over the area you want, run one network cable from each to the NVR's PoE ports, and fit a surveillance-grade hard drive before recording. Set up in the HiLookVision app or on a monitor, enable AcuSense rules, and test each view and the night mode before relying on it.
§ 07Questions
Frequently asked about the IPC-T262H-MU
Q.01
Is a hard drive included with this kit?
Q.02
Do the cameras record in colour at night?
Q.03
Do the cameras have two-way audio or a siren?
Q.04
Can I add more cameras to this kit?
Q.05
How are the cameras powered and viewed remotely?
Q.06
Does AcuSense reduce false alarms?
Q.07
Are the cameras suitable for outdoor use?
§ 09Bundles
Recommended packages
Add a hard drive to record
This NVR ships without a hard drive, so add a surveillance-grade 2TB drive or 6TB drive sized to how long you want to keep footage; for eight cameras recording continuously a 4TB drive is a sensible minimum, and the recorder takes a single drive up to 8TB.
Need more cameras or channels
Step up to the 10-camera 16-channel T262H kit for more cameras and spare channels, or start smaller with the 6-camera T262H kit.
Want full colour or deterrence
The 6-camera T383H Pro kit adds Smart Hybrid Light colour, and the 8-camera T269 deterrence kit adds strobe and talk-back.
Add matching cameras
Plan a 16-channel upgrade and add extra IPC-T262H-MU turret cameras.
