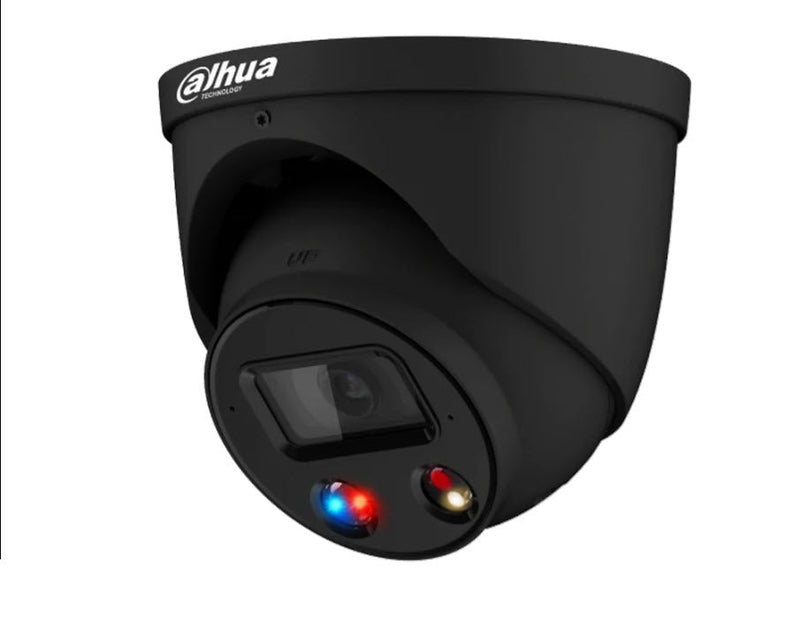

Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 8MP TiOC 2.0 Turret Camera 2.8mm Black
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 8MP TiOC 2.0 Turret Camera 2.8mm Black
SKU: DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK
Description
- Previous-generation 8MP TiOC turret in a black housing — red and blue lights plus siren and voice warnings.
- 8MP F1.0 sensor, colour rated to 0.004 lux, with 30m IR and 30m warm light.
- SMD 3.0 human/vehicle filtering and one-tap disarming via the DMSS app.
- PoE powered (802.3af) — works with any current Dahua PoE NVR.
Regular price
$320.00 AUD
Sale price
$320.00 AUD
Regular price
$413.00 AUD
Sale
22.52%
$93.00 AUD
(22.52%)
Member
Sign in to save $6.40 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 8MP TiOC 2.0 Turret Camera 2.8mm Black
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $819.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK is
Lens: 2.8mm.
Black housing.
The DH-IPC-HDW3849HP-AS-PV-0280B-S3 is the previous-generation 8MP TiOC turret in black — the TiOC 2.0 era.
The core deterrence package is all here: cross a tripwire or intrusion zone and the red and blue lights flash, the speaker plays a siren or voice warning, and the warm light switches on so the event records in full colour.
The 8MP F1.0 sensor rates 0.004 lux in colour with 30 metres each of infrared and warm light, in a metal IP67 housing rated -40°C to +60°C.
What marks it as previous-generation: SMD 3.0 rather than 4.0 — human and vehicle filtering that works, with a higher false-alert rate than the current AI — no AcuPick support, no AI SSA scene adaptation, and the dual mics record audio but the datasheet lists no live two-way talk.
One-tap disarming via DMSS and the wired arm/disarm input are still present.
The honest comparison: the current S2 black turret sells for a small step up and adds SMD 4.0, AcuPick and two-way talk — most buyers should take that step.
This S3 makes sense when the price gap matters across several cameras, or to match existing S3 units on the same recorder.
See it in action
What the DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK specifications
- Black Metal Housing: blends into dark eaves and fascias — IP67-rated, -40°C to +60°C.
- Siren and Light Active Deterrence: red and blue lights plus voice alarms through the built-in speaker when a tripwire or intrusion zone is crossed.
- 8MP F1.0 Sensor: 3840 × 2160 with colour rated to 0.004 lux — the same night numbers as the current S2.
- Smart Dual Illuminators: 30m infrared everyday; the warm light fires on detection and records the event in full colour.
- SMD 3.0 Filtering: human and vehicle classification on alerts — the previous AI generation, without AcuPick or AI SSA.
- One-Tap Disarming: stand the lights and siren down from the DMSS app, or via the wired alarm input.
- Siren and Light Active Deterrence: red and blue lights plus voice alarms through the built-in speaker when a tripwire or intrusion zone is crossed.
- 8MP F1.0 Sensor: 3840 × 2160 with colour rated to 0.004 lux — the same night numbers as the current S2.
- Smart Dual Illuminators: 30m infrared everyday; the warm light fires on detection and records the event in full colour.
- SMD 3.0 Filtering: human and vehicle classification on alerts — the previous AI generation, without AcuPick or AI SSA.
- One-Tap Disarming: stand the lights and siren down from the DMSS app, or via the wired alarm input.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | ﹥ 56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: Horizontal: 106°; Vertical: 55°; Diagonal: 125° | 3.6 mm: Horizontal: 85°; Vertical: 45°; Diagonal: 100° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft); 3.6 mm: 2.8 m (6.23 ft) |
| DORI Distance | 2.8 mm: Detect 91.0 m (298.56 ft); Observe 36.4 m (119.42 ft); Recognize 18.2 m (59.71 ft); Identify 9.1 m (29.86 ft) | 3.6 mm: Detect 107.6 m (353.02 ft); Observe 43.0 m (141.08 ft); Recognize 21.5 m (70.54 ft); Identify 10.8 m (35.43 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 30 m (IR); 30 m (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED); 1 (warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) | Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) | Third stream: 1920 × 1080@(1 fps–30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–20480 kbps; H.265: 3 kbps–20480 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
| SMD 3.0 | Less false alarm, longer detection distance |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8/9/11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.9 W (12 VDC); 5.0 W (PoE) | Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 110.9 mm × Φ122.0 mm (4.4" × Φ4.8") |
| Net Weight | 745 g (163.1 lb) |
| Gross Weight | 915 g (200.6 lb) |
| Certification | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK
Same night numbers as the current model
0.004 lux at F1.0 with 30m of infrared and 30m of warm light matches the S2 spec for spec — the sensor generation didn't change, the intelligence did.
Black where black belongs
Dark eaves, Monument fascias and steel carports hide the housing until the lights fire.
Most buyers should take the current model
Honest guidance: the S2 black costs a small step more and adds SMD 4.0, AcuPick search and live two-way talk — choose this S3 to match existing S3 cameras or when the gap matters multiplied across a whole system.
§ 05Where it fits
Right at home in these scenarios
Extending an existing S3 system
Already running S3-era TiOC cameras means matched behaviour, matched menus and no AI-generation quirks on the same recorder.
Budget multi-camera builds
Across six or eight positions a per-camera saving adds up — the deterrence response intruders actually see is the same as the current model's.
Dark housings on dark builds
Monument and Woodland Grey eaves, timber soffits and black steel — the housing reads as a fitting until the red and blue lights say otherwise.
Driveways and side gates
Tripwire across the access line, lights and a voice warning the moment it's crossed, full-colour event recording behind it.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 (Black) Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power: any 802.3af PoE NVR port or switch (5.0W typical, 7.5W max with the lights and speaker running). A separate 12V DC adapter is only needed without PoE. 2. Network: a wired Ethernet run back to your NVR or switch — PoE carries power and video together on the same line. 3. Mounting: solid wall, ceiling or eave at 2.5–3 metres. The optional PFA137 junction box keeps the connection weatherproof and makes future swaps a 2-minute job.
App Setup
1. Download the DMSS app, create an account and scan the device QR code. 2. Enable push notifications, and keep the one-tap disarm switch handy for expected visitors. 3. Draw tripwire and intrusion zones tight to your own property through the camera's web interface — the warning voice, light behaviour and schedules live there too.
§ 07Questions
Frequently asked about the DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK
Q.01
What's the difference between this S3 and the current S2?
The deterrence hardware — lights, siren voices, warm light — and the 0.004 lux F1.0 sensor are equivalent. The S3 runs the older SMD 3.0 AI with more false alerts than SMD 4.0, has no AcuPick support or AI SSA, and its mics record audio without live two-way talk. The S2 black closes all of that for a small step up in price.
Q.02
How do the deterrence features actually work?
When someone crosses a tripwire or enters an intrusion zone you've drawn, the camera reacts on the spot: the red and blue lights flash, the built-in speaker plays a siren or voice warning, and the warm light switches on so the whole event records in full colour. It ships with multiple warning voices and supports importing your own recordings.
Q.03
Can I turn the lights and siren off when I don't want them?
Yes — one-tap disarming in the DMSS app pauses event linkage while you're expecting visitors, the web interface schedules deterrence by time of day or sets light-only, and a wired arm/disarm option runs through the alarm input.
Q.04
Will the siren and strobes annoy my neighbours?
They can if zones are drawn carelessly — this is a camera that reacts out loud. Draw tripwires and intrusion zones tight to your own property so footpath traffic never triggers them, schedule sound off overnight, or run light-only mode. If the camera would face a shared driveway or a tight terrace street, the quieter 3866 WizSense turret records the same AI events without the theatrics.
Q.05
How far can it see at night?
The F1.0 lens records colour down to 0.004 lux. In full darkness the infrared illuminator covers 30 metres; when motion triggers the warm light, the scene records in full colour to the same 30 metres.
Q.06
Does SMD 3.0 still filter out animals and weather?
It classifies humans and vehicles and filters most non-targets, but it's the previous AI generation — expect more false alerts from edge cases like headlight sweeps and large birds than SMD 4.0 lets through. Pairing with an AI NVR improves results.
Q.07
Which NVR do I need for this camera?
Any current Dahua PoE NVR records it. SMD classification, Quick Pick search and full event linkage want an AI model such as the DHI-NVR4104HS-P-AI/ANZ or DHI-NVR4108HS-8P-AI/ANZ used in our kits.
Q.08
Will it work with a non-Dahua NVR?
Yes — it is ONVIF conformant (Profile S, G and T). You keep video and basic motion events; SMD classification and the light-and-siren event linkage need a Dahua AI NVR.
Q.09
Can I use this camera without an NVR?
You can — it takes a MicroSD card up to 256GB (not included), streams to the DMSS app, and the deterrence features work stand-alone. Most buyers still pair it with an NVR for longer retention and AI search; treat the SD slot as backup.
Q.10
Is a Dahua camera safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This camera does not need a cloud account: it records to your NVR, works fully offline, and supports HTTPS and firmware encryption. If you want zero outbound traffic, put the system on an isolated network — it still records locally.
Q.11
Which 3849 turret should I buy?
Four turrets share the red and blue lights and siren voices. The HDW3849 S2 is the current TiOC 3.0 pick — 0.004 lux F1.0 colour, SMD 4.0 and AcuPick support — and it powers our 4, 6 and 8 camera kits. The PRO is the night specialist: colour rated to 0.0008 lux, five times less light needed than the S2. The ZAS adds a motorised 2.7–13.5mm zoom and 50m infrared for gates and long driveways. The S3 black is the previous generation — same lights and siren on older SMD 3.0 AI, without AcuPick or two-way talk.
Q.12
What warranty coverage applies in Australia?
The camera includes a 3-year warranty covering defects. Installation labour is not covered.
§ 08In motion
Dahua WizColor Review HDW3849H-Pro
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
§ 09Bundles
Recommended packages
Stepping up instead?
The current S2 black turret adds SMD 4.0, AcuPick and two-way talk for a small step up — the default recommendation for new systems.
Build it into a system
Use the bundle builder on this page to pair the camera with a 4, 8 or 16 channel Dahua AI NVR and a surveillance drive in one order.
White version of the current gen
The white HDW3849 S2 suits light eaves and render, with the full current feature set.
