Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 8MP TiOC Zoom Turret
SKU: DH-IPC-HDW3849H-ZAS-PV-ANZ-S2
Description
- Motorised 2.7–13.5mm vari-focal lens — frame the gate or the driveway from the app, no ladder.
- 50m infrared and 40m warm light — the longest night reach in the 3849 turret family.
- Active deterrence: red and blue lights plus siren and voice warnings when a zone is crossed.
- 8MP F1.0 sensor (0.004 lux colour), AcuPick support, SMD 4.0, two-way talk.
- PoE powered — drops straight into a 4, 8 or 16 channel Dahua NVR.
Regular price
$430.00 AUD
Sale price
$430.00 AUD
Regular price
$510.00 AUD
Sale
15.69%
$80.00 AUD
(15.69%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 8MP TiOC Zoom Turret
1
/
of
3
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system Complete setup from $1,030.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 is
The DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 is the reach specialist of the TiOC 3.0 turrets. The motorised 2.7–13.5mm lens means you frame the shot from the app after mounting — wide at 108° for a yard, or zoomed right in on a gate, with faces identifiable to about 9 metres at the wide end and 25.7 metres at full zoom. Infrared stretches to 50 metres and the warm light to 40, comfortably past the fixed turrets' 30.
The deterrence set is full TiOC 3.0: red and blue lights, siren and voice warnings, warm-light full-colour event capture, two-way talk through dual mics and a speaker, one-tap disarming in DMSS. The 8MP F1.0 sensor rates 0.004 lux in colour, SMD 4.0 with AI SSA filters the alerts, AcuPick works on compatible recorders, and MicroSD backup reaches 512GB.
Two honest notes: this is a vari-focal you set and leave, not a PTZ you steer around live — zoom in and the wide view is gone until you change it. And the motorised housing is rated to -30°C rather than the fixed models' -40°C, which matters nowhere in Australia. PoE-powered (12.1W max), metal IP67 build.
See it in action
What the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
Dual-Light Night Vision
Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 specifications
Sensor / resolution — 1/2.8" CMOS · 3840 × 2160 (8MP, true 4K) @ 25/30 fps · F1.0 · 0.004 lux colour — 4K detail with real light-gathering
Lens — motorised 2.7–13.5 mm vari-focal · 108°–34° horizontal — frame the shot from the app after mounting; no ladder, no return site visit
DORI — wide: identify 9.0 m · tele: detect 257 m, recognise 51.5 m, identify 25.7 m — at full zoom, a face at a gate 25 m away is still usable evidence
Deterrence — red-and-blue warning lights · siren and voice warnings · custom recordings supported — fires where the camera looks: challenge someone at the gate, not at the door
Night vision — IR to 50 m · warm light to 40 m — the longest night reach in the 3849 family
Audio — dual mics and speaker · two-way talk in DMSS · one-tap disarm — speak to whoever is at the gate from your phone
Detection — SMD 4.0 person/vehicle · IVS tripwire & intrusion · AcuPick with an NVR5-series recorder — alerts for people and cars only, plus search-by-appearance on the right recorder
Power — PoE 802.3af (5.8 W typical, 12.1 W max) or 12 V DC — one network cable runs the zoom, lights and siren
Edge & interop — microSD to 512 GB · ONVIF (Profile S/G/T) · CGI — keeps recording locally if the recorder drops out
Build — IP67 metal · –30 °C to +60 °C (the motorised housing gives up the fixed models' –40 °C — irrelevant anywhere in Australia)
Lens — motorised 2.7–13.5 mm vari-focal · 108°–34° horizontal — frame the shot from the app after mounting; no ladder, no return site visit
DORI — wide: identify 9.0 m · tele: detect 257 m, recognise 51.5 m, identify 25.7 m — at full zoom, a face at a gate 25 m away is still usable evidence
Deterrence — red-and-blue warning lights · siren and voice warnings · custom recordings supported — fires where the camera looks: challenge someone at the gate, not at the door
Night vision — IR to 50 m · warm light to 40 m — the longest night reach in the 3849 family
Audio — dual mics and speaker · two-way talk in DMSS · one-tap disarm — speak to whoever is at the gate from your phone
Detection — SMD 4.0 person/vehicle · IVS tripwire & intrusion · AcuPick with an NVR5-series recorder — alerts for people and cars only, plus search-by-appearance on the right recorder
Power — PoE 802.3af (5.8 W typical, 12.1 W max) or 12 V DC — one network cable runs the zoom, lights and siren
Edge & interop — microSD to 512 GB · ONVIF (Profile S/G/T) · CGI — keeps recording locally if the recorder drops out
Build — IP67 metal · –30 °C to +60 °C (the motorised housing gives up the fixed models' –40 °C — irrelevant anywhere in Australia)
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 108°–34°; V: 56°–19°; D: 130°–39° |
| Iris Control | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| DORI Distance | Wide: Detect 89.9 m; Observe 36.0 m; Recognize 18.0 m; Identify 9.0 m | Tele: Detect 257.4 m; Observe 103.0 m; Recognize 51.5 m; Identify 25.7 m |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 50 m (IR); Up to 40 m (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) | Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1–30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets (some models) |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE 9/11; Chrome; Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; defocus detection; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) | Max. (H.265+WDR+warm light+siren and light active deterrence+intelligence on): 10.3 W (12 VDC); 12.1 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Casing Material | Metal |

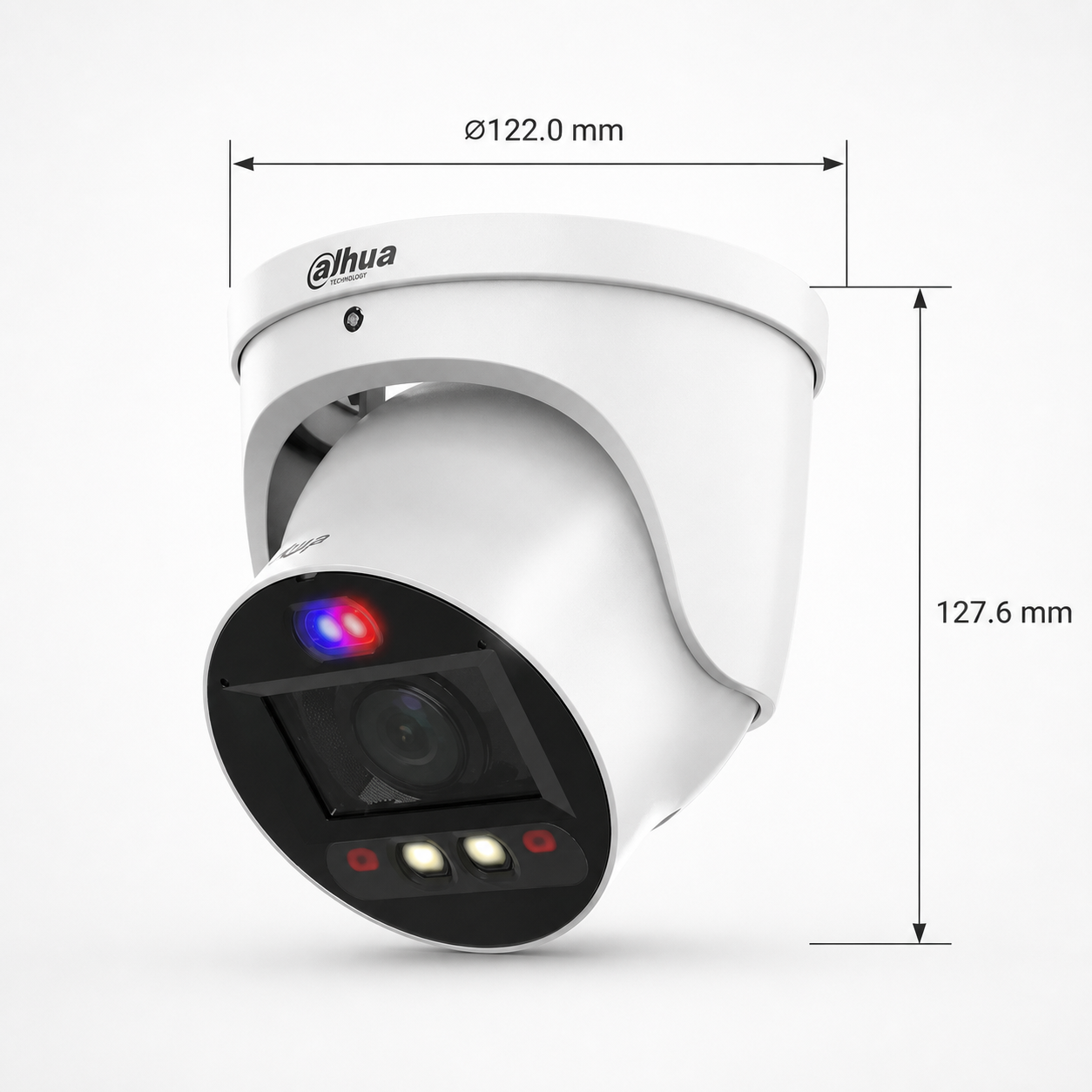

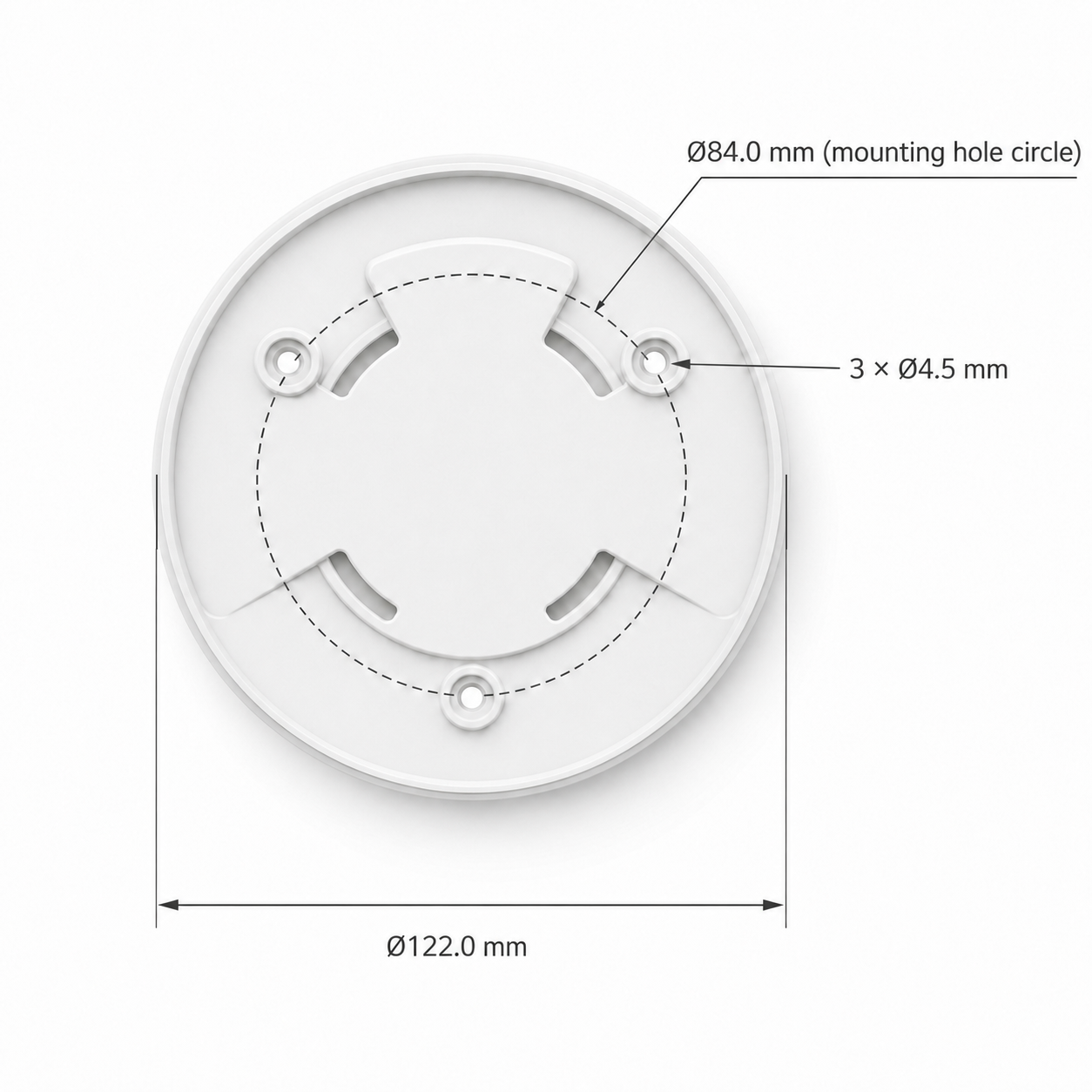

| Product Dimensions | 127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
| Net Weight | 0.885 kg (1.95 lb) |
| Gross Weight | 1.060 kg (2.34 lb) |
| Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
