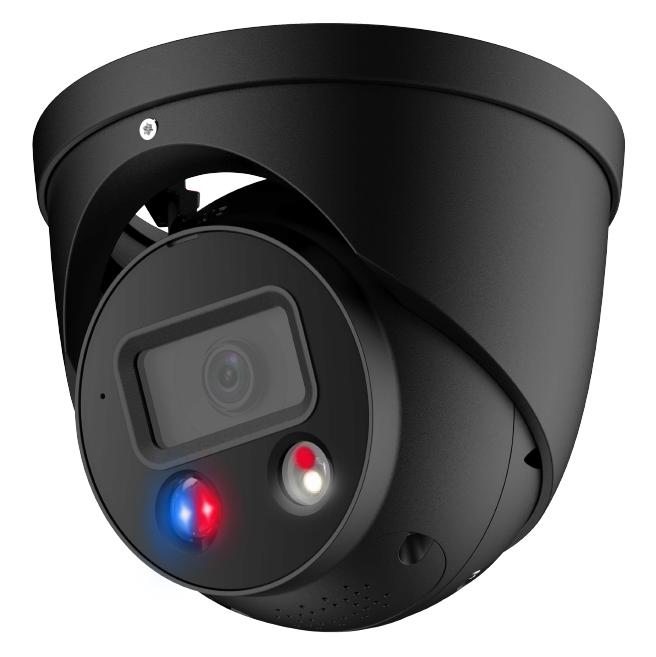

Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm Black, AcuPick, Active Deterrence
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm Black, AcuPick, Active Deterrence
SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2
Description
- The HDW3849 S2 TiOC in a black housing — same 8MP F1.0 sensor, colour rated to 0.004 lux.
- Active deterrence: red and blue lights plus siren and voice warnings when a zone is crossed.
- Smart Dual Illuminators: 30m IR everyday, warm light full-colour event capture.
- AcuPick support, SMD 4.0, two-way talk and one-tap disarming in the DMSS app.
- PoE powered (802.3af) — drops straight into a 4, 8 or 16 channel Dahua NVR.
Regular price
$320.00 AUD
Sale price
$320.00 AUD
Regular price
$386.00 AUD
Sale
17.1%
$66.00 AUD
(17.1%)
Member
Sign in to save $6.40 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC 3.0 Turret Camera 2.8mm Black, AcuPick, Active Deterrence
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $819.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HDW3849H-AS-PV-ANZ-S2 is
Lens: 2.8mm.
Black housing.
This is the black-housing version of the DH-IPC-HDW3849H-AS-PV-ANZ-S2 — identical inside to the white TiOC 3.0 turret in our kits: the same 8MP F1.0 sensor rated to 0.004 lux colour, the same red and blue lights, siren voices, warm-light event capture and two-way talk.
Buy it by the surface it mounts on: dark eaves, Monument and Woodland Grey fascias, timber soffits and black carport frames where a white dome of plastic announces itself.
The deterrence package is the full TiOC 3.0 set: tripwire and intrusion zones fire the lights and a voice warning, the warm light switches on so the event records in 4K full colour, and one-tap disarming in DMSS stands it down for expected visitors.
SMD 4.0 with AI SSA keeps alerts to humans and vehicles, and AcuPick search works on compatible Dahua recorders.
It runs from any 802.3af PoE port (10.1W with everything firing) in a metal IP67 housing rated from -40°C to +60°C.
Note the practical trade-off of dark housings: they absorb heat on exposed north-facing walls, so under-eave mounting is the better home for it.
See it in action
What the DH-IPC-HDW3849H-AS-PV-ANZ-S2 features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3849H-AS-PV-ANZ-S2 specifications
- Black Metal Housing: blends into dark eaves, fascia boards and steel-framed carports — same IP67 build, rated -40°C to +60°C.
- 8MP F1.0 Starlight Sensor: 3840 × 2160 with colour rated to 0.004 lux — 4K detail backed by genuine light-gathering.
- Siren and Light Active Deterrence: red and blue lights plus voice alarms through the built-in speaker when a zone is crossed.
- Smart Dual Illuminators: 30m infrared everyday; the warm light fires on detection and records the event in full colour.
- AcuPick Support: person-matching search across cameras on AcuPick-capable recorders; SMD 4.0 and Quick Pick on our kit NVRs.
- Two-Way Talk + One-Tap Disarming: dual mics and a speaker in the DMSS app, with arm/disarm from the app or the wired alarm input.
- 8MP F1.0 Starlight Sensor: 3840 × 2160 with colour rated to 0.004 lux — 4K detail backed by genuine light-gathering.
- Siren and Light Active Deterrence: red and blue lights plus voice alarms through the built-in speaker when a zone is crossed.
- Smart Dual Illuminators: 30m infrared everyday; the warm light fires on detection and records the event in full colour.
- AcuPick Support: person-matching search across cameras on AcuPick-capable recorders; SMD 4.0 and Quick Pick on our kit NVRs.
- Two-Way Talk + One-Tap Disarming: dual mics and a speaker in the DMSS app, with arm/disarm from the app or the wired alarm input.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 G |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | 3.6 mm: H: 85°; V: 45°; D: 102° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | 2.8 mm: Detect 66.0 m (216.54 ft); Observe 26.4 m (86.61 ft); Recognize 13.2 m (43.31 ft); Identify 6.6 m (21.65 ft) | 3.6 mm: Detect 78.0 m (255.91 ft); Observe 22.2 m (102.36 ft); Recognize 15.6 m (51.18 ft); Identify 7.8 m (25.59 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (IR); Up to 30 m (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 (Compression rate ≥25%); AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps) | Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | Third stream: 1920 × 1080@(1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G;Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE: IE 9/11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encrypton;Firmware encrypton;Confguraton encrypton;Digest;WSSE;Account lockout;Security logs;IP/MAC fltering;Generaton and importng of X.509 certfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted executon;Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) | Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal |
| Product Dimensions | Φ122.0 mm × 110.9 mm (4.80" × Φ4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.92 kg (2.03 lb) |
| Certifications | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW3849H-AS-PV-ANZ-S2
Same camera as the kits, different colour
Identical sensor, AI and deterrence to the white HDW3849 S2 running our 4, 6 and 8 camera kits — so a black unit slots into an existing kit system without a mismatch in features.
4K evidence with F1.0 light-gathering
Eight million pixels usually cost you night performance — the F1.0 lens claws it back at 0.004 lux colour, and the recording holds zoomable detail afterwards.
Loud on purpose — make sure that suits the spot
Strobes and siren voices confront whoever triggers them. Draw zones to your own boundary and schedule sound overnight — or pick the quieter 3866 WizSense turret where evidence is enough.
§ 05Where it fits
Right at home in these scenarios
Dark eaves and Monument fascias
Modern builds in Monument, Woodland Grey and Basalt swallow a black turret visually — the camera reads as a fitting, not an add-on, until its lights fire.
Timber and heritage frontages
On stained timber soffits and dark heritage trim, black hardware keeps the streetscape intact while the tripwire still guards the verandah.
Carports and steel structures
Black steel posts and beams hide the housing; anyone reaching a car door still gets the lights, the voice warning and a full-colour 4K recording.
Matched dark multi-camera setups
Running several black cameras keeps a consistent look across the build — and this one shares its AI and deterrence with the white kit cameras, so mixed systems behave identically.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 (Black) Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power: any 802.3af PoE NVR port or switch (5.8W typical, 10.1W max with the lights and speaker running). A separate 12V DC adapter is only needed without PoE. 2. Network: a wired Ethernet run back to your NVR or switch — PoE carries power and video together on the same line. 3. Mounting: solid wall, ceiling or eave at 2.5–3 metres. The optional PFA137 junction box keeps the connection weatherproof and makes future swaps a 2-minute job.
App Setup
1. Download the DMSS app, create an account and scan the device QR code. 2. Enable push notifications, and keep the one-tap disarm switch handy for expected visitors. 3. Draw tripwire and intrusion zones tight to your own property through the camera's web interface — the warning voice, light behaviour and schedules live there too.
§ 07Questions
Frequently asked about the DH-IPC-HDW3849H-AS-PV-ANZ-S2
Q.01
Is the black version different from the white one?
Only the housing colour. Sensor, lens, AI, deterrence features and warranty are identical to the white HDW3849 S2 — pick by the surface the camera mounts on.
Q.02
How do the deterrence features actually work?
When someone crosses a tripwire or enters an intrusion zone you've drawn, the camera reacts on the spot: the red and blue lights flash, the built-in speaker plays a siren or voice warning, and the warm light switches on so the whole event records in full colour. It ships with multiple warning voices and supports importing your own recordings.
Q.03
Can I turn the lights and siren off when I don't want them?
Yes — one-tap disarming in the DMSS app pauses all event linkage while you're expecting visitors, the web interface schedules deterrence by time of day or sets light-only with no sound, and there's a wired arm/disarm option through the alarm input for integrators.
Q.04
Will the siren and strobes annoy my neighbours?
They can if zones are drawn carelessly — this is a camera that reacts out loud. Draw tripwires and intrusion zones tight to your own property so footpath traffic never triggers them, schedule sound off overnight, or run light-only mode. If the camera would face a shared driveway or a tight terrace street, the quieter 3866 WizSense turret records the same AI events without the theatrics.
Q.05
How far can it see at night?
The F1.0 lens records colour down to 0.004 lux. In full darkness the infrared illuminator covers 30 metres; when a person or vehicle is detected, the 30-metre warm light takes over and the event records in 4K full colour.
Q.06
Does a black housing get hotter in the sun?
Dark surfaces do absorb more heat, and the housing is rated to +60°C — fine for Australian conditions, but under-eave or shaded mounting is the better home for any camera on a north-facing wall, black ones included.
Q.07
What is AcuPick and what do I need to use it?
AcuPick is Dahua's newest search: pick a person or vehicle in playback and the recorder matches them across every camera and timeline in seconds. It needs an AcuPick-capable Dahua recorder — on the AI NVRs in our kits you get SMD 4.0 classification and Quick Pick search, which still pulls every human or vehicle event from a day of footage in one pass.
Q.08
Which NVR do I need for this camera?
Any current Dahua PoE NVR records it. SMD classification, Quick Pick search and full event linkage want an AI model such as the DHI-NVR4104HS-P-AI/ANZ or DHI-NVR4108HS-8P-AI/ANZ used in our kits.
Q.09
Will it work with a non-Dahua NVR?
Yes — it is ONVIF conformant (Profile S, G and T). You keep video and basic motion events; SMD classification and the light-and-siren event linkage need a Dahua AI NVR.
Q.10
Can I use this camera without an NVR?
You can — it takes a MicroSD card up to 256GB (not included), streams to the DMSS app, and the deterrence features work stand-alone. Most buyers still pair it with an NVR for longer retention and AI search; treat the SD slot as backup.
Q.11
Can I talk through the camera from my phone?
Yes — dual built-in microphones and a speaker give genuine two-way talk through the DMSS app: hear what's happening and speak to whoever is there, live.
Q.12
Is a Dahua camera safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This camera does not need a cloud account: it records to your NVR, works fully offline, and supports HTTPS and firmware encryption. If you want zero outbound traffic, put the system on an isolated network — it still records locally.
Q.13
Which 3849 turret should I buy?
Four turrets share the red and blue lights and siren voices. The HDW3849 S2 is the current TiOC 3.0 pick — 0.004 lux F1.0 colour, SMD 4.0 and AcuPick support — and it powers our 4, 6 and 8 camera kits. The PRO is the night specialist: colour rated to 0.0008 lux, five times less light needed than the S2. The ZAS adds a motorised 2.7–13.5mm zoom and 50m infrared for gates and long driveways. The S3 black is the previous generation — same lights and siren on older SMD 3.0 AI, without AcuPick or two-way talk.
Q.14
What warranty coverage applies in Australia?
The camera includes a 3-year warranty covering defects. Installation labour is not covered.
§ 08In motion
Dahua WizColor Review HDW3849H-Pro
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
§ 09Bundles
Recommended packages
Building a full system?
Our 4, 6 and 8 camera TiOC kits run the white version of this exact camera with an AI NVR and 4TB drive — order the kit and note black housings in your order message.
Want the white version?
The white HDW3849 S2 is the same camera for light-coloured eaves and render.
Night-first spot?
The TiOC PRO turret rates 0.0008 lux in colour — five times less light needed — where a dark corner gets no help from ambient light.
