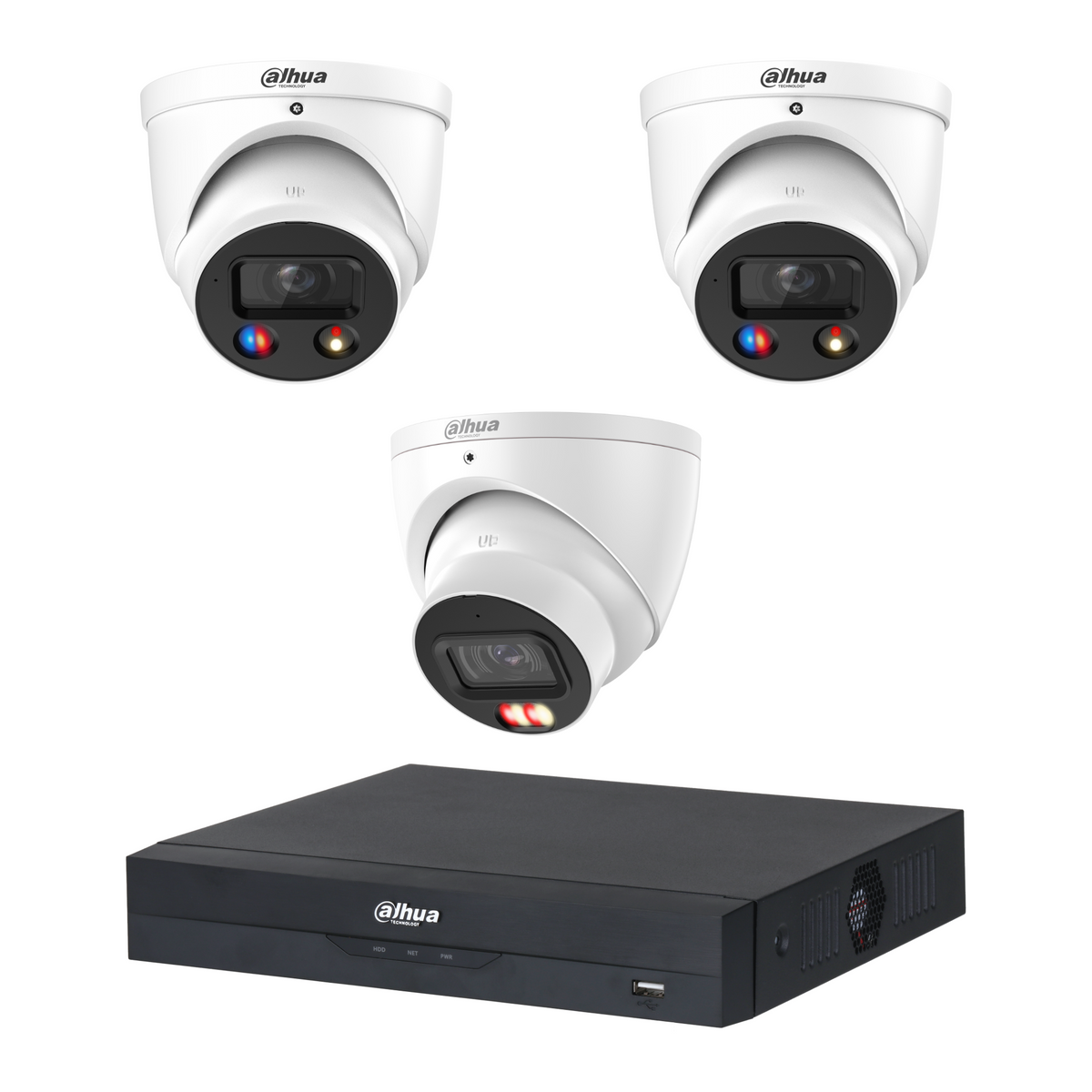

Dahua 3-Camera 6MP CCTV Kit: 2x HDW3649H-S2 + 1x HDW3667EM, 4CH NVR, No HDD
Email us
1 1
Dahua

Dahua 3-Camera 6MP CCTV Kit: 2x HDW3649H-S2 + 1x HDW3667EM, 4CH NVR, No HDD

SKU: KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD
Description

2 × HDW3649H-S2 6MP TiOC S2 + 1 × HDW3667EM 6MP Smart Dual Light, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder.

The 2 TiOC S2 + 1 Smart Dual Light combination lets you assign different camera types to different locations. HDW3649H-S2: IR and warm light, each rated up to 30 m. HDW3667EM: IR and warm light, each rated up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

6MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 4 x POE PORTS
$882.98 AUD $882.98 AUD $1,326.00 AUD
Sale 33.41% $443.02 AUD (33.41%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $882.98
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC Active Deterrence Turret Camera, White
  • 1 × Dahua DH-IPC-HDW3667EM-S-IL-ANZ 6MP Dual Light Turret Network Camera AcuPick WizSense
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW3649H-AS-PV-ANZ-S2
+$0.00
DH-IPC-HDW3667EM-S-IL-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua 3-Camera 6MP CCTV Kit: 2x HDW3649H-S2 + 1x HDW3667EM, 4CH NVR, No HDD $882.98
Total: $882.98

01Overview

What the KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD is

Plan each position around the type of coverage it needs. This 3-camera kit combines 2 white DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP turret cameras with 1 white DH-IPC-HDW3667EM-S-IL-ANZ 6MP turret cameras and one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.

HDW3649H-S2 (2 included): 6MP 3072 × 2048 at up to 25/30 fps, subject to stream settings; Smart Dual Light with IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle classification for tripwire and intrusion; Red/blue warning lights, voice alarm, built-in microphone and speaker with two-way talk; 120 dB WDR and IP67 metal housing. Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site.

HDW3667EM (1 included): 6MP 3288 × 1850 at up to 25/30 fps, subject to stream settings; Smart Dual Light with IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle classification for tripwire and intrusion; Built-in microphone, 120 dB WDR and IP67 metal housing. Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.

The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. 1 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 29.7 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

See it in action

What the KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD features actually look like

Representative illustrations of how each key feature performs in a real scene.

Illustrative driveway at night

Infrared · black & white

Smart Dual Light

6MP detail. Colour when a target is detected.

Applies to: 1 × DH-IPC-HDW3667EM-S-IL-ANZ (base kit cameras)

02Engineering

KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD specifications

- 2 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 — 6MP TiOC S2 turret, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- 1 × DH-IPC-HDW3667EM-S-IL-ANZ — 6MP Smart Dual Light turret, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- HDW3649H-S2 — 3072 × 2048 up to 25/30 fps; SMD 4.0; built-in microphone and speaker; two-way talk; IP67.
- HDW3667EM — 3288 × 1850 up to 25/30 fps; SMD 4.0; built-in microphone; IP67.
- 4CH PoE recorder — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — 1 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 29.7 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua 3-Camera 6MP CCTV Kit: 2x HDW3649H-S2 + 1x HDW3667EM, 4CH NVR, No HDD
FeatureDetail
Camera composition 2 × HDW3649H-S2 6MP TiOC S2 + 1 × HDW3667EM 6MP Smart Dual Light
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 1 / 1

04Why choose this

Built for the way you actually use the KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD

Different camera types for different positions

Allocate the 2 TiOC S2 + 1 Smart Dual Light mix deliberately. Put each camera where its illumination and audio capabilities meet the actual scene rather than distributing them at random.

One recorder for the supplied views

Connect the 3 cameras to the recorder's built-in PoE ports. 1 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.

Choose lighting deliberately

HDW3649H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. HDW3667EM: Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Assign the 2 TiOC S2 cameras to the positions that benefit most from their documented features, then use the 1 Smart Dual Light cameras for the remaining routes or activity areas. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 2 × DH-IPC-HDW3649H-AS-PV-ANZ-S2, white, 2.8 mm turret camera
    • 1 × DH-IPC-HDW3667EM-S-IL-ANZ, white, 2.8 mm turret camera
    • 1 × DHI-NVR4104HS-P-AI/ANZ 4CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 3 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW3649H-S2-2CAM-HDW3667EM-1CAM-NVR4104-NOHDD

Q.01

Does this kit include a hard drive?
No. The base configuration contains 2 × HDW3649H-S2 6MP TiOC S2 + 1 × HDW3667EM 6MP Smart Dual Light and one DHI-NVR4104HS-P-AI/ANZ recorder, without storage. The recorder has one SATA bay. Select compatible surveillance storage separately for bitrate, recording schedule and retention.
Q.02

How should I assign the different cameras?
Choose positions by the required image, lighting and audio. 2 × HDW3649H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. 1 × HDW3667EM: Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio. Test the actual mounting angle and night scene before finalising each position.
Q.03

Can I add more cameras?
1 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Q.04

Will all cameras provide colour images in darkness?
HDW3649H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. HDW3667EM: Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.
Q.05

How are the cameras powered?
The supplied set connects to 3 of the recorder's 4 built-in PoE ports, using one suitable Ethernet cable per camera for power and video. Cabling is not included. The calculated maximum camera-set PoE demand is 29.7 W before cable losses.
Q.06

What should I check when setting recording quality?
HDW3649H-S2: 3072 × 2048 up to 25/30 fps. HDW3667EM: 3288 × 1850 up to 25/30 fps. Frame-rate limits depend on stream settings and video standard. NVR recording bandwidth, AI processing limits and simultaneous live-view decoding are separate considerations; use suitable substreams for multi-camera grids.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Compare a related configuration

See the four-camera TiOC turret kit. Compare matching TiOC cameras at every position rather than this mixed-camera setup; verify exact included recorder and storage on that page.

02

Choose the mix and recorder capacity

This base kit contains 2 × HDW3649H-S2 6MP TiOC S2 + 1 × HDW3667EM 6MP Smart Dual Light and a 4-channel recorder. 1 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Select a different camera count or mix if the site's required views differ.
