Dahua HDBW3667E 2-Camera 6MP Dome CCTV Kit + 4CH PoE NVR, No HDD
Email us
1 1
Dahua

Dahua HDBW3667E 2-Camera 6MP Dome CCTV Kit + 4CH PoE NVR, No HDD

SKU: KIT-HDBW3667E-2CAM-NVR4104-NOHDD
Description

A two-camera Dahua dome system for an entrance, side access or small shop. Two white HDBW3667E-AS-IL-ANZ cameras pair with the four-channel NVR4104HS-P-AI/ANZ PoE recorder.

Each camera combines 6MP imaging, Smart Dual Light, a built-in microphone and human/vehicle event classification in an IP67 and IK10-rated dome housing. The supplied 2.8 mm lens provides a wide view, while the recorder leaves two channels available for compatible expansion.

No hard drive is included. Add a compatible surveillance SATA drive for NVR recording. Network cabling, microSD cards and optional mounting accessories are separate.

Price reference (22 October 2026): Our list price of A$819.00 is based on CCTV Guru's advertised original price for the equivalent white, four-channel configuration. Our selling price is A$626.22, 2% below their checked selling price of A$639.00.

2 cameras 6MP Ultra HD 30m IR Night Vision Dual-Light Night Vision Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Built-in Microphone 4 x POE PORTS
$626.22 AUD $626.22 AUD $819.00 AUD
Sale 23.54% $192.78 AUD (23.54%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $626.22
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Dahua 6MP WizSense IPC-HDBW3667E-AS-IL-ANZ Dome Camera with Smart Dual Light, 2.8mm Lens, 30m IR
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras IPC-HDBW3667‌E-AS-IL-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDBW3667E 2-Camera 6MP Dome CCTV Kit + 4CH PoE NVR, No HDD $626.22
Total: $626.22

01Overview

What the KIT-HDBW3667E-2CAM-NVR4104-NOHDD is

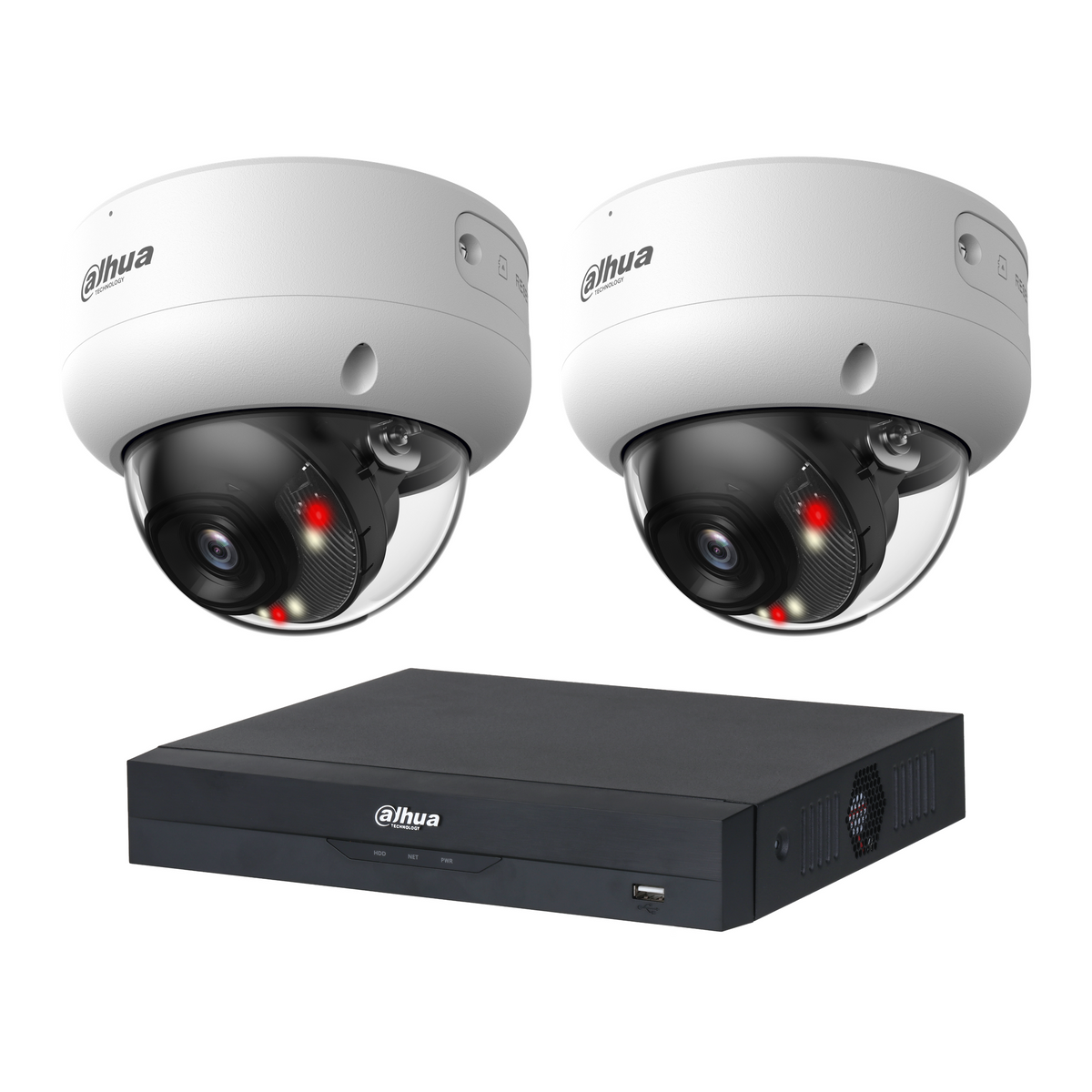

Two white HDBW3667E-AS-IL-ANZ 6MP dome cameras and one NVR4104HS-P-AI/ANZ four-channel PoE recorder form a small system for two separate viewpoints, such as an entrance and a side passage. The base kit contains two 2.8 mm cameras and one recorder. A hard drive and network cabling are not included.

Each camera records up to 3288 × 1850 pixels and combines a built-in microphone with SMD 4.0 human/vehicle classification and tripwire/intrusion detection. The 2.8 mm fixed lens provides a 110° horizontal field of view. Its metal dome housing carries IP67 weather protection and an IK10 impact-resistance rating, useful where the camera may be within reach.

Smart Dual Light uses infrared for black-and-white night viewing and can switch on warm light when a target enters the monitored area, capturing the event in colour. Dahua rates both illuminators up to 30 m. This is an illumination range, not a guarantee of identifying a face or number plate at that distance; positioning and scene conditions still matter.

The recorder connects and powers the two cameras through its PoE ports, leaving two channels and two physical PoE ports unused. Each camera is rated at up to 7.5 W on PoE, so the supplied pair totals 15 W before cable losses. The recorder provides four IEEE 802.3af/at ports and 80 Mbps incoming bandwidth. Add a compatible surveillance SATA hard drive to use NVR recording and playback.

See it in action

What the KIT-HDBW3667E-2CAM-NVR4104-NOHDD features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac...

6MP Ultra HD

6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Dual-Light Night Vision — Combines infrared with a warm spotlight so it can light a scene in colour at nigh...

Dual-Light Night Vision

Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

02Engineering

KIT-HDBW3667E-2CAM-NVR4104-NOHDD specifications

- Two white 6MP dome cameras — HDBW3667E-AS-IL-ANZ, 3288 × 1850 maximum resolution, up to 25/30 fps depending on video standard and stream settings.
- Wide fixed-lens coverage — 2.8 mm F1.4 lens with 110° horizontal view; plan each camera position for the detail you need.
- Smart Dual Light — infrared and warm-light illumination, each rated up to 30 m, with automatic or manual illumination control.
- Relevant event detection — SMD 4.0 and human/vehicle classification for intrusion and tripwire rules; configure zones for the actual site.
- Audio and image handling — built-in microphone, 120 dB WDR and H.265/H.264 video compression.
- Protected camera housings — IP67 and IK10 metal domes; these camera ratings do not apply to the indoor recorder.
- Four-channel PoE NVR — NVR4104HS-P-AI/ANZ, four integrated PoE ports, 80 Mbps incoming bandwidth, HDMI and VGA outputs.
- Storage chosen separately — one SATA hard-drive bay in the recorder; no HDD or microSD card is included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDBW3667E 2-Camera 6MP Dome CCTV Kit + 4CH PoE NVR, No HDD
FeatureDetail
Cameras 2 × DH-IPC-HDBW3667E-AS-IL-ANZ, white, 2.8 mm
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Camera body Dome
Unused NVR channels / PoE ports 2 / 2

04Why choose this

Built for the way you actually use the KIT-HDBW3667E-2CAM-NVR4104-NOHDD

Two monitored viewpoints

Use a dedicated camera for each area rather than asking one wide view to cover every approach. The supplied pair leaves two recorder channels available for compatible future cameras.

A dome housing where impact resistance matters

The HDBW camera combines IP67 protection with an IK10-rated metal dome. Check the mounting surface, viewing angle and access for cleaning before installation.

Colour when the scene calls for it

Smart Dual Light can switch from infrared to warm-light colour capture for detected activity, rather than requiring the warm light to stay on continuously.

Choose recording storage to suit the job

No HDD is included in the base kit. A 2TB surveillance drive is an optional starting point for this two-camera system; choose it in the hard-drive selector if required. Recording duration depends on bitrate, recording mode and schedule, so check your retention needs before choosing capacity.

05Where it fits

Right at home in these scenarios

Indoor warehouse entrances and stock areas

Use one dome at a warehouse entry and the other over a stock-handling area or aisle. The compact, IK10-rated housing suits positions where accidental knocks or tampering are concerns. Check sightlines around racks and keep the dome accessible for cleaning; a dusty warehouse still needs regular cover maintenance.

Shop entrances and sheltered outdoor access

The IP67-rated cameras can monitor outdoor entrances and side access as well as indoor areas. Aim away from direct sunlight, strong lamps and nearby reflective surfaces. Dust, fingerprints or water marks on a dome can scatter illumination and cause night-time glare; clean the cover and test the view after dark.

A two-camera starting point

Start with two dome positions and assess future coverage before filling the remaining channels. Additional cameras must fit the recorder channel, bandwidth and PoE limits. Keep the recorder indoors in a dry, ventilated location.

06Setup

Installation & setup

  1. Included in this base kit

    • DH-IPC-HDBW3667E-AS-IL-ANZ, white, 2.8 mm dome camera × 2
    • DHI-NVR4104HS-P-AI/ANZ four-channel PoE NVR × 1
    • No HDD, microSD card or network cabling is included. Mounting accessories and other optional items are separate.

  2. Plan the installation

    • Provide one suitable Ethernet cable run from each camera to a recorder PoE port.
    • Select a mounting surface that supports the camera and any required bracket; follow the dome installation guide and weatherproof exposed cable joints.
    • Keep the recorder dry and ventilated, with access for a monitor, mouse and network connection.

  3. Set up recording

    • If selected, fit the optional 2TB or another compatible surveillance SATA hard drive using the recorder instructions.
    • Initialise the recorder and cameras, set strong passwords, correct the date/time and configure the drive and recording schedule.
    • Aim the cameras, test day/night lighting and draw intrusion or tripwire zones for the actual site. Check recordings and playback before relying on the system.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDBW3667E-2CAM-NVR4104-NOHDD

Q.01

Does this kit include a hard drive, and can I add 2TB?
No. The base kit contains two HDBW3667E-AS-IL-ANZ cameras and one NVR4104HS-P-AI/ANZ recorder, without a hard drive. No HDD remains the default selection. You can add the optional 2TB surveillance drive in the hard-drive selector; its price is added to the base kit. Initialise the drive and set the recording schedule after installation. Retention depends on your recording settings; a microSD card is not supplied.
Q.02

Will the warm lights stay on all night?
Not necessarily. In Smart Dual Light operation, infrared is normally used at night; the warm light switches on when a target enters the monitored area and turns off when the target leaves. The camera also supports automatic and manual illumination control. Test the selected mode and detection zones at the installation site.
Q.03

Can the recorder power both cameras, and can I add more later?
Yes. Each supplied camera supports IEEE 802.3af PoE and is rated at up to 7.5 W on PoE, giving 15 W for the pair before cable losses. The recorder has four IEEE 802.3af/at PoE ports. Two ports and two recording channels remain unused; check the total PoE load, incoming bandwidth and compatibility before adding cameras.
Q.04

How does the HDBW dome differ from the HDW3667 turret?
These are separate models with different housings and mounting arrangements. Both manufacturer datasheets specify 6MP Smart Dual Light imaging and a 110° horizontal view for the 2.8 mm lens. The HDBW3667E dome is explicitly rated IP67 and IK10; choose the body and mounting accessories for the actual installation rather than treating the model names as interchangeable.
Q.05

What is the difference between Quick Pick and AcuPick?
Quick Pick helps narrow down recorded SMD human/vehicle events to a target of interest, reducing manual checking. AcuPick uses a selected person or vehicle as a target for appearance-based searching across compatible recordings, and requires a compatible camera, recorder and firmware combination. This kit uses the NVR4104 Quick Pick configuration; AcuPick is not a feature promised for this supplied recorder. For a straightforward two-camera installation, ordinary event playback and Quick Pick may be sufficient. Consider AcuPick when you regularly need more extensive target searches, rather than as a requirement for basic recording.
Q.06

Can these dome cameras be used outdoors or in a warehouse?
Yes. The HDBW3667E cameras are IP67-rated for indoor/outdoor installation and IK10-rated for impact resistance. They suit indoor warehouse entrances, aisles and stock areas when positioned for the required detail. Outdoors, avoid aiming into strong light or very close reflective surfaces, weatherproof exposed cable joints and allow access for cleaning. Dust, fingerprints and water marks on the dome can scatter light and cause glare, particularly with infrared at night; check both daytime and night-time images. Keep the NVR indoors in a dry, ventilated location.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Compare the 3667 turret shape

Prefer an open-faced turret housing? Compare the HDW3667EM-S-IL-ANZ 6MP Smart Dual Light turret. It is a different camera body in the 3667 range, with its own dimensions and mounting accessories. The HDBW domes in this kit have a documented IK10 rating.
